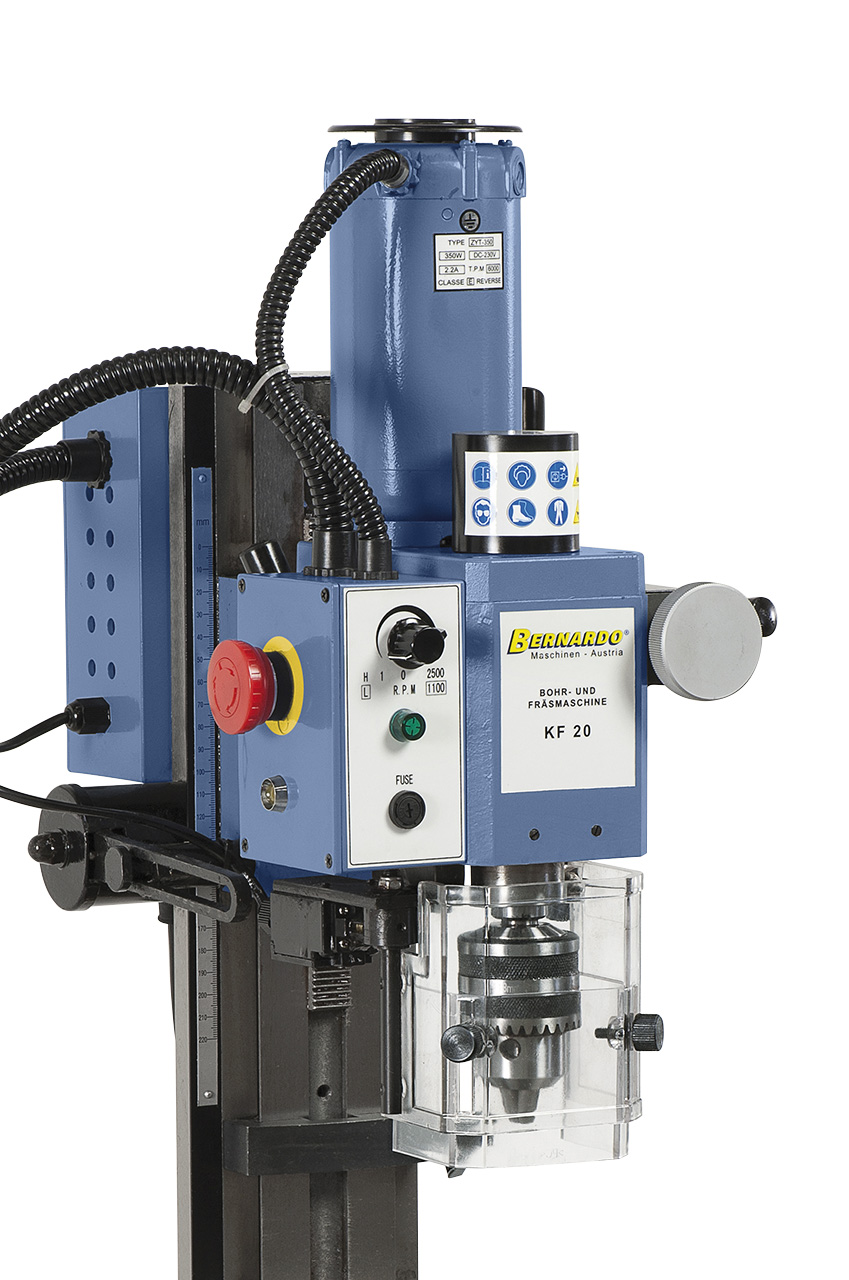

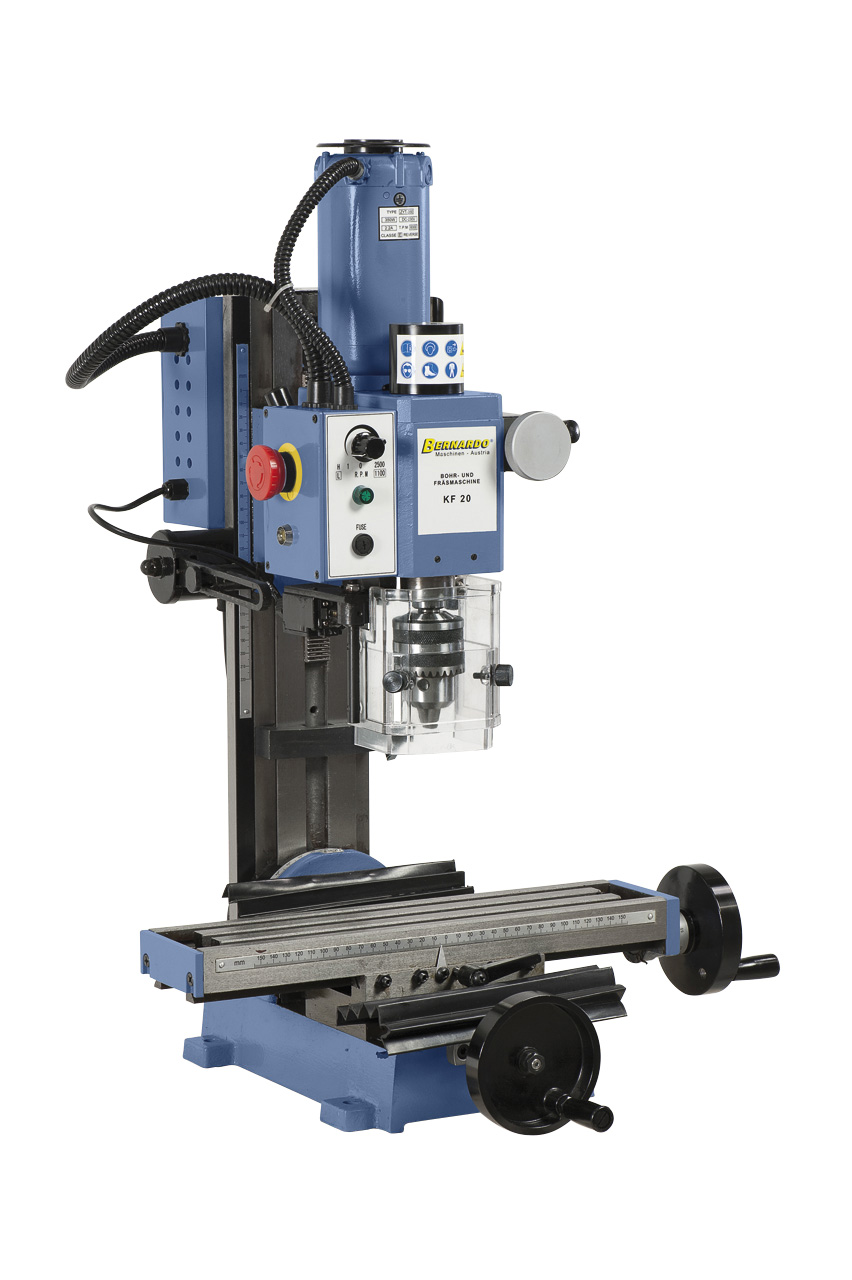

Drilling and milling machine Bernardo KF 20
The KF 20 is ideal for drilling, milling and countersinking of smaller workpieces. The compact construction provides vibration-free environment for model-makers with high demands.
Scope of delivery Drilling and milling machine Bernardo KF 20
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Drawbar M 12
- Height adjustable protective cover
- Tools
Features Drilling and milling machine Bernardo KF 20
- Guides can be clamped individually to guarantee optimal results

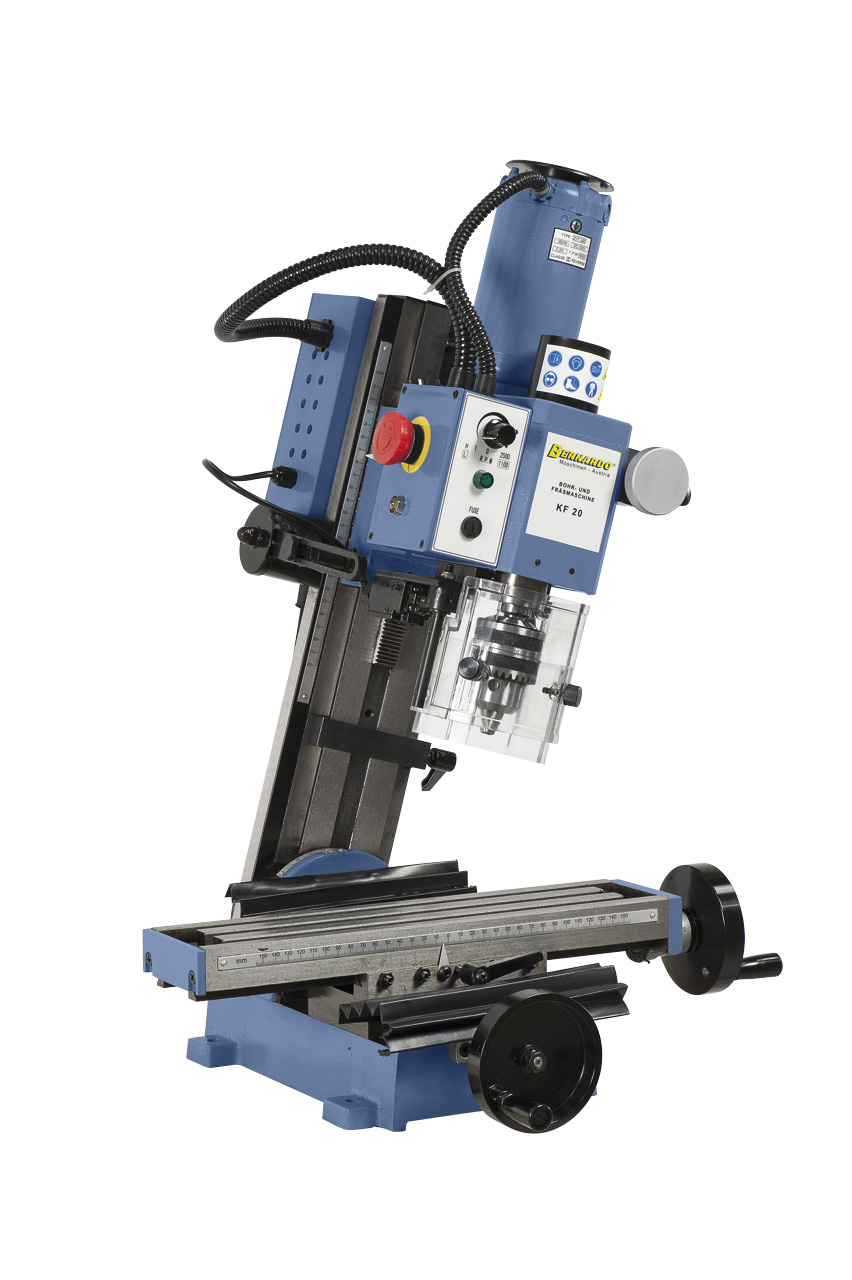

- Tiltable mill head increases application range (-45° to +45°)
- Electronic stepless drive
- Wide speed range (2 steps) from 0 - 2500 rpm

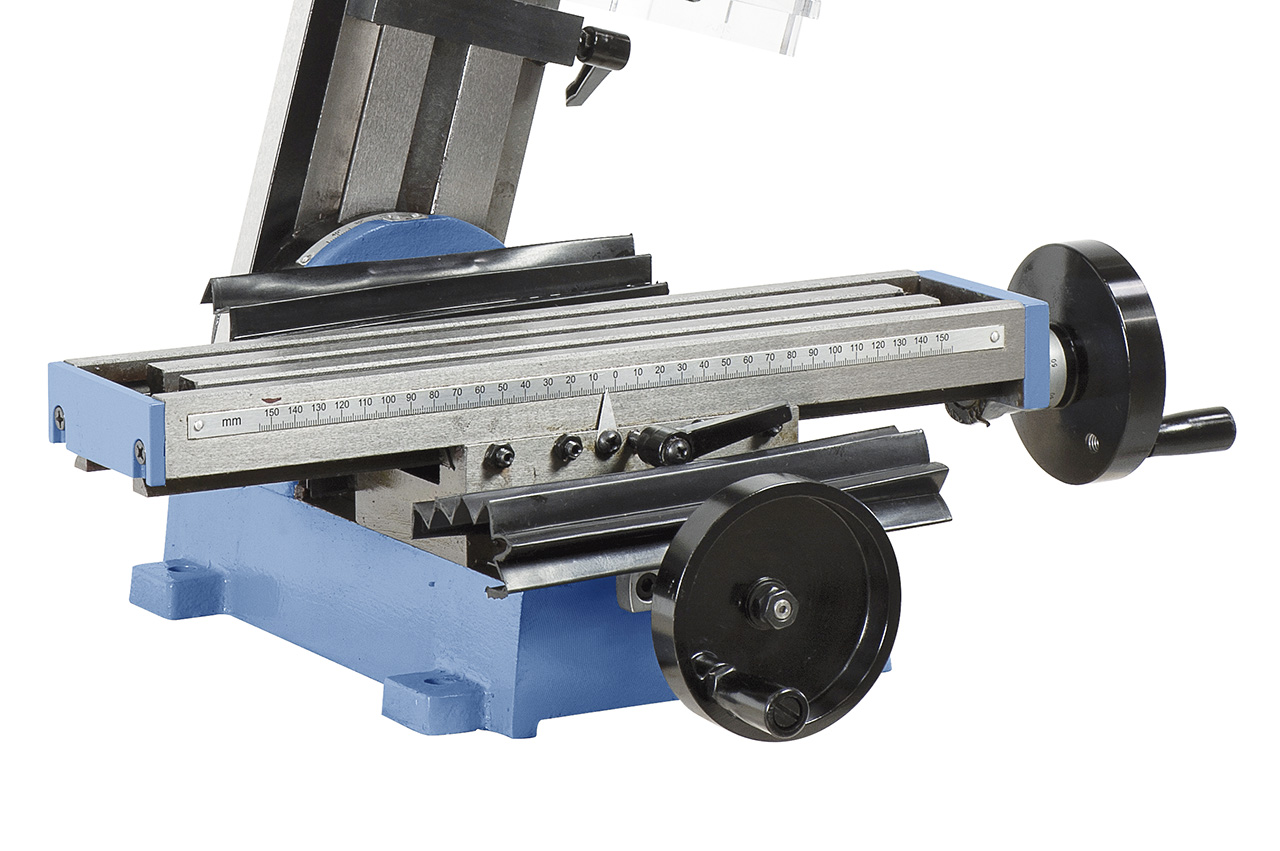

- Dovetail guiding in x-, y- and z-axis
- Scale allows easy read of drill depth
- Spindle with precise fine feed
- Handwheel allows spindle feed when milling
- Star handle allows spindle feed when drilling
Technical details Drilling and milling machine Bernardo KF 20
| Drilling capacity in steel | 13 mm |
| Face mill capacity max. | 30 mm |
| End mill capacity max. | 16 mm |
| Distance spindle to column | 165 mm |
| Distance spindle to table | 100 - 290 mm |
| Spindle speed, stepless |
L= 0 - 1000 rpm |
| Spindle taper | MT 3 |
| Table size | 385 x 90 mm |
| Travel (x / y) | 235 / 100 mm |
| Mill head tiltable | -45° to +45° |
| Height adjustment of mill head | 190 mm |
| T-slot size | 12 mm |
| Motor power output S1 100% | 0,35 kW / 230 V |
| Motor power input S6 40% | 0,55 kW / 230 V |
| Machine dimension (W x D x H) | 510 x 550 x 760 mm |
| Weight approx. | 50 kg |
