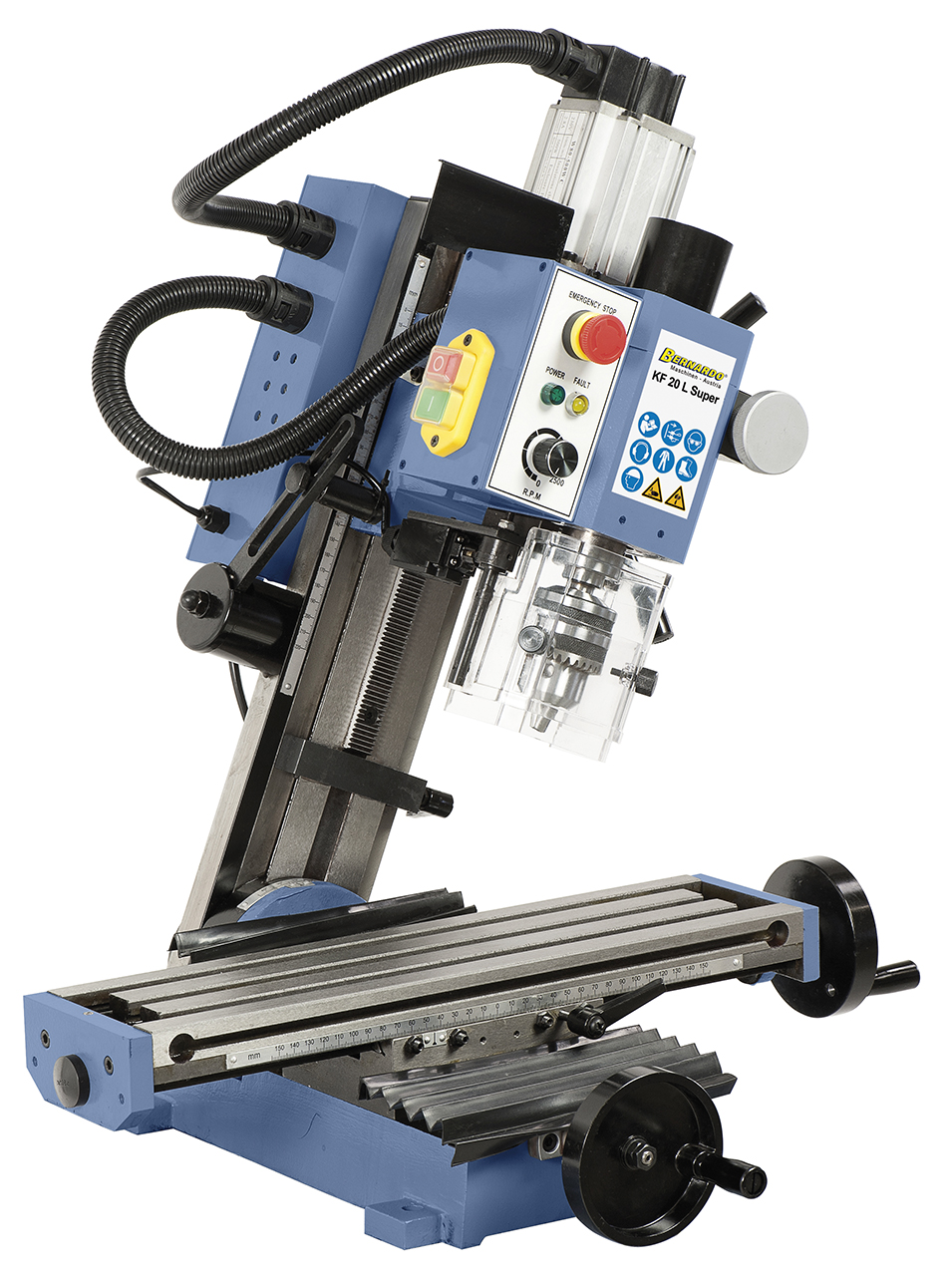

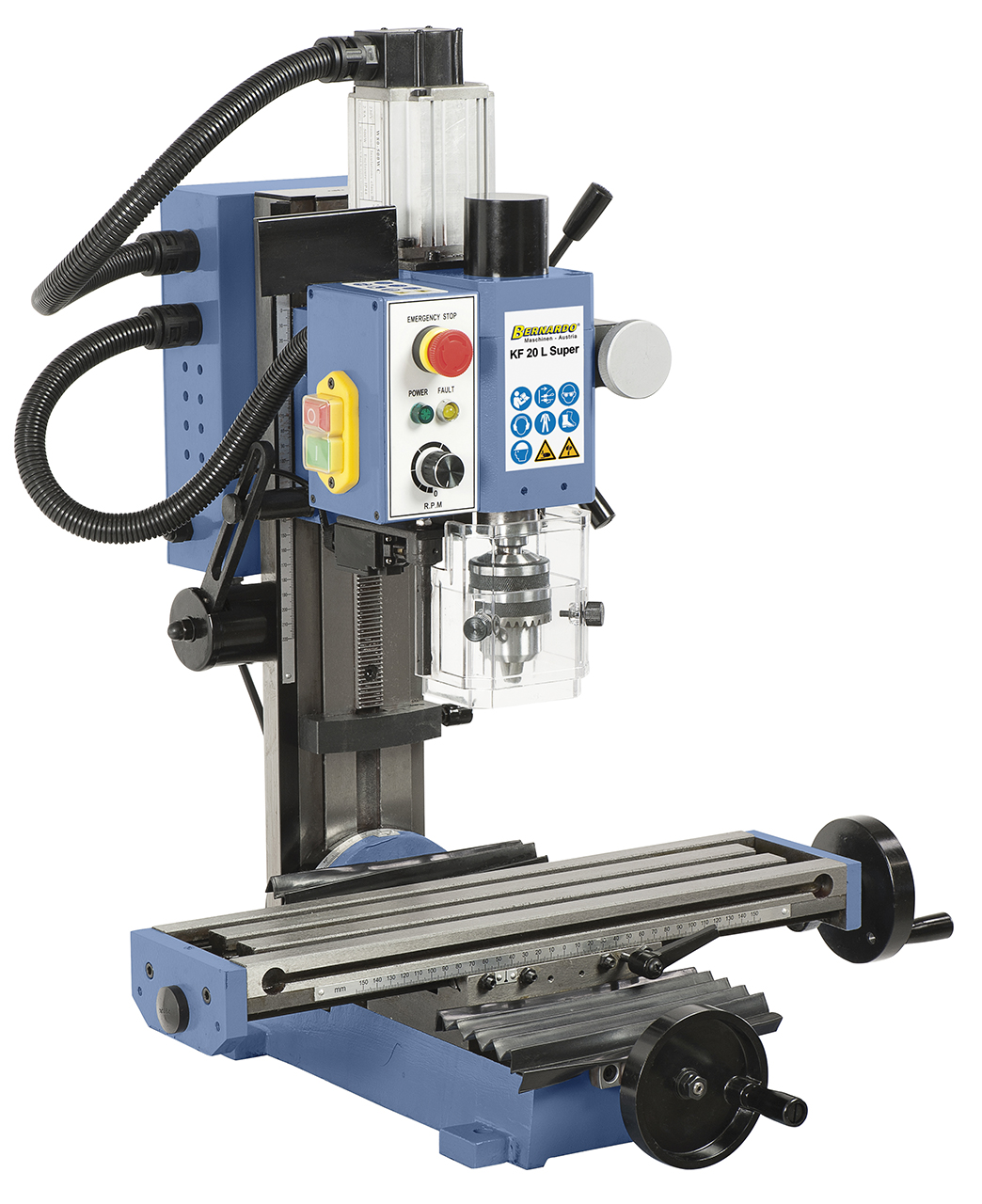

Drilling and milling machine Bernardo KF 20 L Super

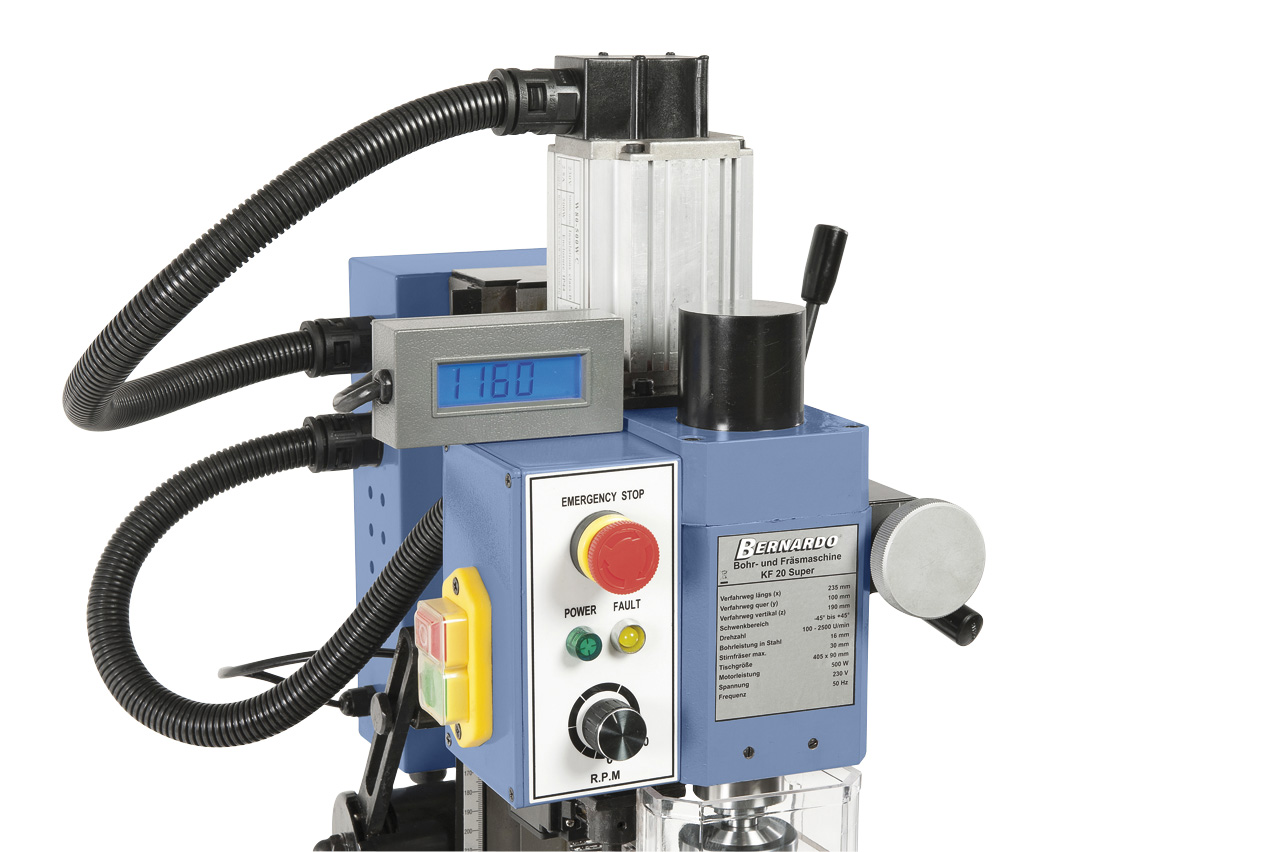

The milling machine KF 20 L Super features a brushless DC- motor, allowing smooth operation and a consistent spindle drive over the entire speed range.
Scope of delivery Drilling and milling machine Bernardo KF 20 L Super
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Drawbar M 12
- Height adjustable protective cover
- Tools
Features Drilling and milling machine Bernardo KF 20 L Super
- Brushless direct current motor ensures optimal torque at low range
- Dovetail guiding in x-, y-, and z-axis, adjustable via gibs
- Mill head tilts to both sides for drilling of angles, bevelling etc.
- Guides can be clamped individually to guarantee optimal results

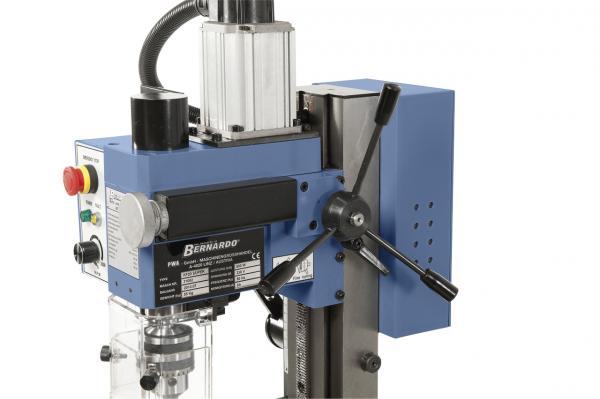

- Handle grip allows spindle adjustment, handwheel allows fine feed
- Surface treated cross table features T-slots
- Maintenance-free 500 W motor ensures smooth run
- Stepless speed setting allows perfect adjustment to work piece
Technical details Drilling and milling machine Bernardo KF 20 L Super
| Drilling capacity in steel | 13 mm |
| Face mill capacity max. | 30 mm |
| End mill capacity max. | 16 mm |
| Distance spindle to column | 165 mm |
| Distance spindle to table | 95 - 285 mm |
| Spindle speed, stepless | 100 - 2500 rpm |
| Spindle taper | MT 3 |
| Table size | 490 x 120 mm |
| Travel (x / y) | 300 / 130 mm |
| Mill head tiltable | -45° to +45° |
| Height adjustment mill head | 190 mm |
| T-slot size | 12 mm |
| Motor power output S1 100% | 0,50 kW / 230 V |
| Motor power input S6 40% | 0,75 kW / 230 V |
| Machine dimensions (W x D x H)* | 520 x 500 x 740 mm |
| Weight approx. | 60 kg |

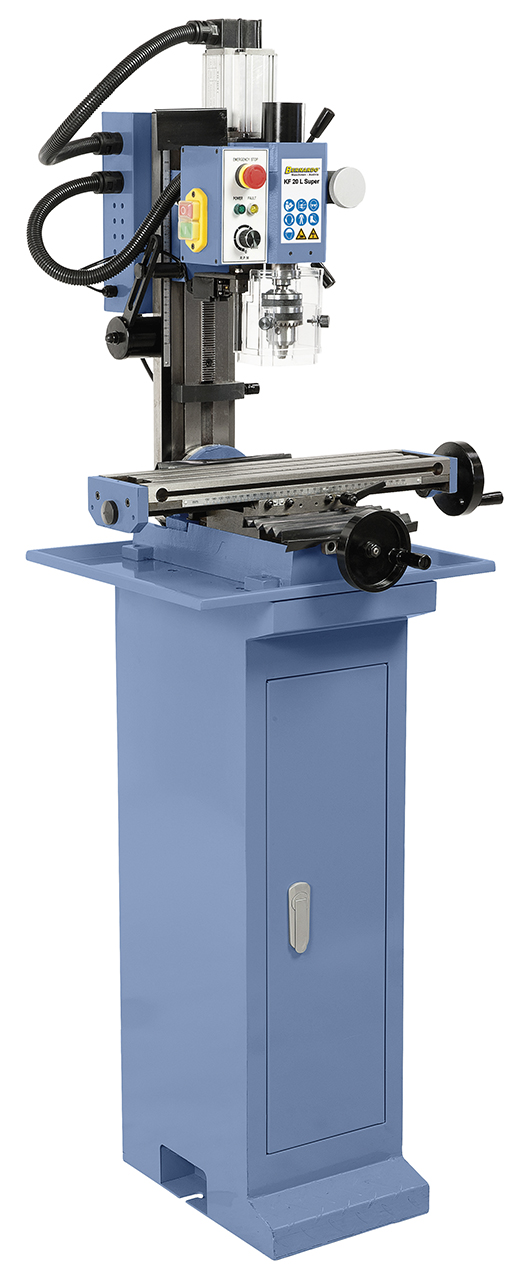

*without stand
