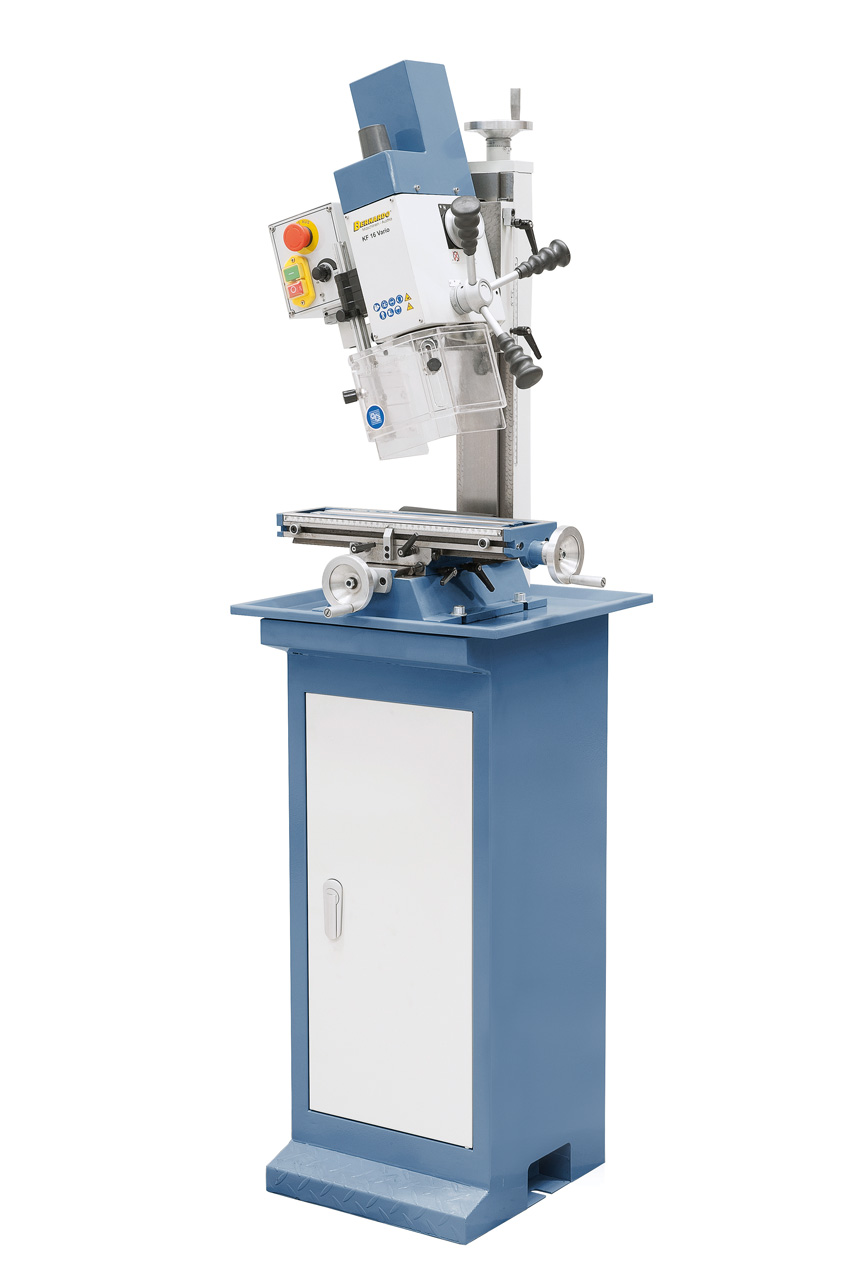

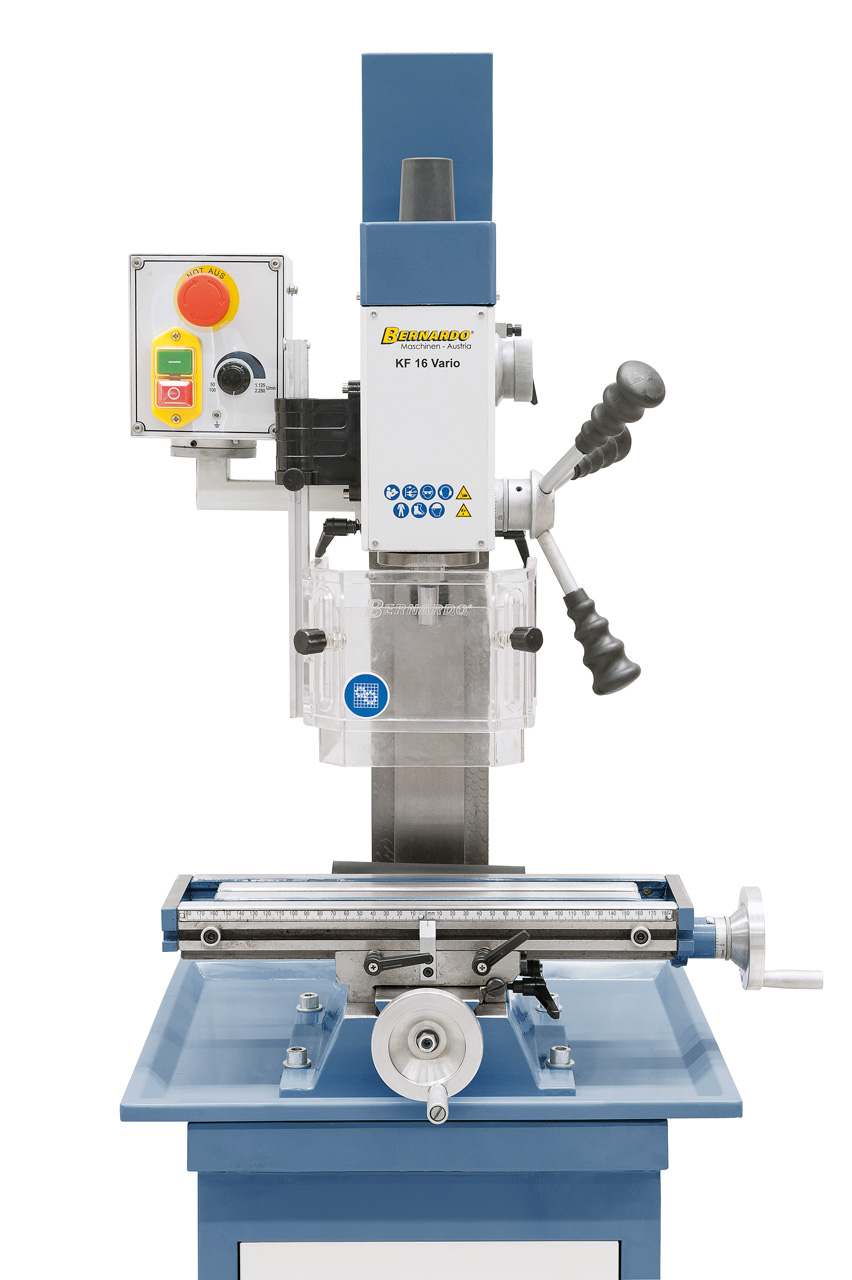

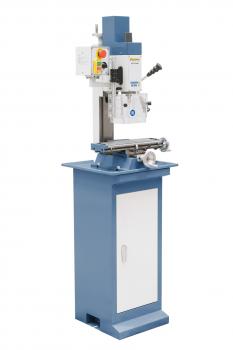

Drilling and milling machine Bernardo KF 16 Vario
The precise drilling and milling machine KF 16 Vario ideal for drilling, milling and countersinking f smaller workpieces. The compact construction provides vibration-free environment for hobbyists and do-it-yourselfers.
Scope of delivery Drilling and milling machine Bernardo KF 16 Vario
- Drawbar M 10
- Drill chuck arbor MT 2 / B 16
- EMC filter according to CE standard
- Height adjustable protective cover
- Tools
Features Drilling and milling machine Bernardo KF 16 Vario

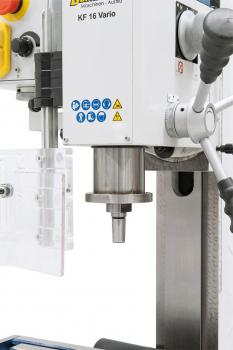

- Height adjustable protective cover with micro switch for increased safety
- Dovetail guiding in all axes, adjustable via gibs
- Numerous application possibilities, such as face milling, slotting etc.

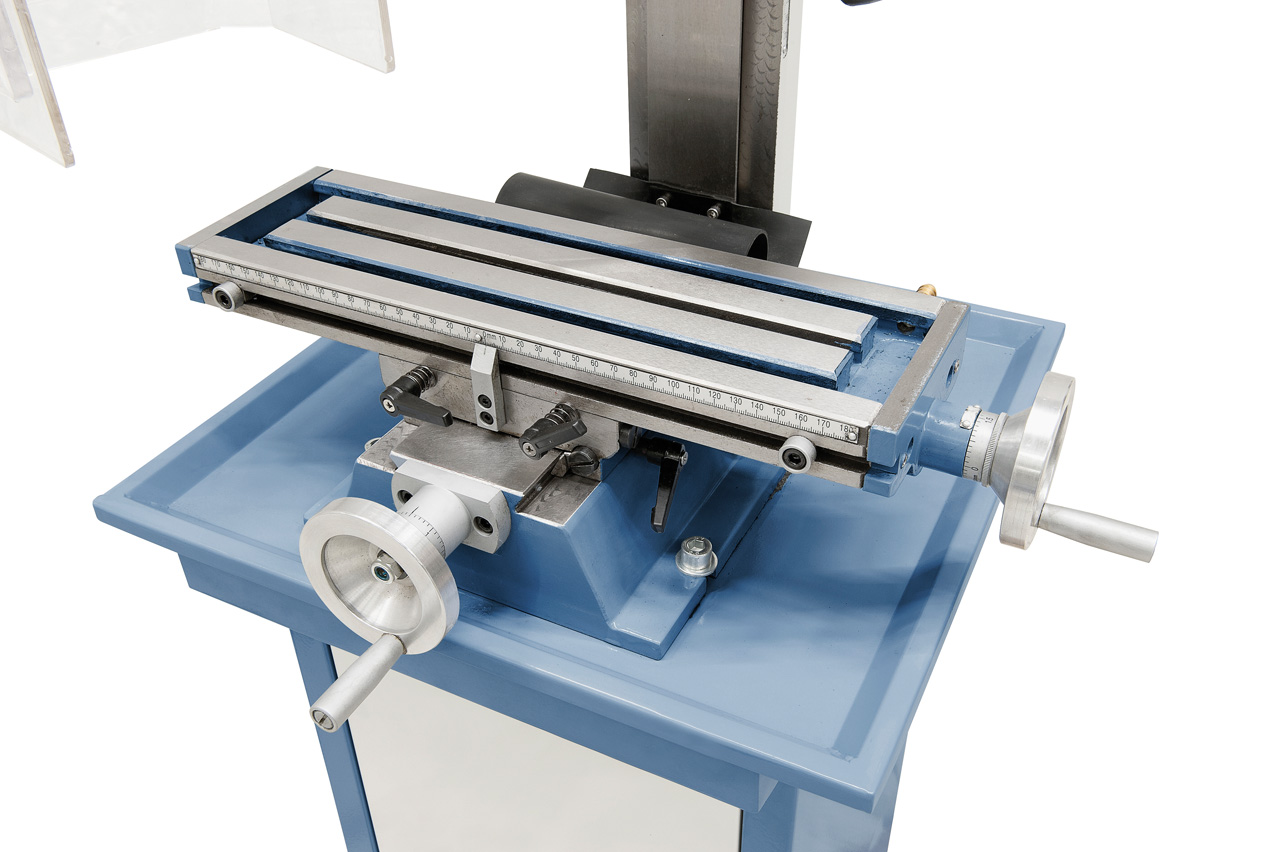

- Large cross table with scale
- Electronic stepless drive for precise results
- Solid and vibration-free grey cast-iron machine base
- Precise bearings ensure high concentricity of spindle
- Mill head tilts to both sides (-90º to +90º)
- Wide speed range (2 steps) from 50 - 2250 rpm
Technical details Drilling and milling machine Bernardo KF 16 Vario
| Drilling capacity in steel | 16 mm |
| Face mill capacity max. | 50 mm |
| End mill capacity max. | 20 mm |
| Distance spindle to column | 170 mm |
| Distance spindle to table max. | 275 mm |
| Spindle stroke | 50 mm |
| Spindle speed, stepless | 50 - 1125 / 100 - 2250 rpm |
| Spindle taper | MT 2 |
| Table size | 400 x 120 mm |
| Travel (x / y) | 230 / 140 mm |
| Mill head tiltable | -90° to +90° |
| Height adjustment of mill head | 200 mm |
| T-slot size | 10 mm |
| Motor power output S1 100% | 0,50 kW / 230 V |
| Motor power input S6 40% | 0,80 KW / 230 V |
| Machine dimension (W x D x H)* | 530 x 490 x 820 mm |
| Weight approx. | 60 kg |
|
|
|
* without stand
