Drilling and milling machine Bernardo KF 10
The compact construction of the KF 10 drilling and milling machine makes this model ideal for amateurs and craftsmen.
Scope of delivery Drilling and milling machine Bernardo KF 10

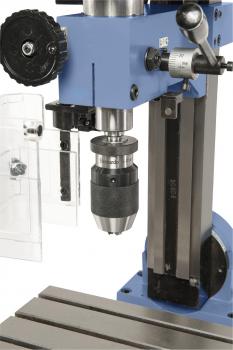

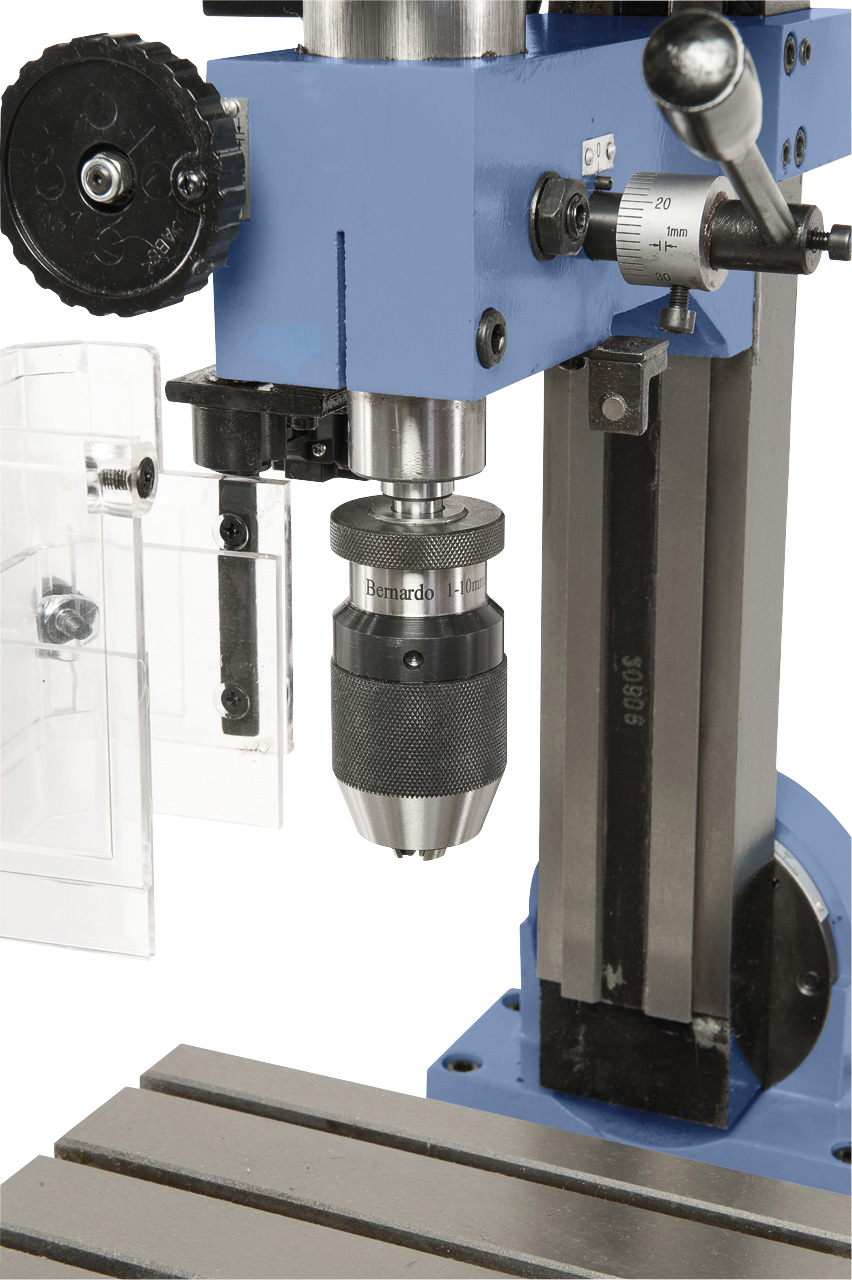

- Drill chuck 1 - 10 mm / B 12
- Drill chuck arbor MT 2 / B 12
- Drawbar M 10
- Height adjustable protective cover
- 4 T-nuts M 6
- Tools
Features Drilling and milling machine Bernardo KF 10
- Numerous application possibilities, such as face milling, slotting etc.
- Wide speed range (2 steps) from 100 - 2000 rpm
- Dovetail guiding in all axes, adjustable via gibs

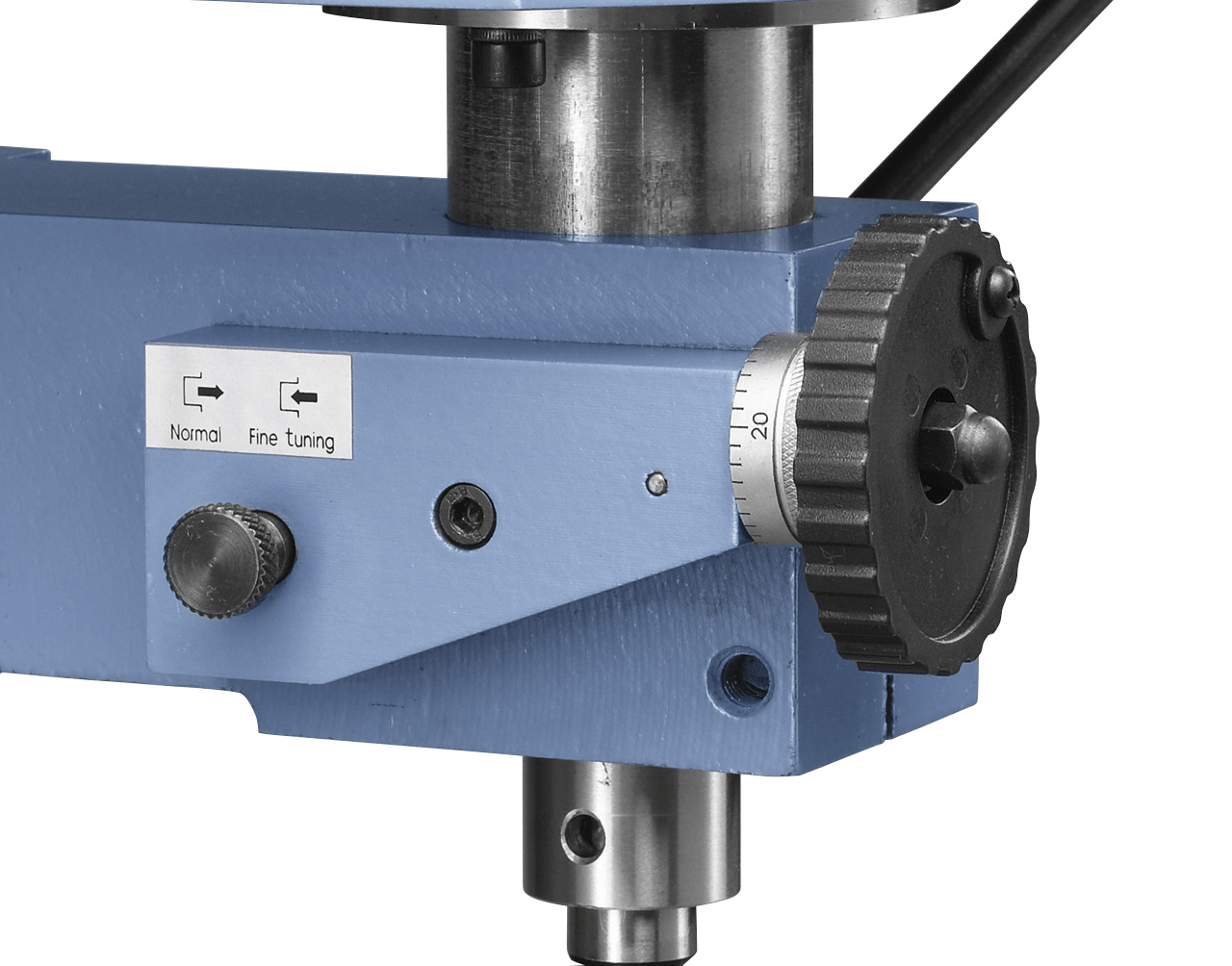

- Handwheel with scale allows spindle fine feed

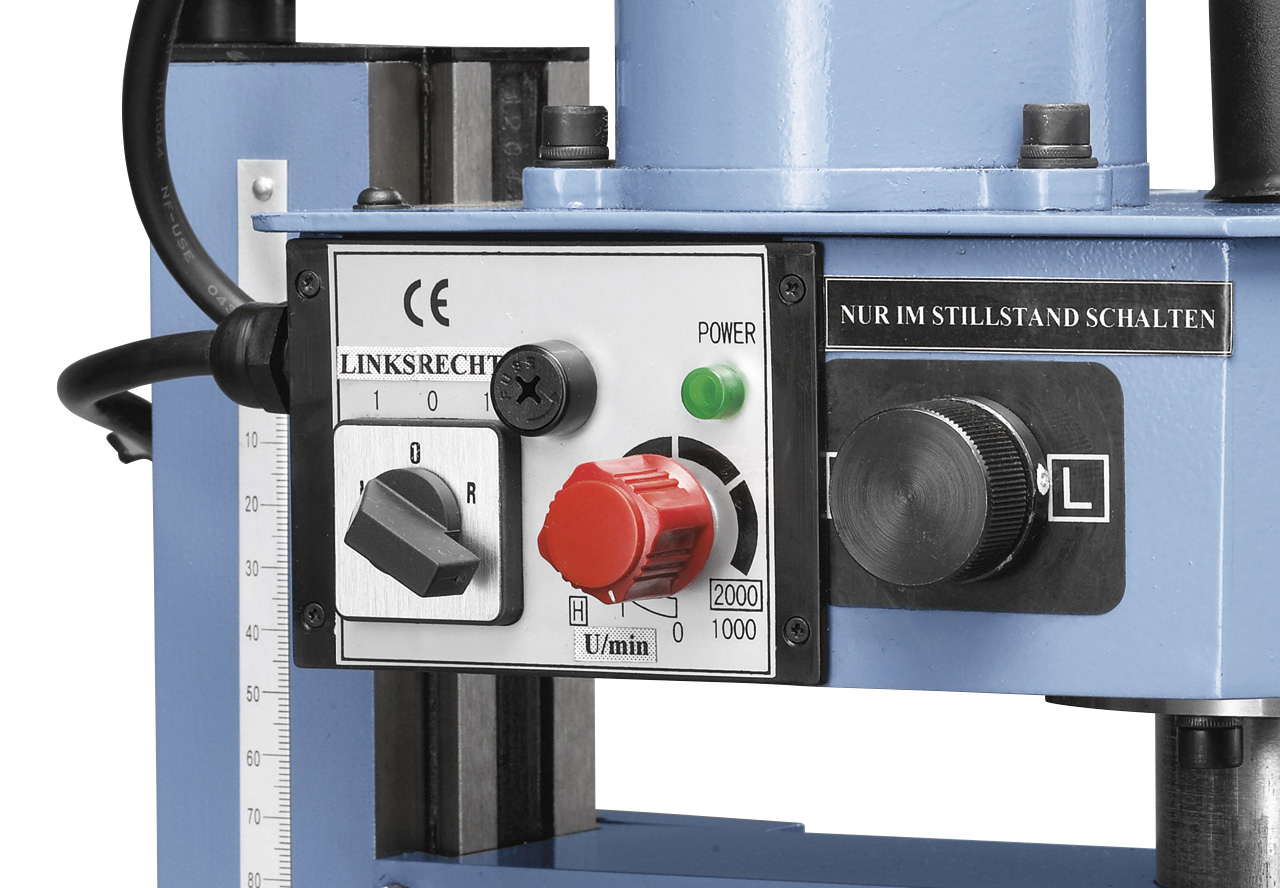

- Serial with right and left spindle rotation
- Precise bearings ensure high concentricity of spindle
- Electronic stepless drive for precise results
- Scale allows easy read of drill depth
- Solid and vibration-free grey cast-iron machine base
Technical details Drilling and milling machine Bernardo KF 10
| Drilling capacity in steel | 10 mm |
| Face mill capacity max. | 20 mm |
| End mill capacity max. | 10 mm |
| Distance spindle to column | 140 mm |
| Distance spindle to table | 80 - 260 mm |
| Spindle stroke | 30 mm |
| Spindle speed, stepless |
L= 100 - 1000 rpm |
| Spindle taper | MT 2 |

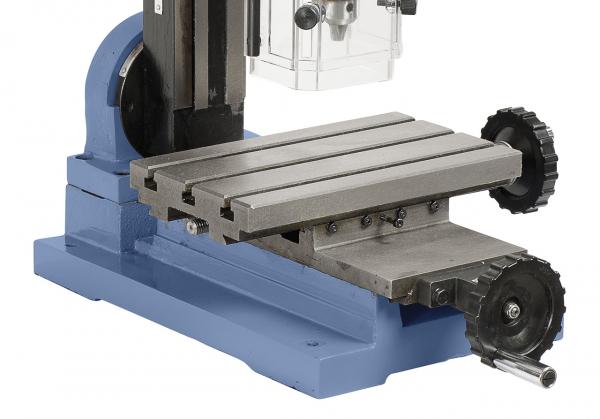

| Table size | 240 x 145 mm |
| Travel (x / y) | 180 / 130 mm |
| Height adjustment of mill head | 180 mm |
| Mill head tiltable | -45° to +45° |
| T-slot size | 8 mm |
| Motor power output S1 100% | 0,15 kW |
| Motor power input S6 40% | 0,25 kW |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 420 x 343 x 720 mm |
| Weight approx. | 45 kg |
