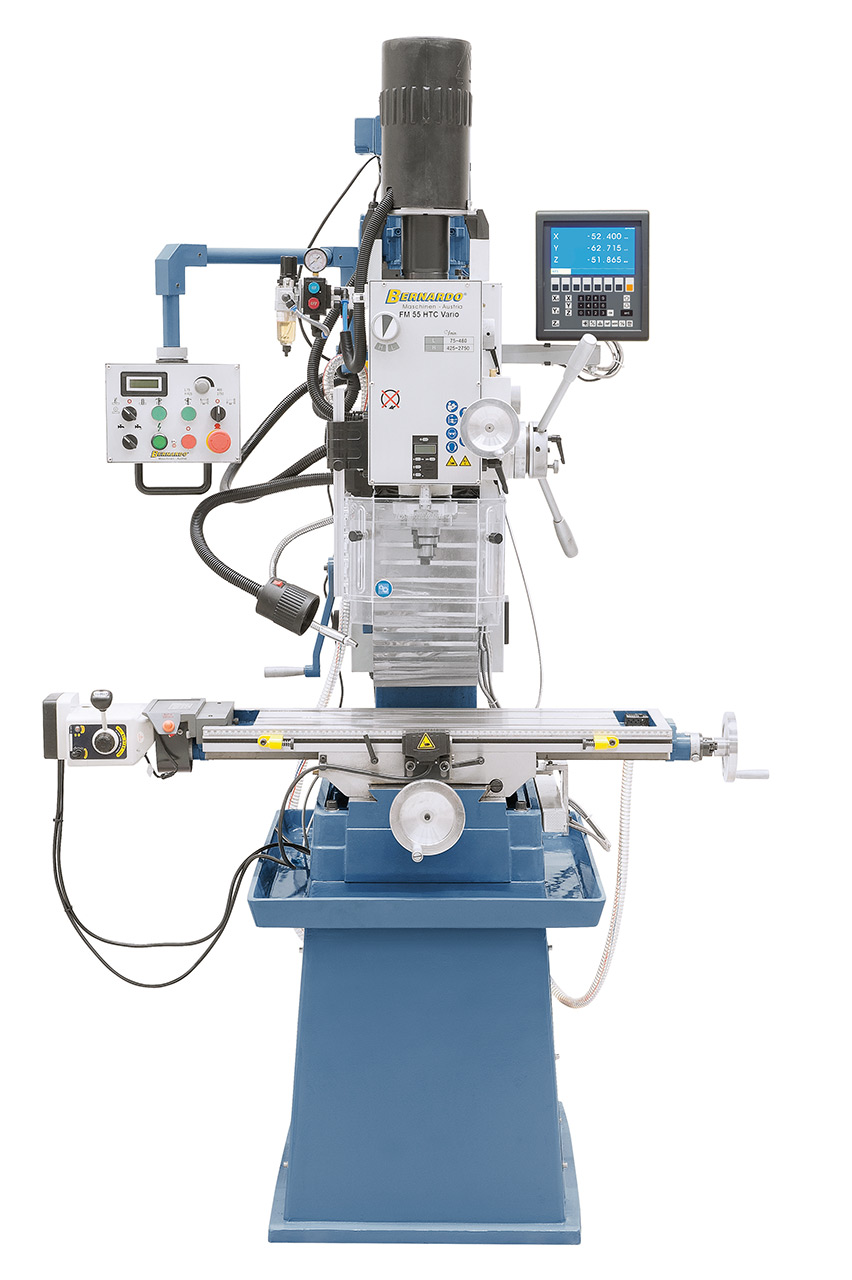

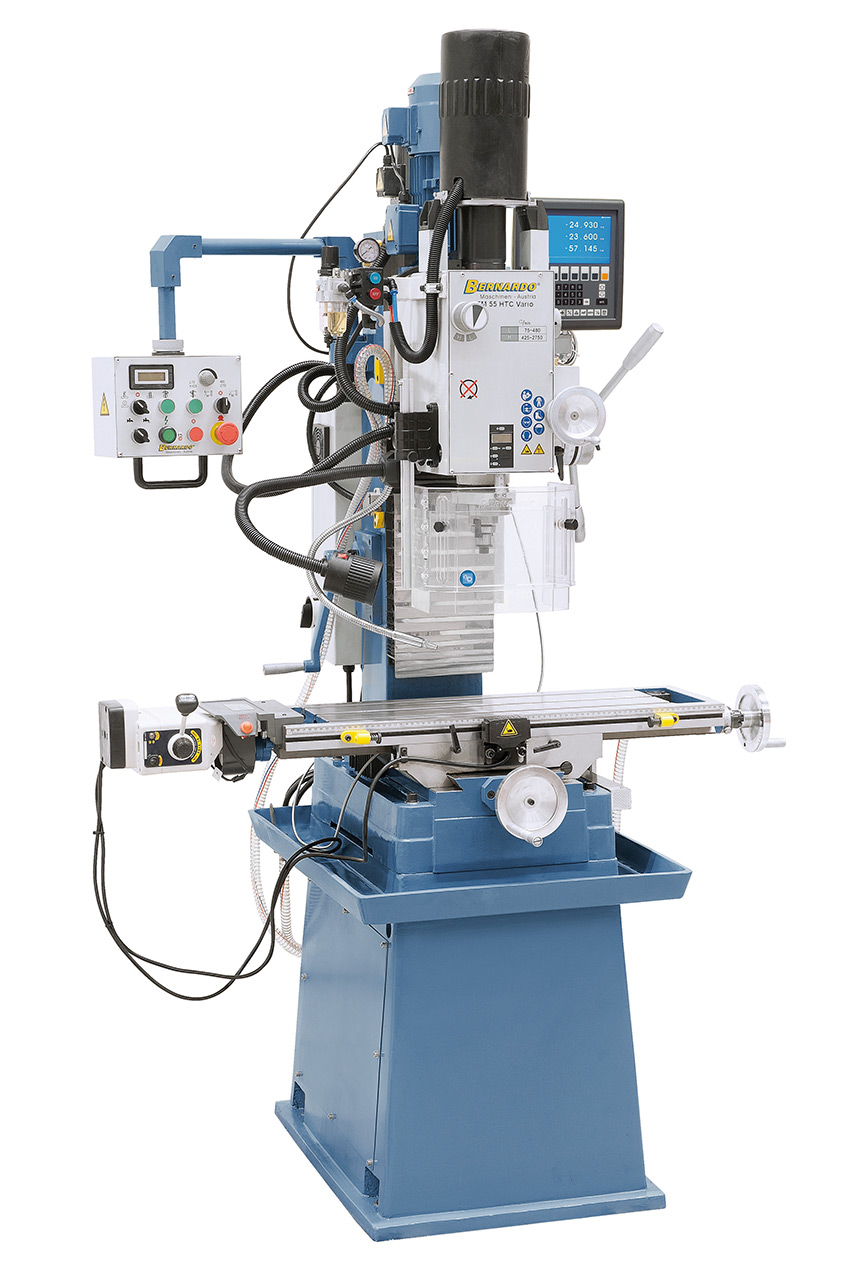

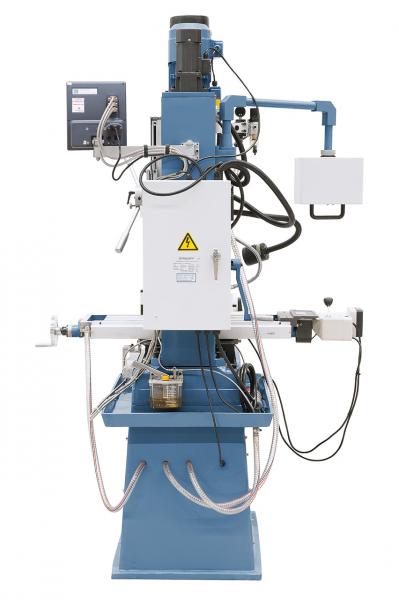

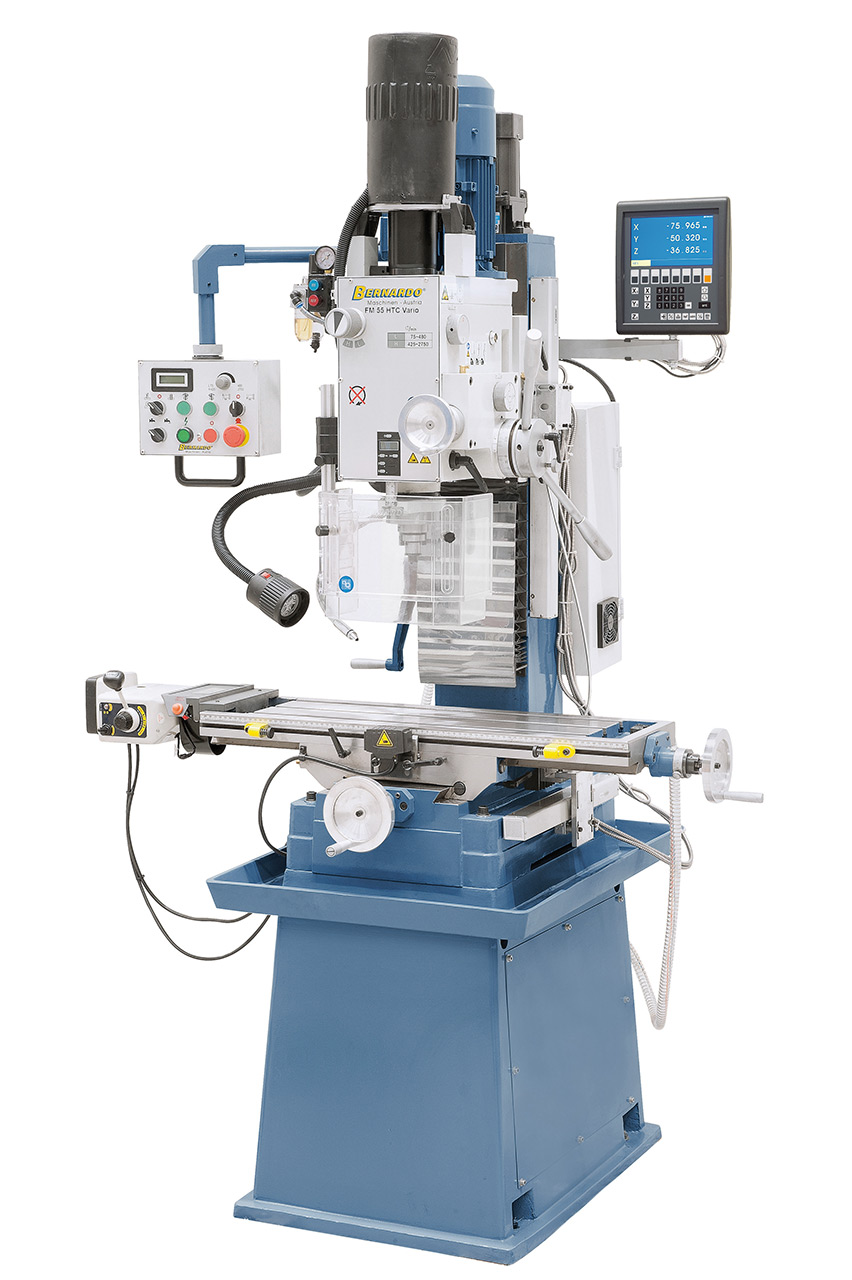

Drilling and milling machine Bernardo FM 55 HTC Vario inkl. 3-axis digital readout
Drilling and milling machine with pneumatic tool clamping
Scope of delivery Drilling and milling machine Bernardo FM 55 HTC Vario inkl. 3-axis digital readout
- 3-axis digital readout ES-12 V with LCD-display
- Keyless drill chuck 3 – 16 mm / B 16
- Drill chuck arbor ISO 30 – B 16
- Drawbar M 16
- Adapter ISO 30 / MT 2
- Taper shell end mill holder ISO 30 / 27 mm
- Automatischer Pinolenvorschub
- Pneumatische Werkzeugklemmung
- Höhenverstellbare Schutzabdeckung
- Hubmotor für Fräskopf
- Zentralschmierung

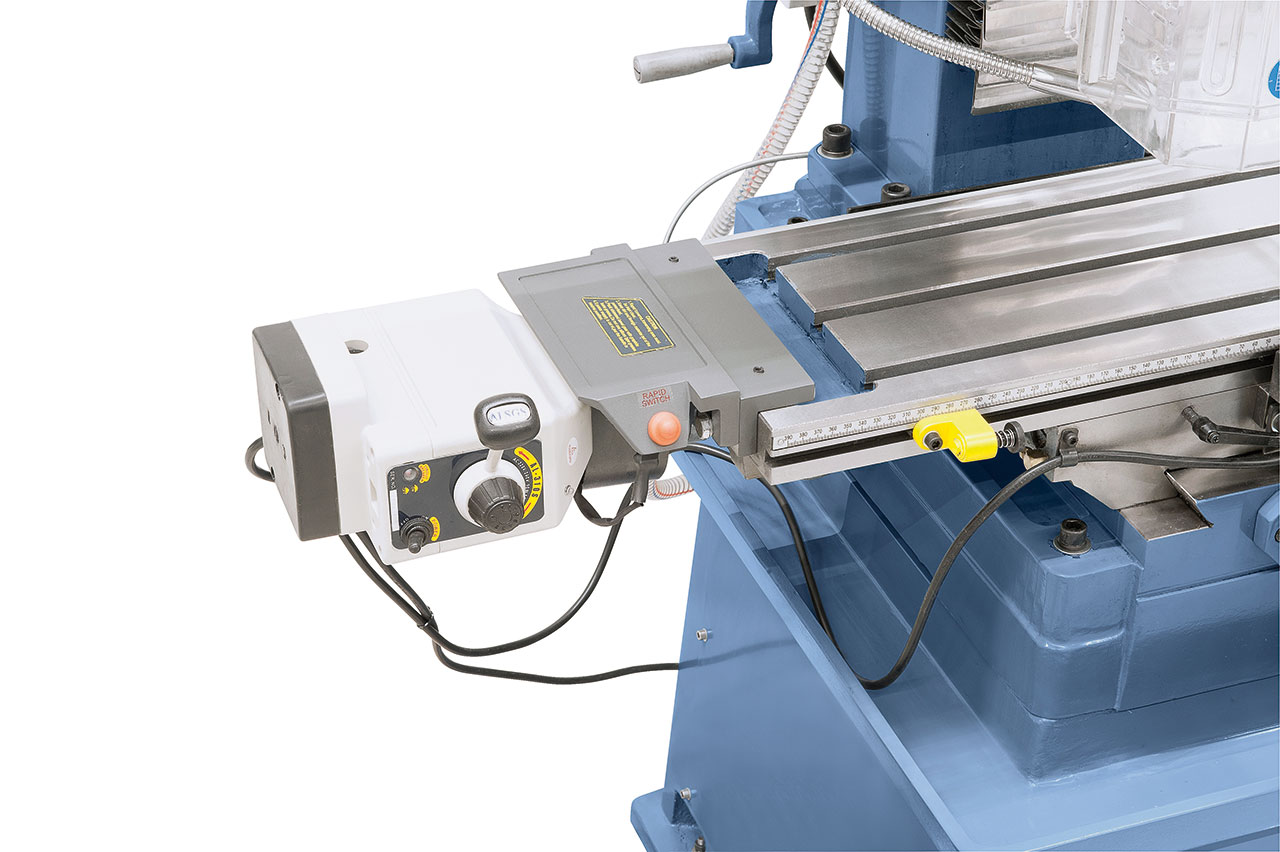

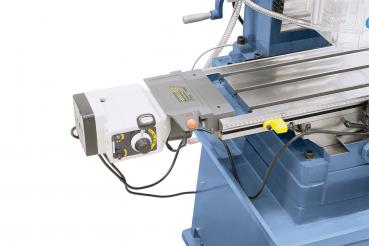

- x-Achsenvorschub AL 450 D
- Frequenzumrichter Delta VFD-E
- LED-Maschinenleuchte
- Digitale Drehzahlanzeige
- Digitale Pinolenhubanzeige
- Gewindeschneideinrichtung
- Lamellen-Schutzabdeckung
- Kühlmitteleinrichtung
- Längsmeßskala
- Gussuntergestell mit Kühlmittelrinne
Features Drilling and milling machine Bernardo FM 55 HTC Vario inkl. 3-axis digital readout

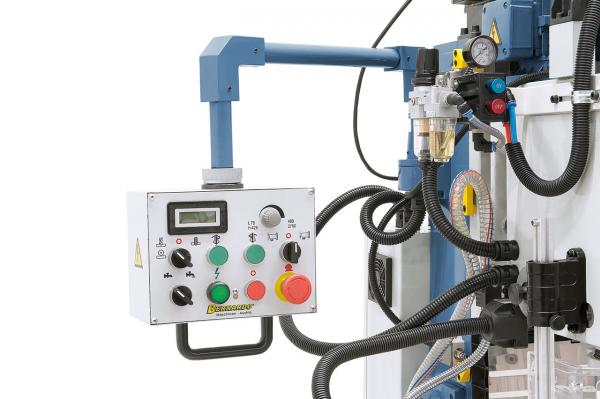

- Pneumatic tool clamping device shortens conversion times significantly
- Automatic spindle feed and thread cutting device come standard
- Delta frequency inverter ensures variable speed adjustment with optimal torque
- Many possible applications, such as groove milling, face milling, reboring etc.

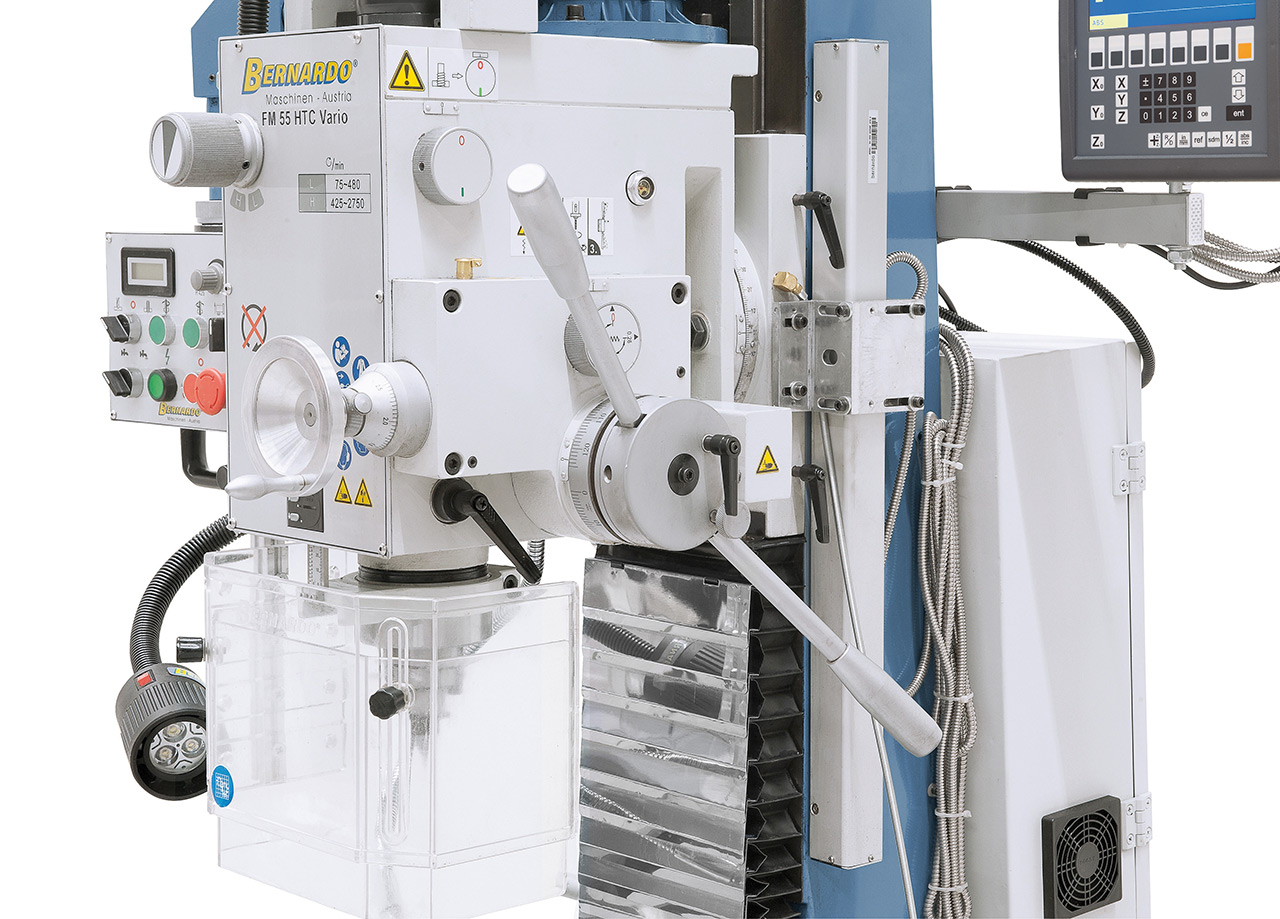

- Lifting motor ensures convenient height adjustment of milling head
- Dovetail guide of gear unit guarantees rigidity
- Digital display for speed and spindle stroke comes standard

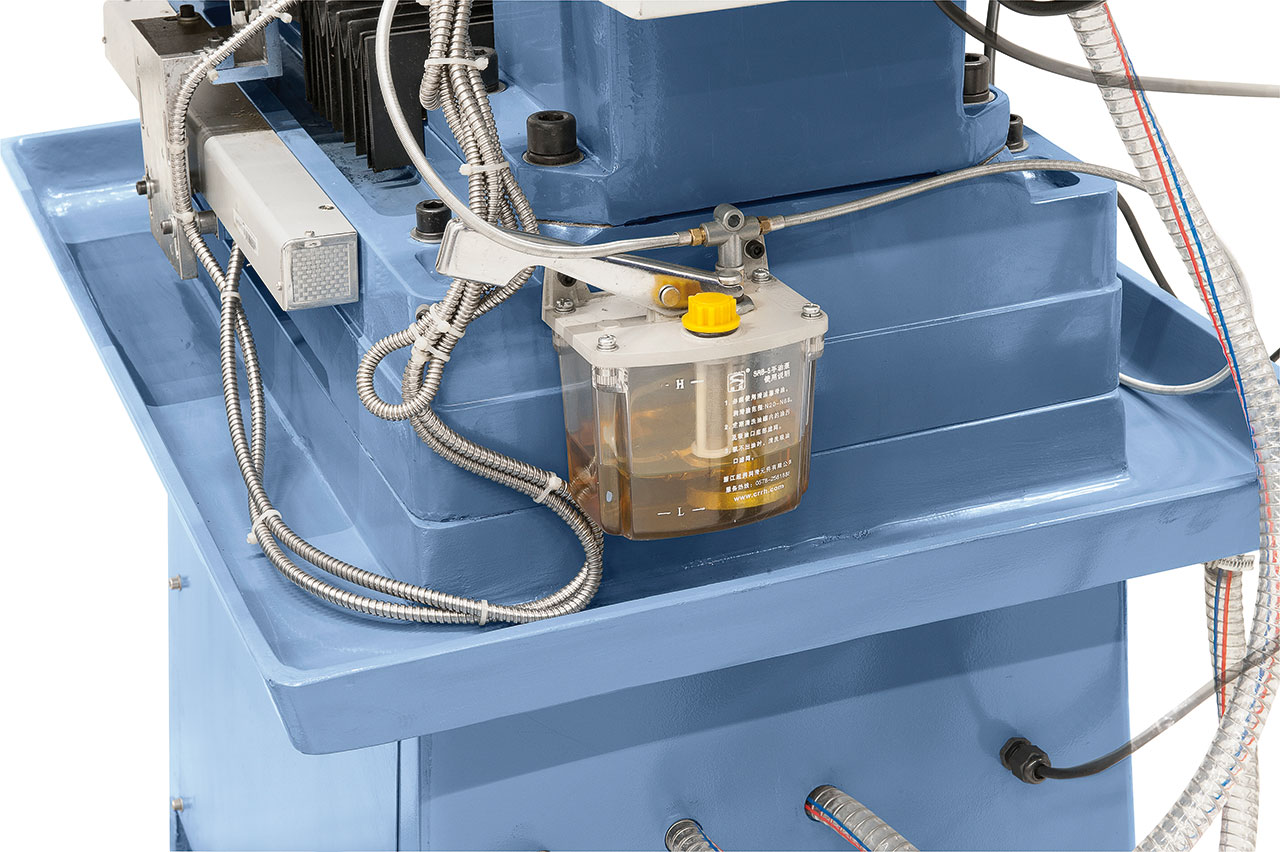

- Manual central lubrication for all guide ways
Technical details Drilling and milling machine Bernardo FM 55 HTC Vario inkl. 3-axis digital readout
| Drilling capacity in steel | 32 mm |
| Drilling capacity in cast iron | 40 mm |
| Milling head max. | 80 mm |
| Distance spindle to column | 220 mm |
| Spindle speed, stepless | 75 – 480 / 425 – 2750 rpm |
| Spindle taper | ISO 30 |
| Spindle stroke | 125 mm |
| Spindle feed | (3) 0,10 / 0,18 / 0,26 mm/rev. |
| Table size | 800 x 240 mm / 14 mm |
| Travel (x / y) | 420 / 200 mm |
| Mill head tiltable | -60° to +60° |
| Distance spindle to table | 95 - 485 mm |
| Height adjustment of mill head | 390 mm |
| Lifting motor | 90 W |
| Motor power | 1,5 kW (400 V) |
| Machine dimension (W x D x H) | 1270 x 960 x 2120 mm |
| Weight approx. | 455 kg |
