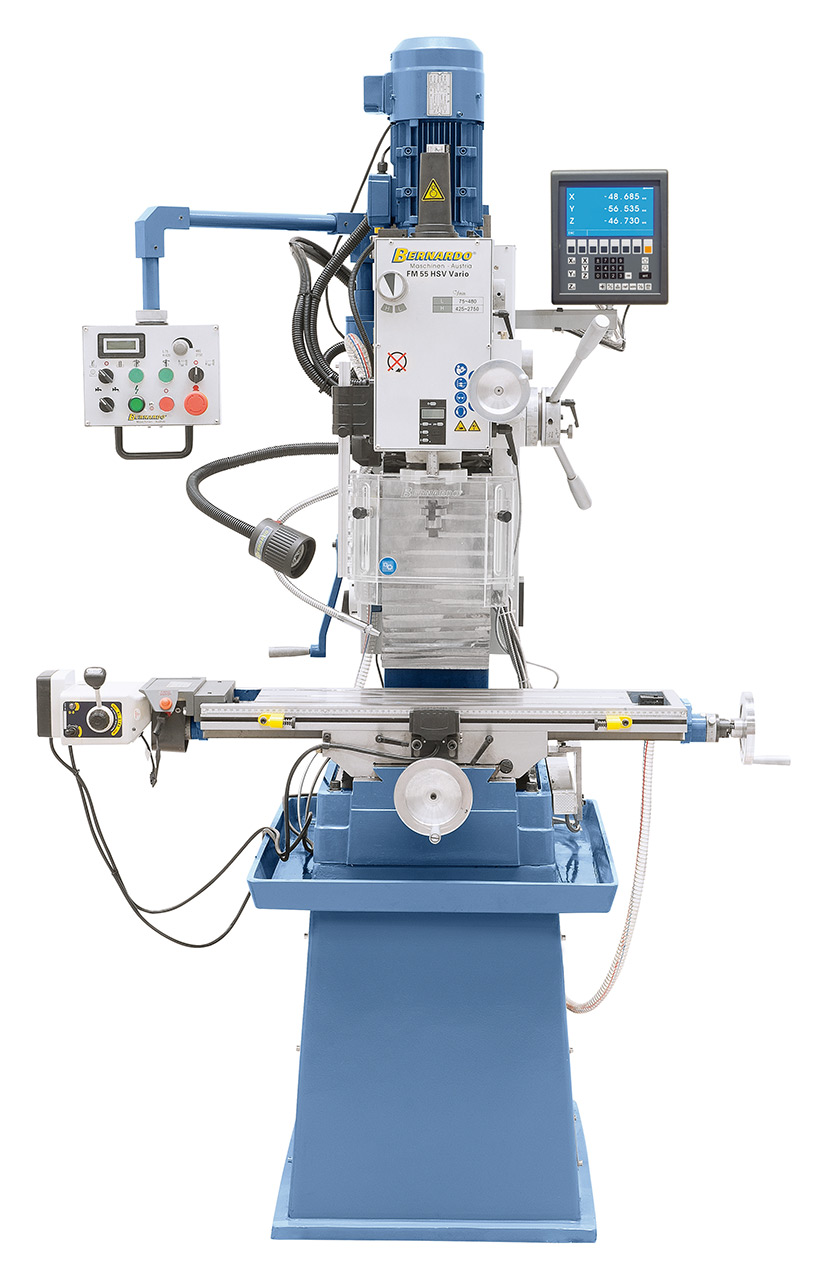

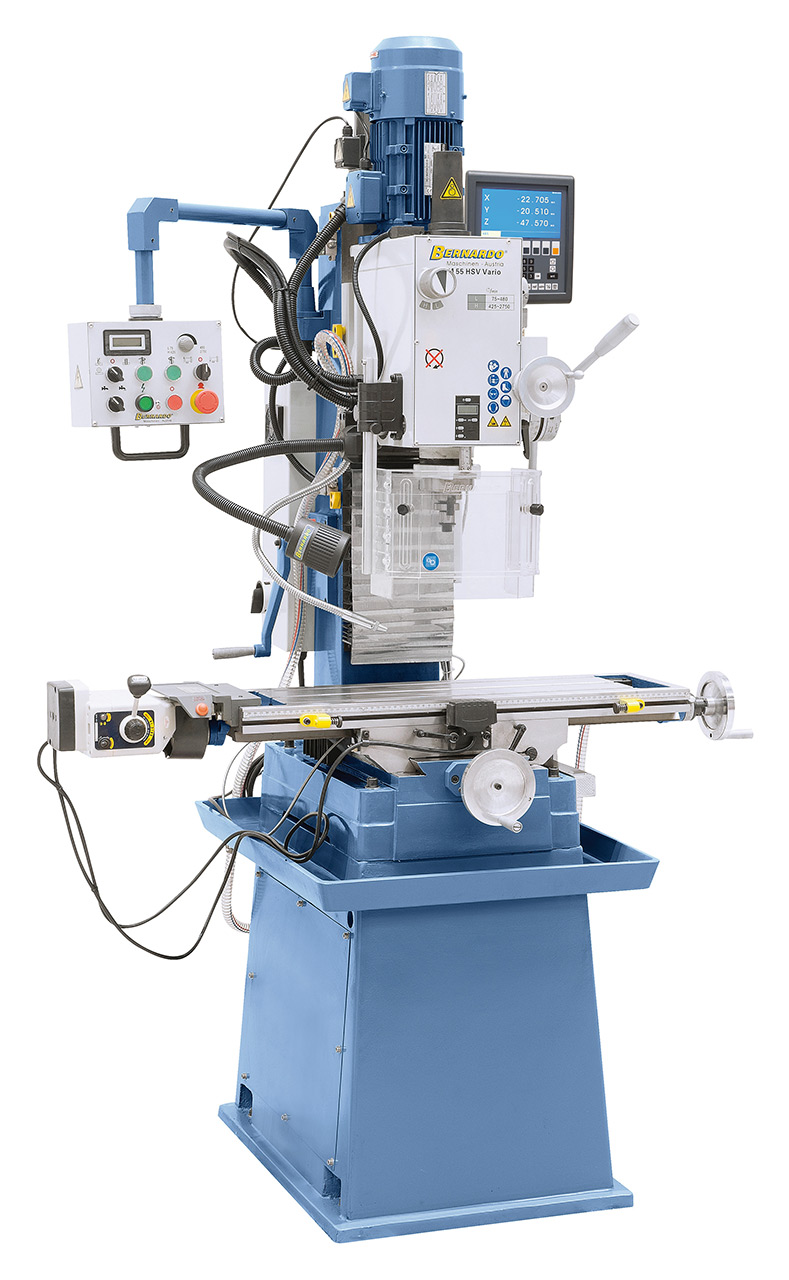

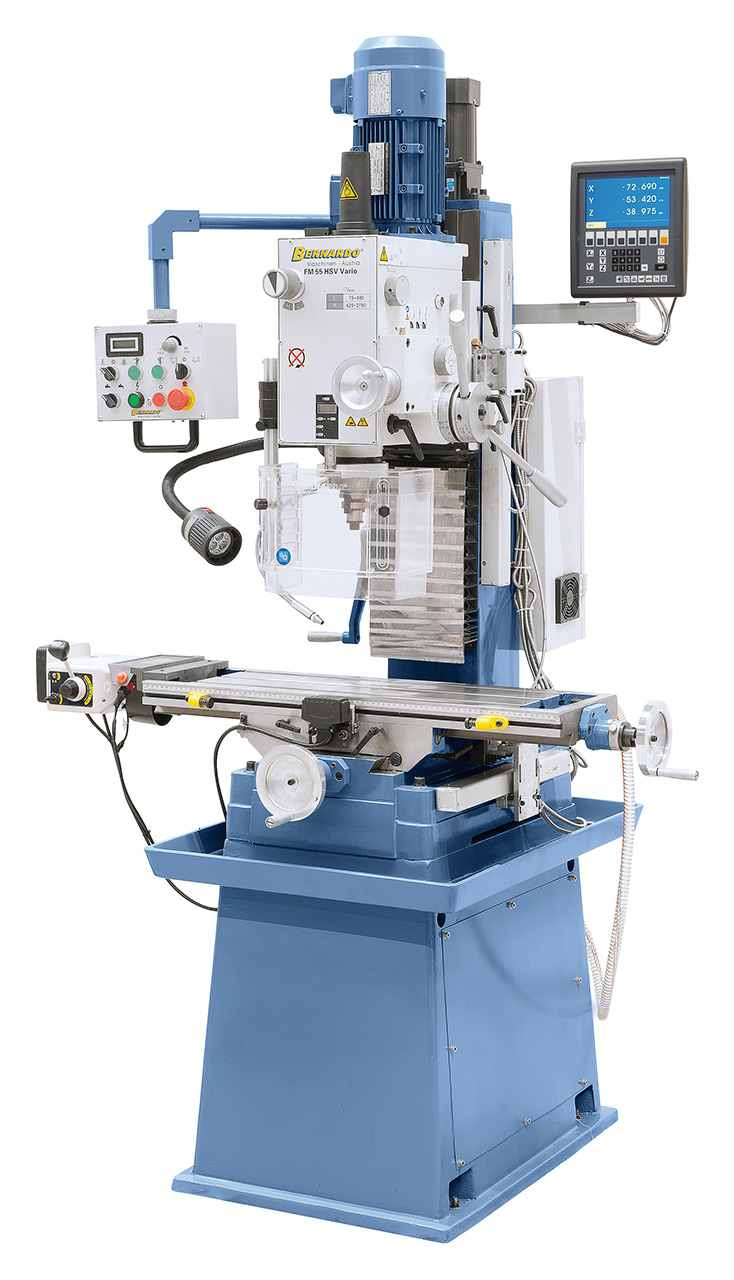

Drilling and milling machine Bernardo FM 55 HSV Vario incl. 3-axis digital readout

The FM 55 HSV Vario drilling and milling machine features a motorised height adjustment of the mill head and an automatic spindle feed. However, the stepless speed adjustment makes this model truly unique. Making this model truly versatile is the standard equipment which comprises all major accessories such as 3-axis position readout, table feed, lifting motor, central lubrication, coolant device, LED working light, cast iron stand with coolant groove and safety precautions in accordance with CE-standards.

Scope of delivery Drilling and milling machine Bernardo FM 55 HSV Vario incl. 3-axis digital readout

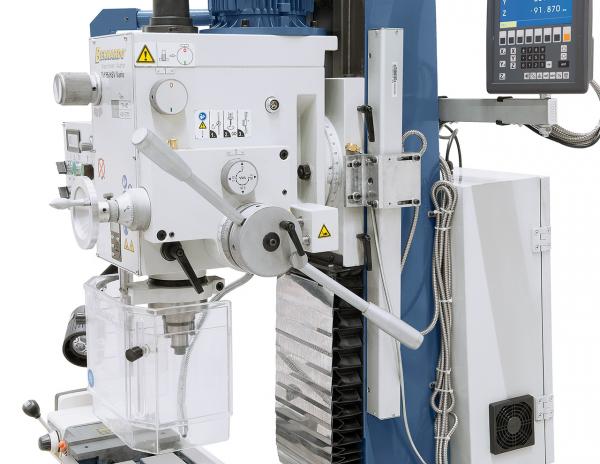

• 3-axis digital readout ES-12 V with LCD-Display
• Keyless drill chuck 3 – 16 mm / B 16
• Morse taper drill sleeve MT 4 – B 16
• Drawbar M 16
• Morse taper drill sleeve MT 4 / 3
• Taper shell end mill holder MT 4 / 27 mm
• Automatic spindle feed
• Height adjustable protective cover

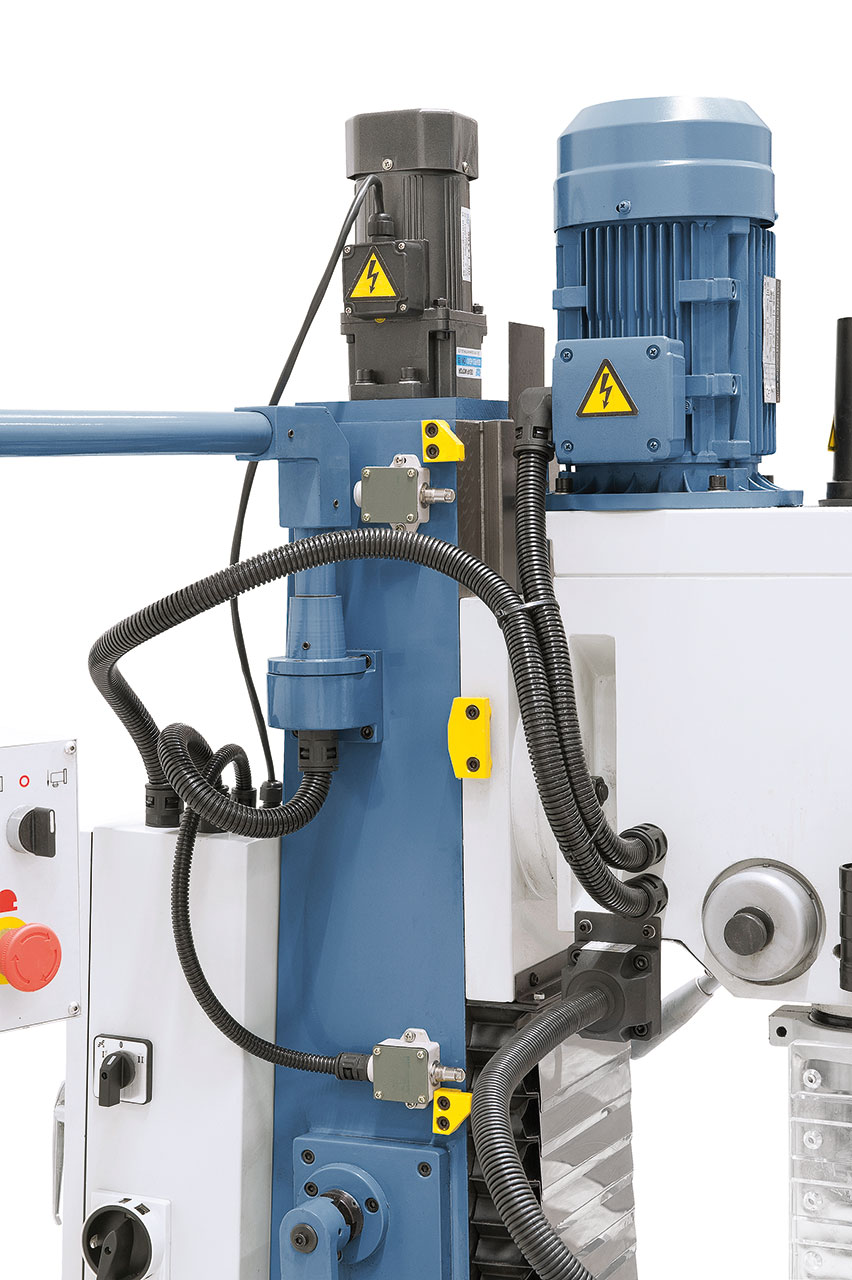

• Lifting motor for mill head

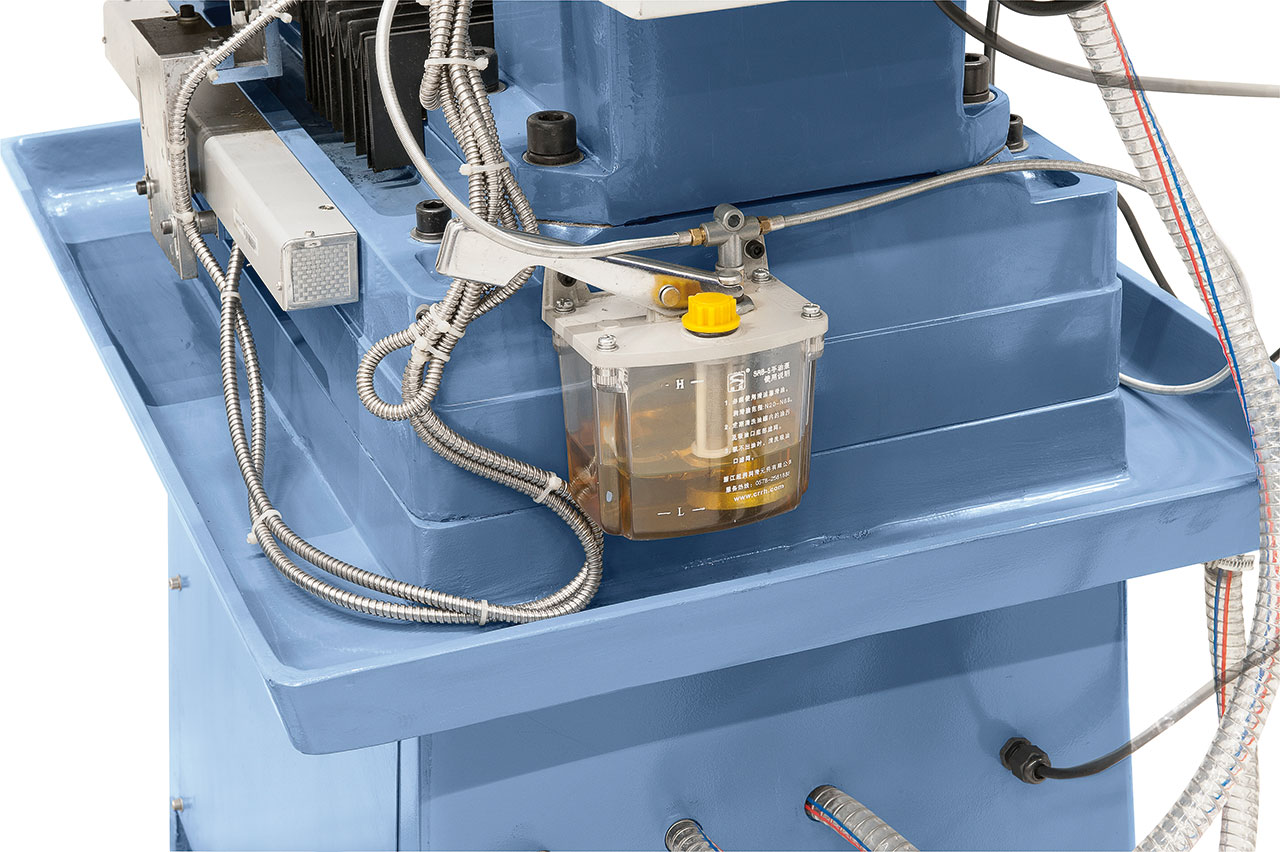

• Central lubrication
• x-axis power feed AL 450 D
• Frequency inverter Delta VFD-E
• LED machine light

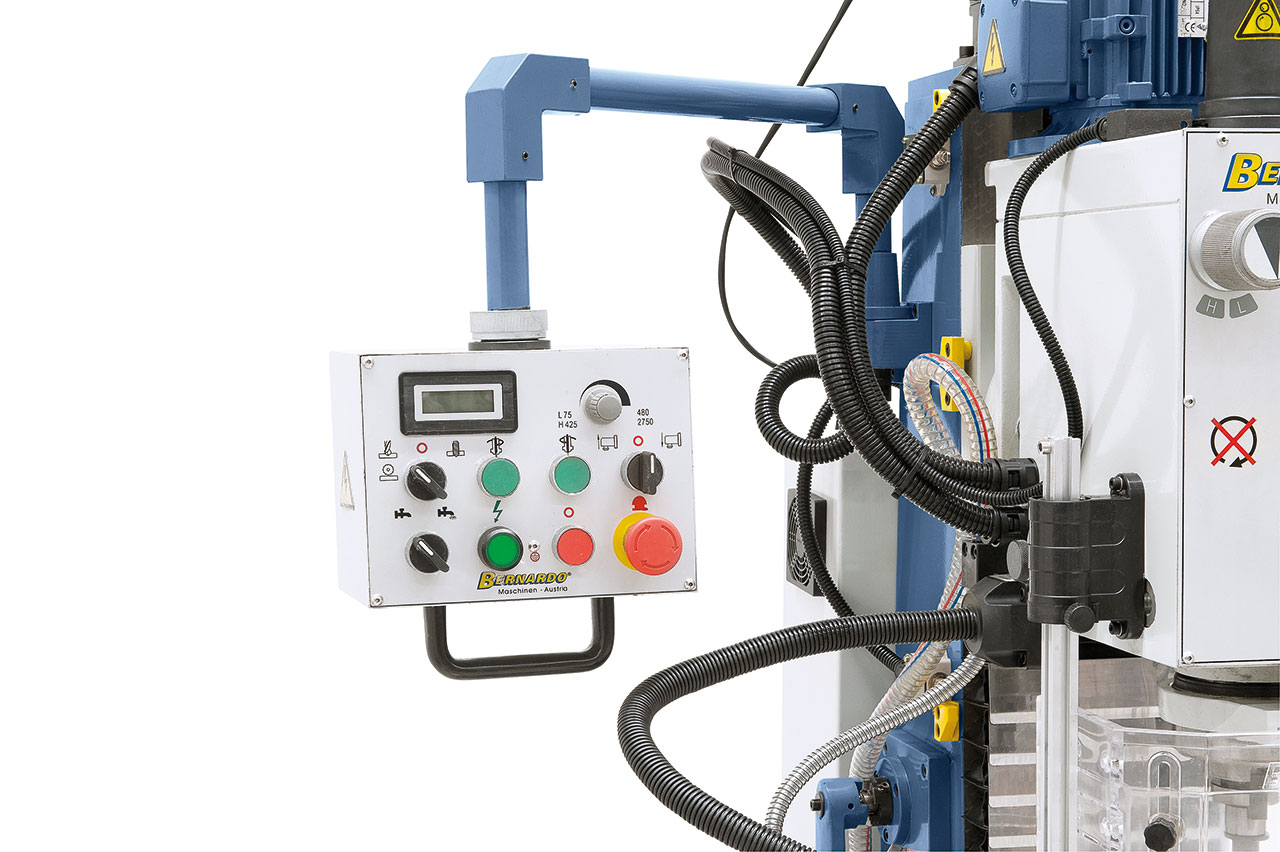

• Digital speed indication
• Digital spindle stroke indication
• Thread cutting device
• Steel cover
• Coolant device
• Longitudinal scale
• Cast iron stand with coolant groove
• Tools

Features Drilling and milling machine Bernardo FM 55 HSV Vario incl. 3-axis digital readout

• Delta- frequency inverter ensures variable speed adjustment with optimal torque
• Wide range of applications, such as slotting, face milling, circular milling etc.
• Automatic table feed with rapid feed allows quick table adjustment in x-axis
• Automatic spindle feed and thread cutting device come standard
• Dovetail guiding in x-, y- and z-axis, adjustable by gibs
• Mill head tilts to both sides for angular boring, groove milling and many more
• Digital display for speed and spindle stroke comes standard
• Solid, grey cast-iron machine stand eliminates vibrations
• Powerful coolant device included in machine base

Technical details Drilling and milling machine Bernardo FM 55 HSV Vario incl. 3-axis digital readout
