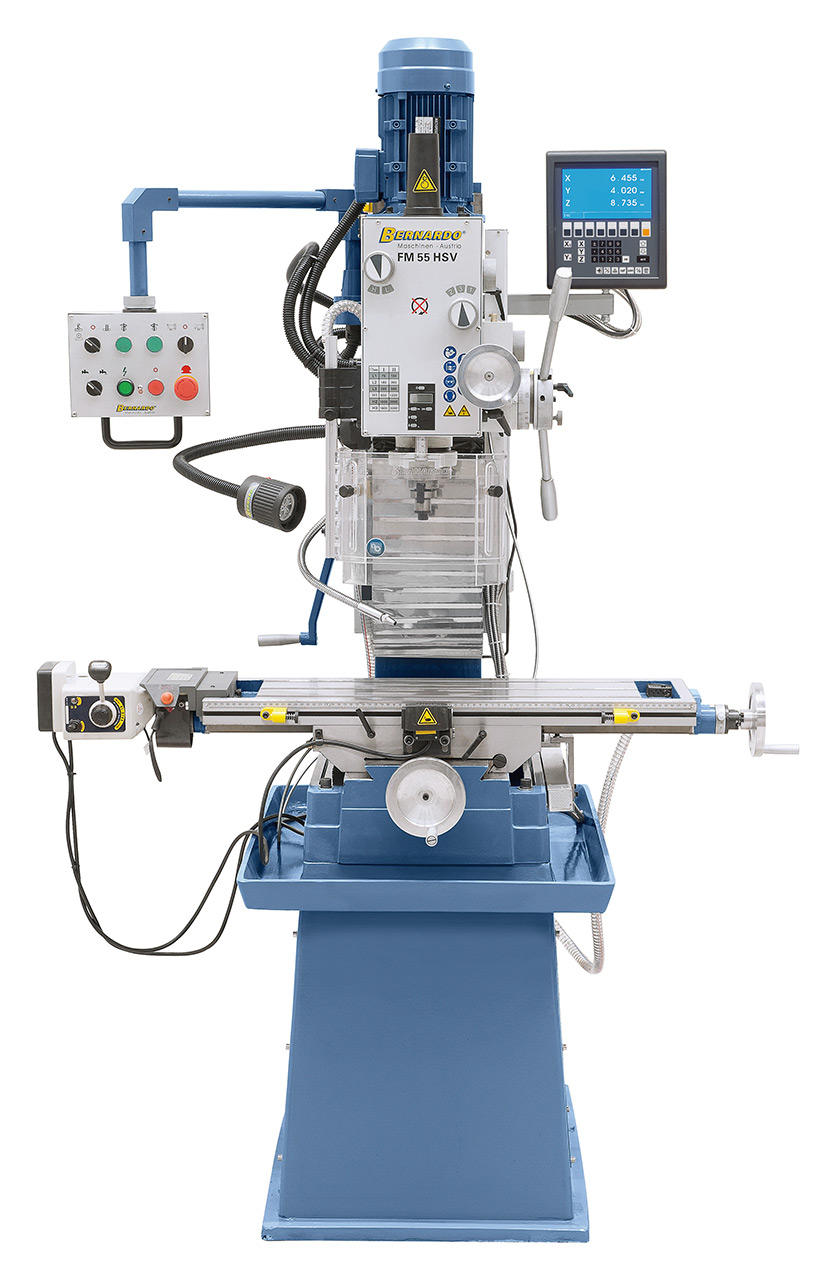

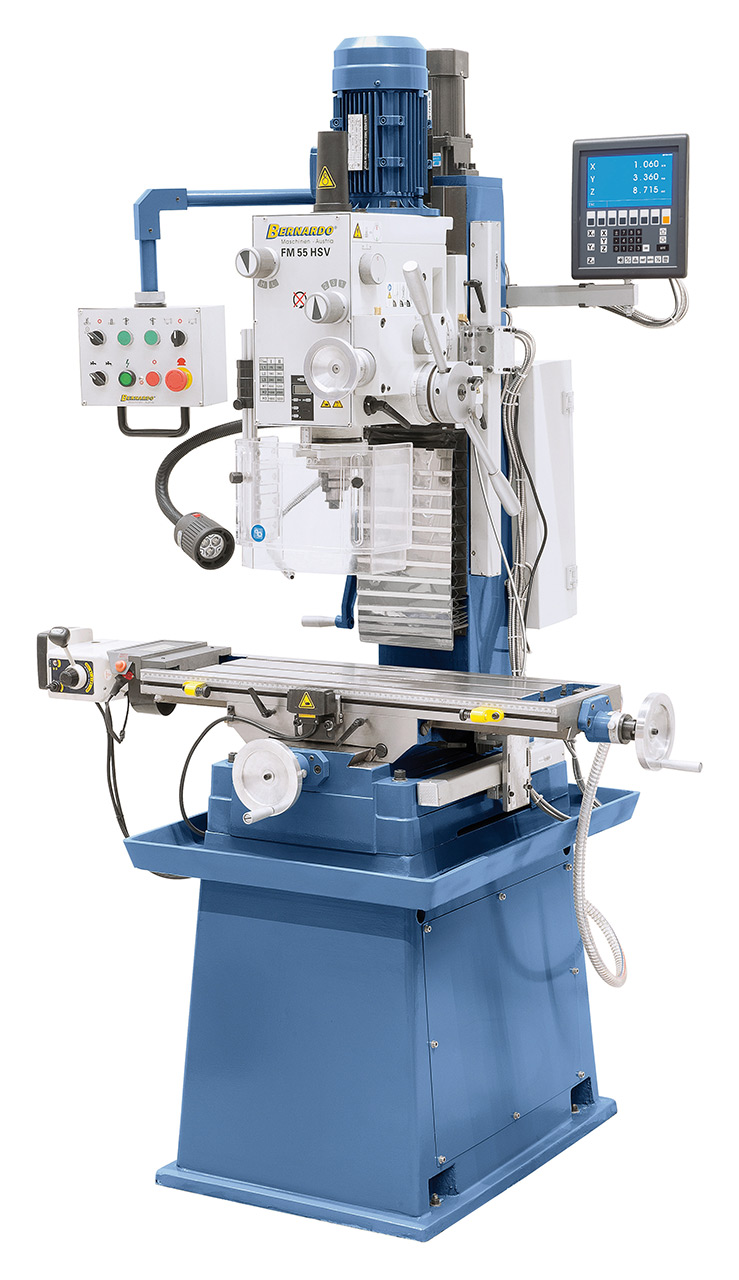

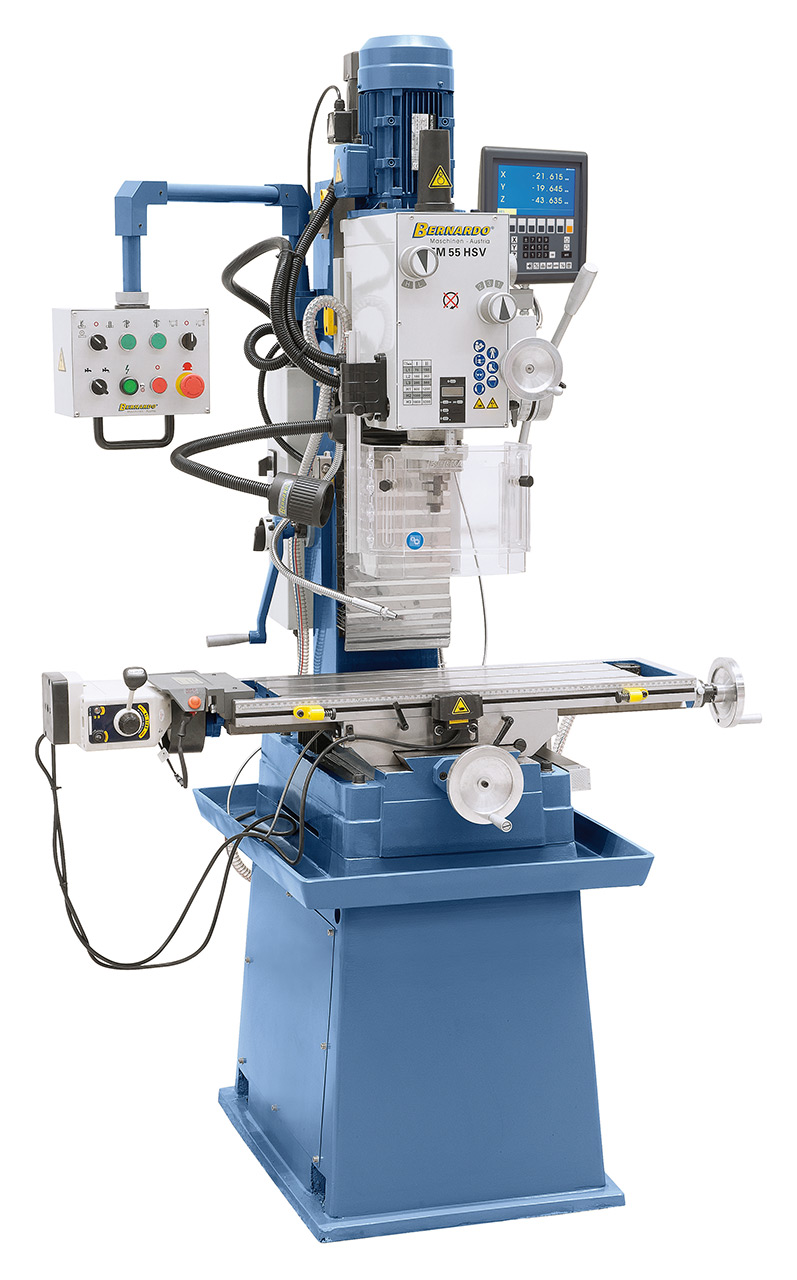

Drilling and milling machine Bernardo FM 55 HSV incl. 3-axis digital readout

The drilling and milling machine FM 55 HSV feature a solid construction and practicality. Making this model truly versatile is the standard equipment which comprises all major accessories such as 3-axis position readout, table feed, lifting motor, central lubrication, coolant device, LED working light, cast iron stand with coolant groove and safety precautions in accordance with CE-standards.

Scope of delivery Drilling and milling machine Bernardo FM 55 HSV incl. 3-axis digital readout

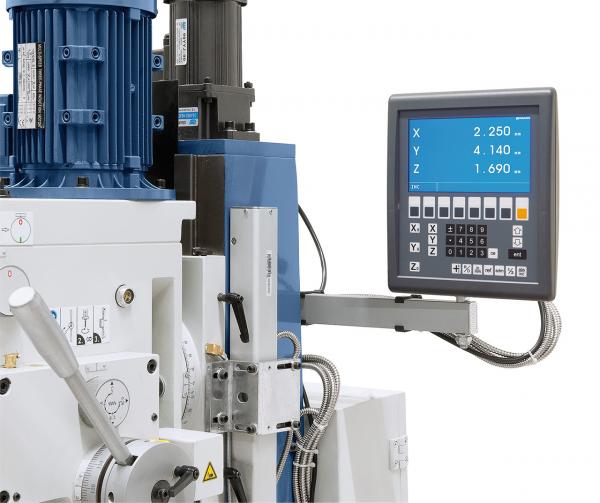

• 3-axis digital readout ES-12 V with LCD-display
• Keyless drill chuck 3 – 16 mm / B 16
• Drill chuck arbor MK 4 – B 16
• Drawbar M 16
• Morse taper drill sleeve MT 4 / 3
• Taper shell end mill holder MT 4 / 27 mm
• Automatic spindle feed
• Height adjustable protecive cover
• Lifting motor for mill head
• Central lubrication
• x-axis power feed AL 450 D
• LED machine light
• Digital spindle stroke indication
• Thread cutting device
• Steel cover
• Coolant device
• Longitudinal scale
• Cast iron stand with coolant groove
• Tools

Features Drilling and milling machine Bernardo FM 55 HSV incl. 3-axis digital readout

• Serially equipped with automatic spindle feed and thread cutting device

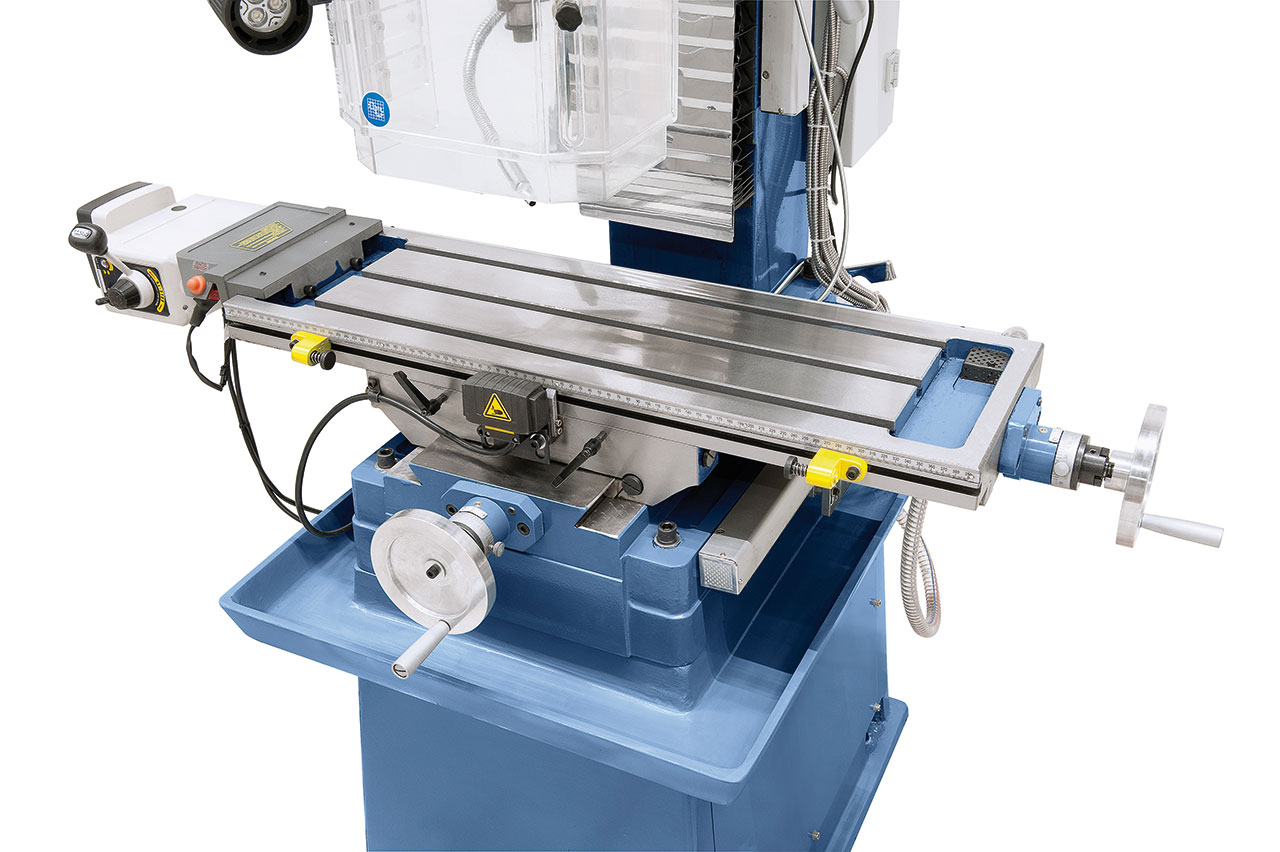

• Automatic table feed with rapid feed allows quick table adjustment in x-axis
• Solid, grey cast-iron machine stand eliminates vibrations
• Complete with digital readout in all three axis to increase productivity
• 2-speed-motor with 12 speed settings (75 - 3200 rpm)

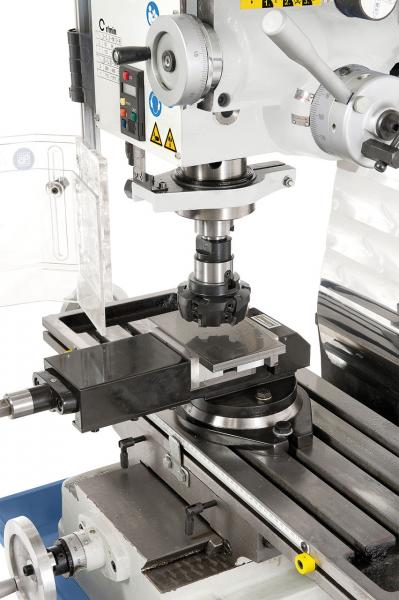

• Wide range of applications, such as horizontal slotting, face milling, reboring
• Mill head tilts to both sides for angular boring, milling of bevels etc.

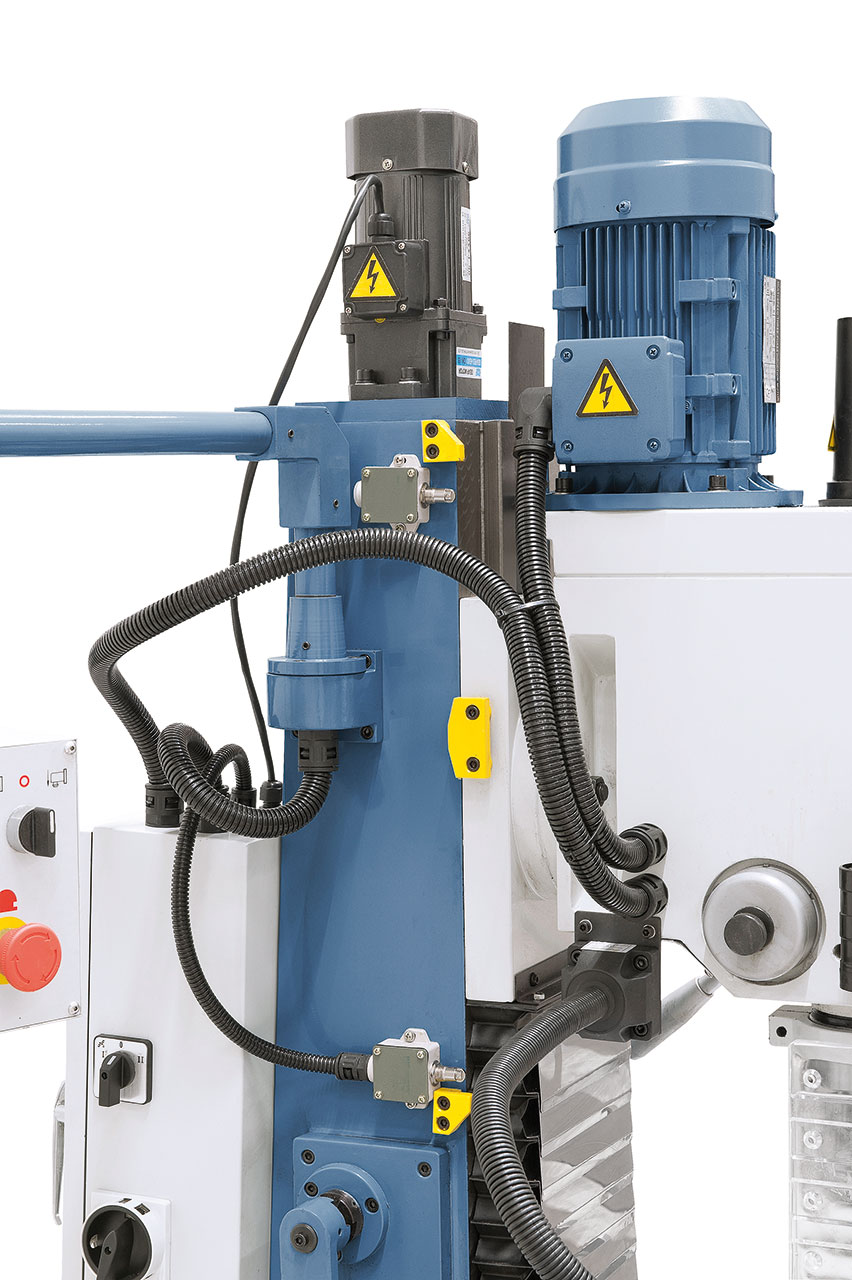

• Lifting motor allows convenient height adjustment of mill head
• Dovetail guiding in x-, y- and z-axis, adjustable by gibs
• Dovetail guiding of gear head maximizes stability
• Manual central lubrication for all guide ways

Technical details Drilling and milling machine Bernardo FM 55 HSV incl. 3-axis digital readout
