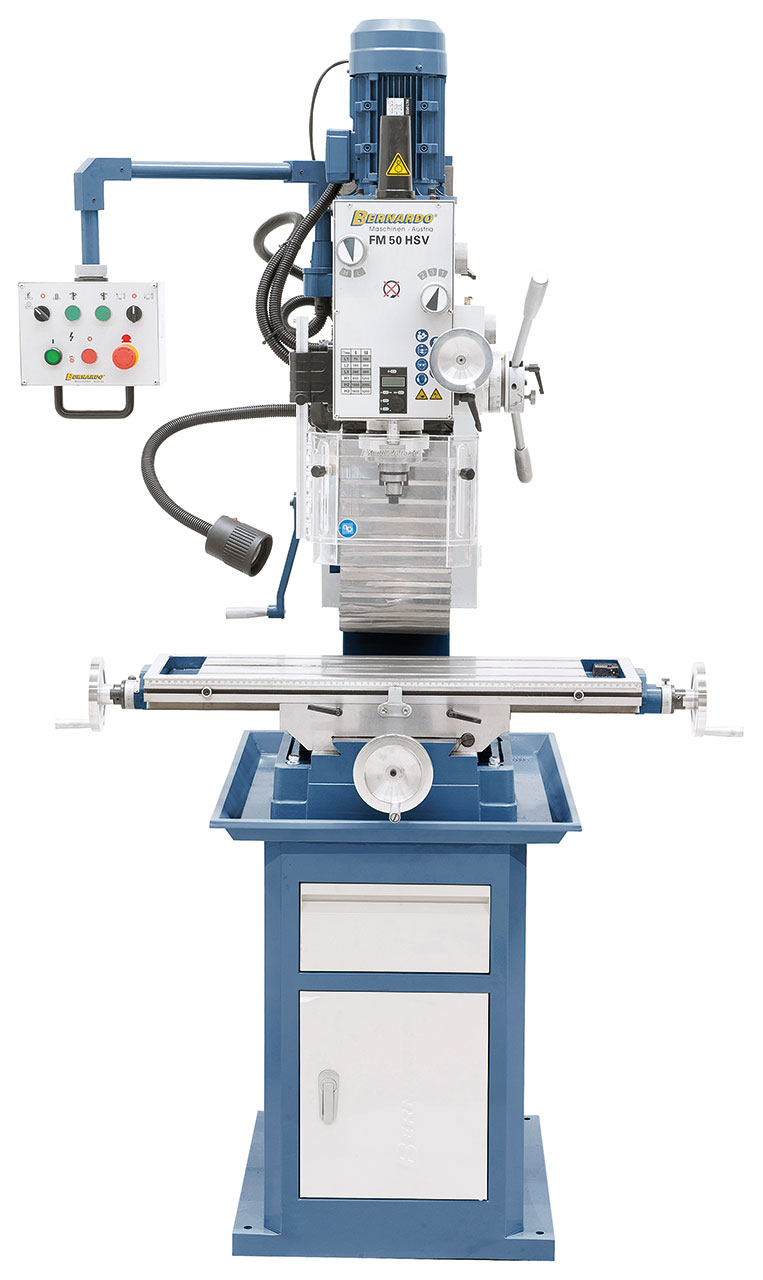

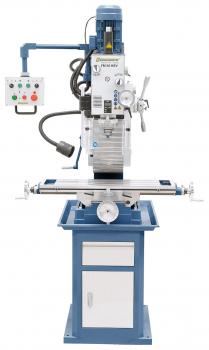

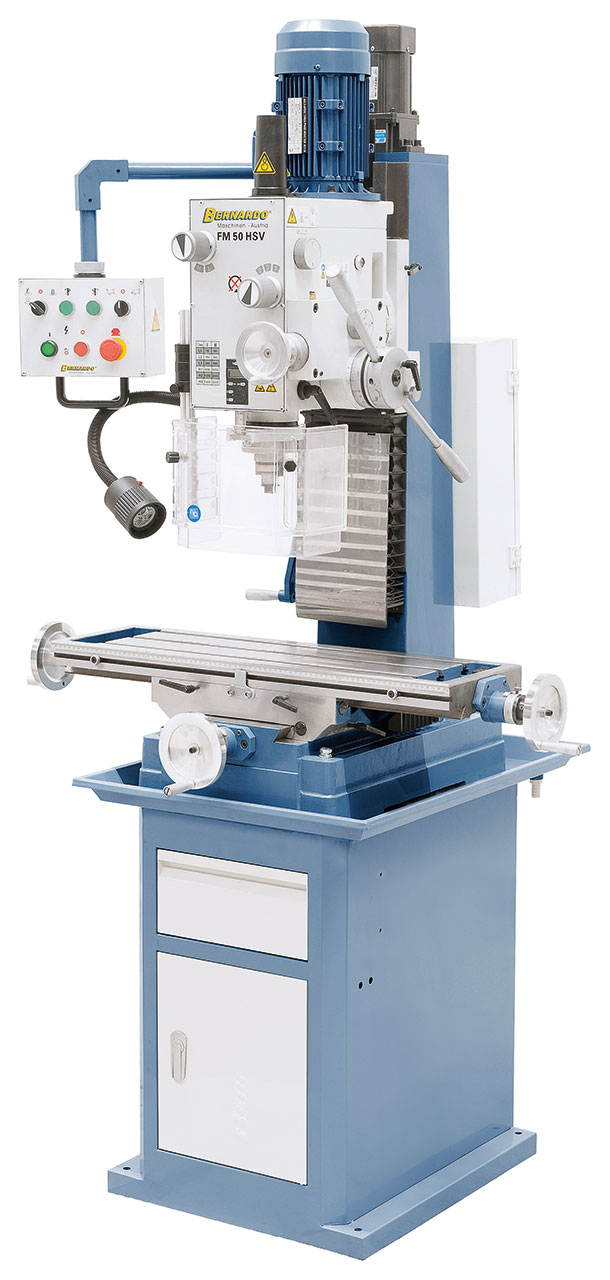

Drilling and milling machine Bernardo FM 50 HSV
The FM 50 HSV drilling and milling machine offer through the motorized height adjustment of mill head, the digital spindle stroke display and the automatic spindle feed a high usability. The compact construction and wide range of performance makes this model ideal for model-makers, craftsmen and repair shops.
Scope of delivery Drilling and milling machine Bernardo FM 50 HSV
- Keyless drill chuck 3 – 16 mm / B 16
- Morse taper drill sleeve MT 4 / B 16
- Drawbar M 16
- Morse taper drill sleeve MT 4 / 3
- Taper shell end mill holder MT 4 / 27 mm
- Height adjustable protective cover
- Automatic spindle feed

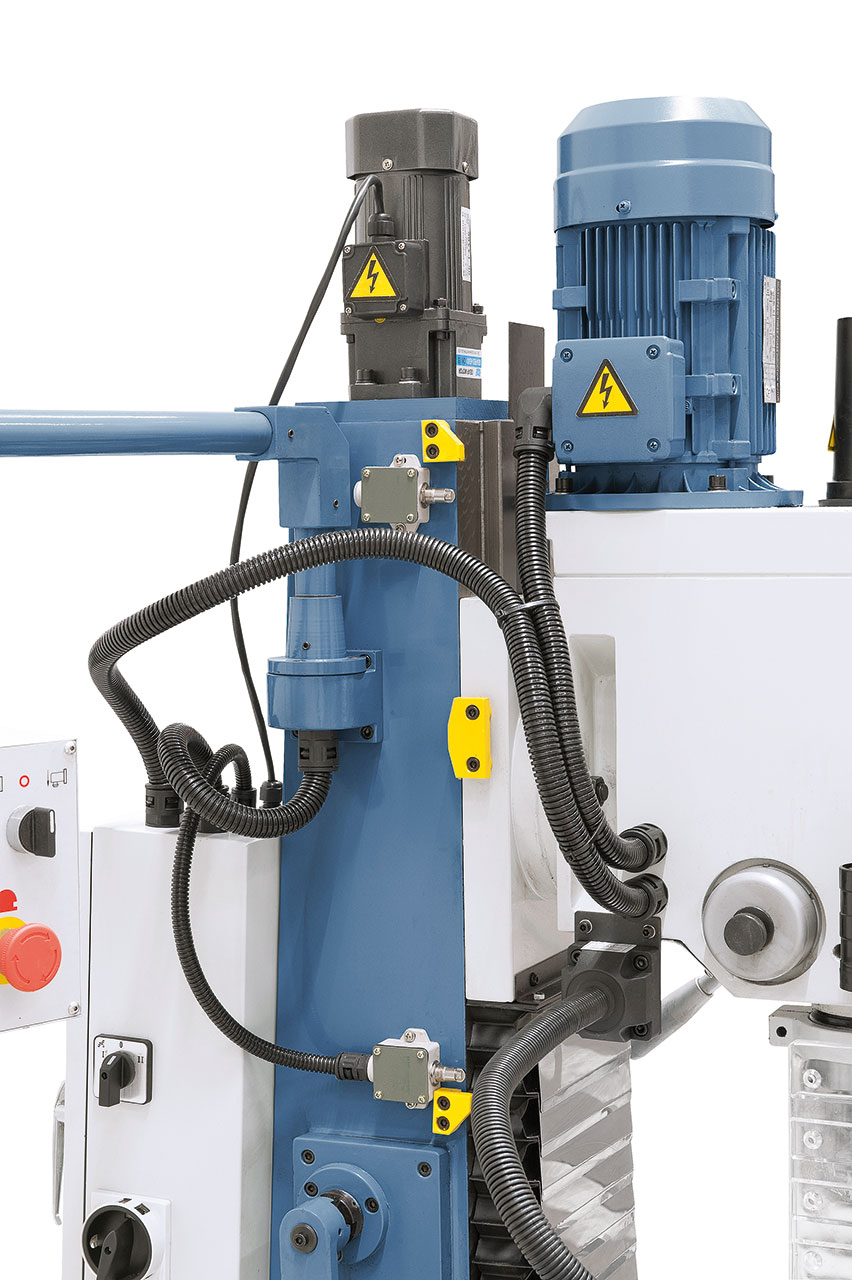

- Lifting motor for mill head
- LED machine light
- Digital spindle stroke indication
- Thread cutting device
- Steel cover
- Longitudinal scale
- Tools
Features Drilling and milling machine Bernardo FM 50 HSV
- Wide range of applications, such as slotting, face milling, circular milling etc.
- Automatic spindle feed and thread cutting device come standard
- Lifting motor allows convenient height adjustment of mill head
- Digital display for spindle feed included

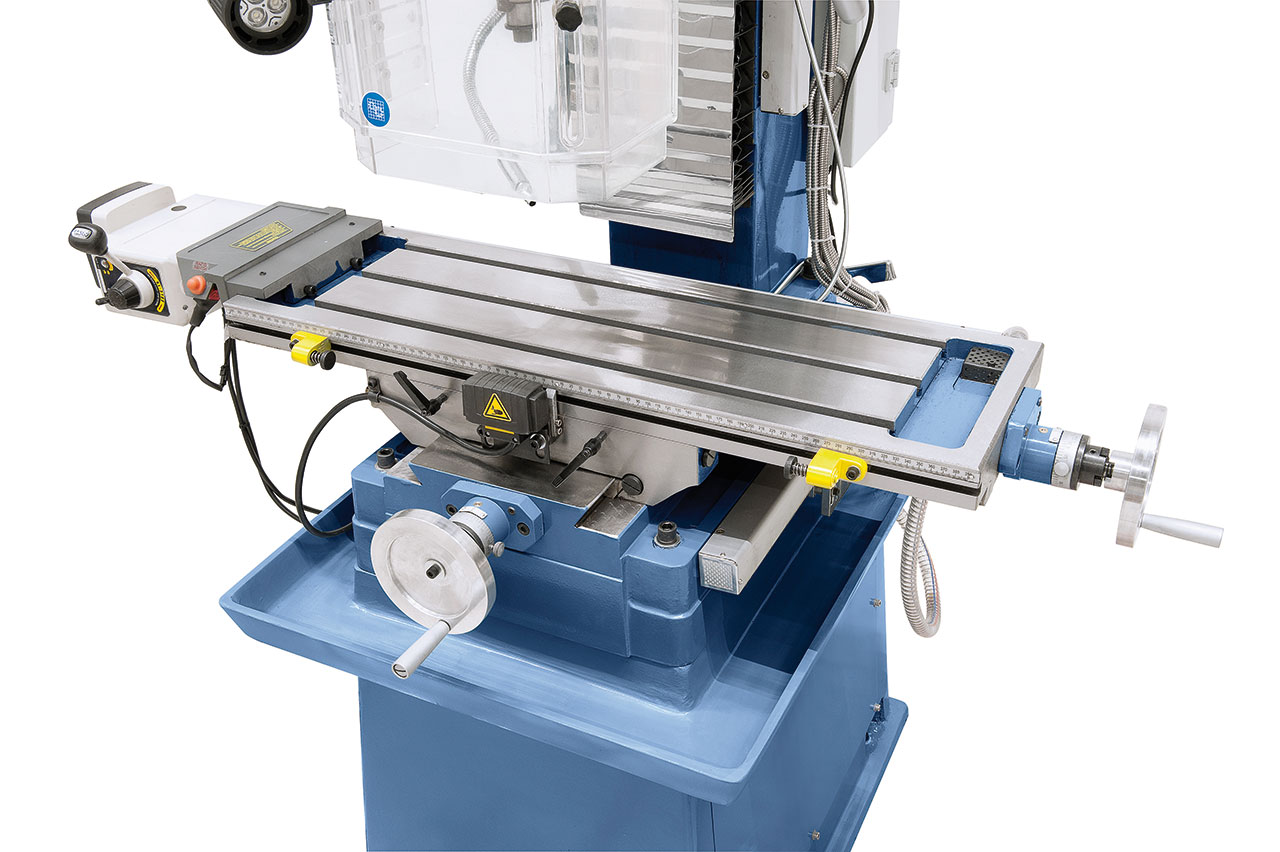

- Dovetail guiding in x-, y- and z-axis, adjustable by gibs
- Polished gear wheels, in oil bath, ensure smooth running
- Mill head tilts to both sides for angular boring, groove milling and many more
- Dovetail guide of gear unit guarantees rigidity
- Handle allows for spindle adjustment, hand wheel allows for fine feed
- Powerful 2-step motor, speed range 75 - 3200 rpm
- Height adjustable protective cover with micro switch for increased safety
Technical details Drilling and milling machine Bernardo FM 50 HSV
Drilling capacity in steel | 32 mm |
Drilling capacity in cast iron | 40 mm |
Milling head max. | 80 mm |
Distance spindle to column | 220 mm |
Spindle speeds | (12) 75 – 3200 rpm |
Spindle taper | MT 4 |
Spindle stroke | 120 mm |
Spindle feed | (3) 0,10 / 0,18 / 0,26 mm/rev. |
Table size | 800 x 240 mm |
Travel (x / y) | 555 / 225 mm |
Mill head tiltable | -60° to +60° |
Distance spindle to table | 95 - 485 mm |
Height adjustment of mill head | 390 mm |
T-slot size | 14 mm |
Lifting motor | 90 W |
Motor power output S1 100% | 1,1 / 1,5 kW (400 V) |
Motor power input S6 40% | 1,5 / 2,2 kW (400 V) |
Machine dimension (W x D x H)* | 1140 x 970 x 1460 mm |
Weight approx. | 322 kg |
|
|
* without stand
