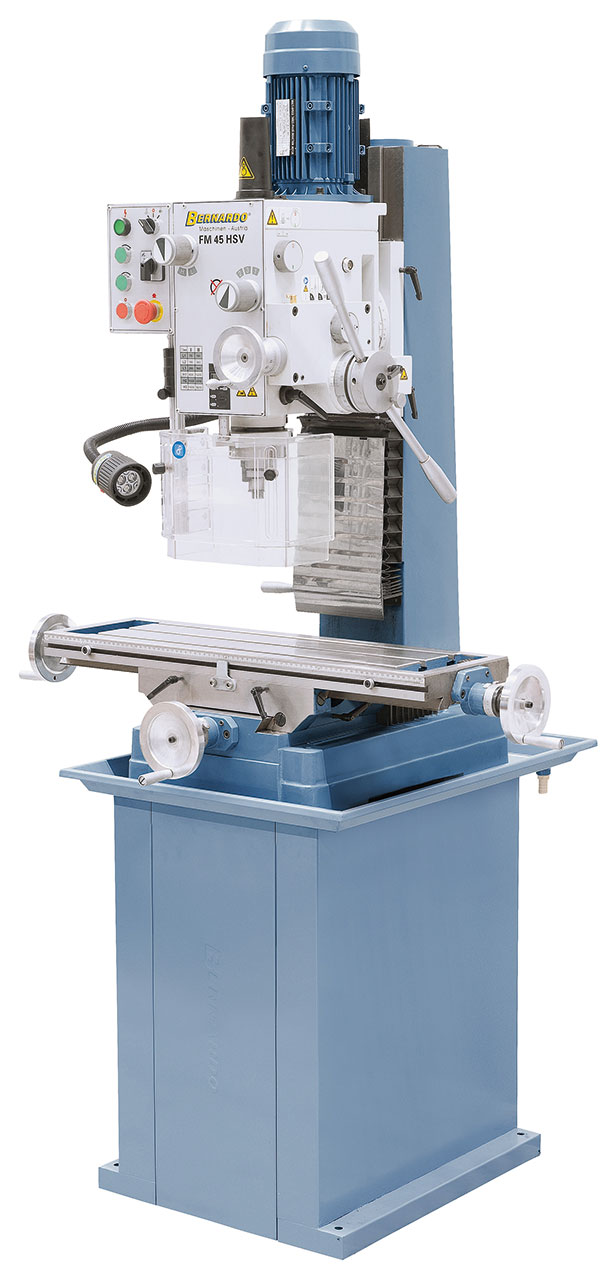

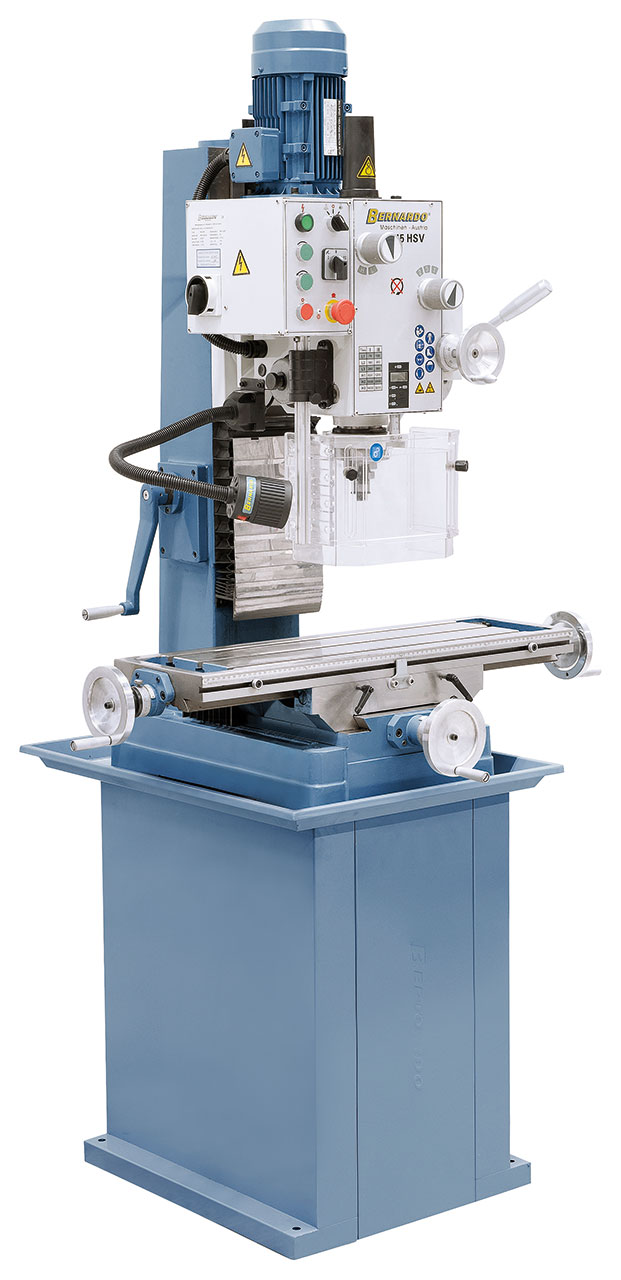

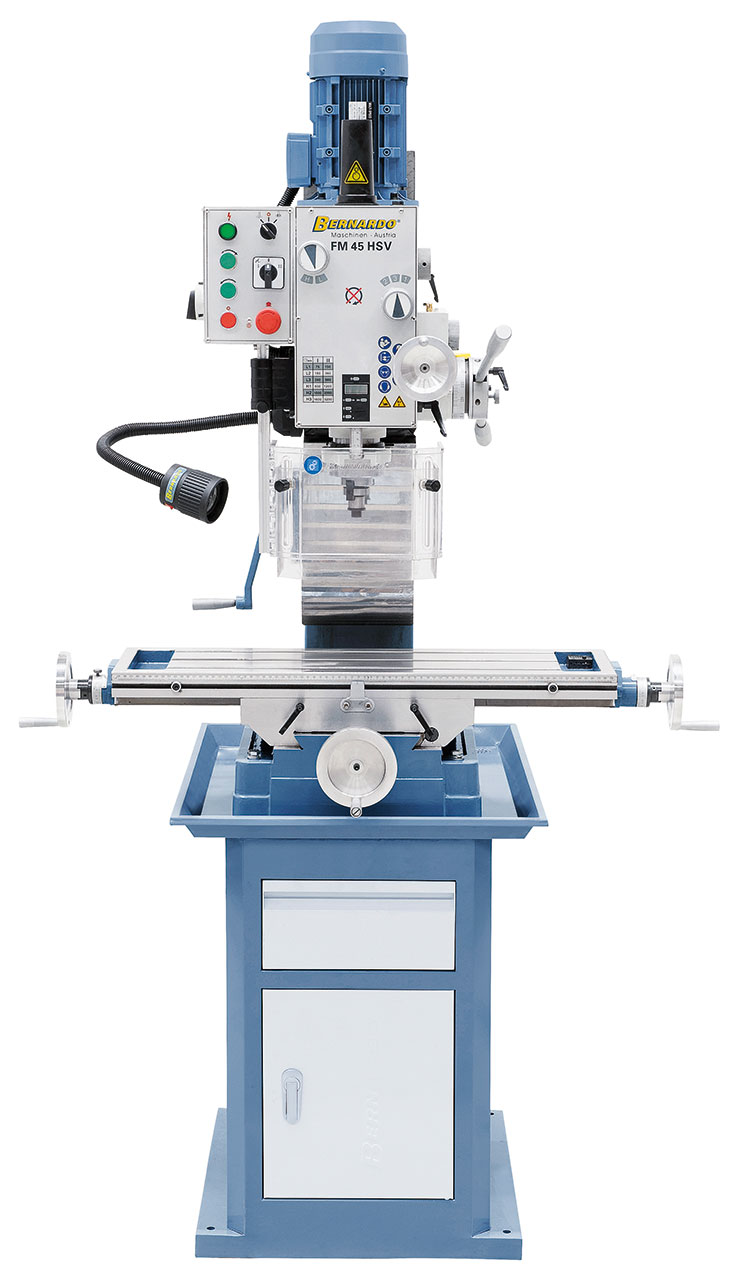

Drilling and milling machine Bernardo FM 45 HSV

The model FM 45 HSV feature a high speed range (75 - 3200 rpm) as well as a large range of standard accessories ( for instance automatic spindle feed, digital spindle stroke indication, LED working light etc.), making this machine ideal for mechanics, repair shops and and for training purposes.

Scope of delivery Drilling and milling machine Bernardo FM 45 HSV

• Keyless drill chuck 3 – 16 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Drawbar M 16
• Morse taper drill sleeve MT 4/3
• Taper shell end mill holder MT 4 / 27 mm
• Height adjustable protective cover
• Automatic spindle feed
• LED machine light
• Digital spindle stroke indication
• Thread cutting device
• Steel cover
• Longitudinal scale
• Tools

Features Drilling and milling machine Bernardo FM 45 HSV

• Powerful 2-step motor, speed range 75 - 3200 rpm

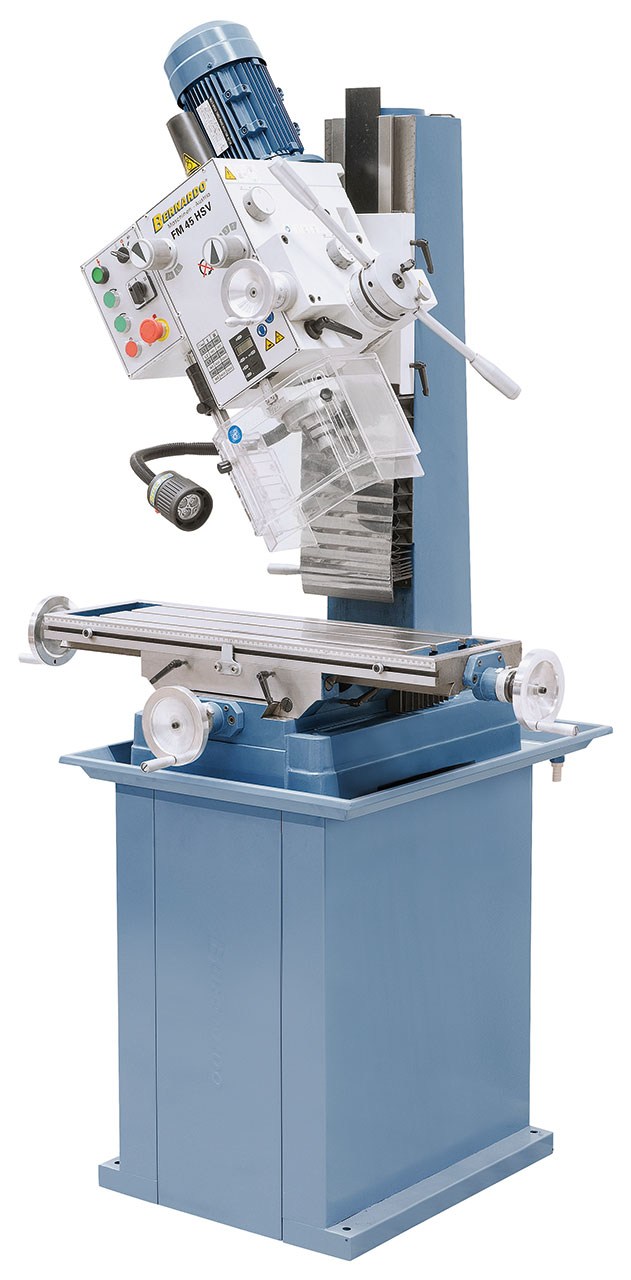

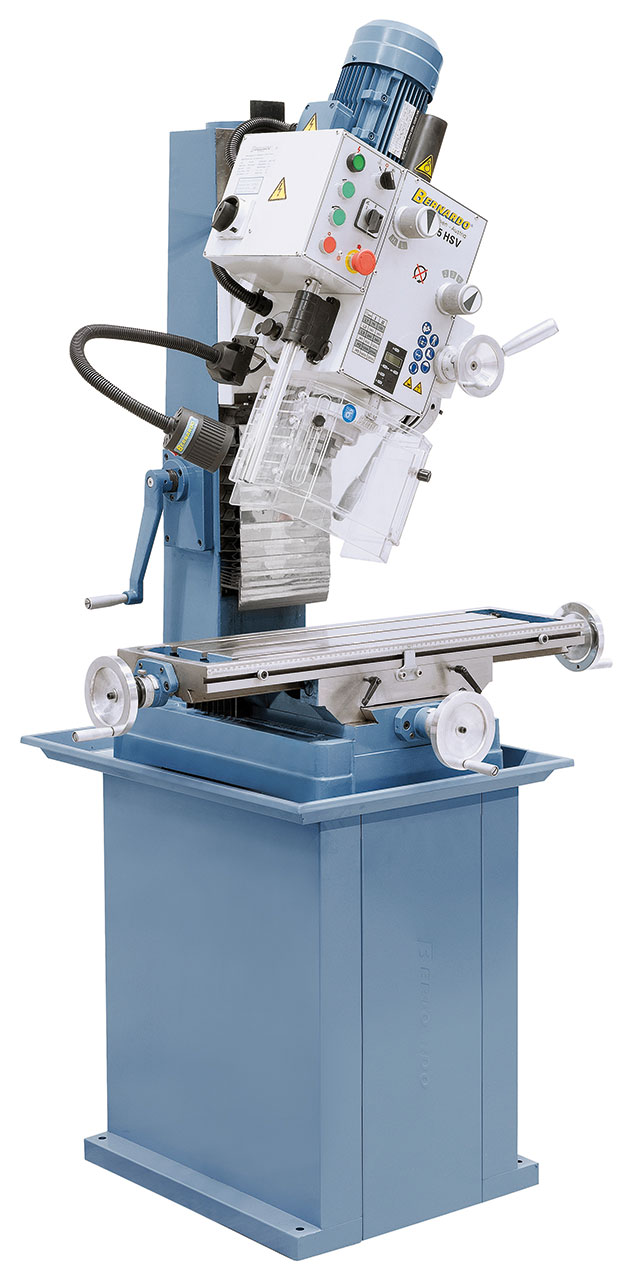

• Mill head tilts to both sides for angular boring, milling of bevels etc.
• Height adjustable protective cover with micro switch for increased safety
• Automatic spindle feed and thread cutting device come standard

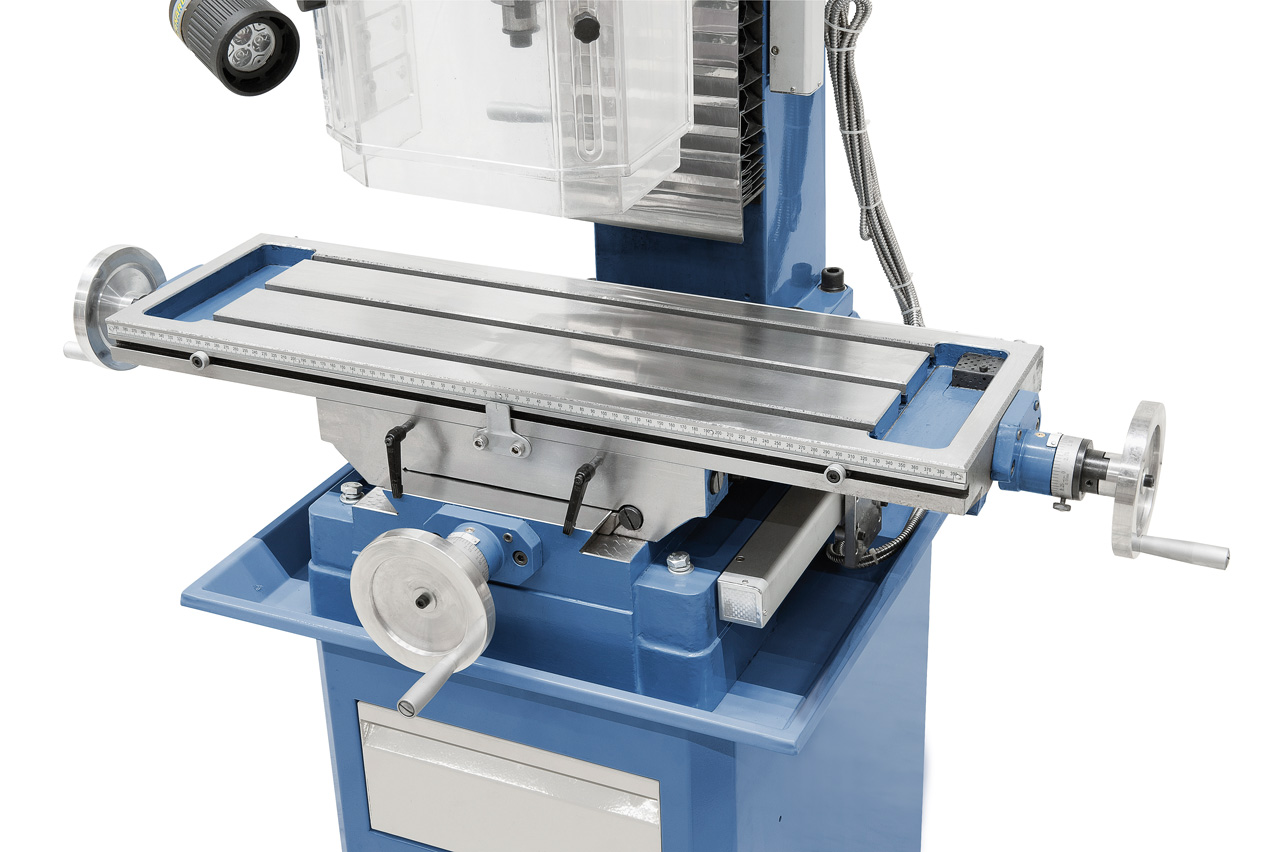

• Dovetail guiding in x- and y-axis, adjustable by gibs

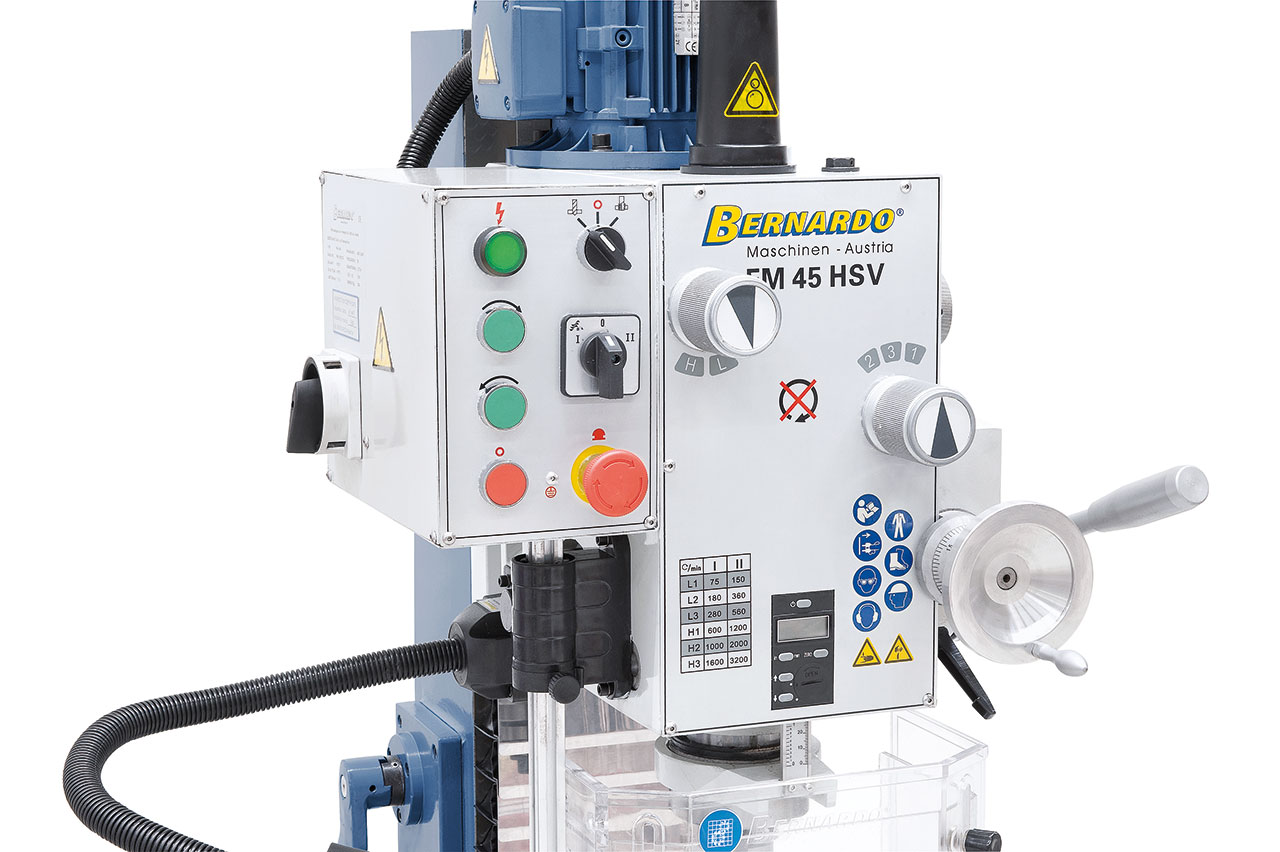

• Gear selector switch allows quick and easy speed change
• Digital display for spindle feed included
• Dovetail guiding of gear head maximizes stability

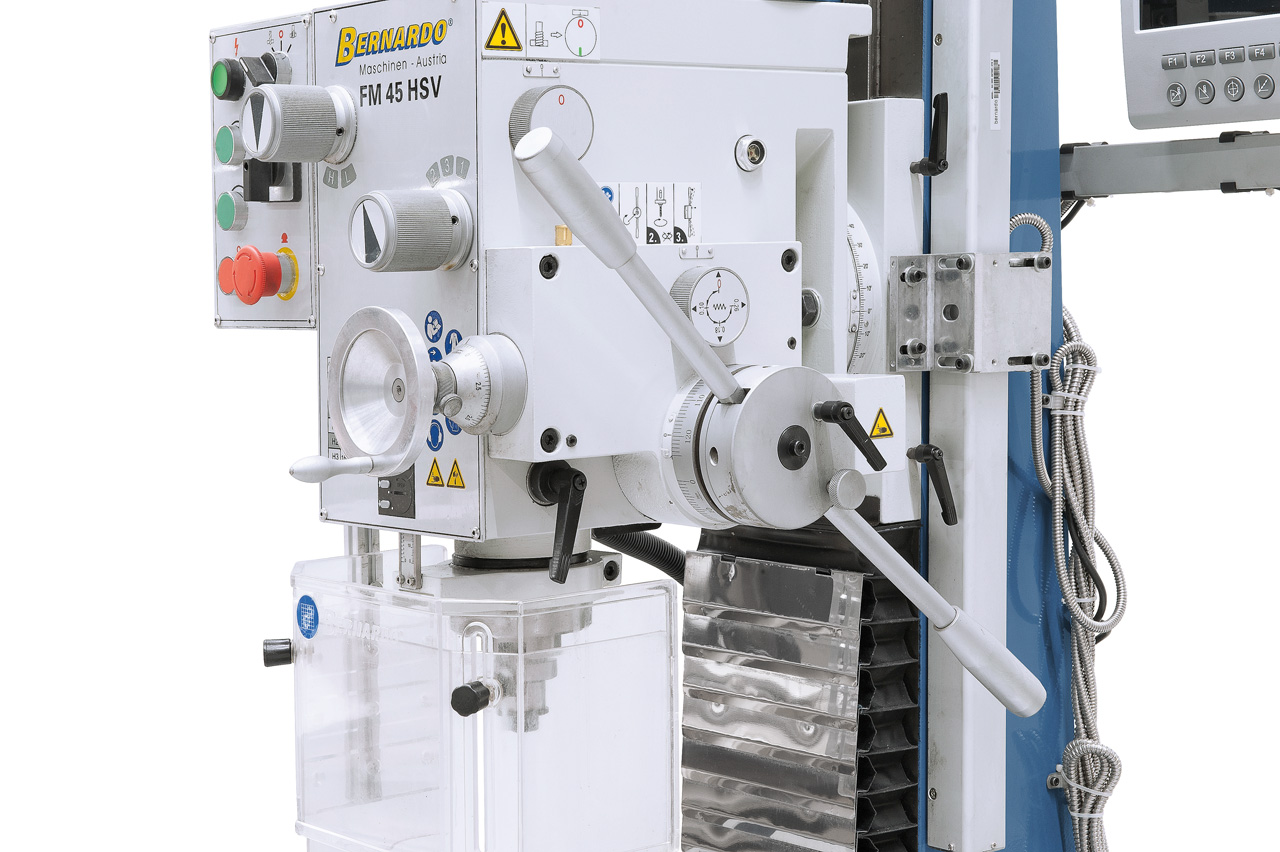

• Handle for spindle adjustment, handwheel for fine feed
• Solid cast-iron construction eliminates most vibrations

Technical details Drilling and milling machine Bernardo FM 45 HSV

* without stand
