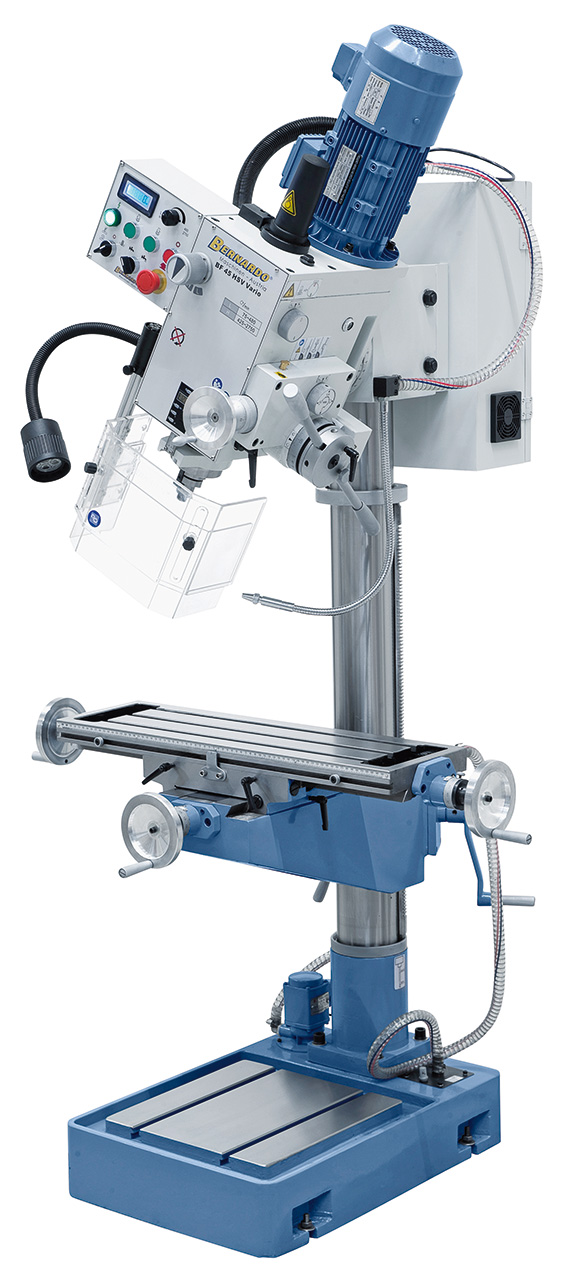

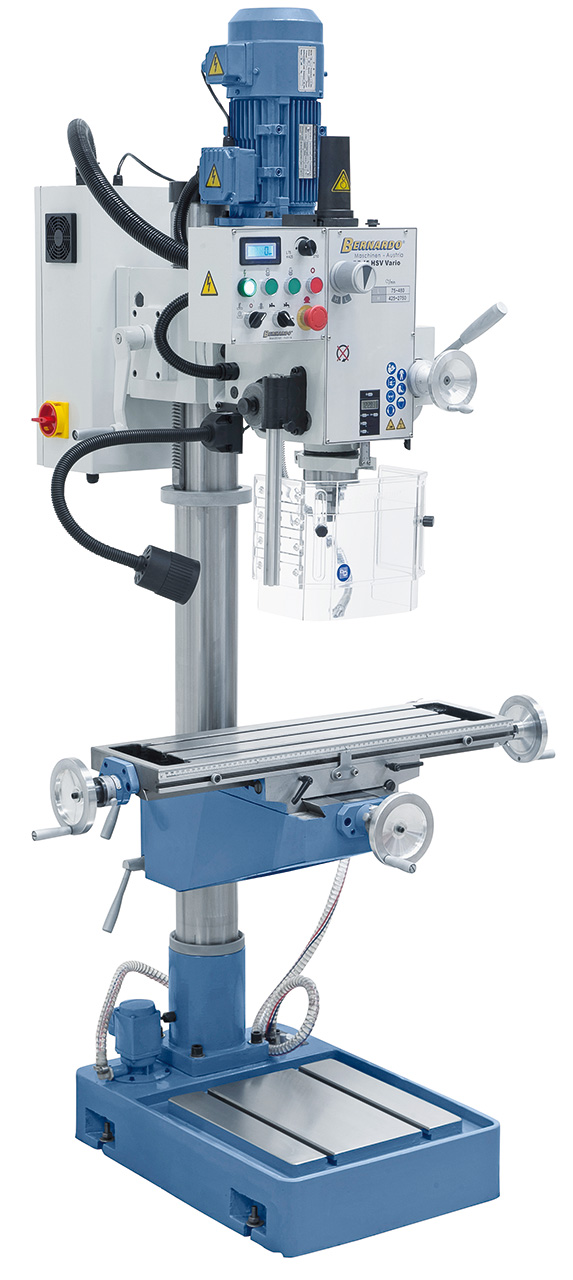

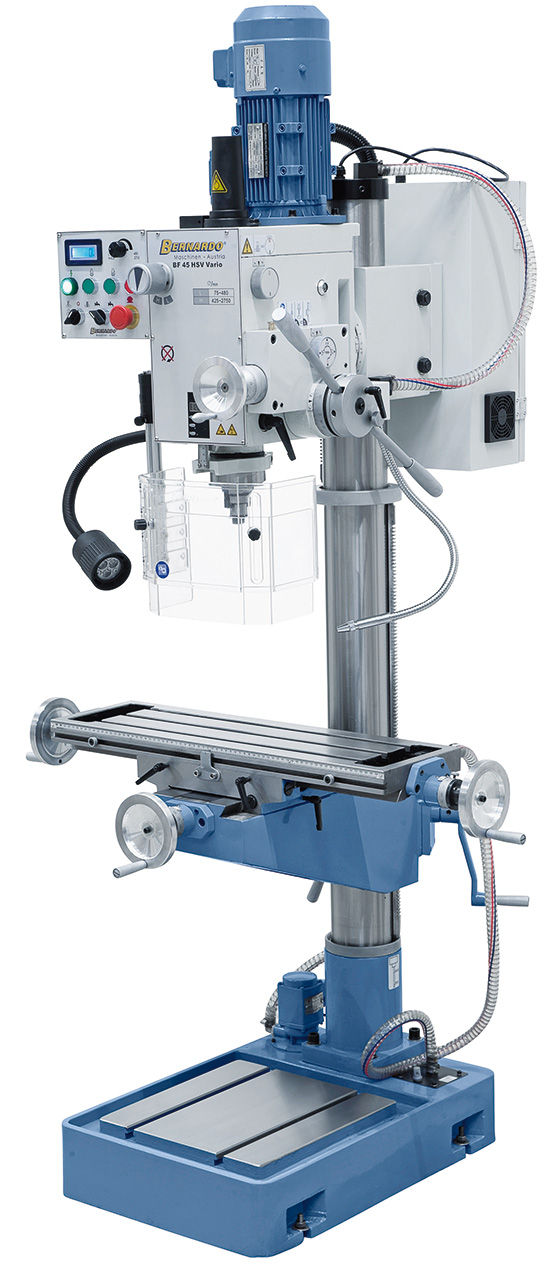

Drilling and milling machine Bernardo BF 45 HSV Vario

The drilling and milling machine BF 45 HSV Vario is suitable for drilling and milling in horizontal, vertical and inclined position. Due to the solid construction, serially spindle feed, digital spindle stroke indication and the stepless speed adjustment, this model is popular at model-makers, craftsmen and repair shops.

Scope of delivery Drilling and milling machine Bernardo BF 45 HSV Vario

• Keyless drill chuck 1 – 16 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Drawbar M 16
• Morse taper drill sleeve MT 4 / 3
• Taper shell end mill holder MT 4 / 27 mm
• Automatic spindle feed
• Height adjustable protective cover
• Digital spindle stroke indication
• Digital speed indication

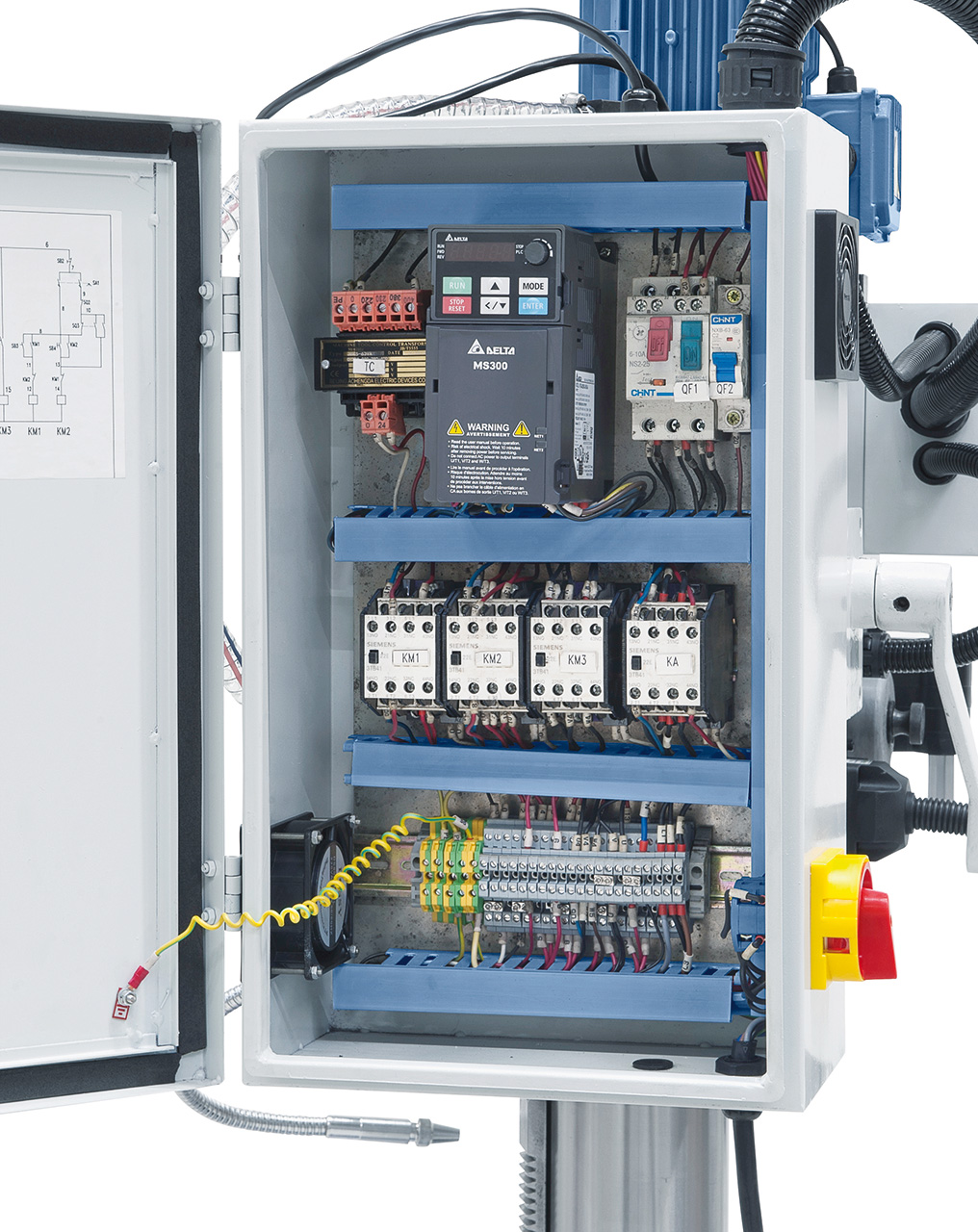

• Frequency inverter
• Thread cutting device
• Coolant device
• LED machine light
• Longitudinal scale
• Tools

Features Drilling and milling machine Bernardo BF 45 HSV Vario

• Delta-frequency inverter ensures variable speed adjustment with optimal torque
• Height adjustable protective cover in accordance to CE standards for increased safety
• Many possible applications, such as groove milling, face milling, reboring etc.
• Large cross table with T-slots and coolant groove
• Polished gear wheels, in oil bath, allow smooth running

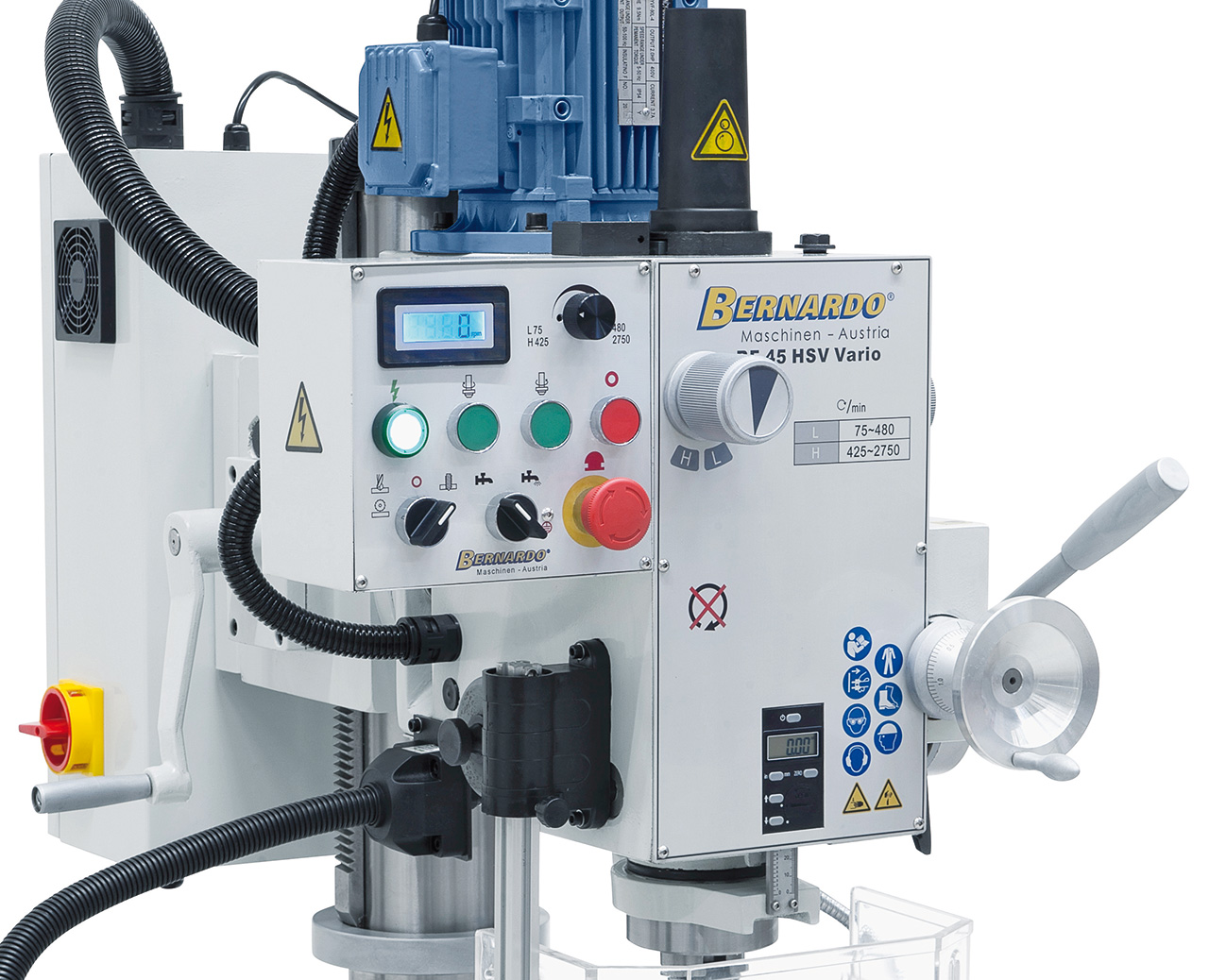

• Digital display for speed and spindle stroke comes standard

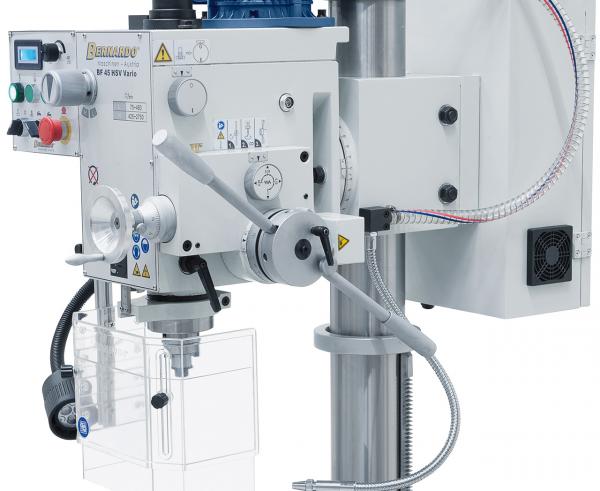

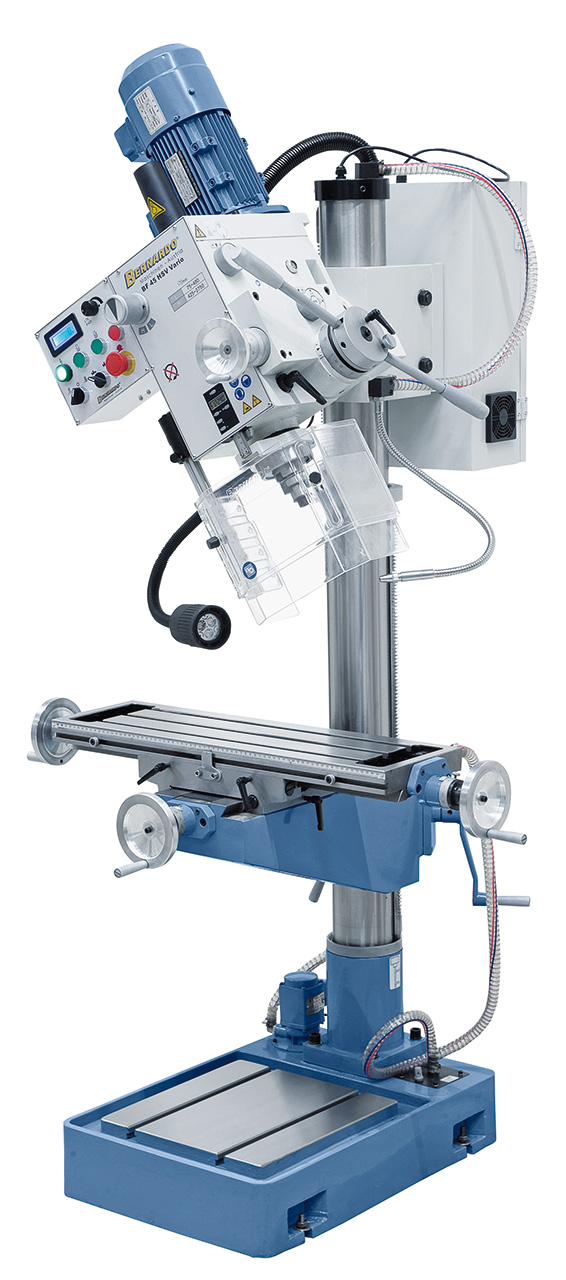

• Mill head tilts to both sides for angular boring, groove milling and many more
• Dovetail guiding in x- and z-axis, adjustable by gibs
• Solid, polished steel column in heavy-duty design
• Comes complete with automatic spindle feed
• Left and right turning for thread cutting

Technical details Drilling and milling machine Bernardo BF 45 HSV Vario
