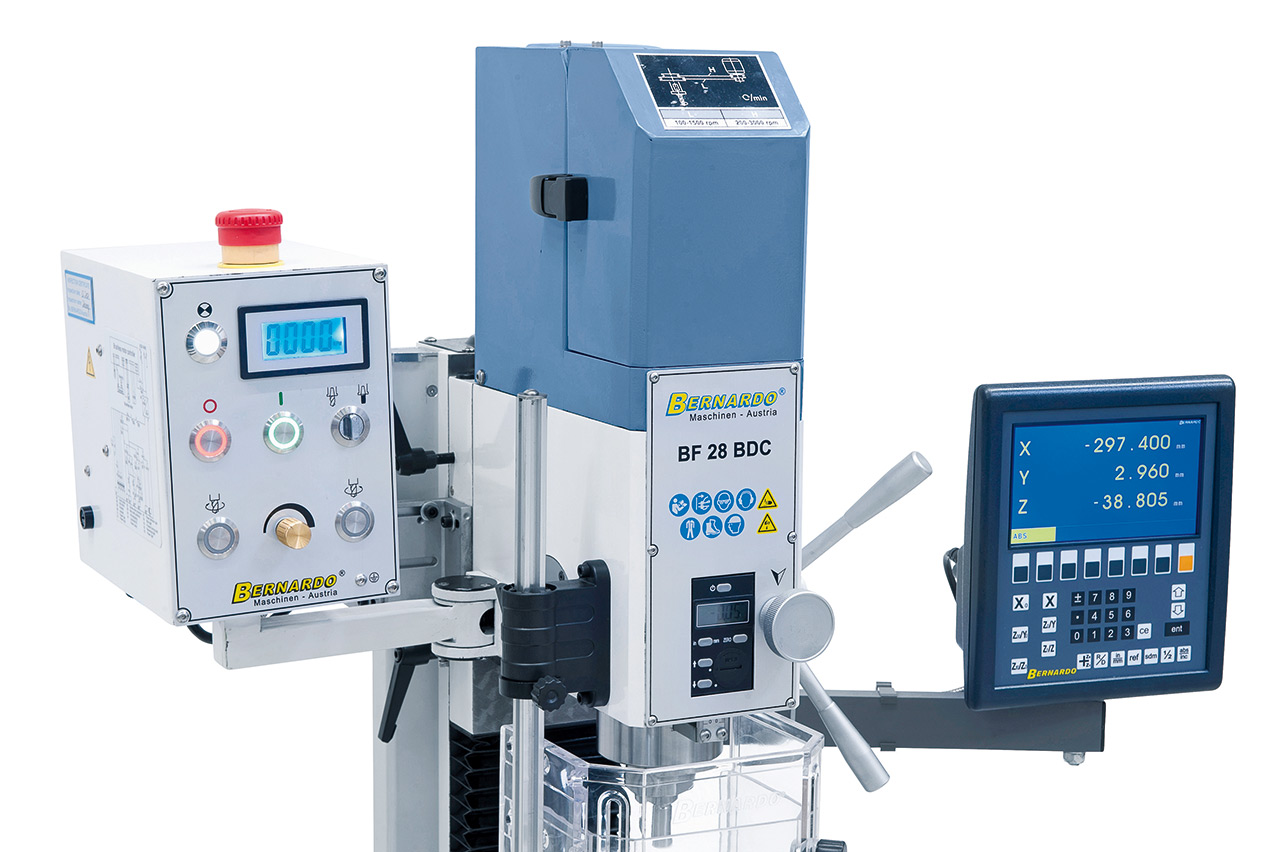

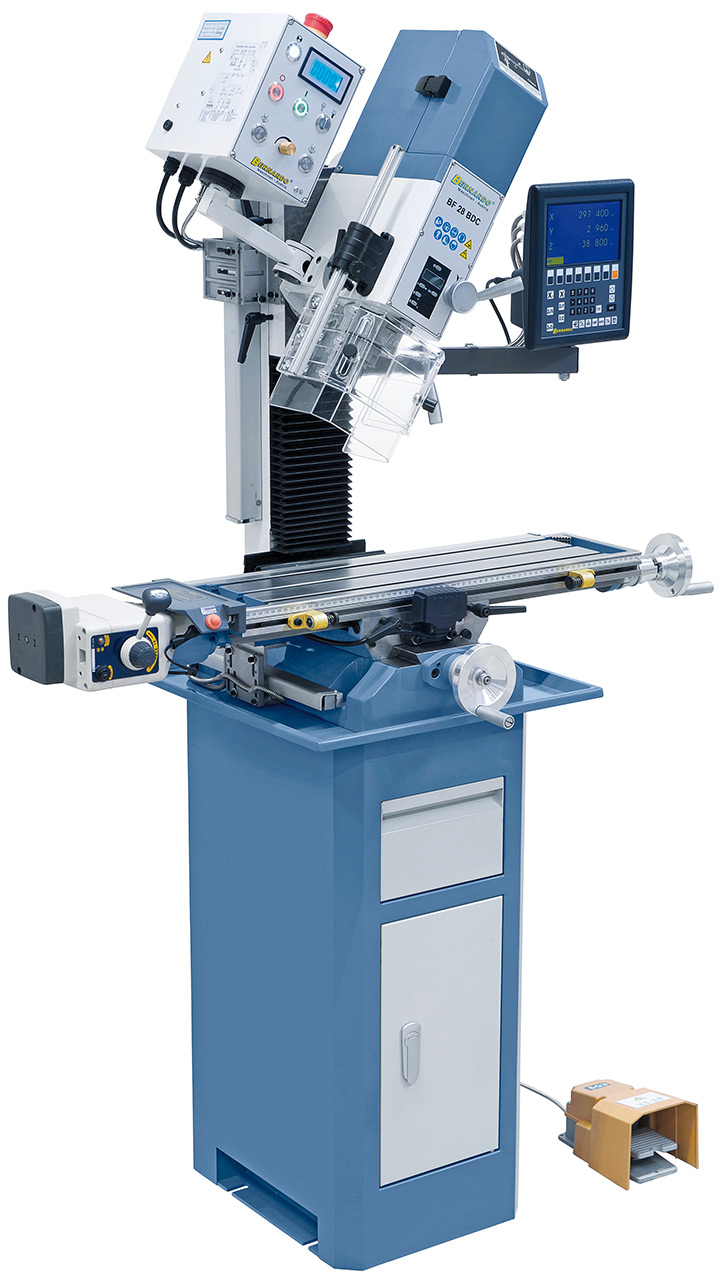

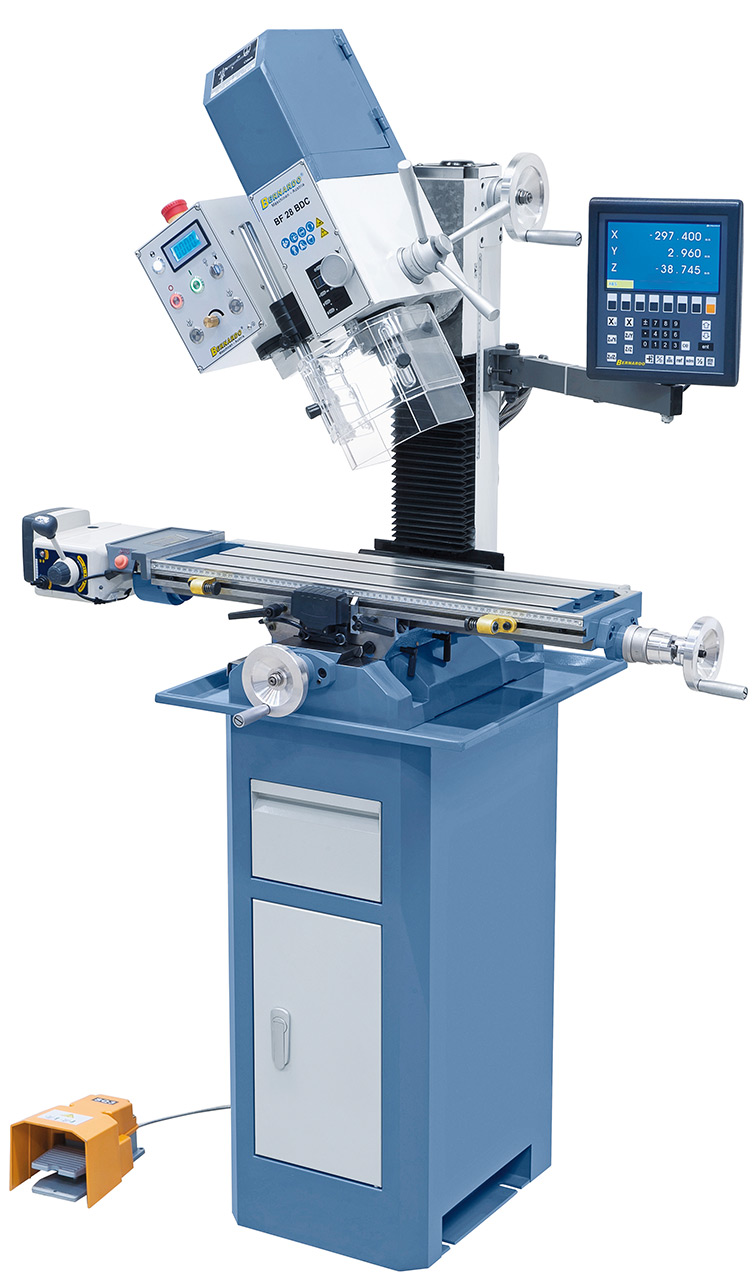

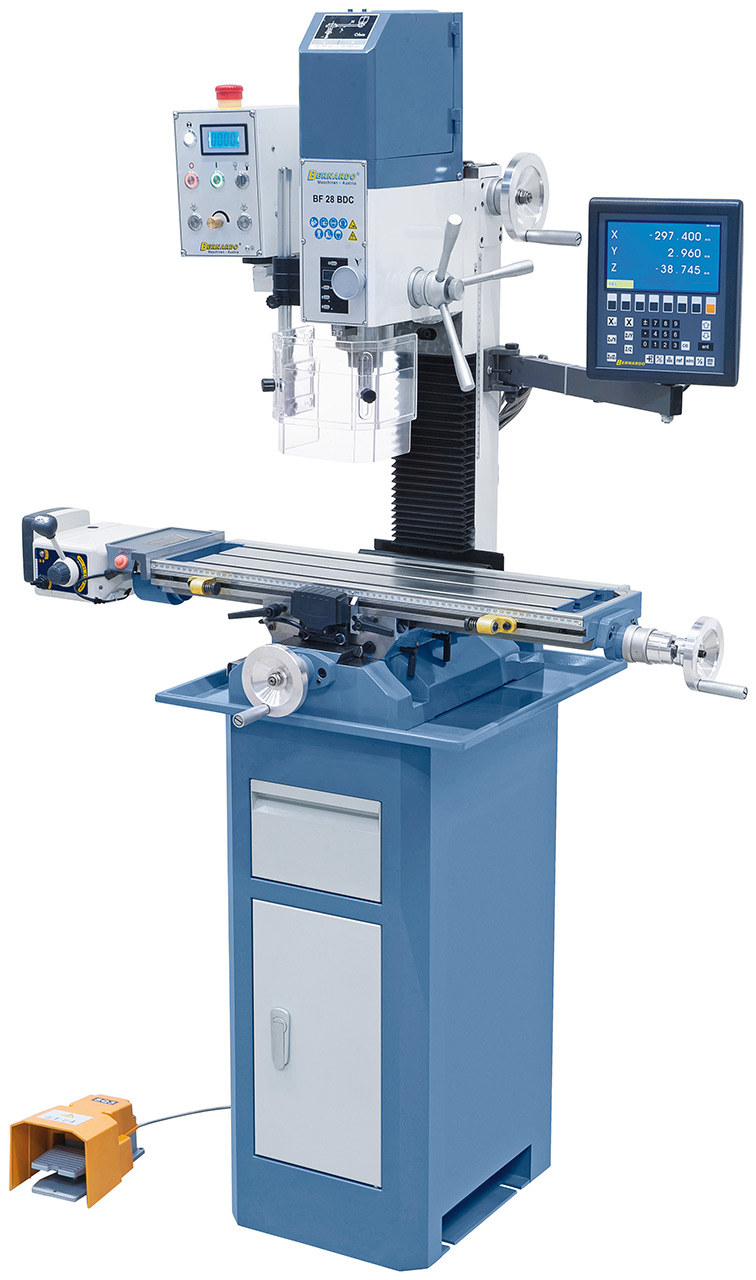

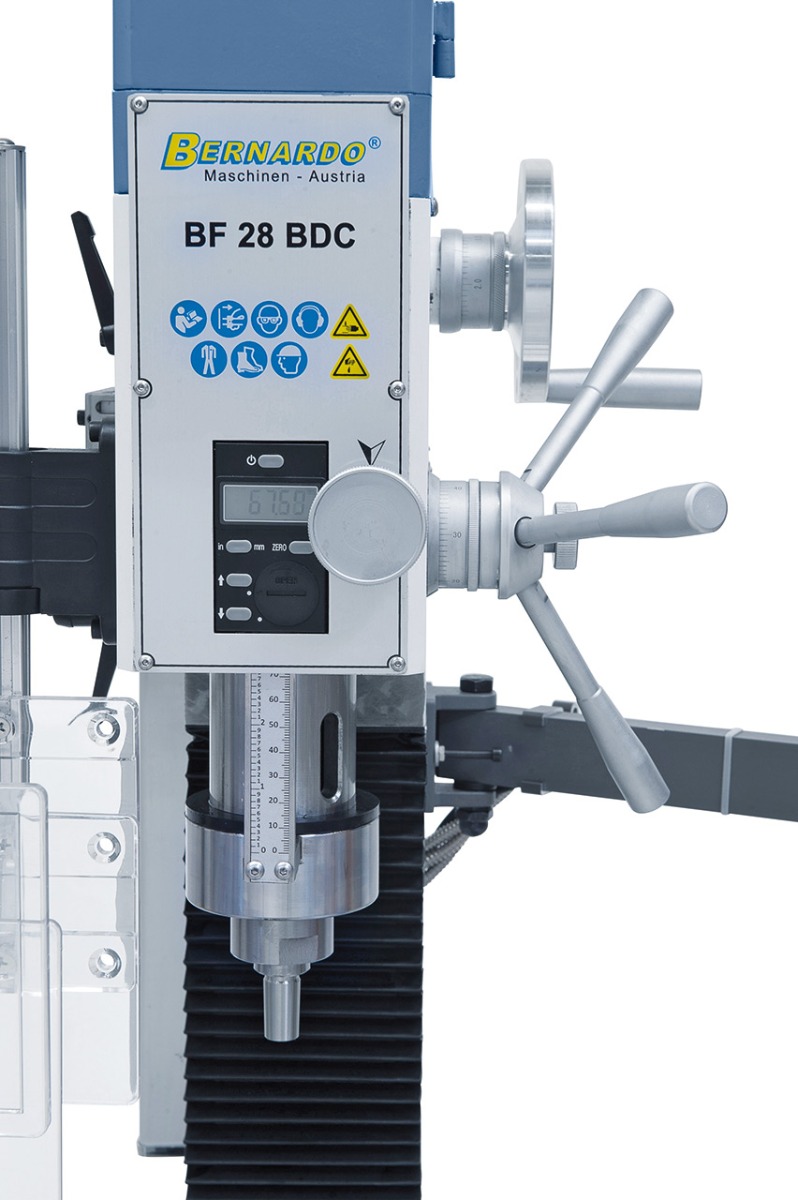

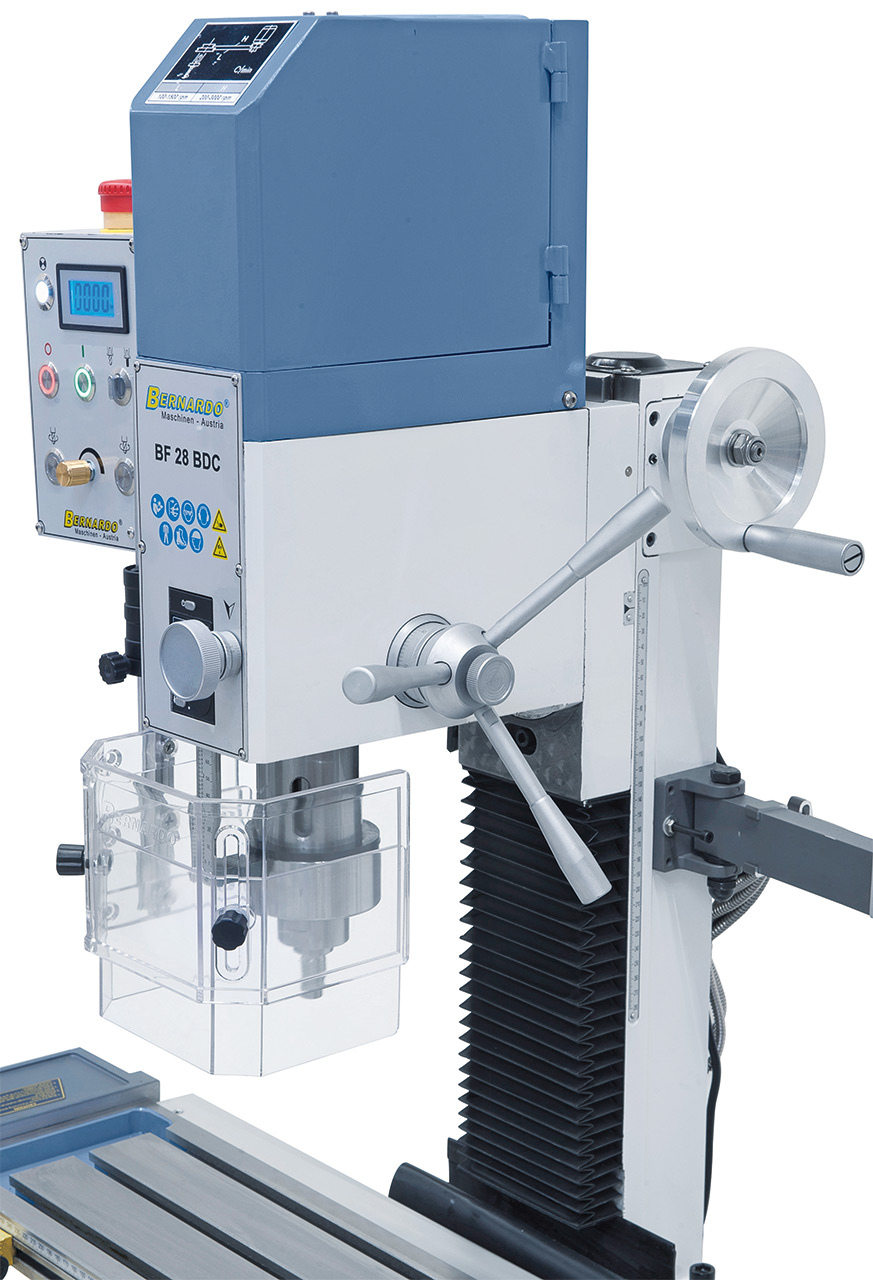

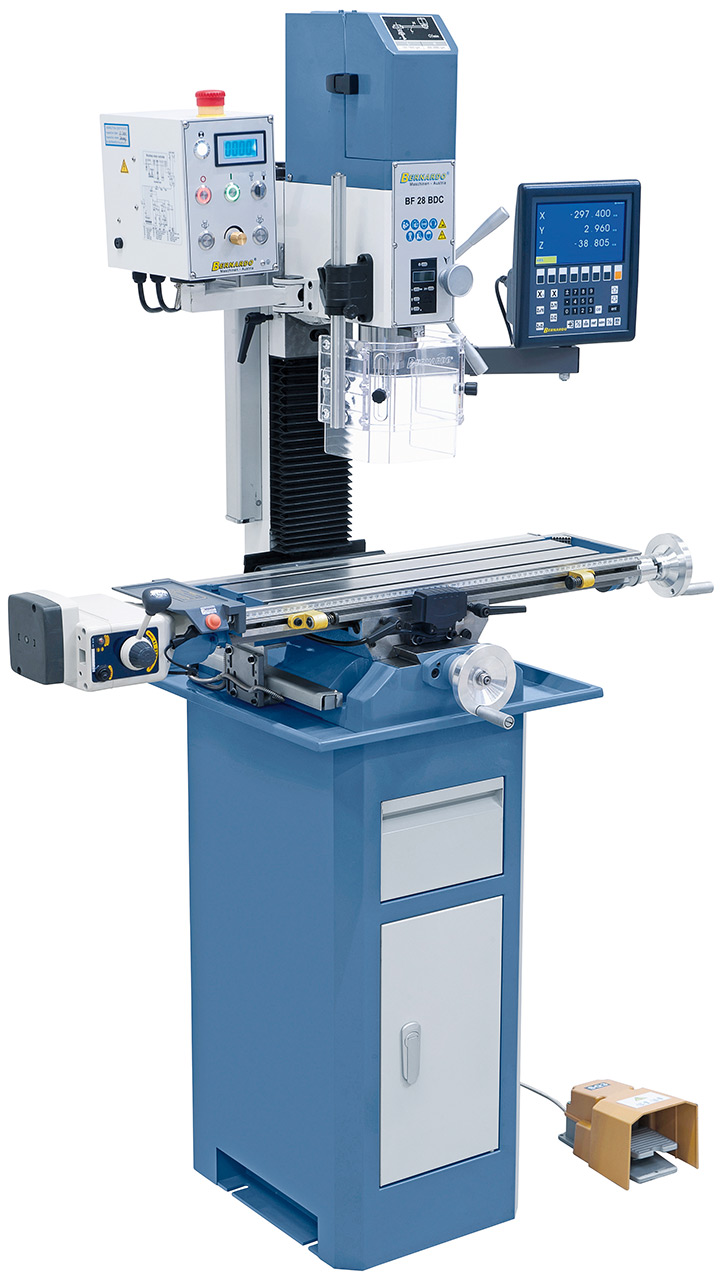

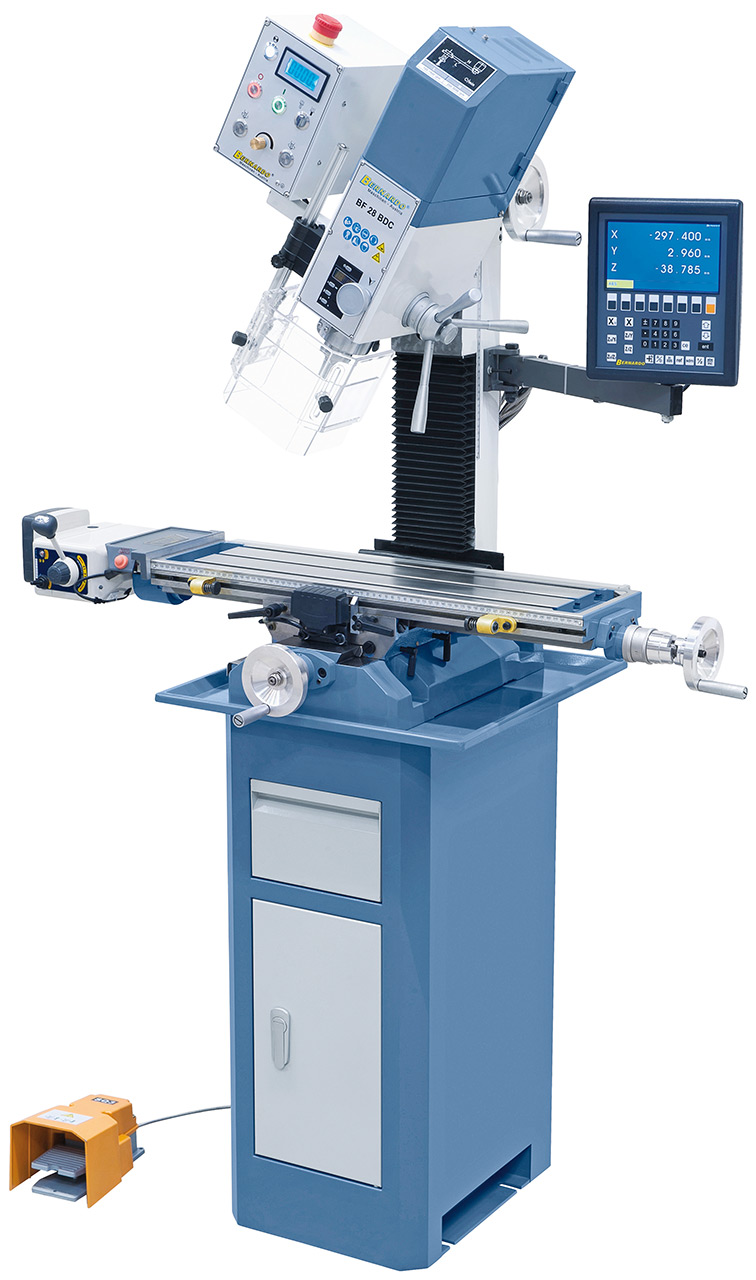

Drilling and milling machine Bernardo BF 28 BDC with power feed and 3-axis digital readout ES-12 V

The BF 28 BDC drilling and milling machine comes complete with a high quality direct current motor. Consequently, there are many advantages such as the high torque at low speed and the almost constant speed during processing. This model is predominantly used among professionals, in model-making as well as for training purposes.

Scope of delivery Drilling and milling machine Bernardo BF 28 BDC with power feed and 3-axis digital readout ES-12 V

• 3-axis digital readout ES-12 V with LCD-display
• X-axis power feed AL 280 D
• Drill chuck 3 - 16 mm / B 16
• Drill chuck arbor MT 3 / B 16
• Drawbar M 12
• Digital speed indicator
• Digital spindle stroke indicator
• EMC filter according to CE standard
• Height adjustable protective cover
• Foot pedal
• Thread cutting device
• Tools

Features Drilling and milling machine Bernardo BF 28 BDC with power feed and 3-axis digital readout ES-12 V

• Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
• Many possible applications, such as groove milling, face milling, reboring, etc.
• Digital speed and spindle stroke indicator included as standard equipment
• Serially with foot pedal to change the running direction when tapping
• Direct current motor for ideal torque at lower speed
• Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
• High-quality bearings guarantees high spindle concentricity (≤0.015 mm)
• Mill head tiltable to both sides for angular boring, milling of bevels etc.
• Large, surface treated cross table
• Handle for spindle adjustment, handwheel for fine feed

Technical details Drilling and milling machine Bernardo BF 28 BDC with power feed and 3-axis digital readout ES-12 V

* without stand
