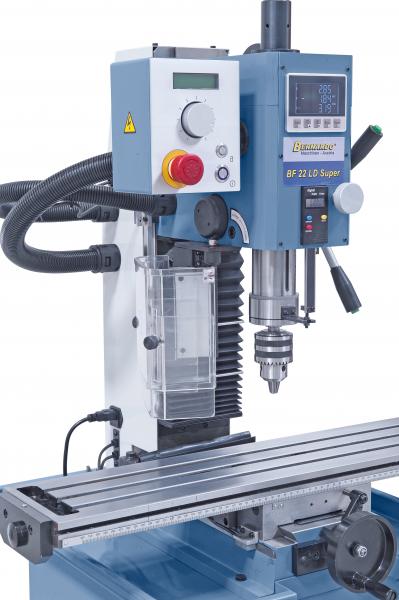

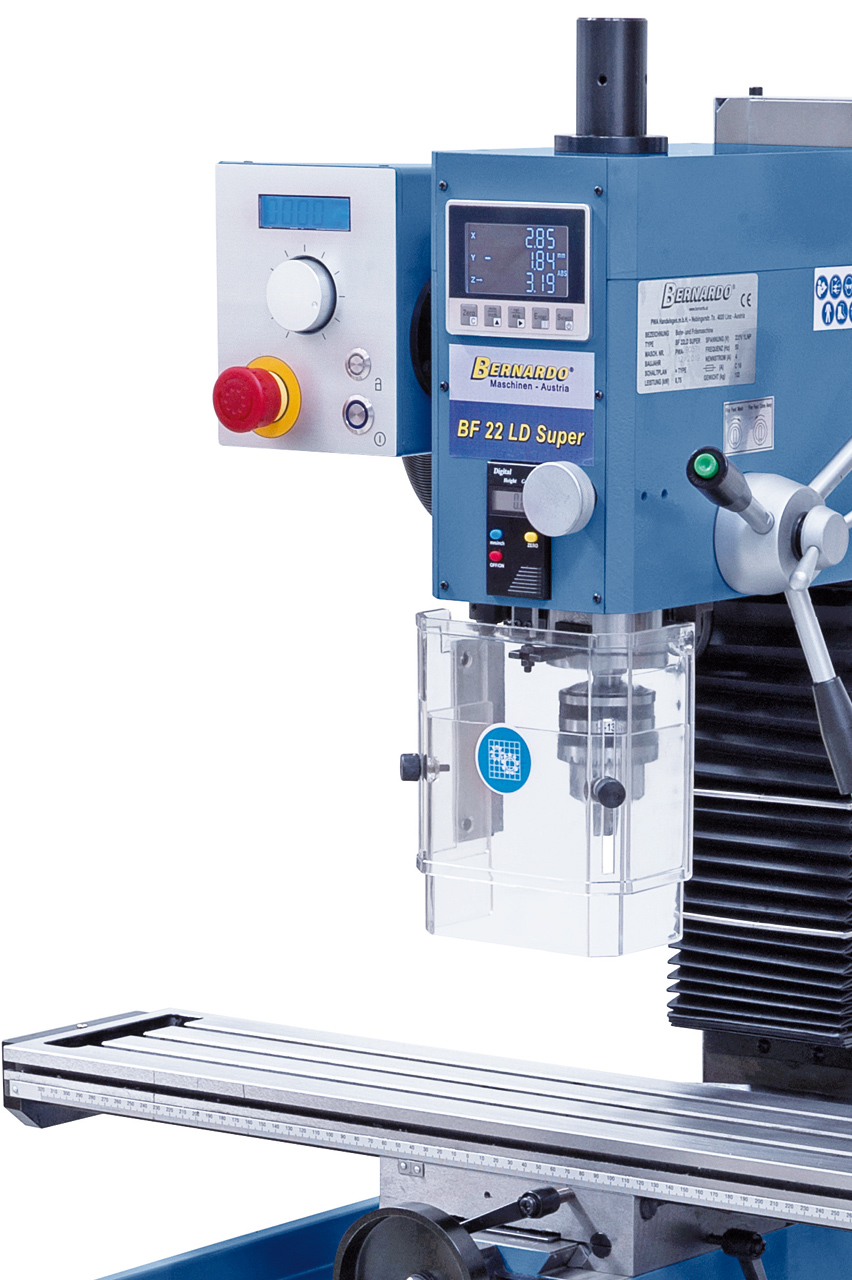

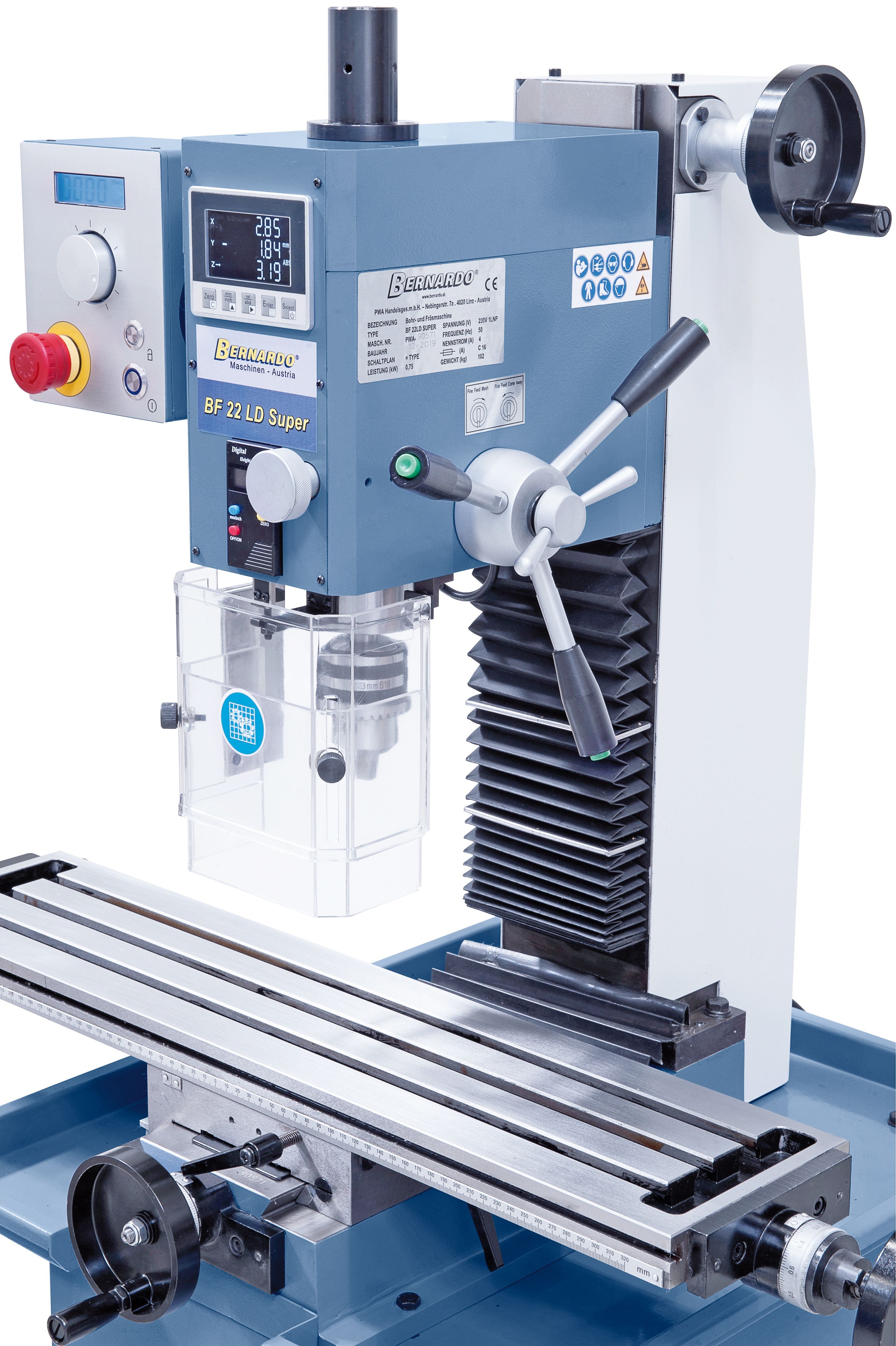

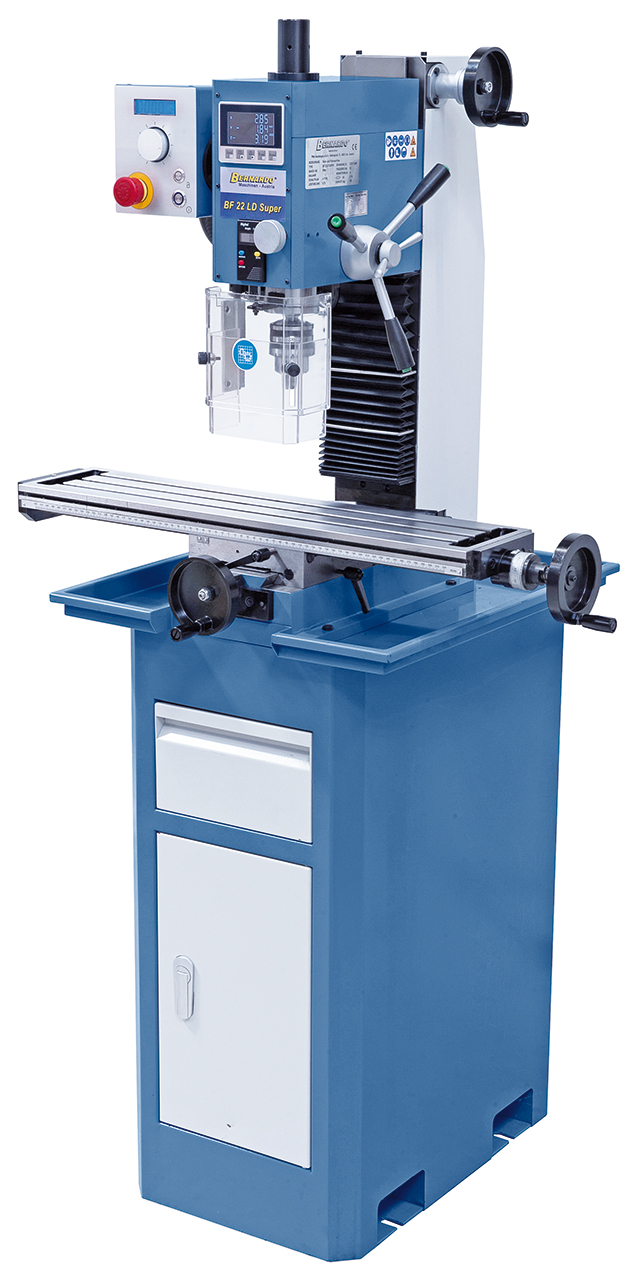

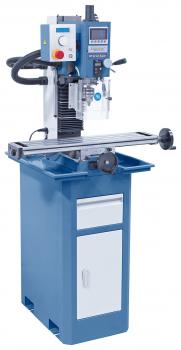

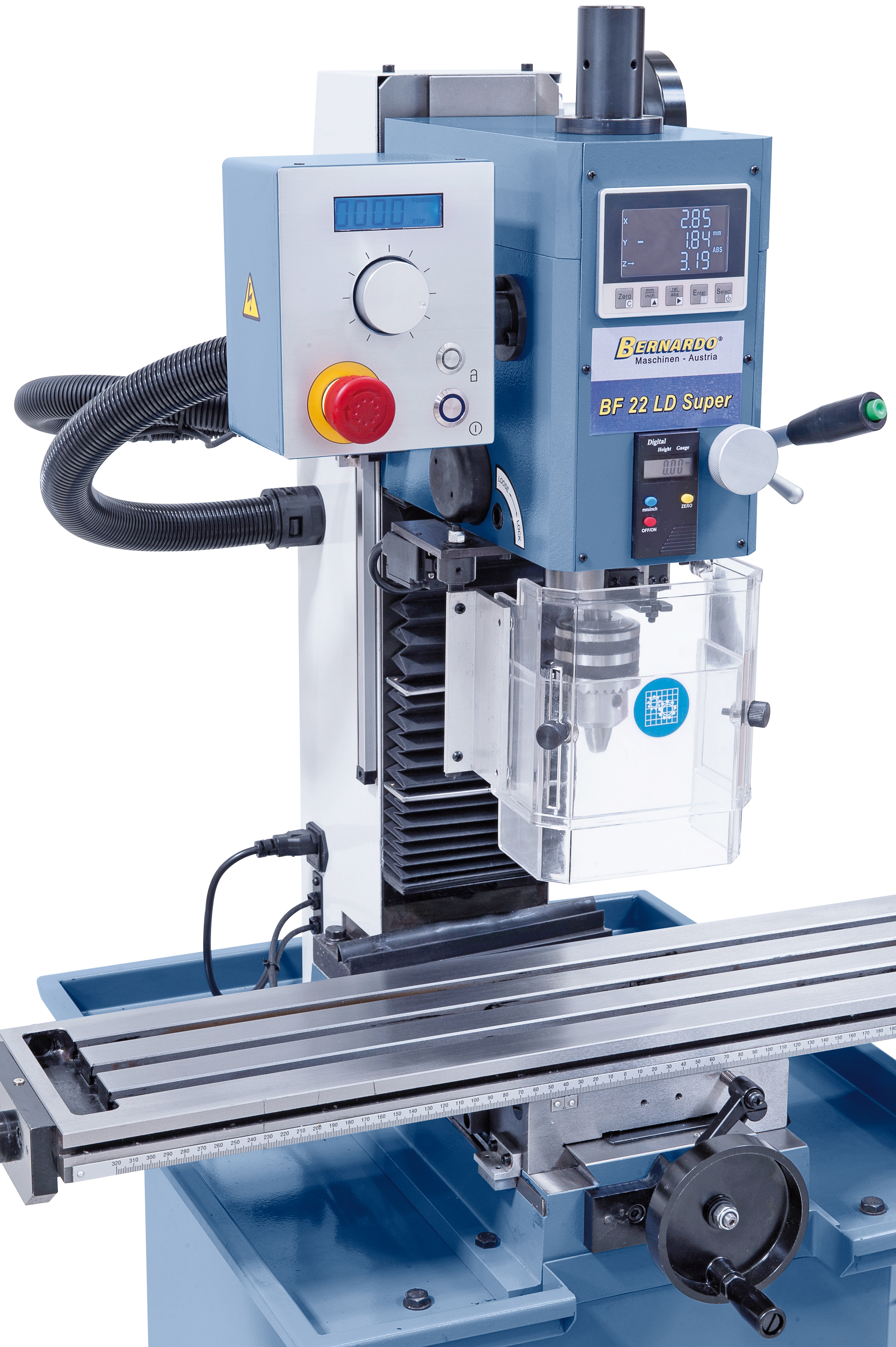

Drilling and milling machine Bernardo BF 22 LD Super

The drilling and milling machine BF 22 LD Super come complete with a digital speed and spindle stroke display as a standard feature. Additionally, with brushless direct current motor for high torque is rounded off with an integrated 3-axis digital readout and a thread cutting device. This machine is very popular among both professionals and model-makers along with all areas of training.

Scope of delivery Drilling and milling machine Bernardo BF 22 LD Super

• 3-axis digital readout
• Drill chuck 1 - 13 mm / B 16
• Drill chuck arbor MT 3 / B 16
• Drawbar M 12
• Digital speed indicator
• Digital spindle stroke indicator
• Height adjustable protective cover

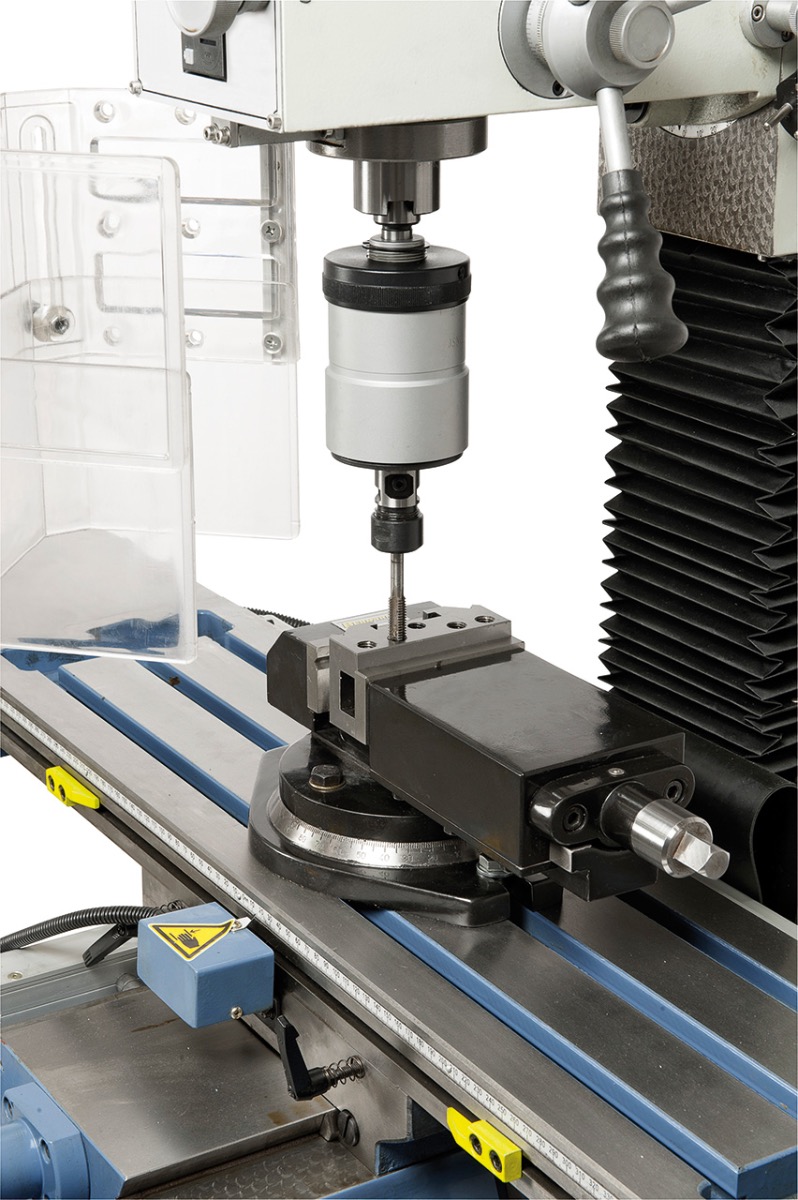

• Thread cutting device
• Tools

Features Drilling and milling machine Bernardo BF 22 LD Super

• Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
• Direct current motor for ideal torque at lower speed
• Wide range of applications, such as thread cutting, groove milling, horizontal slotting etc.
• Serially with left and right turning and digital spindle stroke indication

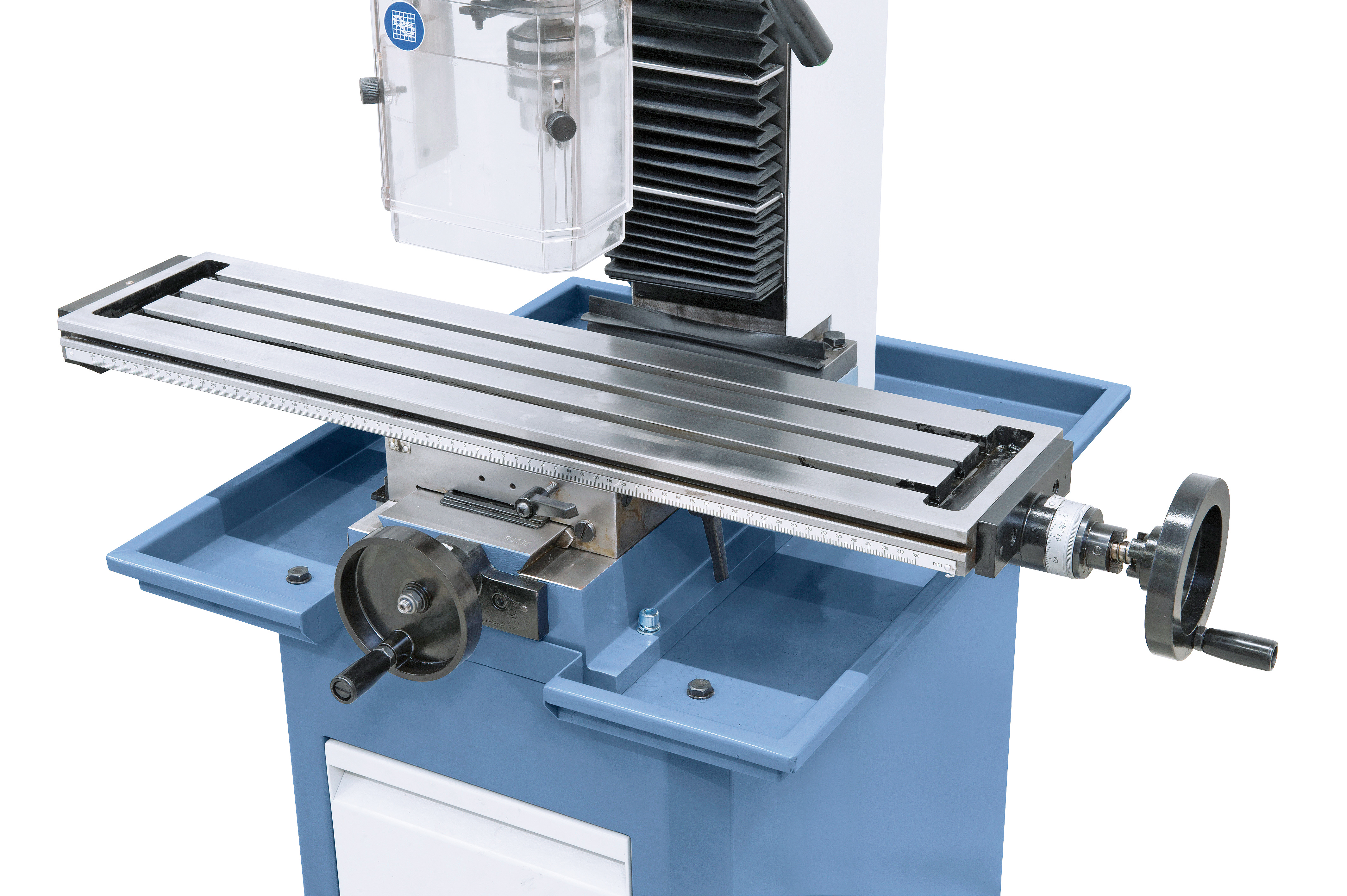

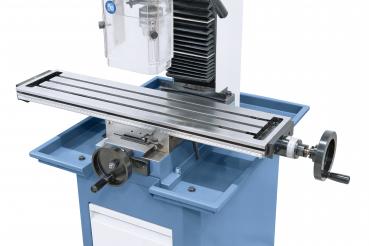

• Dovetail guiding for the x-, y- and z-axis, adjustable by gibs
• Taper roll bearings guarantees high spindle concentricity (≤ 0.015 mm)
• Serially with thread cutting device
• Ergonomically arranged control elements
• Handwheel for precise spindle feed at milling
• Polished gear wheels ensure smooth running
• Wide speed range from 100 – 2000 rpm

Technical details Drilling and milling machine Bernardo BF 22 LD Super

* without stand
