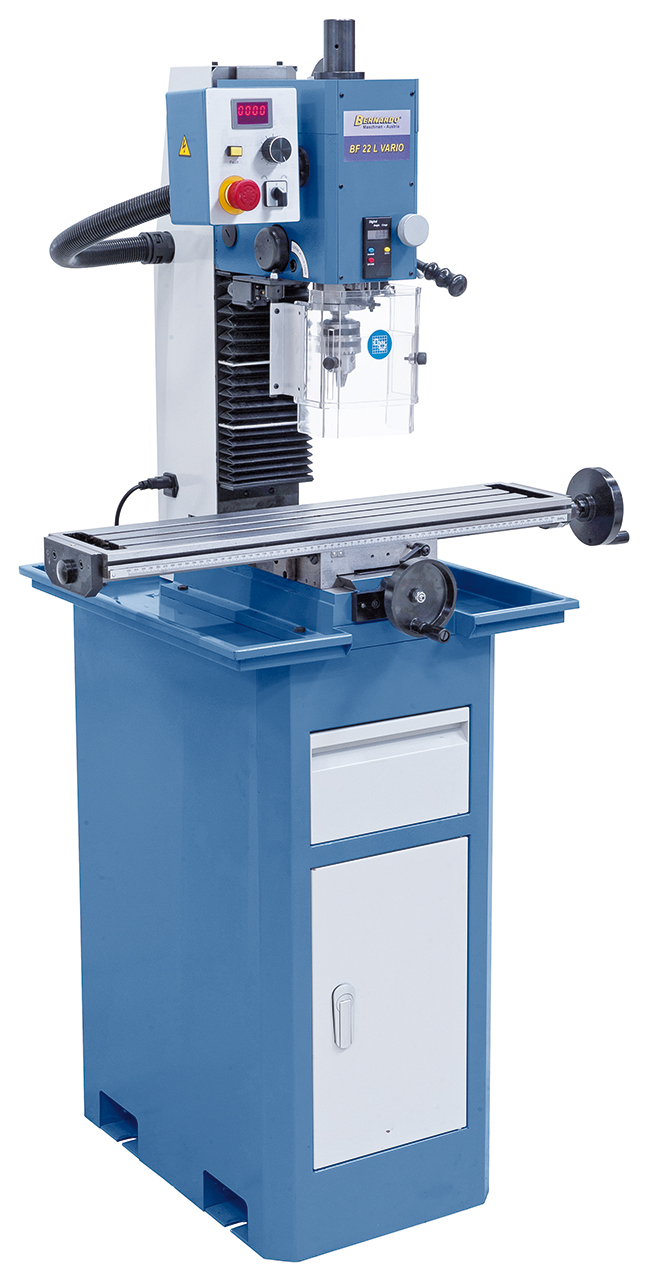

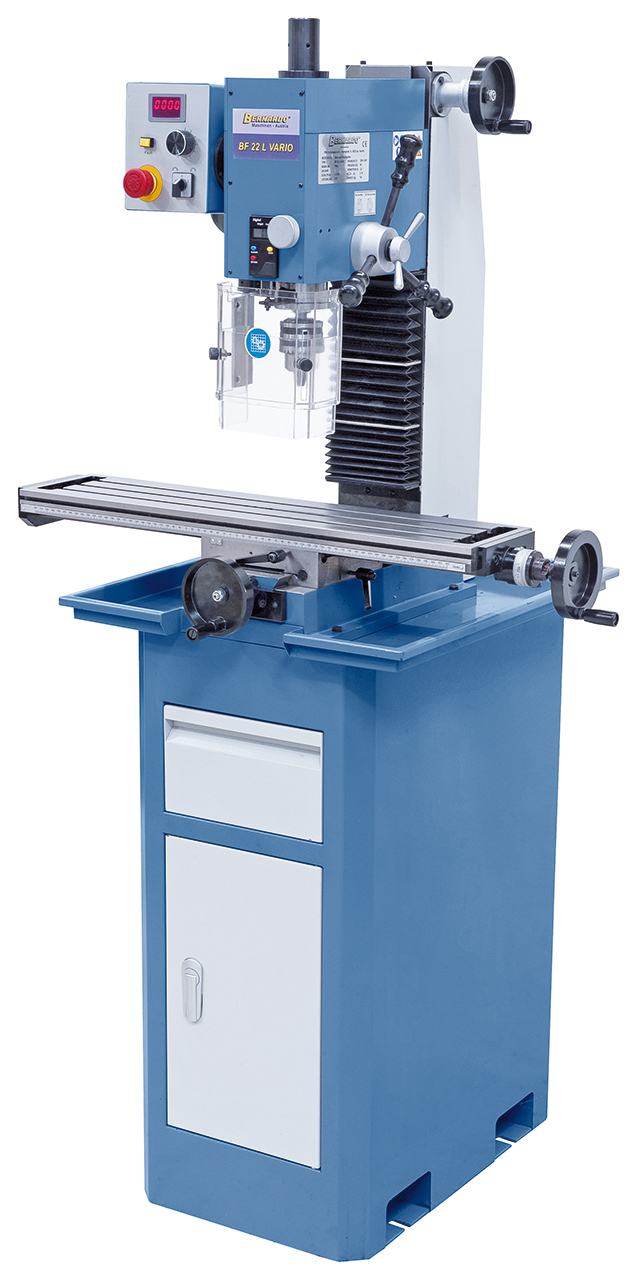

Drilling and milling machine Bernardo BF 22 L Vario
The drilling and milling machine BF 22 L Vario come complete with a digital speed and spindle stroke display as a standard feature. This machine is very popular among both professionals and model-makers along with all areas of training.
Scope of delivery Drilling and milling machine Bernardo BF 22 L Vario
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Drawbar M 12

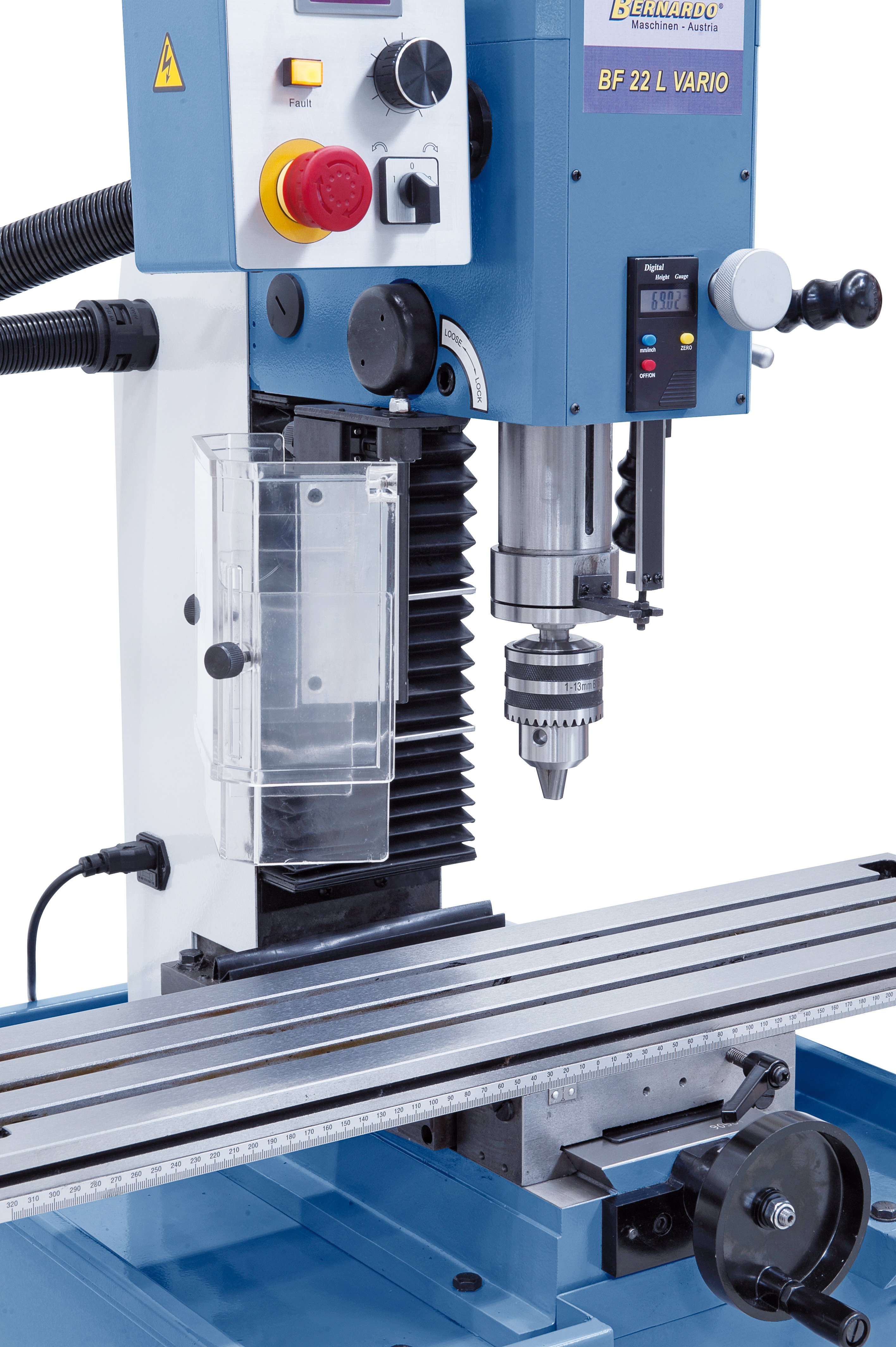

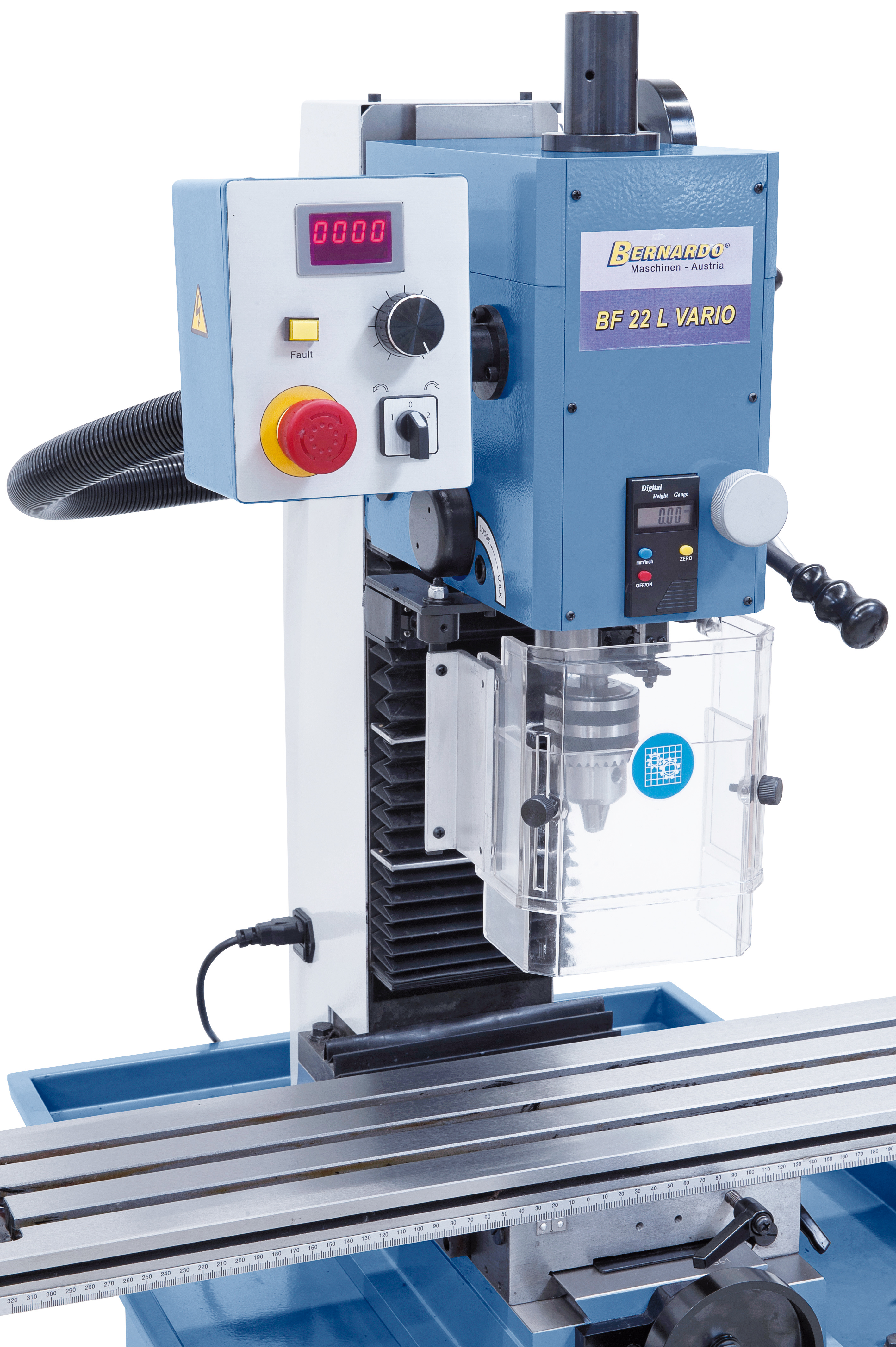

- Digital speed indicator
- Digital spindle stroke indicator
- Height adjustable protective cover
- Tools
Features Drilling and milling machine Bernardo BF 22 L Vario
- Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece

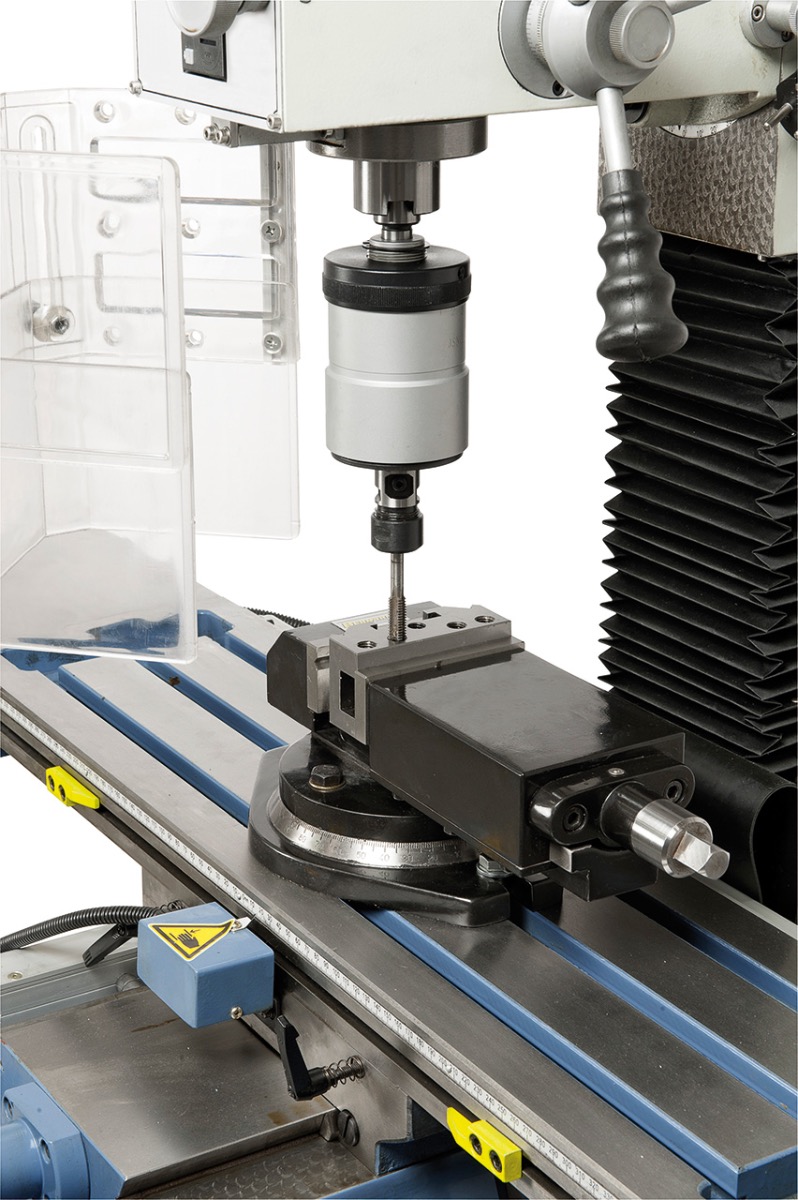

- Wide range of applications, such as thread cutting, groove milling, horizontal slotting etc.
- Serially with left and right turning and digital spindle stroke indication

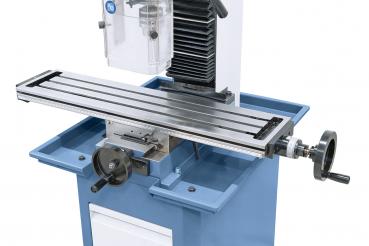

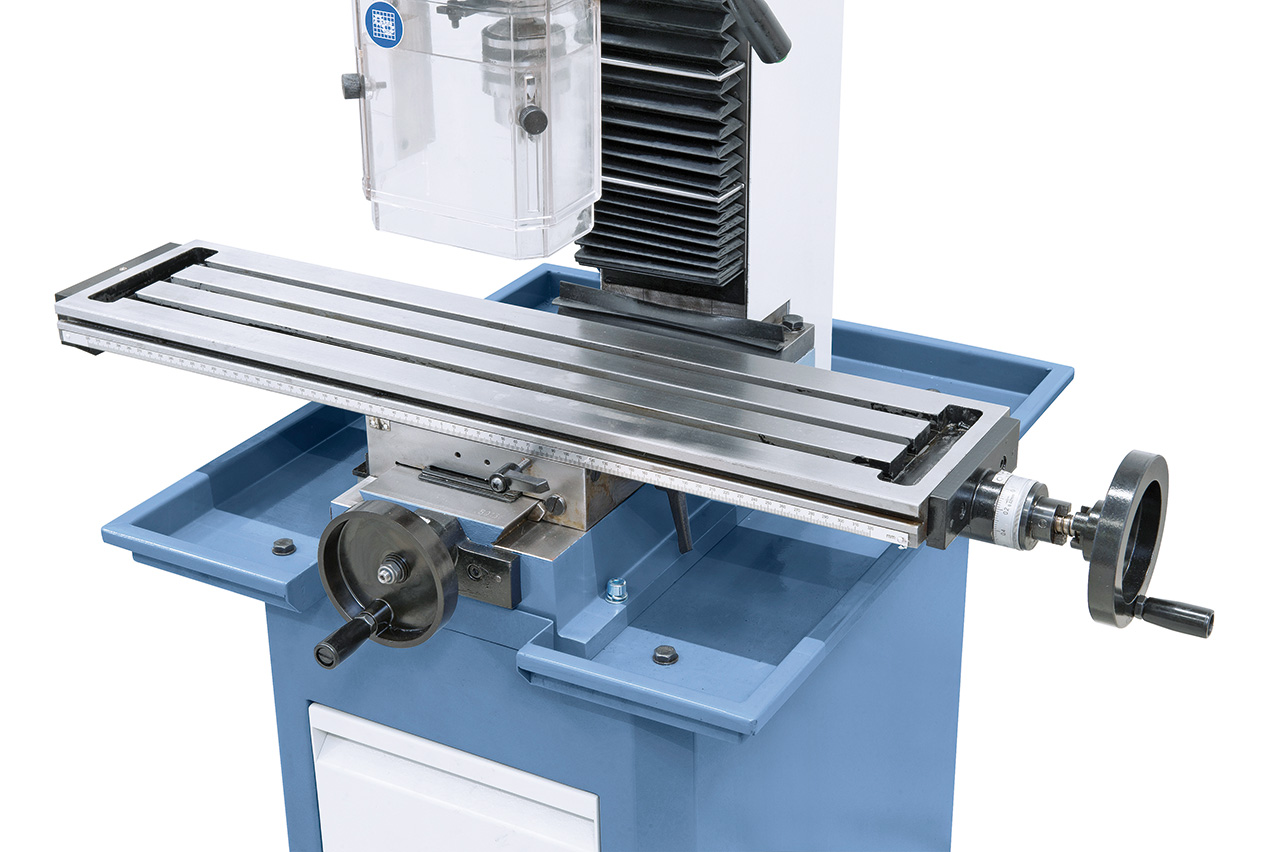

- Dovetail guiding for the x-, y- and z-axis, adjustable by gibs
- Taper roll bearings guarantees high spindle concentricity (≤ 0.015 mm)
- Ergonomically arranged control elements

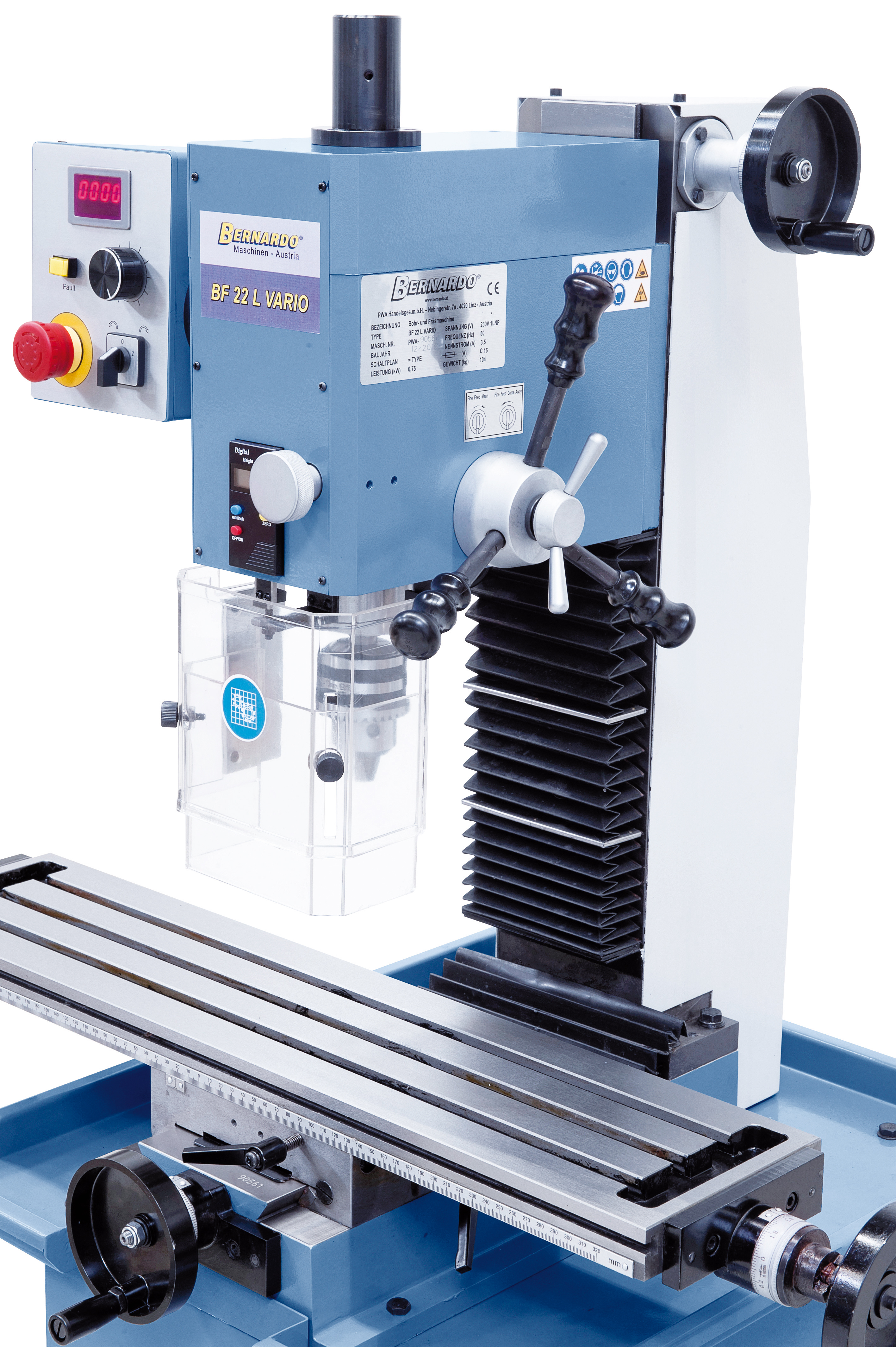

- Handwheel for precise spindle feed at milling
- Polished gear wheels ensure smooth running
- Wide speed range from 100 – 2000 rpm
Technical details Drilling and milling machine Bernardo BF 22 L Vario
Drilling capacity in steel | 20 mm |
Face mill capacity max. | 50 mm |
End mill capacity max. | 16 mm |
Thread cutting device max. | M 12 |
Distance spindle to column | 160 mm |
Distance spindle to table min./max. | 115 - 345 mm |
Spindle stroke | 70 mm |
Spindle speed, stepless | 100 – 2000 rpm |
Spindle taper | MT 3 |
Table size | 700 x 160 mm |
Travel (x / y) | 500 / 165 mm |
Height adjustment of mill head | 230 mm |
T-slot size | 12 mm |
Motor power output S1 100% | 0,75 kW / 230 V |
Motor power input S6 40% | 1,1 kW / 230 V |
Machine dimension (W x D x H)* | 890 x 620 x 860 mm |
Weight approx. | 104 kg |
* without stand
