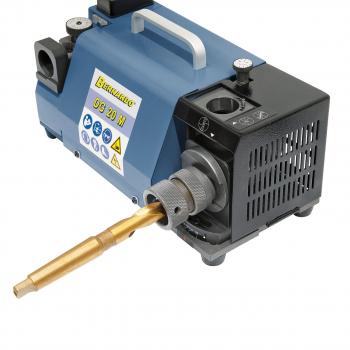

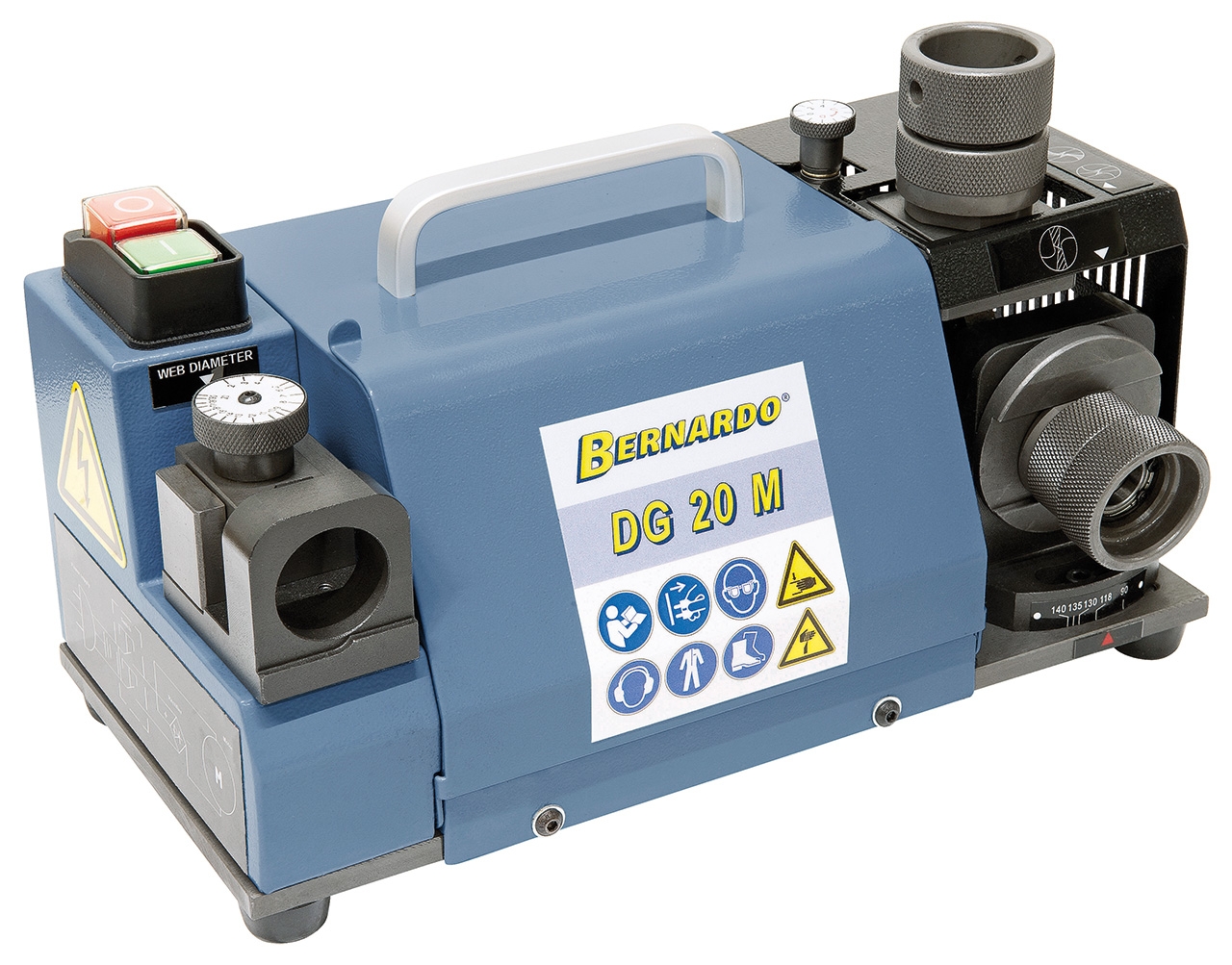

The handy drill grinding machine DG 20 M is ideal for grinding of twist drills out of HSS, carbide, cobalt and so on. The adjustable centre point of 90º to 135º makes this model universal for double-edged twist drills.
Scope of delivery Drill grinding machine Bernardo DG 20 M

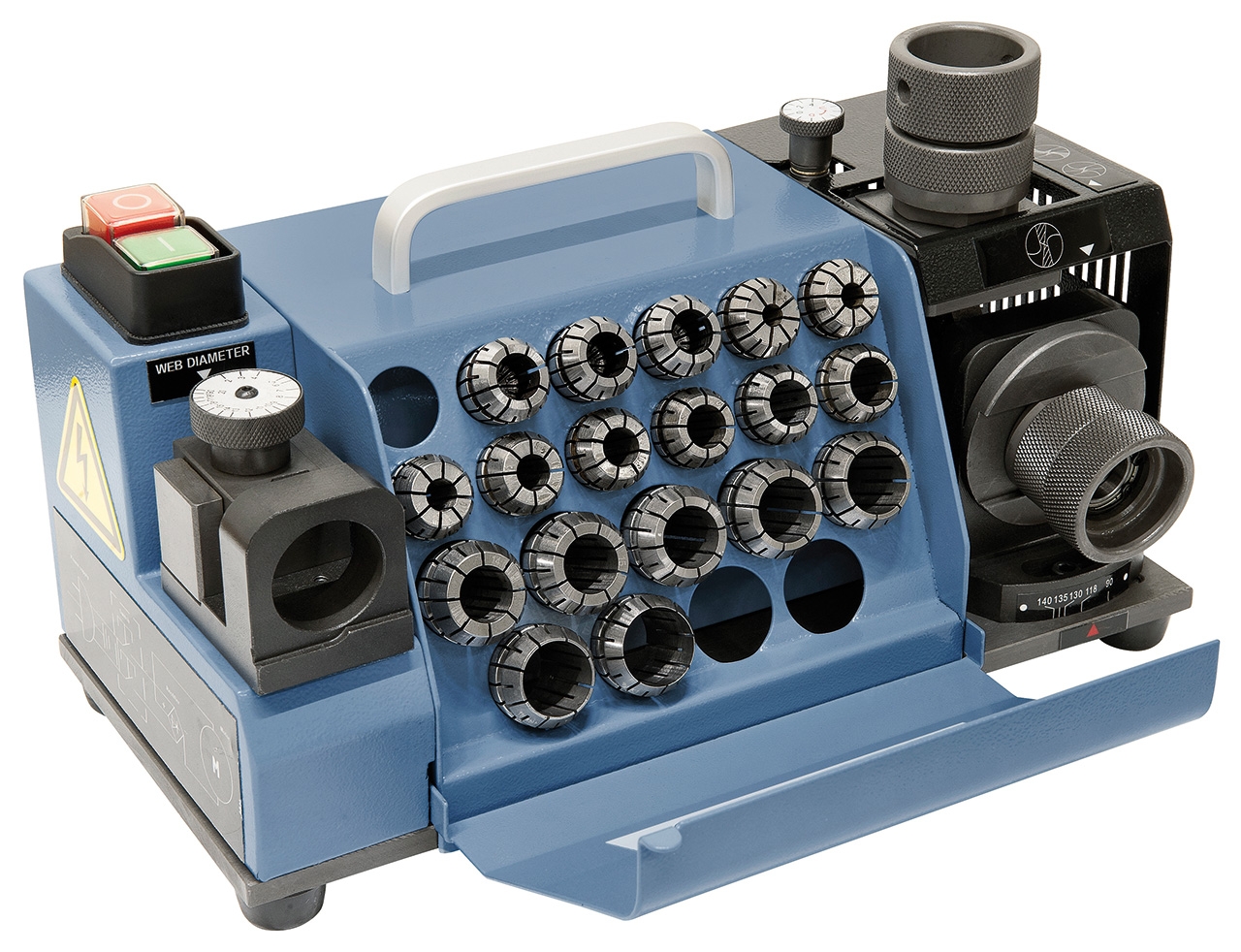

11 pcs. (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 mm)
- Collets ER 25
Features Drill grinding machine Bernardo DG 20 M
- Suitable for HSS and carbide twist drills (2 - 20 mm)
- ER 20 and ER 25 collets allow clamping of irregular sizes
- Precisely guided collet guarantees best results

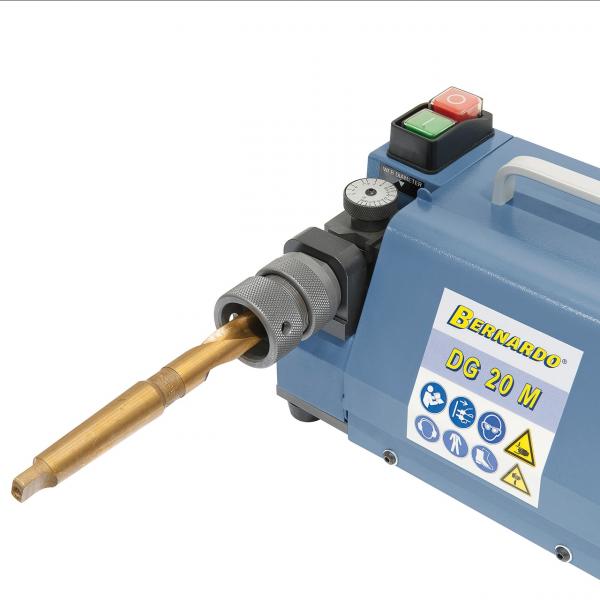

- Includes device for thinning of the drill bit

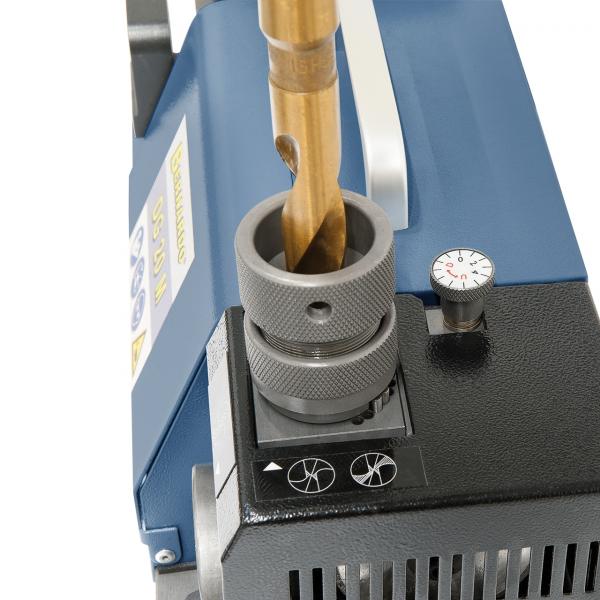

- Adjustable point angle of 90° to 135°
- Economic, efficient grinding
Technical details Drill grinding machine Bernardo DG 20 M
| Drill diameter |
2 - 20 mm
|
| Point angle | 90° - 135° |
| Speed | 4800 rpm |
| Motor power | 0,12 kW |
| Voltage | 230 V |
| Length | 285 mm |
| Width | 130 mm |
| Height | 170 mm |
| Weight approx. | 8,6 kg |
