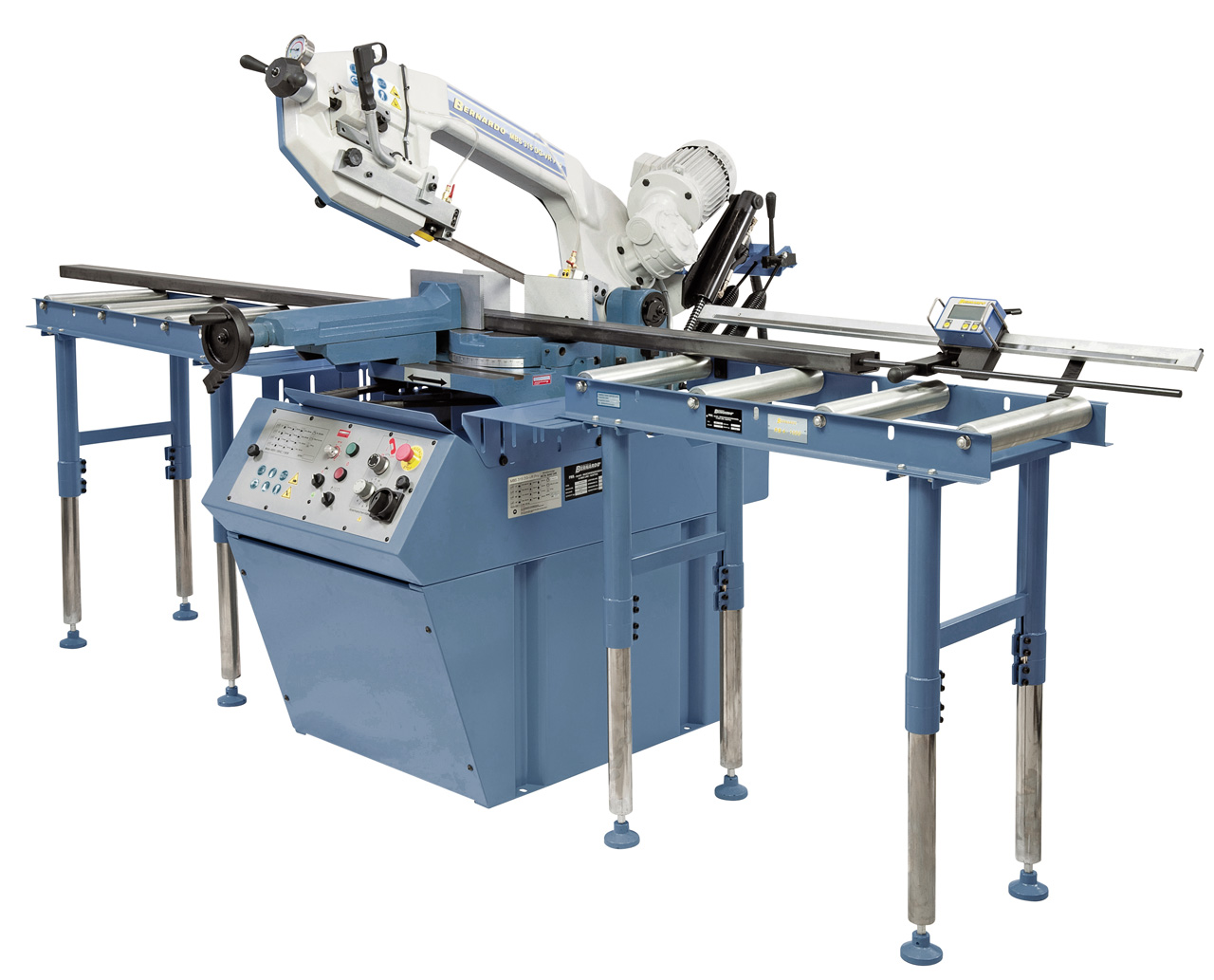

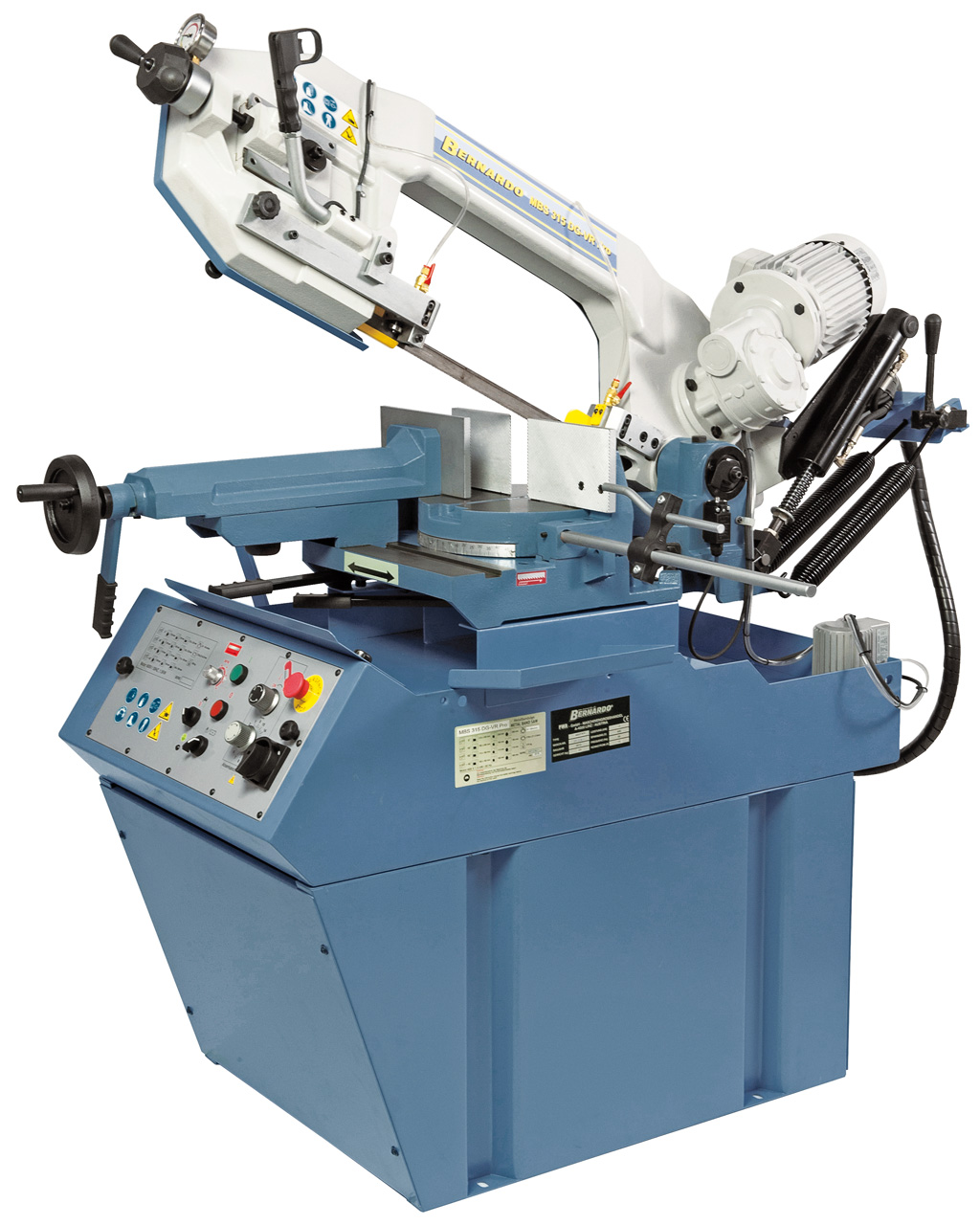

Double mitre bandsaw Bernardo MBS 315 DG-VR Pro

The MBS 315 DG-VR PRO double mitre saw features a vice which moves in conjunction with the saw arm. The stepless cutting speed, the option of automatic to manual mode as well as the belt tension display via manometer are further features which make this model highly attractive for each user.

Scope of delivery Double mitre bandsaws Bernardo MBS 315 DG-VR Pro

• Bandsaw blade
• Material fence
• Stand

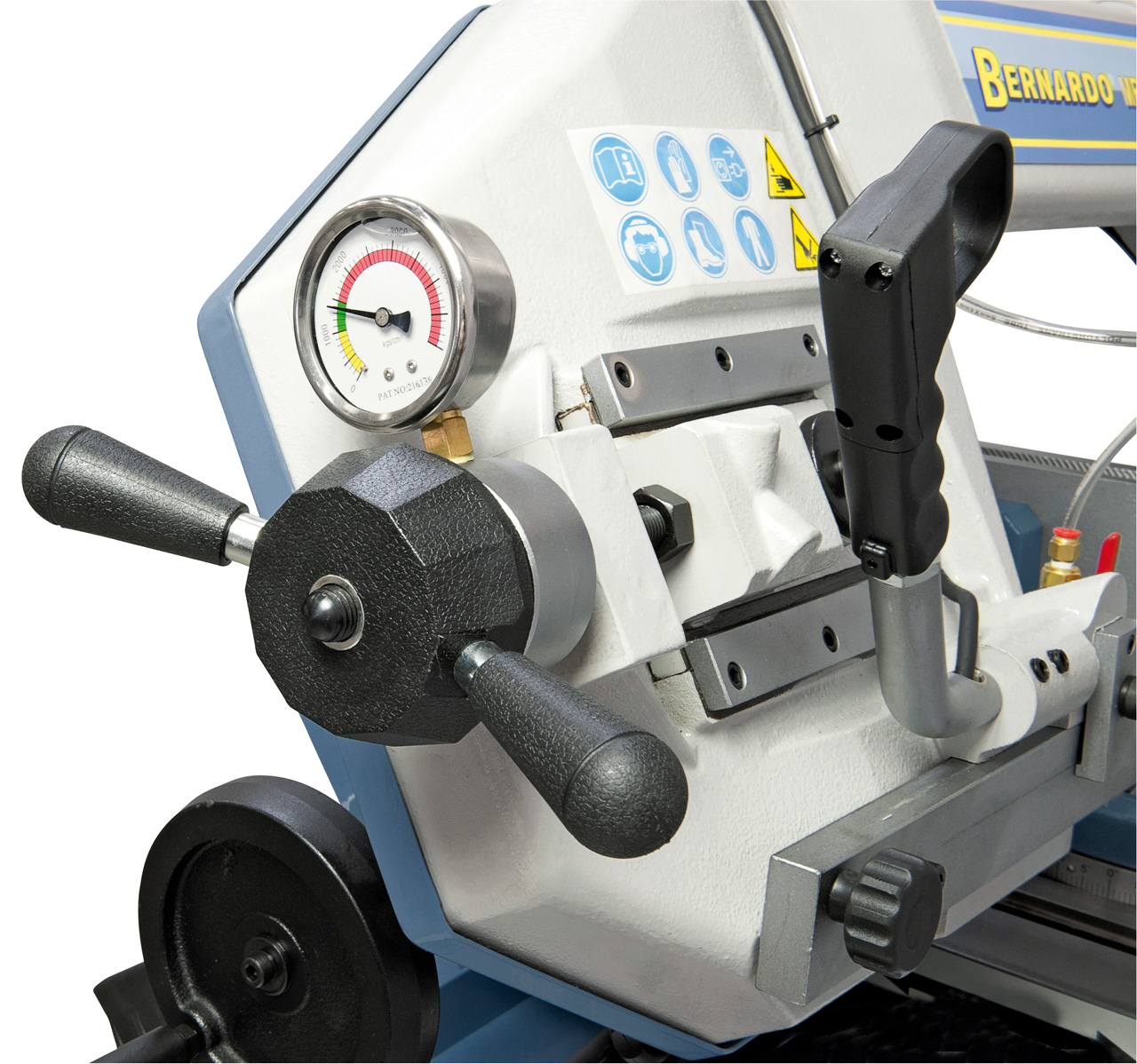

• Manometer for blade tension
• Bandsaw blade guiding with carbide inserts
• Quick clamping vice

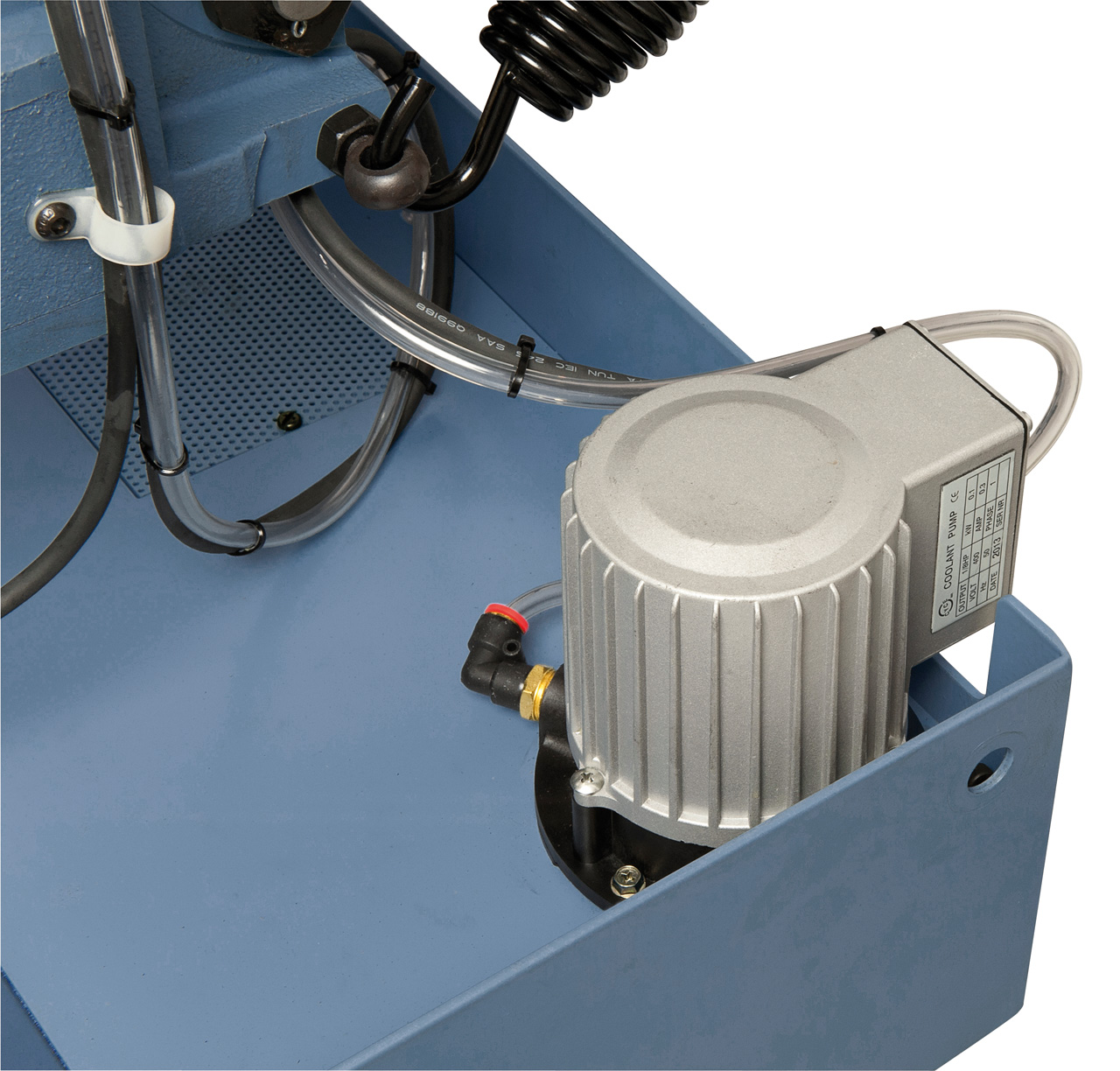

• Coolant device

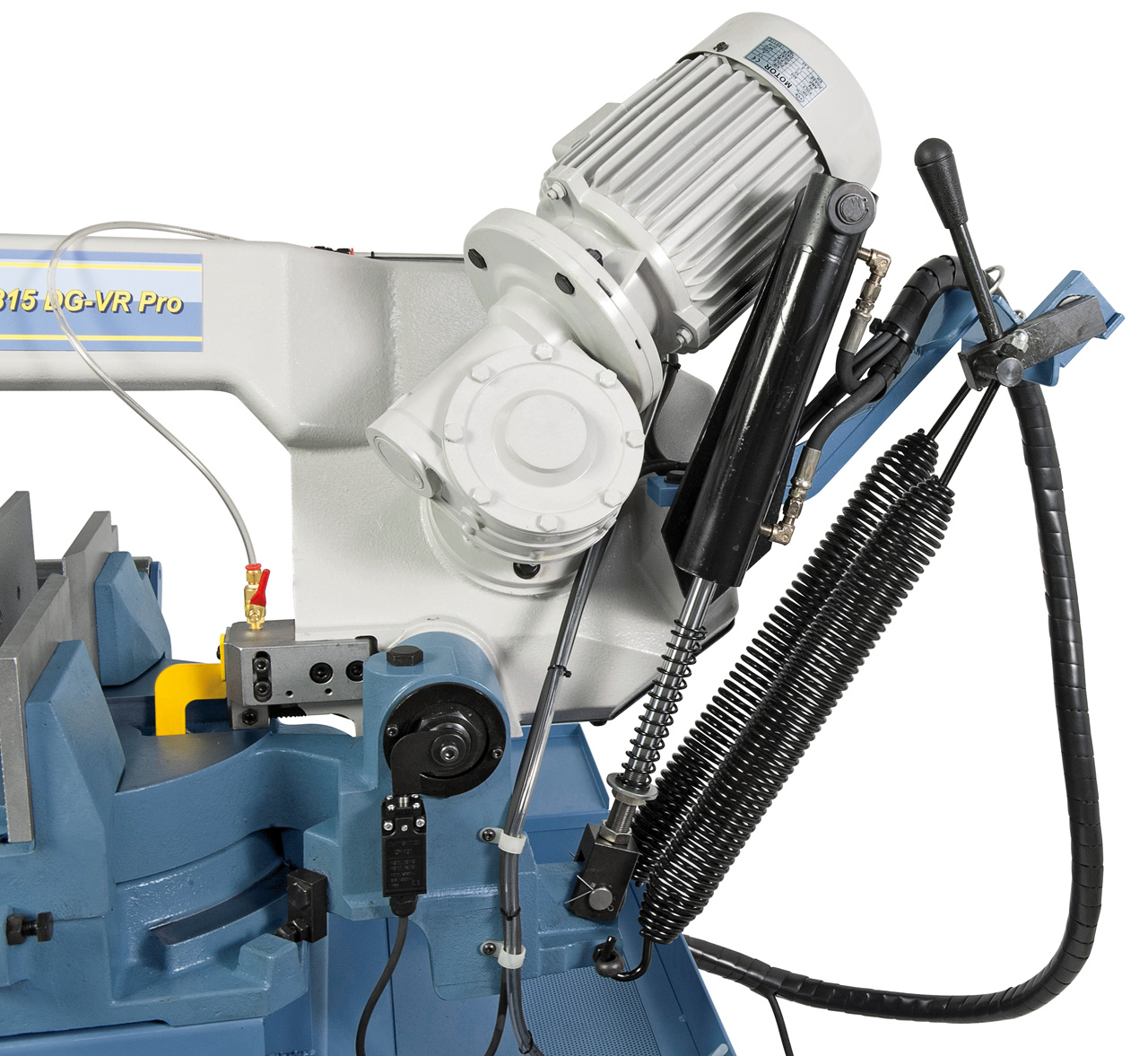

• Hydraulic cylinder
• Motor protective switch
• Automatic shut-down

Features Double mitre bandsaws Bernardo MBS 315 DG-VR Pro

• The cutting groove in the rotary table moves in conjunction with the swivelling of the saw arm therefore the table suffers no damage when cutting angles

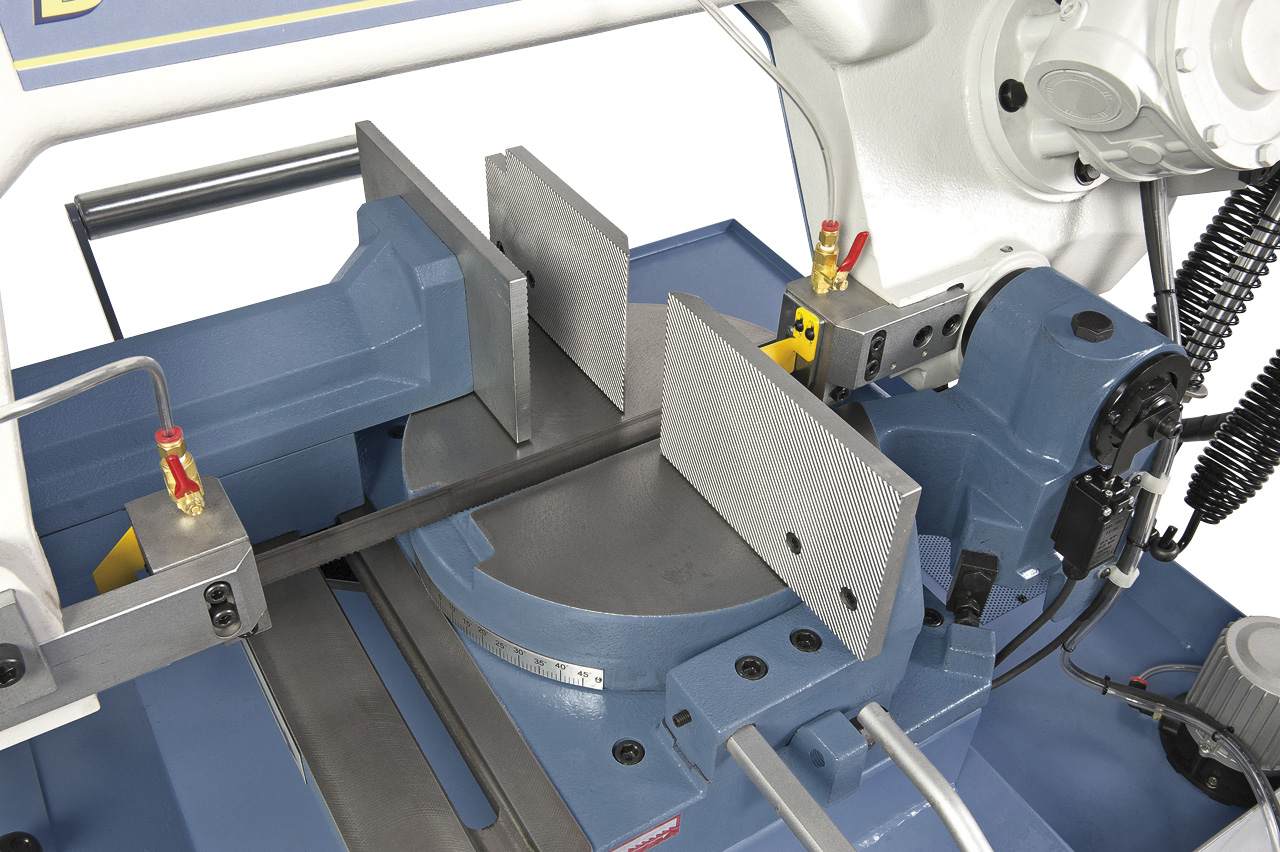

• Quick clamping vice can be moved for double mitre cuts
• Bandsaw blade guiding with carbide inserts and integrated coolant device
• Oversize vice with quick clamping lever and work piece rest – ideal for a series of cuts
• Drive features hardened and polished gear worm shaft and bronze worm wheel
• Suitable for cutting of profiles, pipes, full iron materials and non-ferrous metals
• Torsion-free , rigid grey cast-iron saw arm
• Automatically shuts off when cut is finished
• Stepless cutting speed allows for ideal adjustment to each work piece
• Saw arm tilts left (-45°) and right (+60°) for double mitre cuts

Technical details Double mitre bandsaws Bernardo MBS 315 DG-VR Pro
