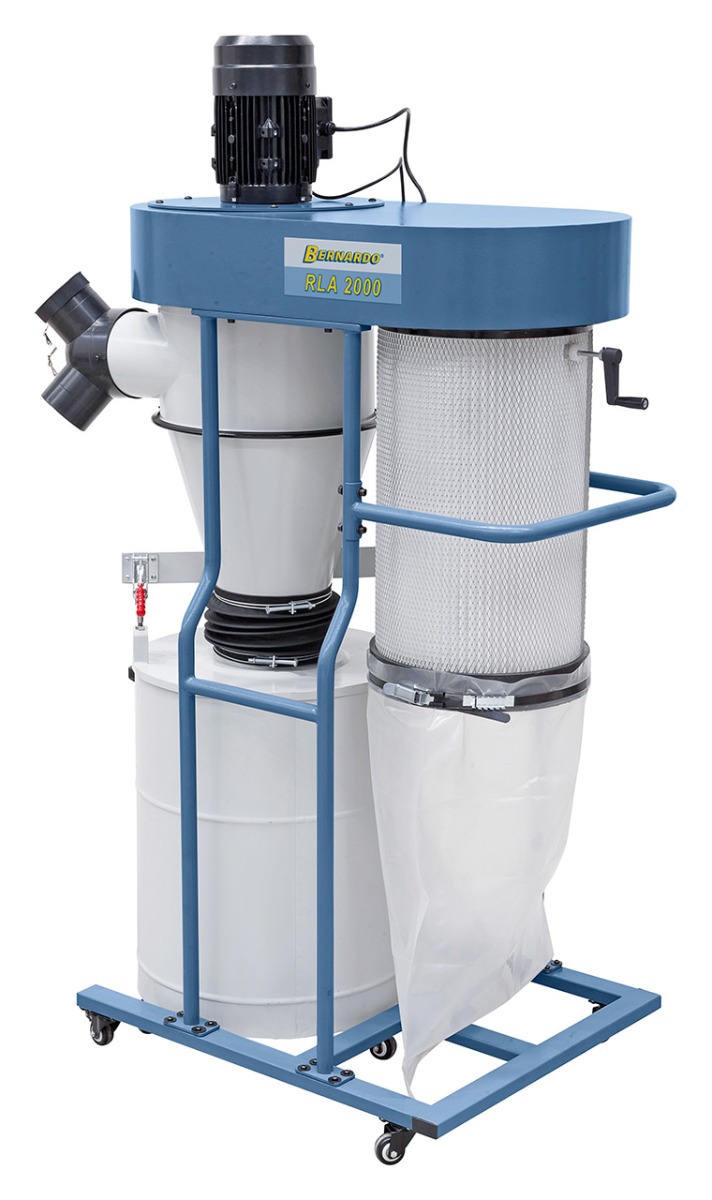

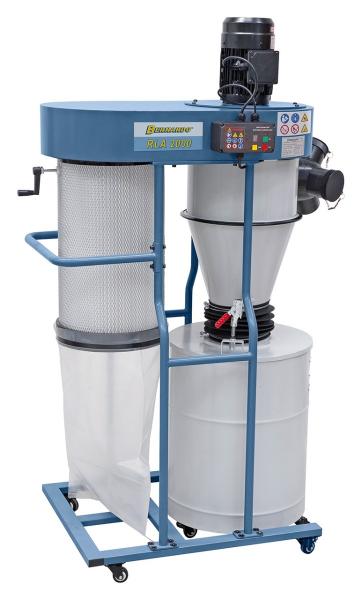

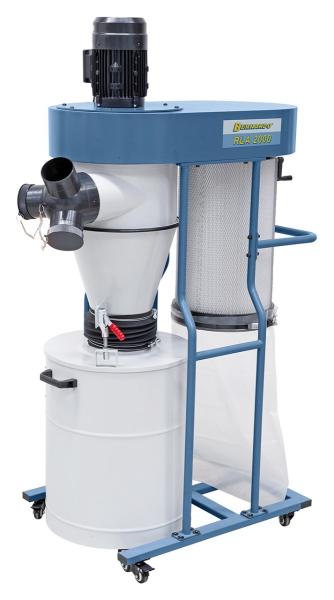

Cyclone-extractors Bernardo RLA 2000 / 400 V
The cyclone-extractor RLA 2000 improves through the double chip filtration (cyclone / cartridge filter) the performance of your wood working machine and keep the workspace free from chips and sawdust. Additionally, this model is equipped with an adjustable timer for an automatic activation or deactivation.
Scope of delivery Cyclone-extractors Bernardo RLA 2000 / 400 V
- Waste bag
- Cartridge filter
- Remote control
- Adjustable timer
- Extendable collecting vessel
- Carriage
Features Cyclone-extractors Bernardo RLA 2000 / 400 V

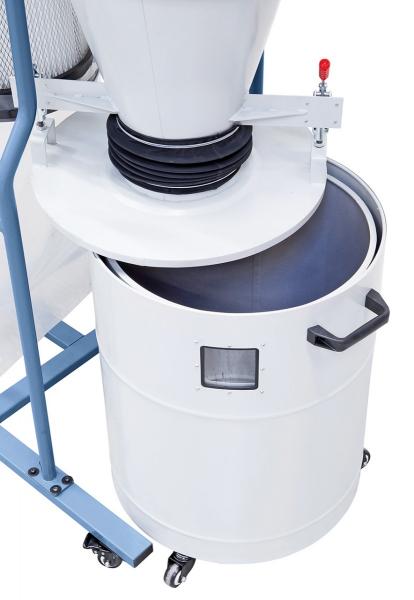

- Quick and easy changing of the waste bag through extendable collecting vessel
- Complete with cartridge filter out of polyester, residual dust content 0,1 mg/m³
- Steel fan wheel resistant to suction of small pieces of wood

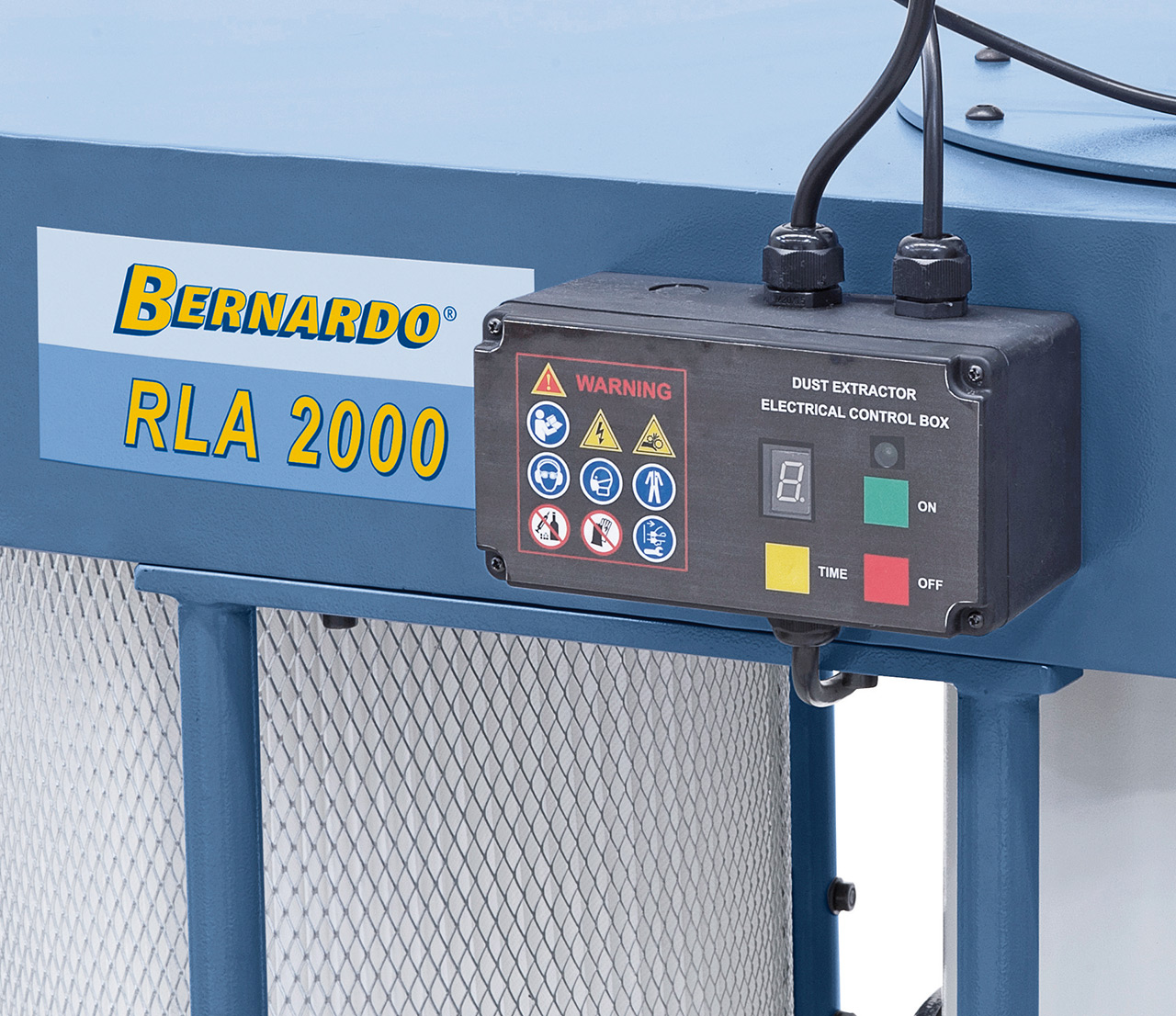

- Adjustable timer for automatic activation and deactivation
- Mobil cyclone-extractors for small to mid-sized trades
- Includes adapter to attach three machines simultaneously
- High-quality powder coating creates scratch-resistant surface
- Including remote control to turn on and turn off the machine
- Easy control of the filling level through inspection glass
Technical details Cyclone-extractors Bernardo RLA 2000 / 400 V
Capacity | 1350 m3/h |
Filter area | 2,6 m2 |
Low pressure max. | 2000 Pa |
Inlet diameter | 1x 150 / 3x 100 mm |
Waste bag | Ø 360 x 700 mm |
Waste bag volume | 65 l |
Volume collecting vessel | 95 l |
Idle speed | 2850 rpm |
Sound pressure | 84 dB |
Motor power output S1 100% | 1,5 kW (2,0 HP) / 400 V |
Motor power input S6 40% | 2,1 kW (2,8 HP) / 400 V |
Machine dimension (W x D x H) | 1120 x 650 x 1740 mm |
Weight approx. | 85 kg |
