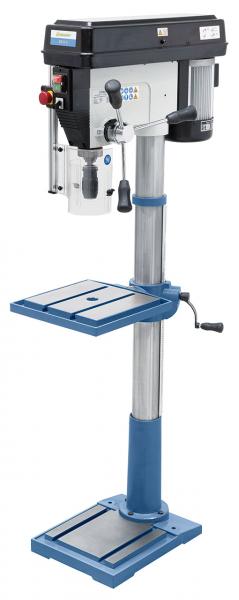

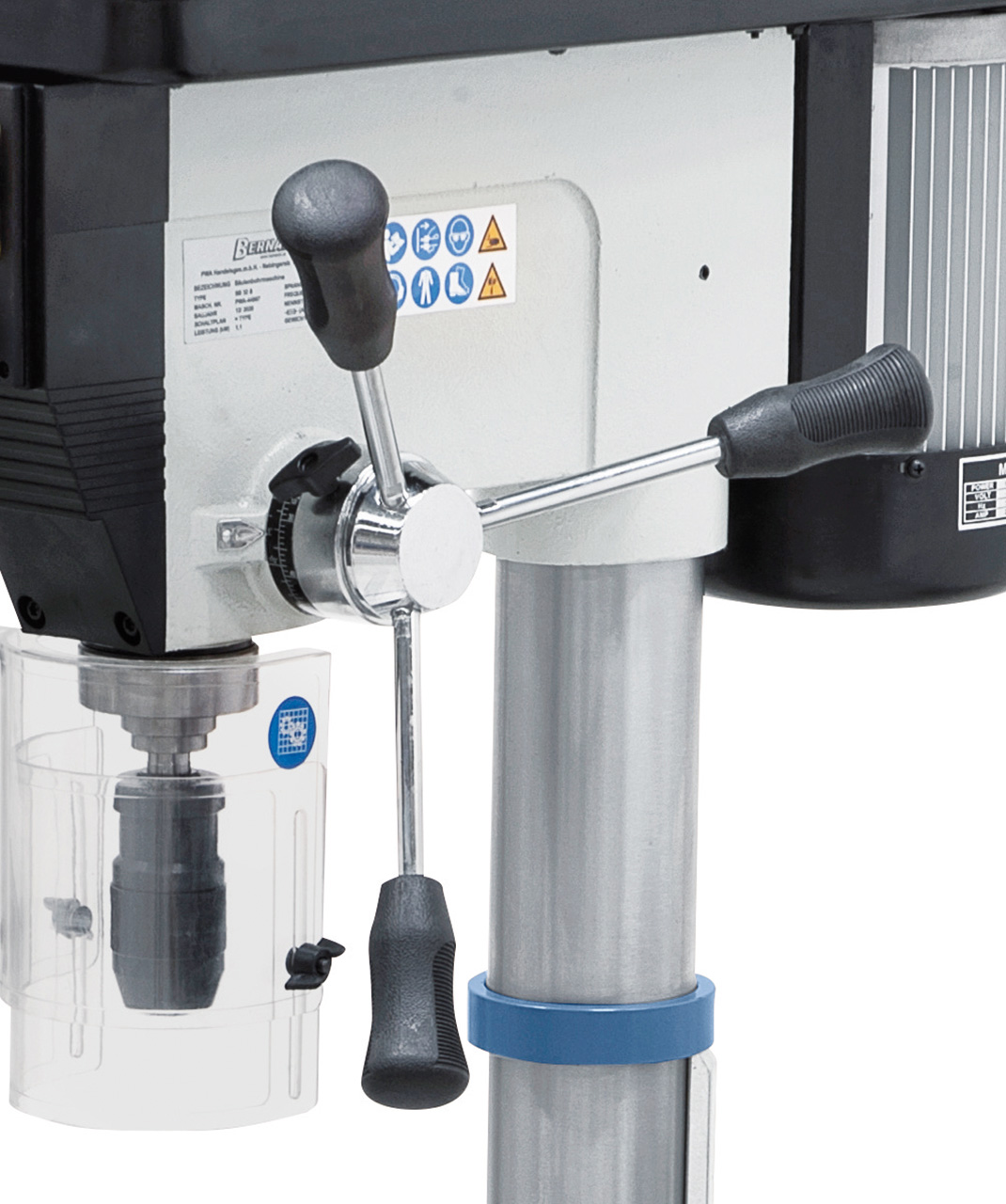

Column drilling machine with belt drive Bernardo SB 32 S
The solid, state of the art column drilling machine is available with 32 mm drilling capacity, larger diameter holes can easily be achieved when core drilling. This model is equipped with right and left turning switch. The optimal price to performance ratio makes these models immensely popular among model makers ans amateurs and they are widly used in the agricultural sector and repair shops.
Scope of delivery Column drilling machine with belt drive Bernardo SB 32 S
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 4 / B 18

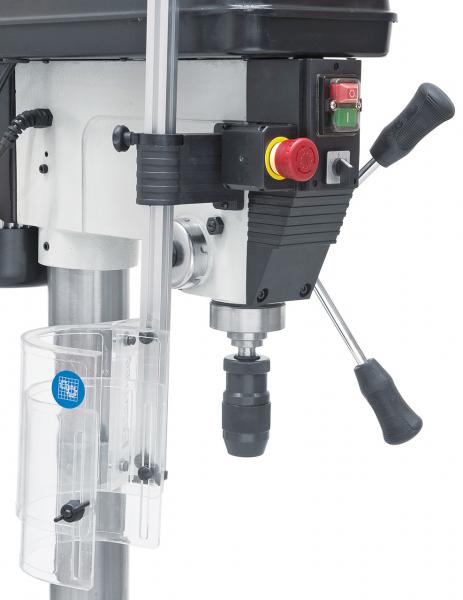

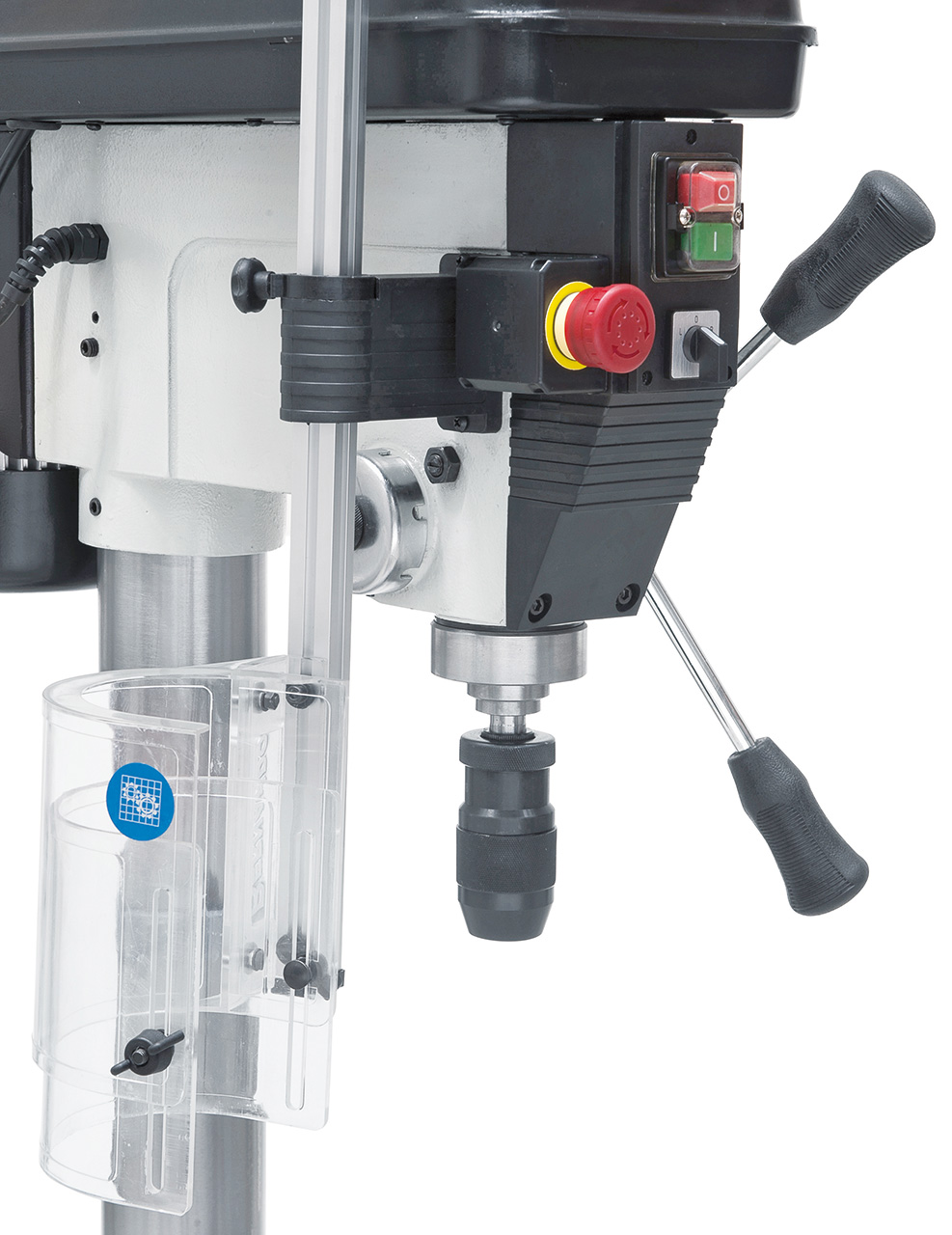

- Height adjustable protective cover

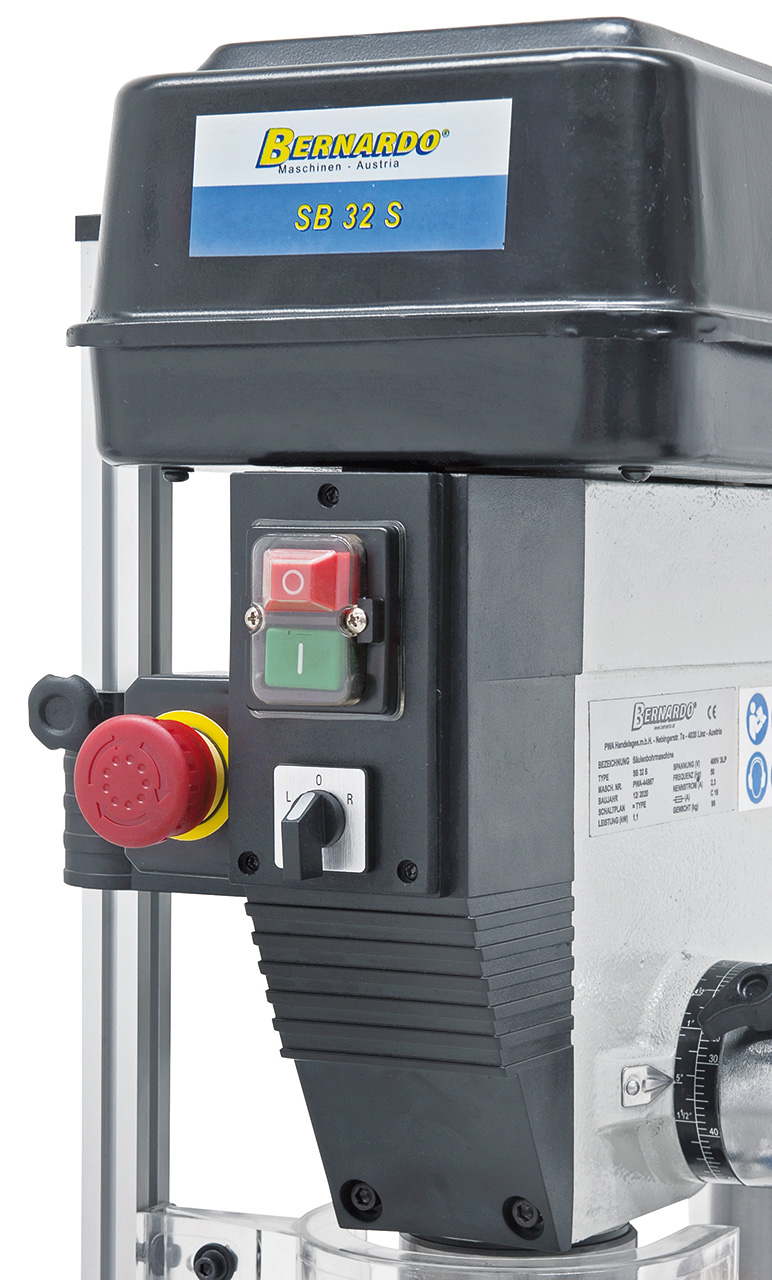

- Separate emergency stop switch
- Switch for left and right turning
- T-slot nuts
- Tools
Features Column drilling machine with belt drive Bernardo SB 32 S
- High-quality ball bearings ensure high spindle concentricity
- Surface treated work table can be adjusted in height via gear rack and crank
- Switch for left and right turning

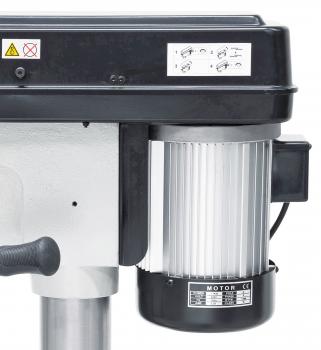

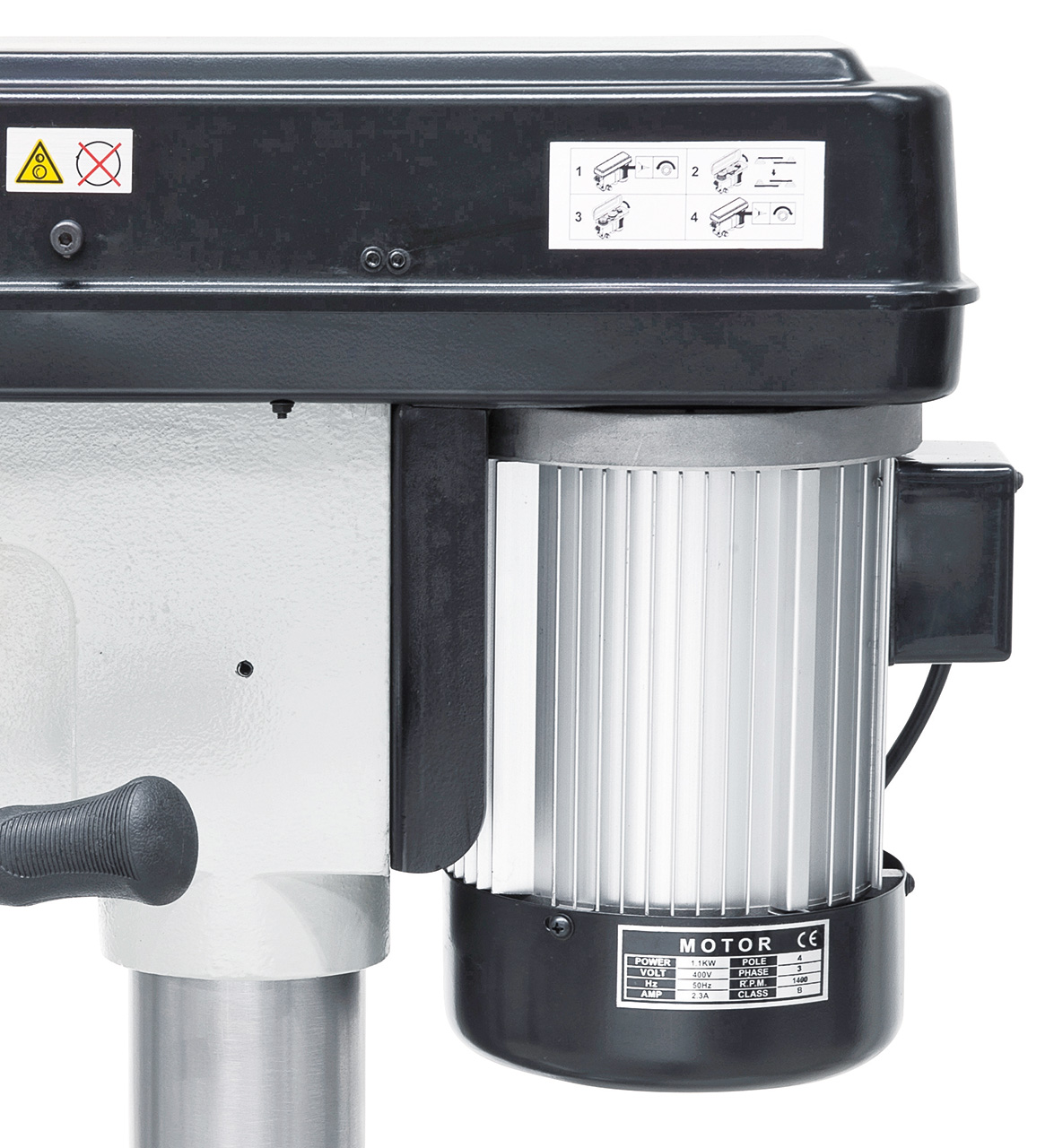

- Powerful, high torque aluminium motor according to IP 54 standard
- Precise keyless drill chuck comes standard

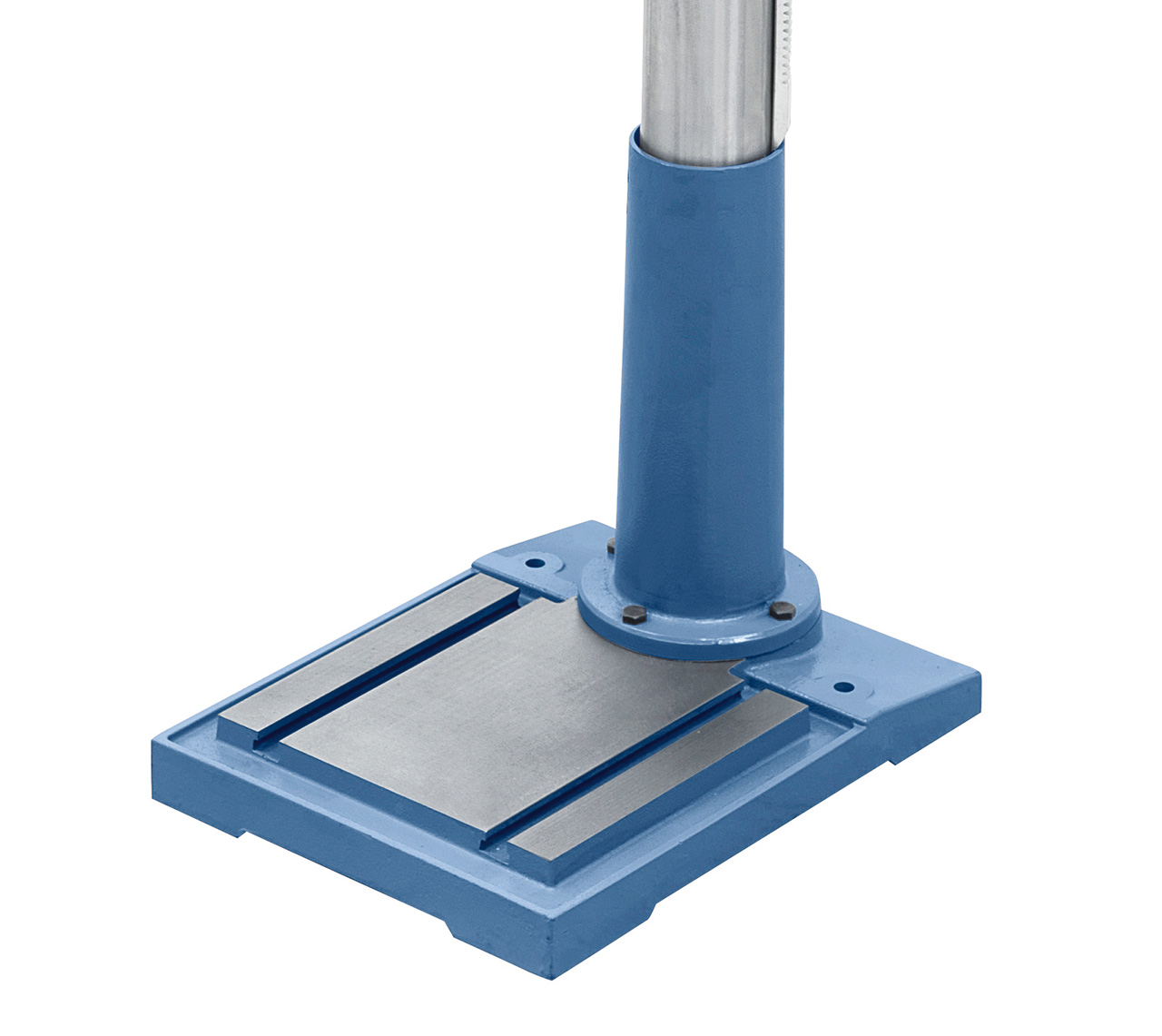

- Treated base allows clamping of oversize workpieces

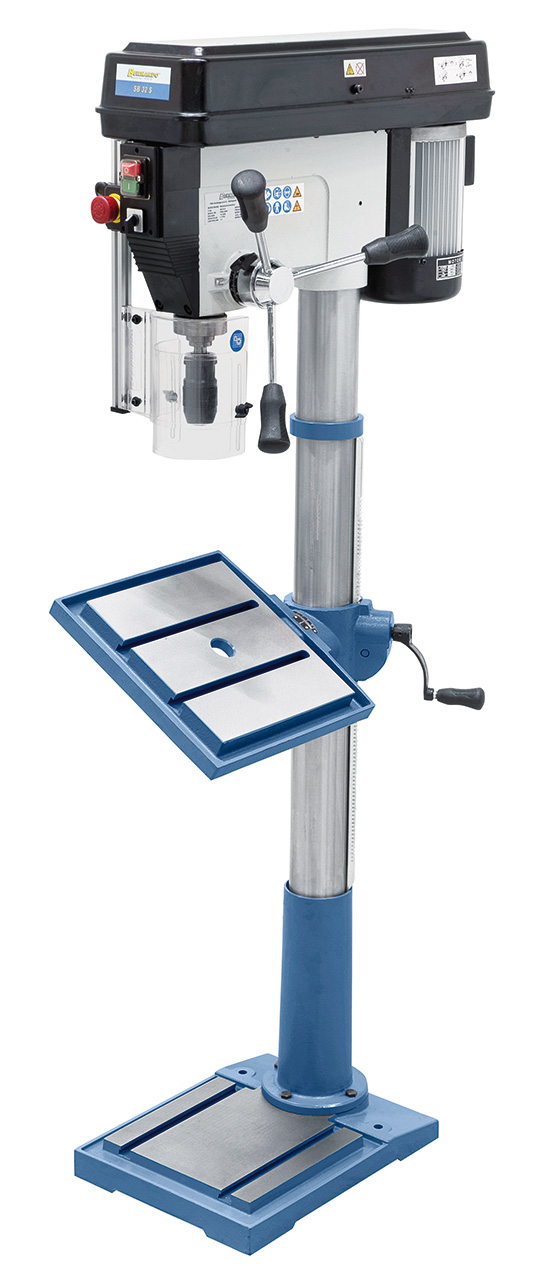

- Drill table (±45°), height adjustable via gear rack
- Large drill table features T-slots and coolant groove
Technical details Column drilling machine with belt drive Bernardo SB 32 S
Drilling capacity max. | 32 mm |
Drill chuck | 1 - 16 mm / B 18 |
Morse taper | MT 4 |
Spindle speeds | (12) 150 - 2450 rpm |
Distance spindle to column | 215 mm |
Drilling table tiltable | -45° to +45° |
Distance spindle to table max. | 760 mm |
Distance spindle to base | 1125 mm |
Spindle stroke | 120 mm |
Column diameter | 92 mm |
Table size / T-slot size | 300 x 290 mm / 14 mm |
Working surface of base | 295 x 270 mm |
Motor power output S1 100% | 1,1 kW / 400 V |
Motor power input S6 40% | 1,6 kW / 400 V |
Machine dimension (W x D x H) | 400 x 720 x 1700 mm |
Weight approx. | 95 kg |
