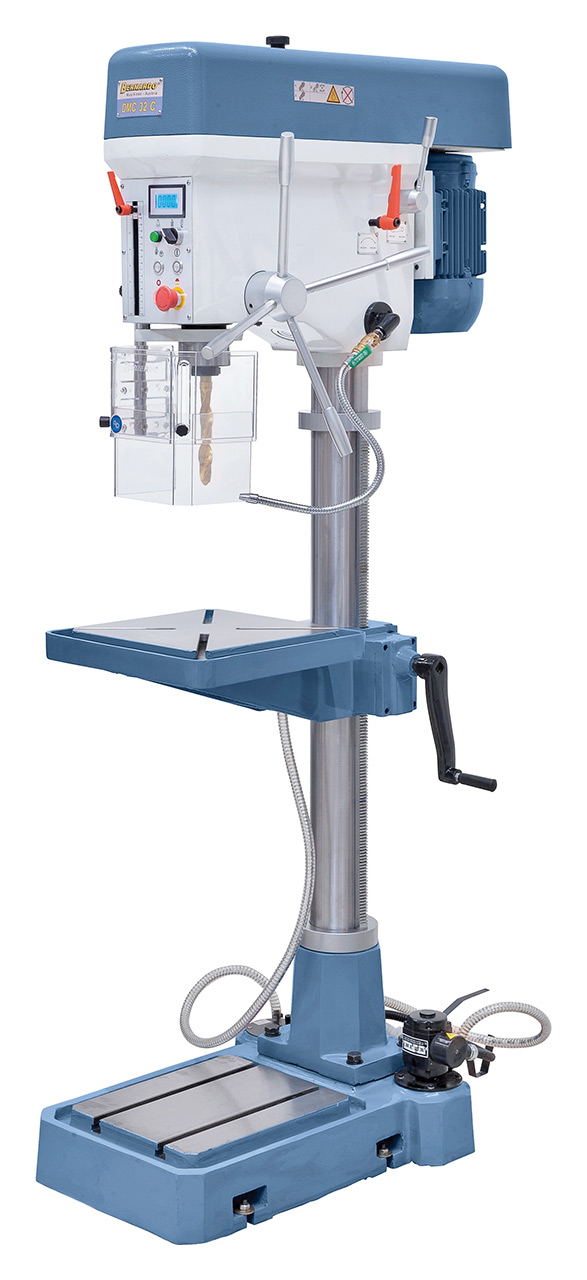

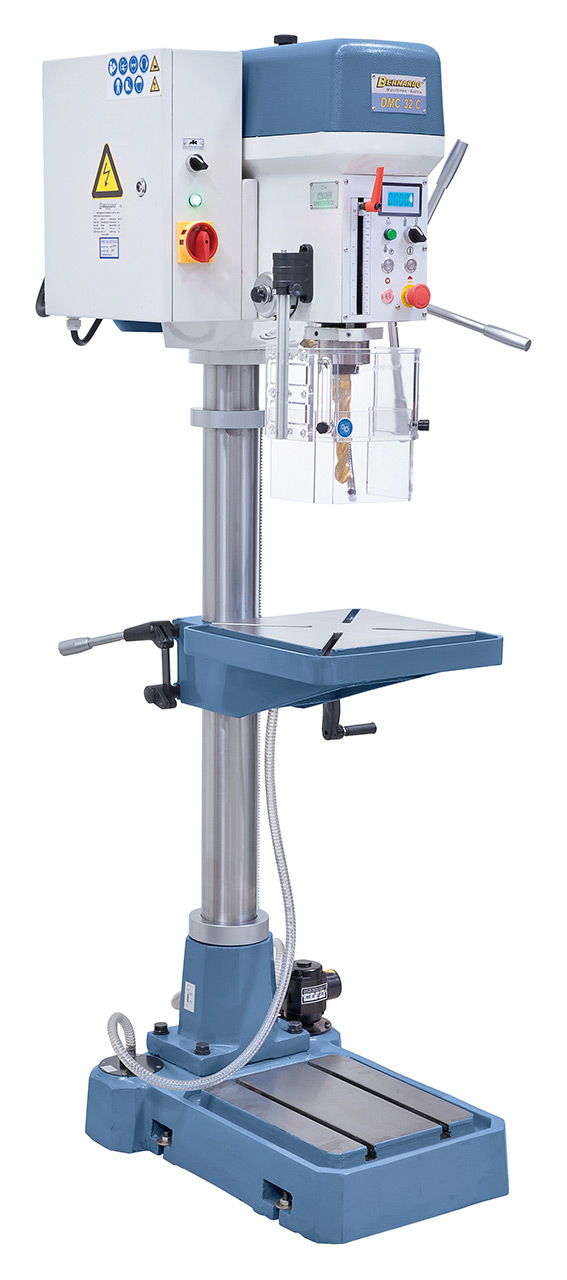

Column drilling machine with belt drive Bernardo DMC 32 C

The DMC 32 C is a powerful column drilling machine which excels in robust and vibration-free construction. This model is predominantly used in repair shops, mechanical workshops and for training purposes.

Scope of delivery Column drilling machine with belt drive Bernardo DMC 32 C

• Drill chuck 5 - 20 mm / JT3
• Drill chuck arbor MK 3 / JT3
• Morse taper drill sleeve MK 3 / 2
• Coolant pump

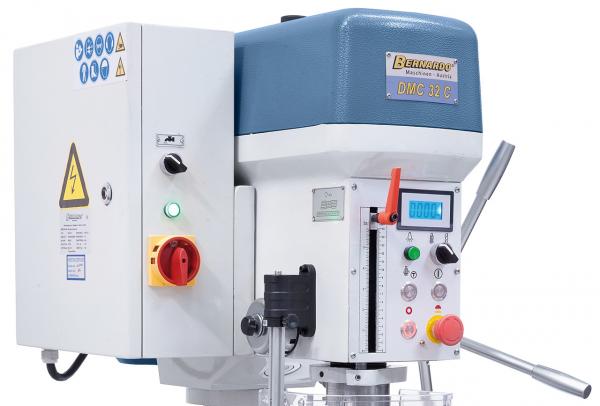

• Digital readout of speeds
• Thread cutting device
• LED-machine light

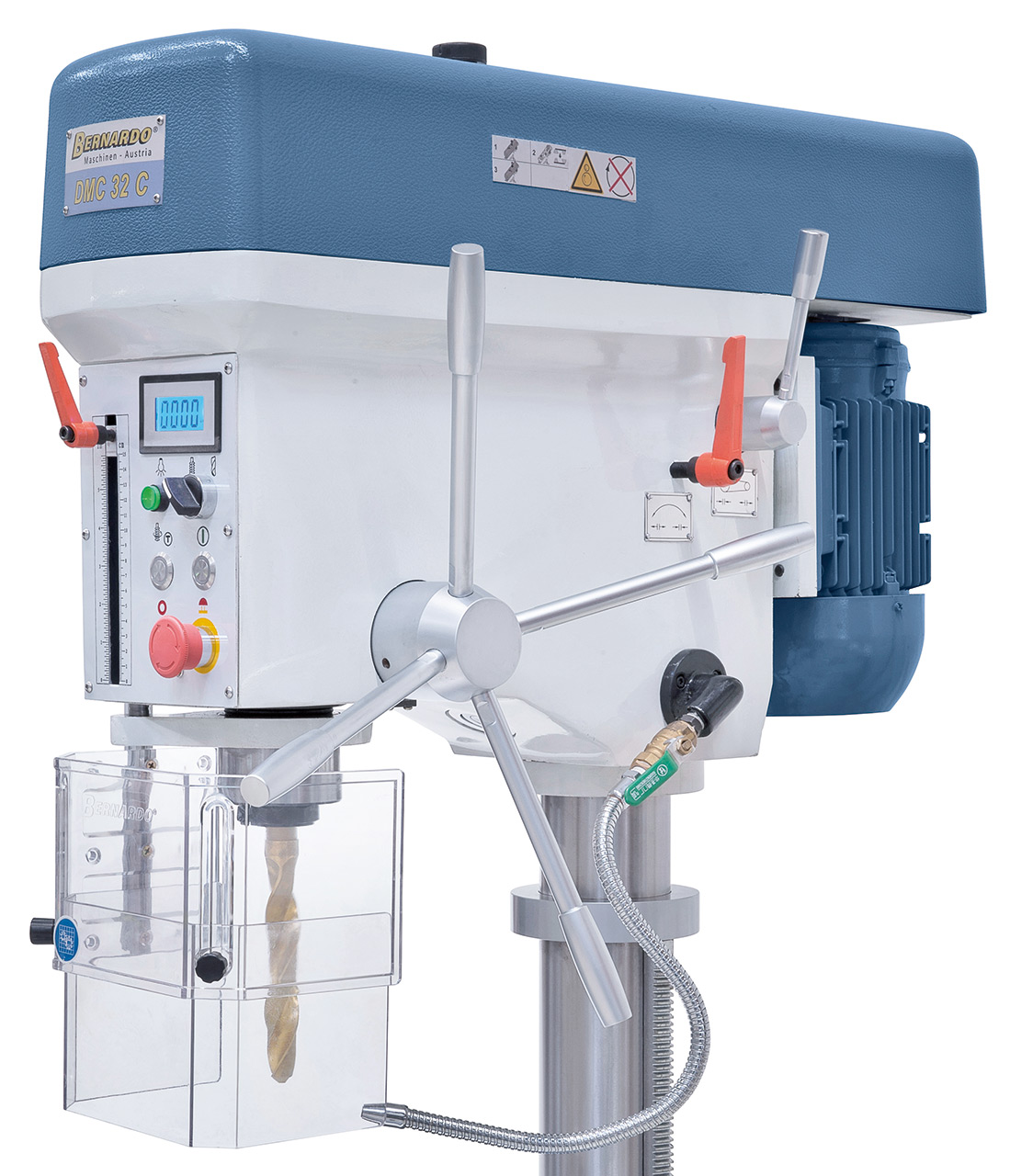

• Height adjustable protective cover

Features Column drilling machine with belt drive Bernardo DMC 32 C

• Protective cover in accordance to CE standards, adjustable to various drill bit sizes

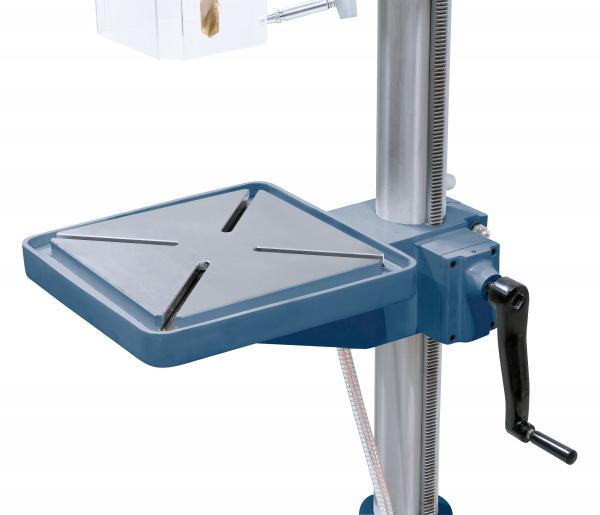

• Surface treated work table, height adjustable via gear rack and crank

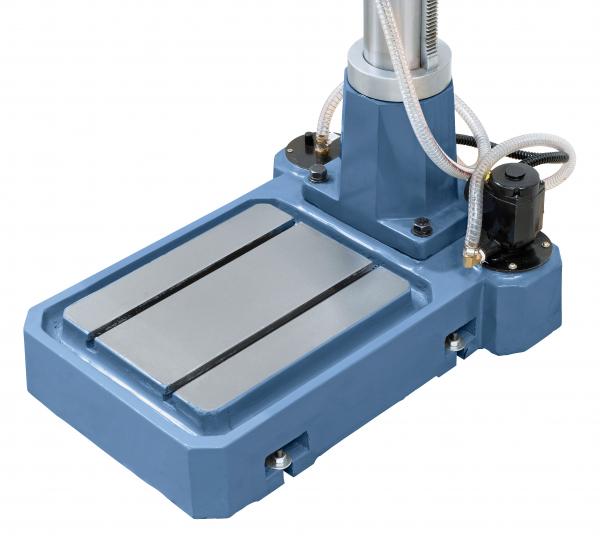

• Polished base plate features T-slots for mounting of large workpieces
• Adjustable drill depth stop allows accurate spindle feed
• High concentricity ≤ 0,02 mm measured at spindle
• Powerful motor even at continuous operation
• Solid and powerful drilling machine for high demands
• Including automatic reverse rotation for thread cutting

Technical details Column drilling machine with belt drive Bernardo DMC 32 C
