Circular saws & spindle moulders Bernardo CSM 2000
The CSM 2000 circular saw & spindle moulder with tiltable sawblade and scoring unit as part of the standard accessories, are ideal models for price-conscious users. The wide range of standard equipment allow these models to offer an extraordinary performance and a maximum number of applications.
Scope of delivery Circular saws & spindle moulders Bernardo CSM 2000
Circular saws & spindle moulders Bernardo CSM 2000Features Circular saws & spindle moulders Bernardo CSM 2000
- Handwheel on front of machine allows for height adjustment of milling spindle, easy to read on scale
- Powerful motor guarantees optimal cutting capacity even at continuous operation
- Square table with roller for convenient handling of larger workpieces

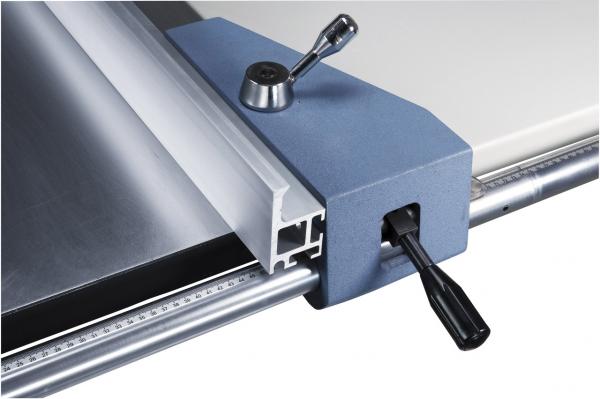

- Extractable telescopic fence (up to 2260 mm), mountable at front or rear of square table
- Telescopic-longitudinal fence comes complete with end stop feat. fi ne adjustment
- All aluminium parts (sliding table, fences,...) are anodized
- LED speed display guarantees easy read-out
- Aluminium sliding table features hardened guide rails
Technical details Circular saws & spindle moulders Bernardo CSM 2000
| Circular saw | |
| Table size | 860 x 450 mm |
| Table height | 850 mm |
| Table extension | 500 x 310 mm |
| Table enlargement | 800 x 880 mm |
| Square table with roll | 750 x 580 mm |
| Sliding table | 2000 x 270 m |
| Cutting length | 2000 mm |
| Max. sawblade diameter | 315 x 30 mm |
| Max. cutting height 90°/45° | 100 / 80 mm |
| Cutting width on rip fence | 1270 mm |
| Speed main sawblade | 4500 rpm |
| Speed scoring sawblade | 8500 rpm |
| Scoring sawblade | 2-100 x 20 mm |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 2,8 kW (3,8 HP) |
| Motor power input S6 40% | 3,9 kW (5,3 HP) |
| Spindle moulder |
|
| Spindle diameter | 30 mm |
| Height adjustment | 100 mm |
| Table opening | 80 / 100 / 140 / 190 mm |
| Working length of spindle | 100 mm |
| Max. tool diam. | |
| - for profiling | 180 mm |
| - for tenoning | 200 mm |
| Spindle speed | 1800 / 3000 / 6000 / 9000 rpm |
| Motor power output S1 100% | 2,8 kW (3,8 HP) |
| Motor power input S6 40% | 3,9 kW ( 5,3 HP) |
| Voltage | 400 V |
| Machine dimensions (W x D x H) | 2000 x 3010 x 1250 mm |
| Weight approx. | 364 kg |
