The BES 250-2 brush deburring machine is ideal for deburring the inside and outside edges of profiles and flat materials. The rapidly rotating wire brush creates slightly rounded edges without burrs or counter-burrs in one work pass.
Scope of delivery Brush deburring machines Bernardo BES 250 - 2

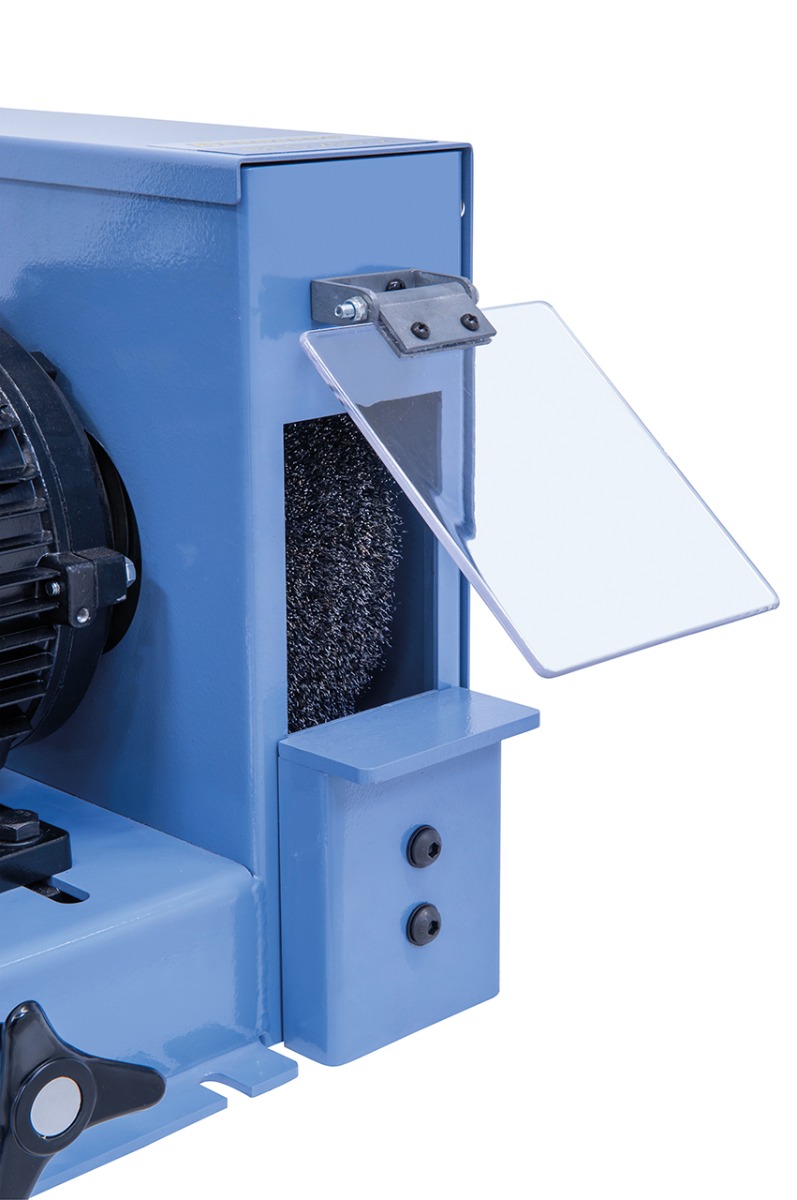

- Steel brush wheel
- Spark protection
- Workpiece support
- 2-speed-motor
Features Brush deburring machines Bernardo BES 250 - 2
- Rotor features ball bearings to ensure smooth operation and long life-span
- Ideal for deburring cut edges, derusting metal surfaces, removing paintwork,...
- Complete with dust port (Ø 75 mm) to allow for connection to dust collector
- Powerful and low noise drive motor
- High quality manufacturing ensures long life span
- Solid and torsion-free machine housing guarantees smooth run
- Standard with 2-speed motor (1400 / 2800 rpm)
Technical details Brush deburring machines Bernardo BES 250 - 2
|
Steel brush wheel
|
250 x 60 mm
|
|
Bore
|
50 mm
|
|
Wire strength
|
0,3 mm
|
|
Speed
|
1400 / 2800 rpm
|
|
Dust extraction outlet
|
75 mm
|
|
Motor power output S1 100%
|
1,5 / 2,2 kW
|
|
Motor power input S6 40%
|
2,1 / 3,0 KW
|
|
Voltage
|
400 V
|
|
Width
|
460 mm
|
|
Depth
|
420 mm
|
|
Height*
|
480 mm
|
|
Weight approx.
|
38 kg
|
*without stand
