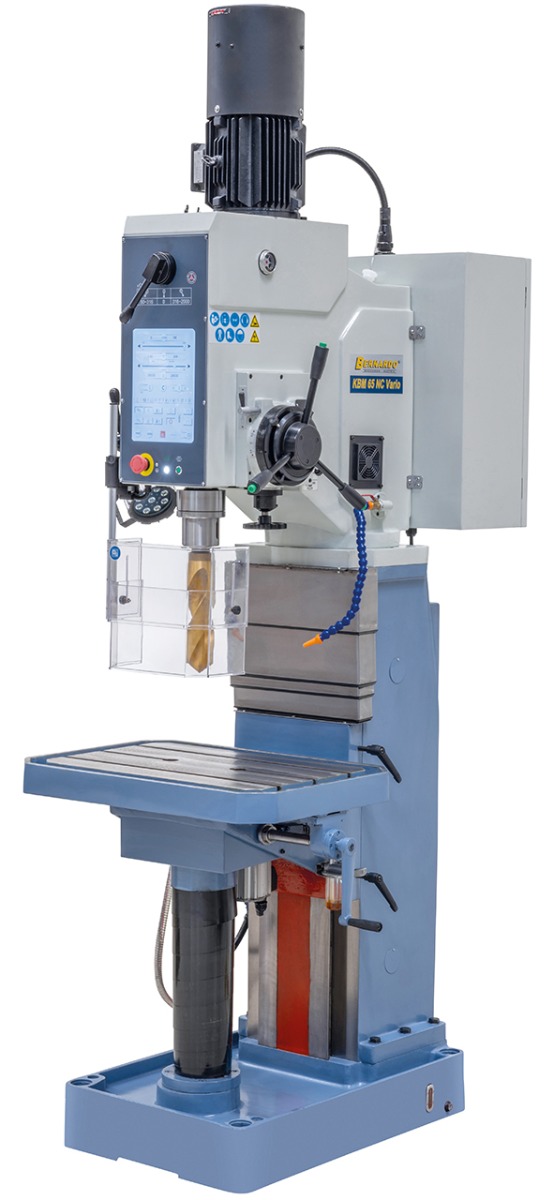

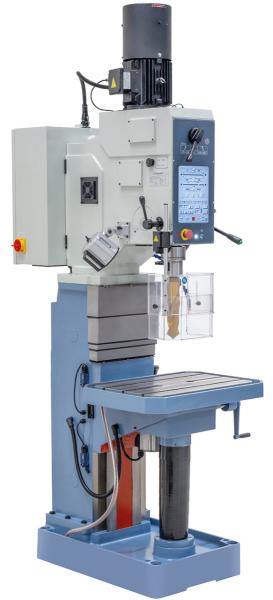

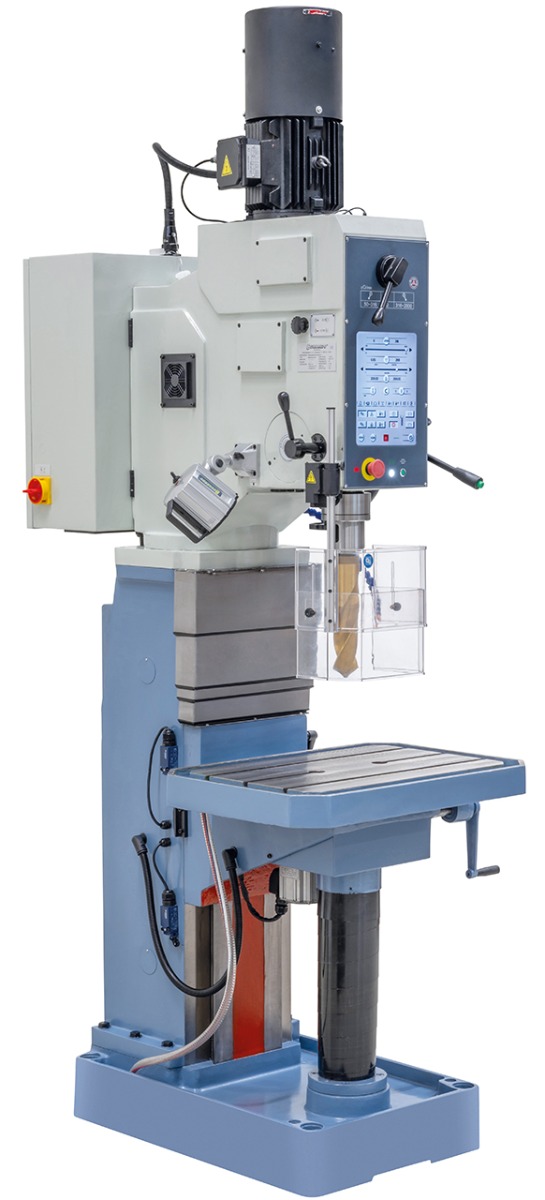

Box column drilling machine Bernardo KBM 65 NC Vario

Scope of delivery Box column drilling machine Bernardo KBM 65 NC Vario

• Quick-action drill chuck 3 - 16 mm / B 18
• Drill chuck arbour MK 5 / B 18
• Reducing sleeve MK 5 / 4, MK 4 / 3, MK 4 / 2, MK 3 / 1
• Motorised table stroke
• Coolant device
• Touchscreen with Bohrtronic control
• Automatic mould ejector
• Electromagnetic spindle feed
• Thread cutting device
• Initial filling with Shell Tellus 46
• LED machine light
• Digital speed display
• Digital drilling depth display
• Telescopic cover
• Height-adjustable protective cover

Special features box column drilling machine Bernardo KBM 65 NC Vario

The KBM 65 NC Vario box column drilling machine is equipped with infinitely variable speed control as standard, allowing the cutting speed to be optimally adapted to the workpiece. The special features of this model are the operation via a large touchscreen and the spindle sleeve feed via servo motor.


• The standard Bohrtronic control system calculates the ideal speed and feed rate for drilling and tapping after entering the tool diameter and material (cast iron / steel)
• Base and stand in solid box construction for the heaviest loads
• Powerful drive motor with high torque and high feed force

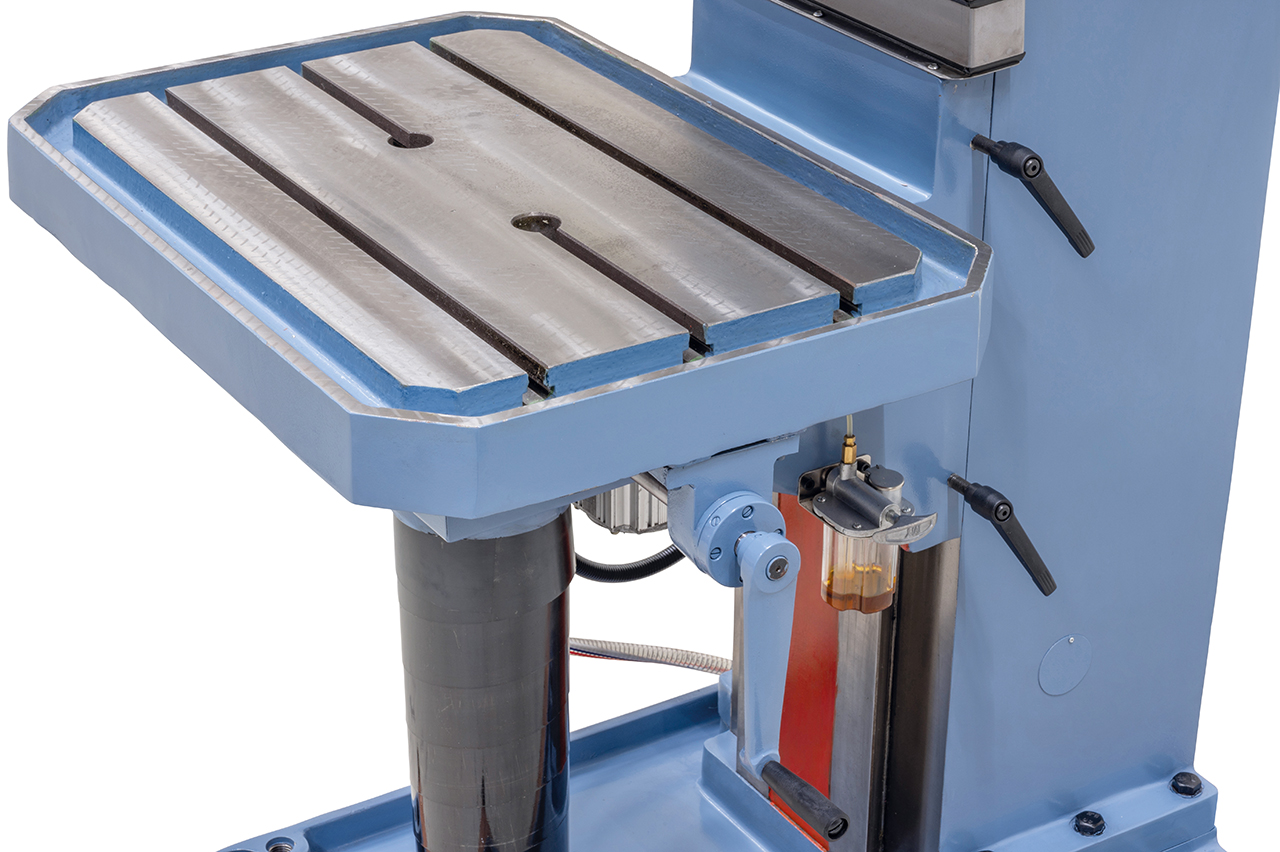

• Very high table load due to solid grey cast iron construction
• Smooth running due to ground gears running in an oil bath
• Tapping device with automatic reversal of direction of rotation when the set depth is reached
• The quill is fed via a high-quality servomotor

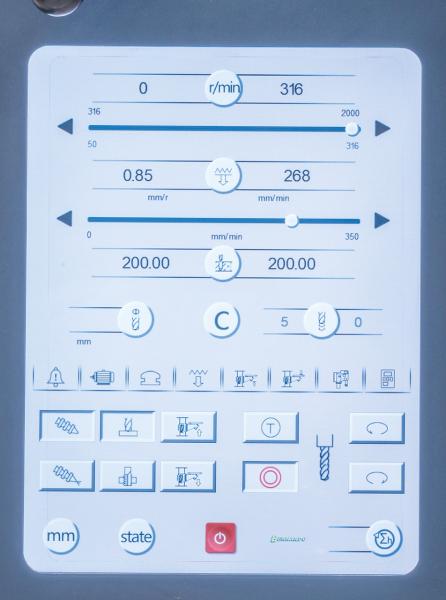

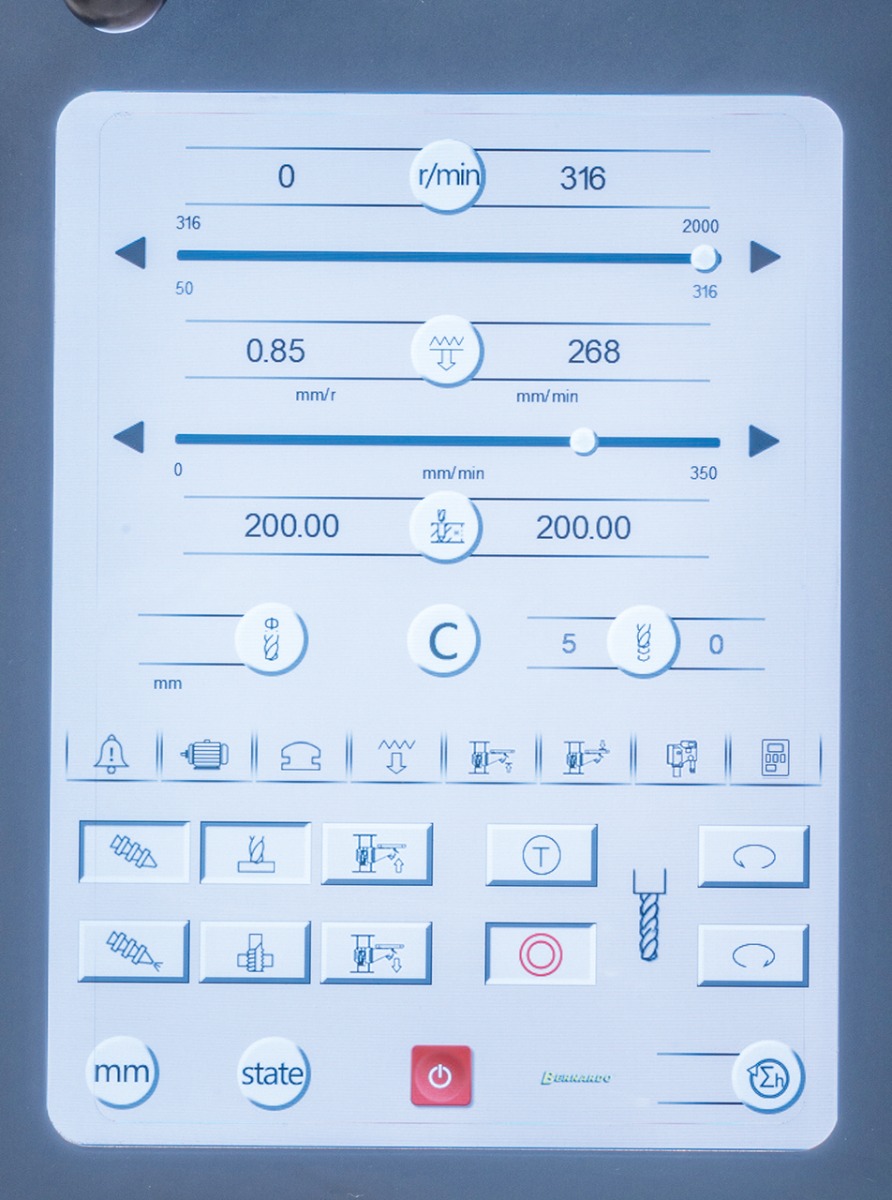

• All settings are made directly on the large touchscreen display

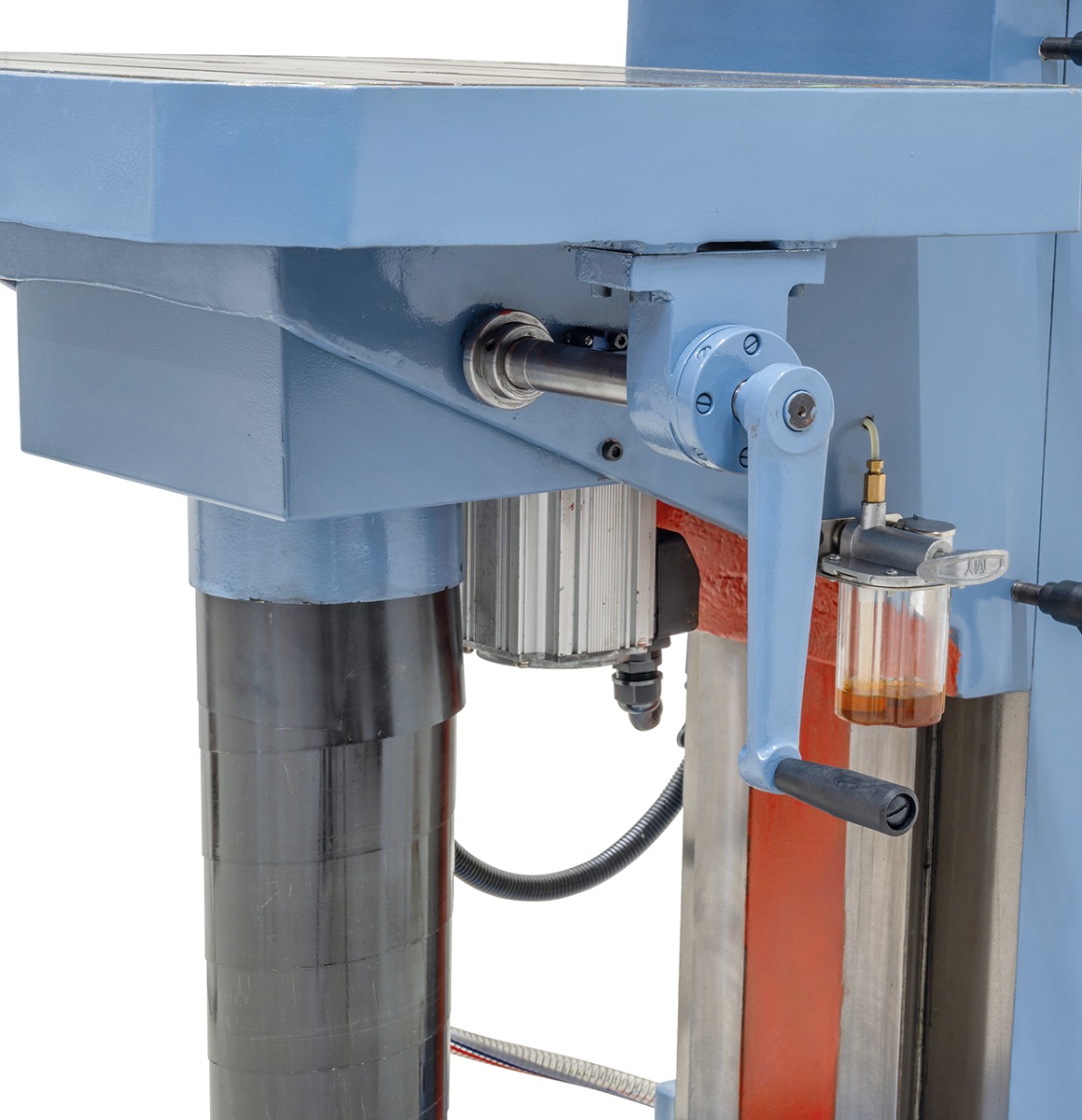

• Equipped with motorised table height adjustment as standard

Technical details box column drilling machine Bernardo KBM 65 NC Vario
