Bench drilling machine Bernardo TB 20 T - 400 V

Product No.:
01-1041
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

559,60 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

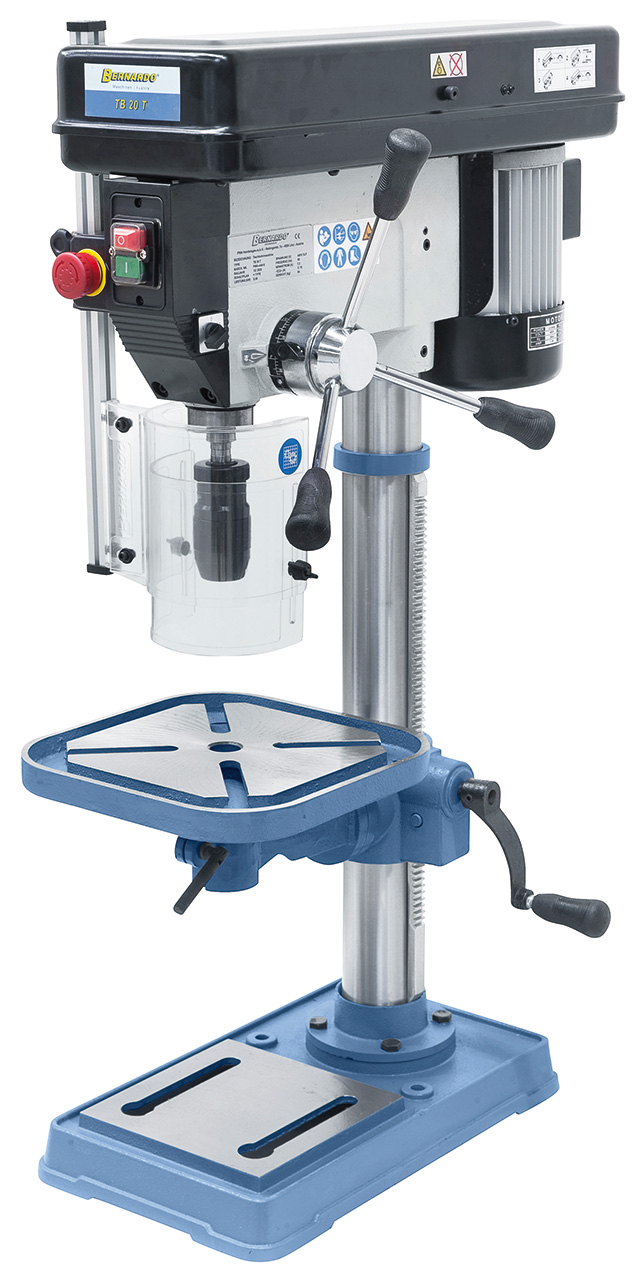

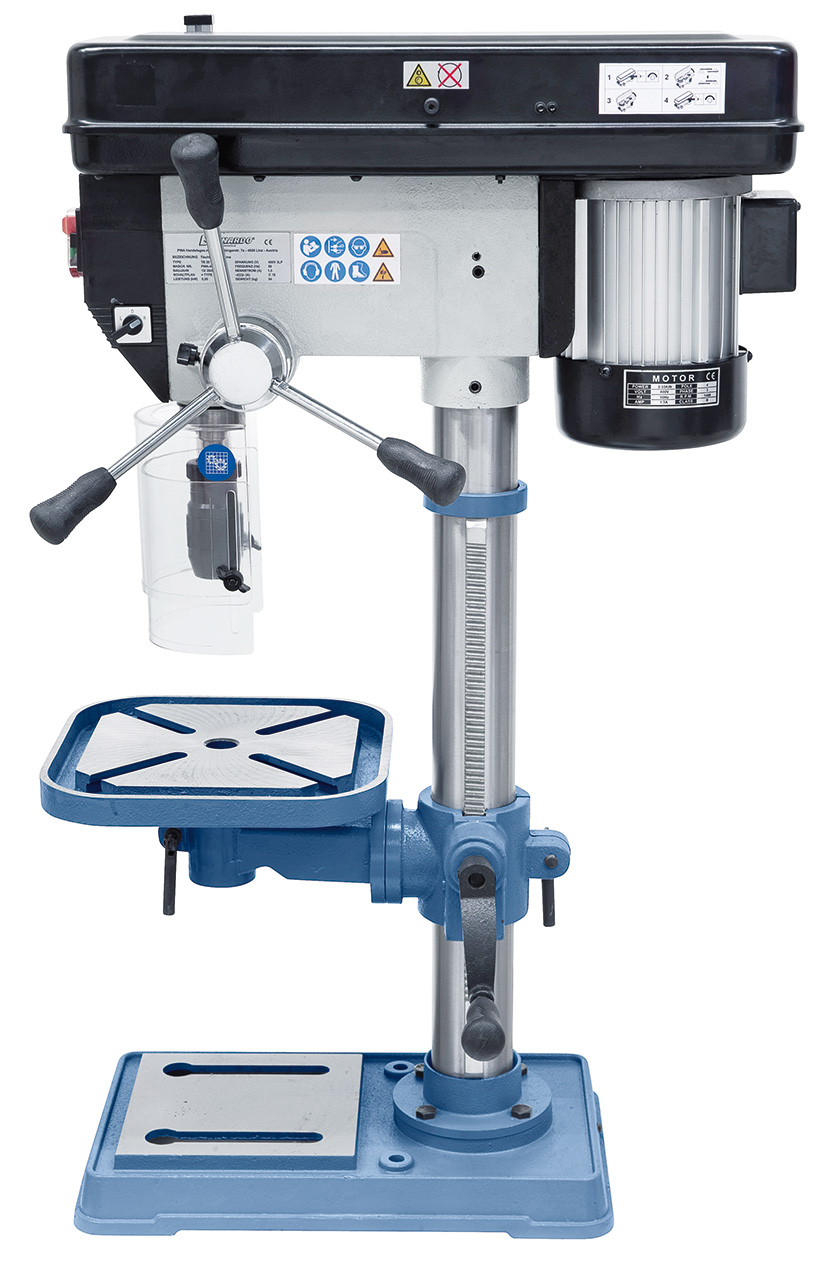

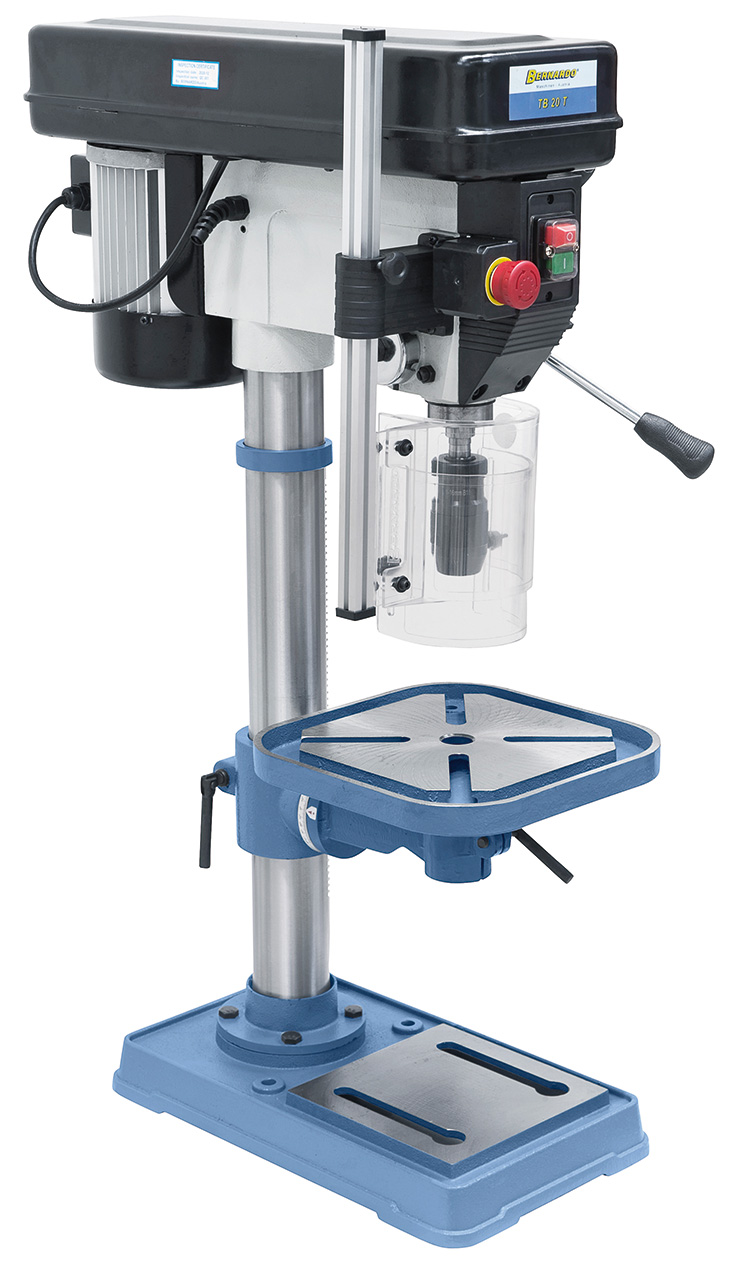

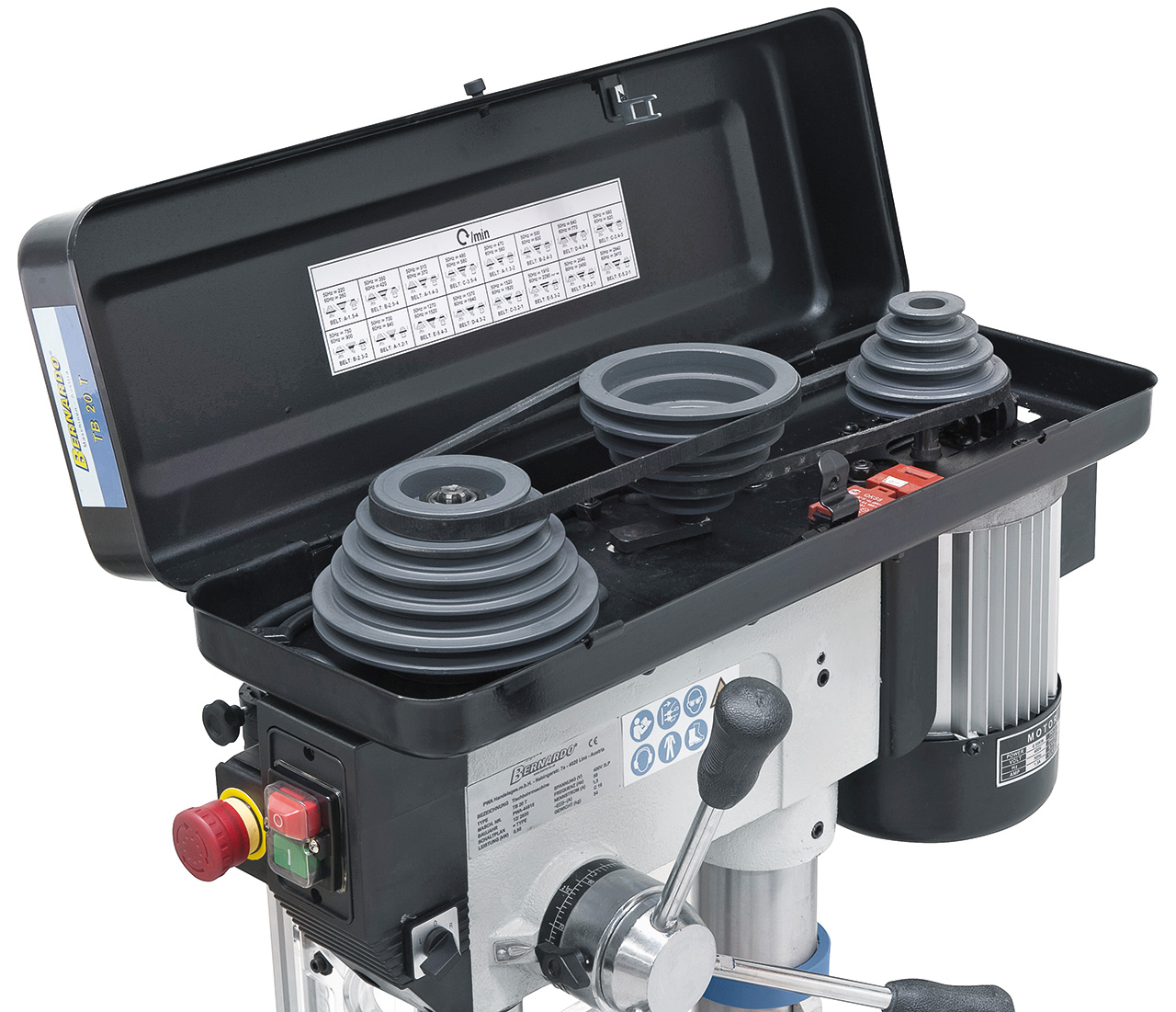

The TB 20 T is a cost efficient table drilling machine with V-belt drive available with 230 V or 400 V. This model comes complete with right and left turning device. The great price to performance ratio makes this model an attractive choice for hobby craftsmen.

Scope of delivery Bench drilling machine Bernardo TB 20 T - 400 V

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16

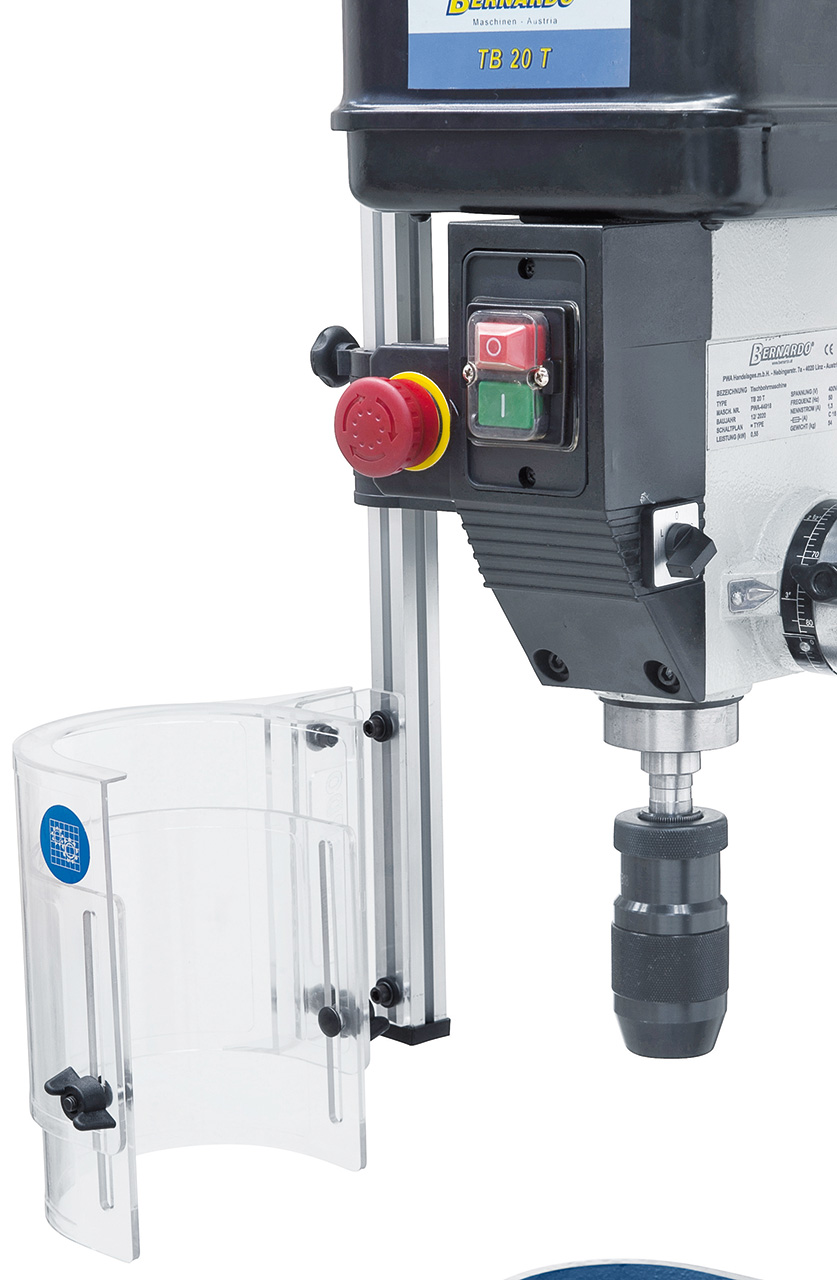

  • Height adjustable protective cover

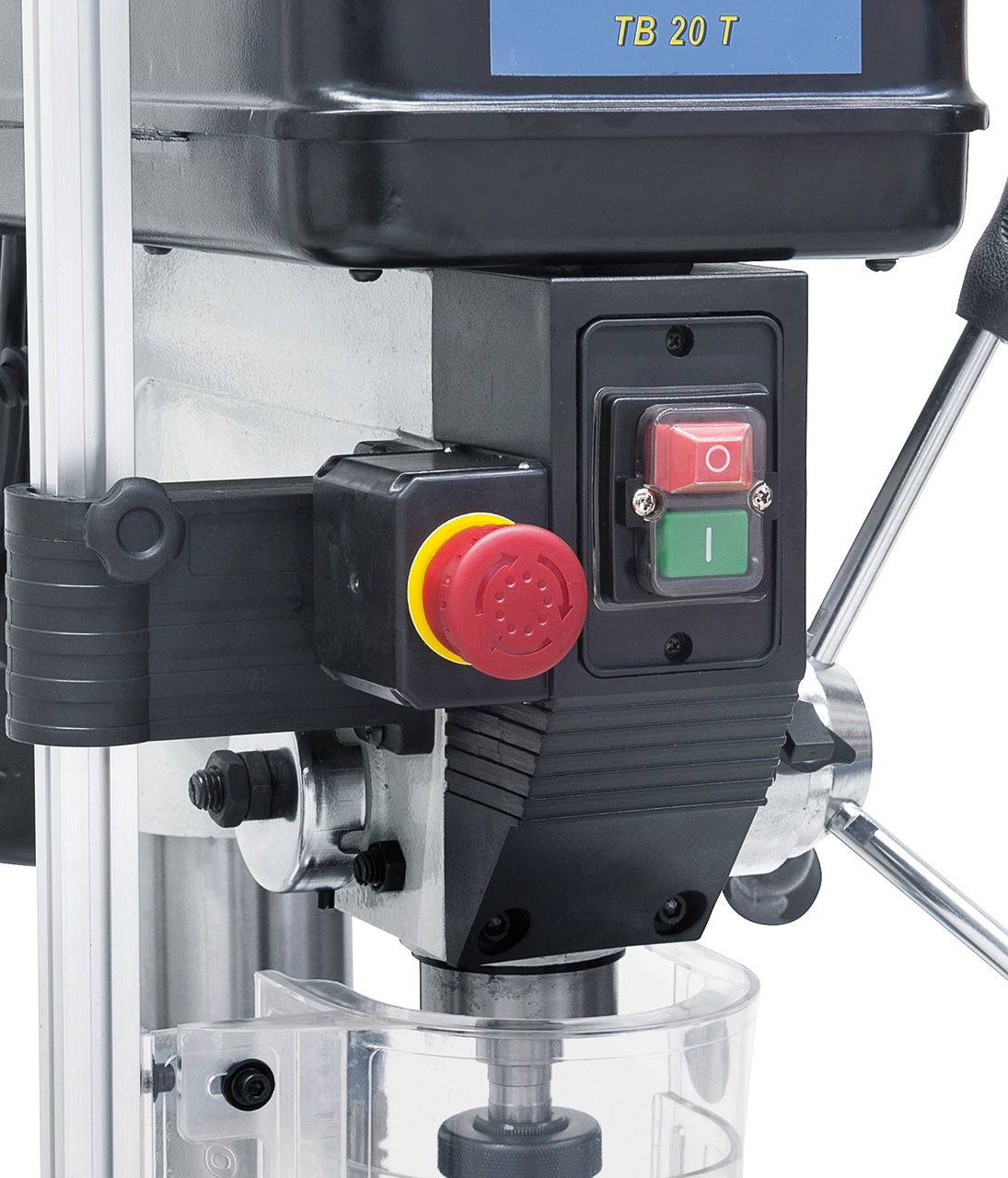

  • Separate emergency stop switch
  • Left and right turning
  • T-slot nuts
  • Tools

Features Bench drilling machine Bernardo TB 20 T - 400 V

  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°), height adjustment via gear rack
  • Rotation switch for right and left turn

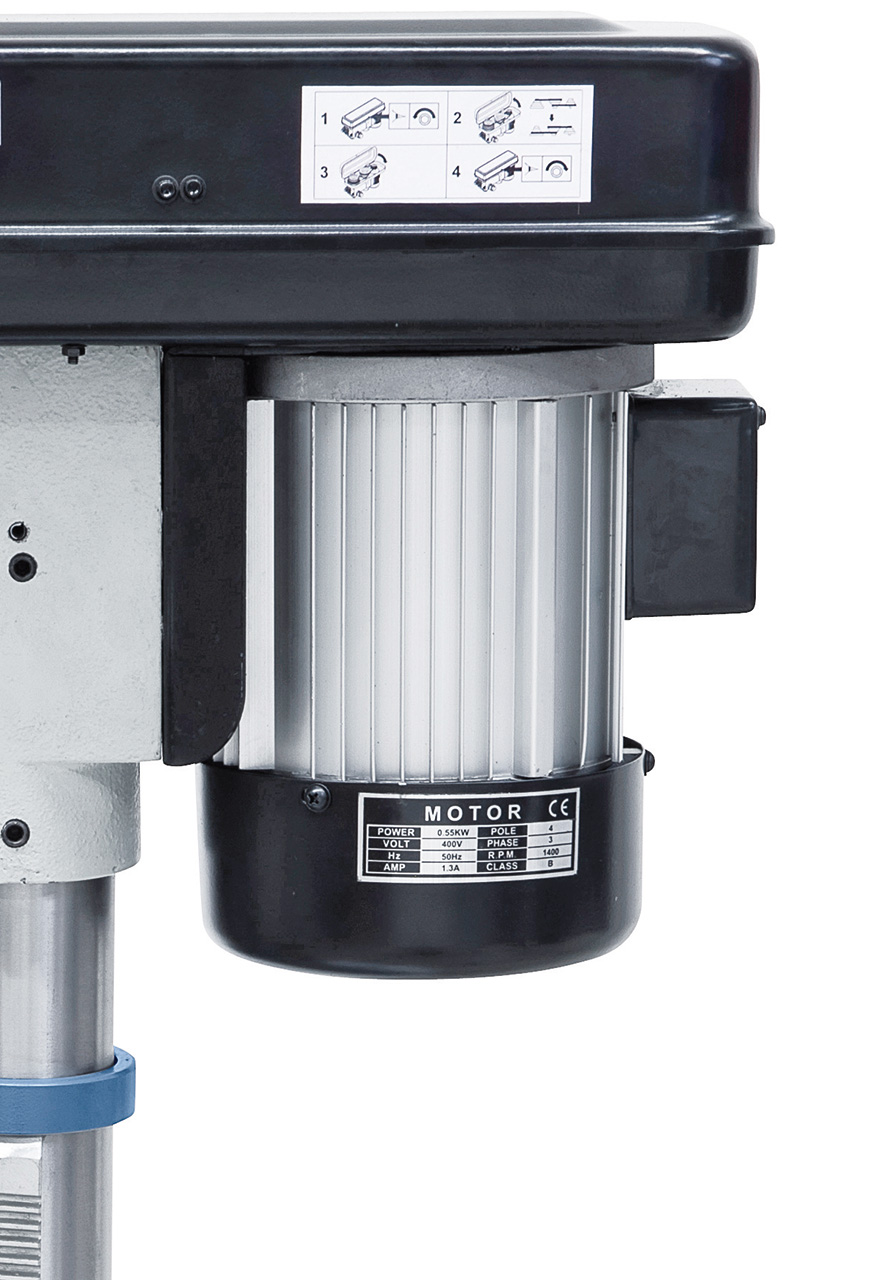

  • Powerful, high-torque aluminium motor according to IP 54 standard
  • High grade keyless drill chuck comes standard

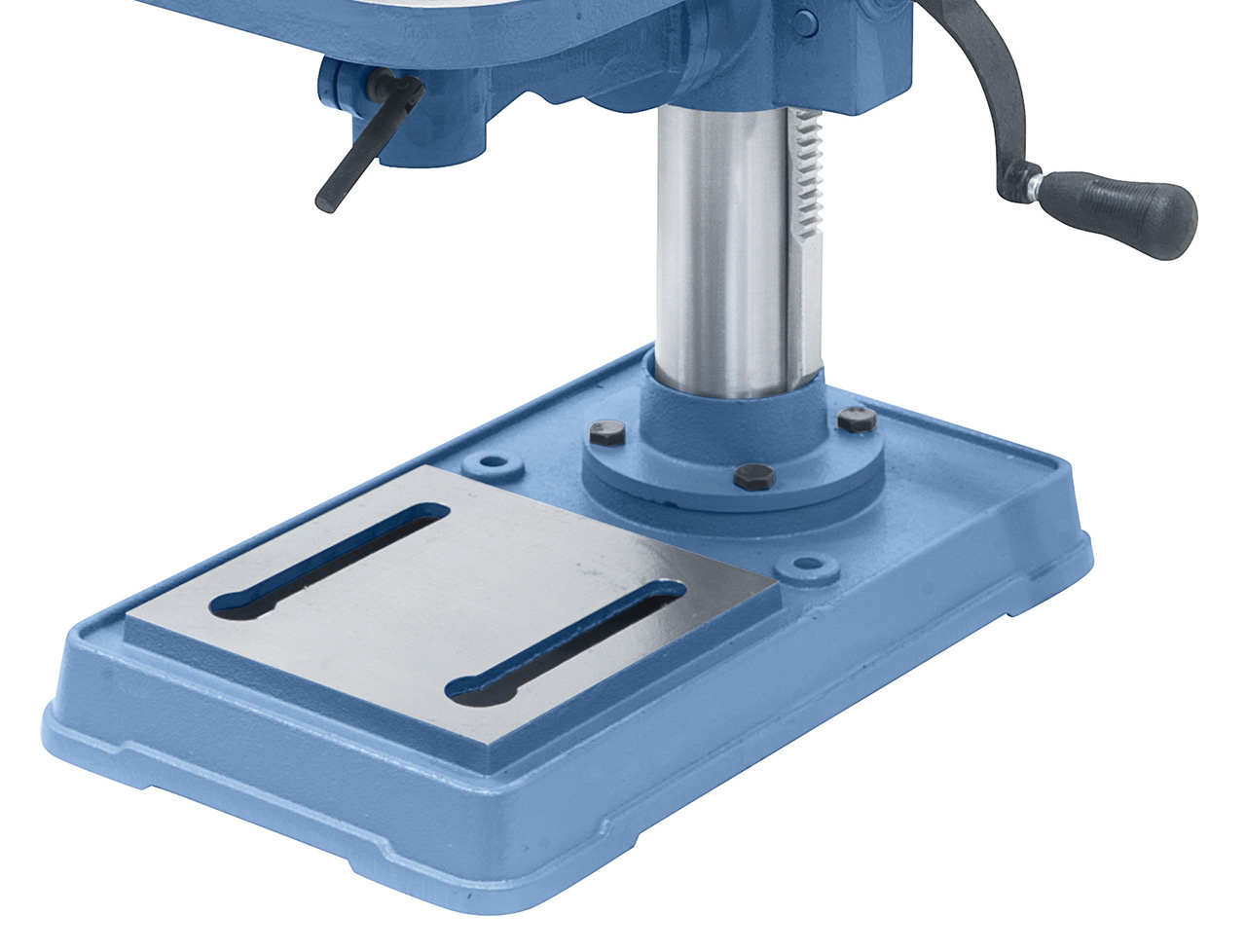

  • Treated machine base allows clamping of oversize workpieces
  • Features T-slots on polished base
  • Ergonomical handles allow for high work comfort

Technical details Bench drilling machine Bernardo TB 20 T - 400 V

Drilling capacity max.

20 mm

Drill chuck

1 - 16 mm / B 16

Morse taper

MT 2

Spindle speed

(16) 220 - 2840 rpm

Distance spindle to column

180 mm

Drilling table tiltable

-45° to +45°

Distance spindle to table max.

415 mm

Distance spindle to base

605 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

290 x 290 mm / 16 mm

Work surface base

205 x 205 mm

Motor power output S1 100%

0,55 kW / 400 V

Motor power input S6 40%

0,80 kW / 400 V

Machine dimension (W x D x H)

380 x 620 x 1000 mm

Weight approx.

54 kg
