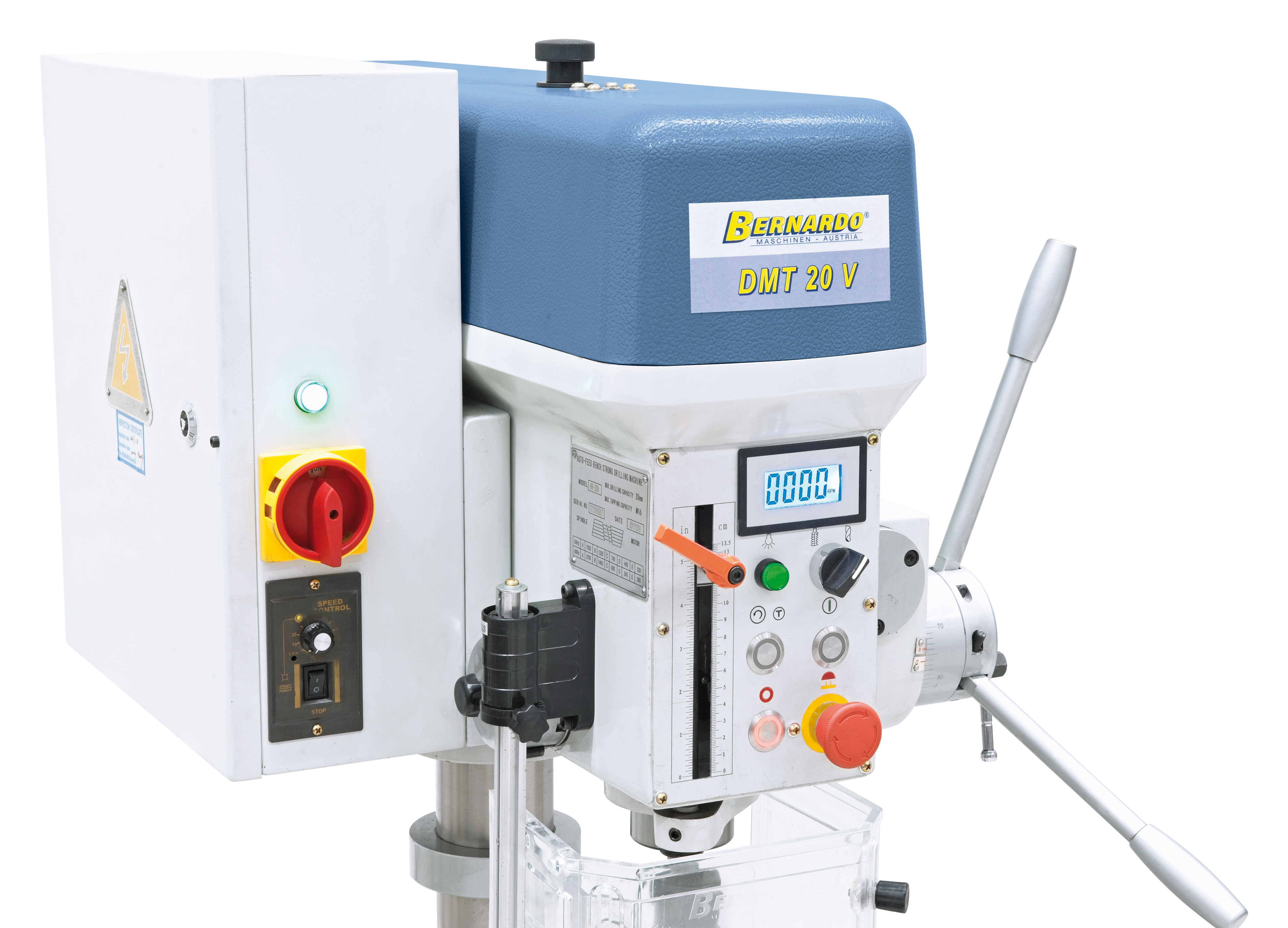

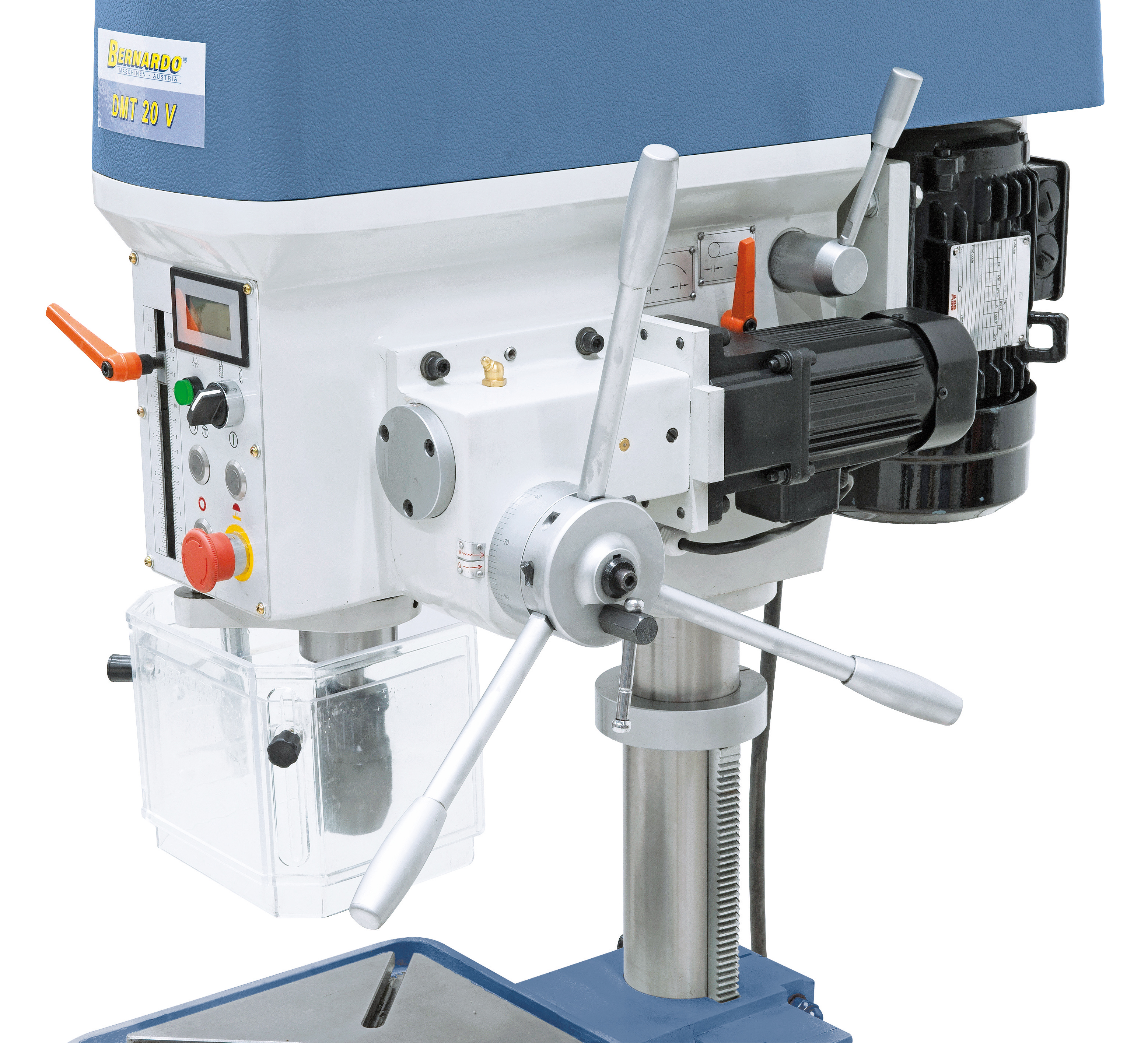

Bench drilling machine Bernardo DMT 20 V

The table drilling machine DMT 20 V offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.

Scope of delivery Bench drilling machine Bernardo DMT 20 V

• Drill chuck 1 - 16 mm / B 18
• Drill chuck arbor MT 2 / B 18
• Automatic spindle feed
• Digital readout of speeds
• Thread cutting device
• LED-machine light
• Height adjustable protective cover

Features Bench drilling machine Bernardo DMT 20 V

• Protective cover in accordance to CE standards, adjustable to various drill bit sizes

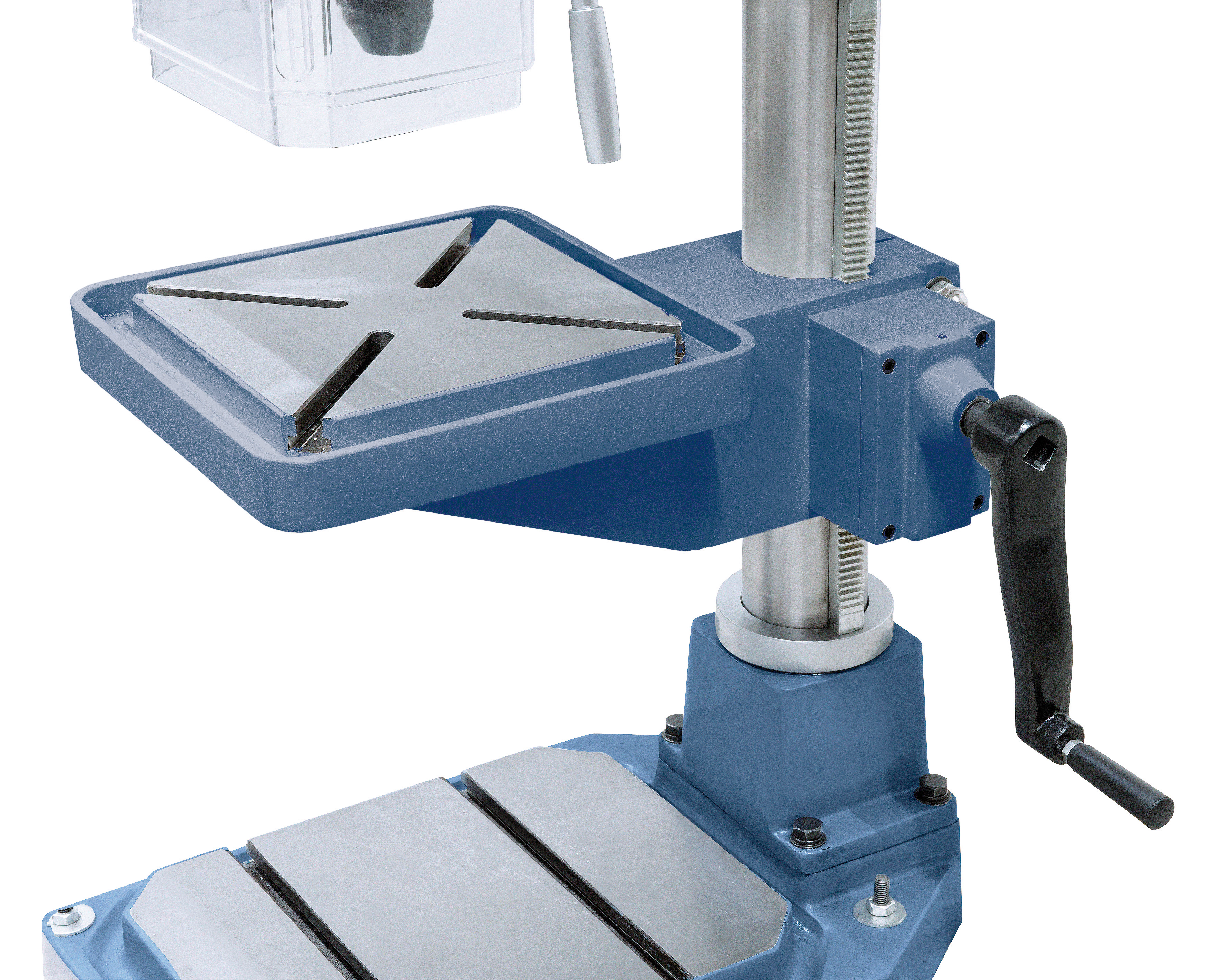

• Surface treated work table, height adjustable via gear rack and crank
• Polished base plate features T-slots for mounting of large workpieces
• Serially with automatic spindle feed
• Adjustable drill depth stop allows accurate spindle feed
• High concentricity ≤ 0,02 mm measured at spindle
• Powerful motor even at continuous operation
• Solid and powerful drilling machine for high demands
• Including automatic reverse rotation for thread cutting

Technical details Bench drilling machine Bernardo DMT 20 V
