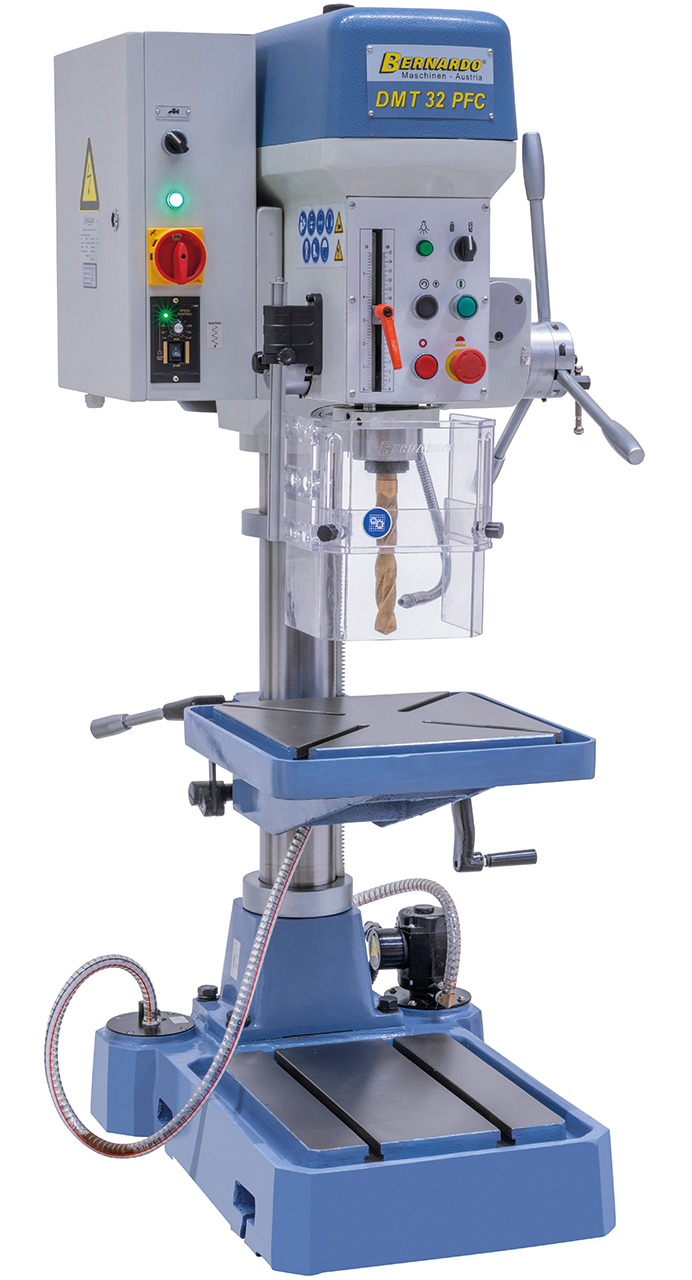

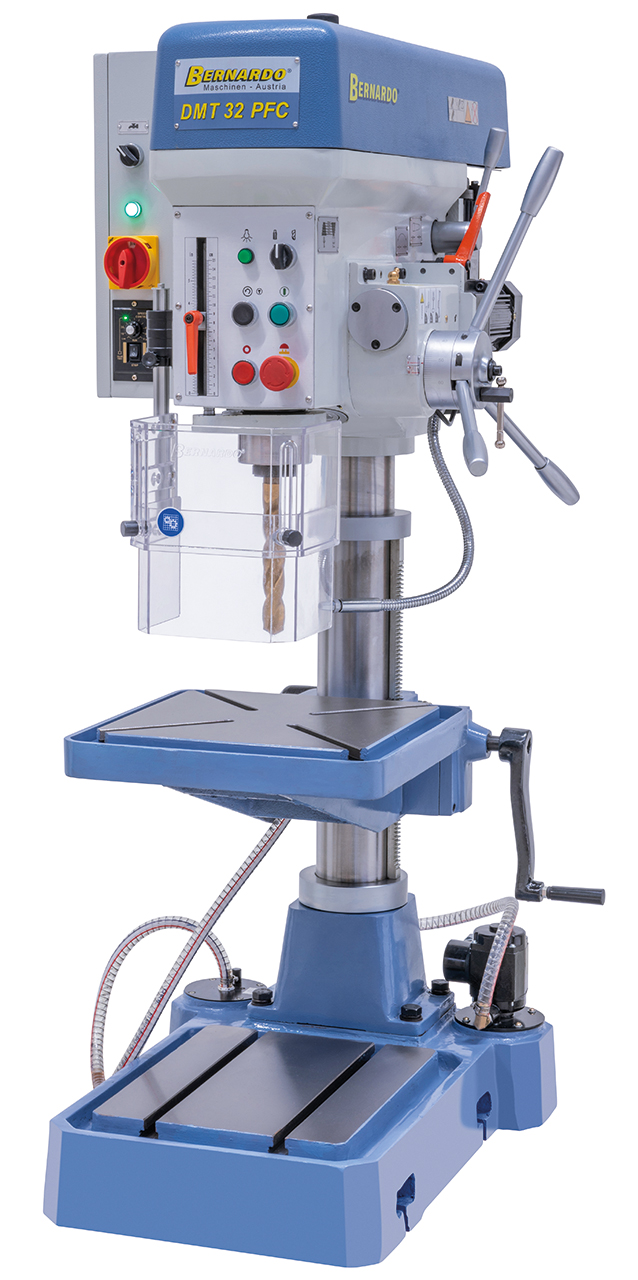

Bench drill Bernardo DMT 32 PFC
Bench drill Bernardo DMT 32 PFC
Preview: Bench drill Bernardo DMT 32 PFC
Preview: Bench drill Bernardo DMT 32 PFC
Bench drill Bernardo DMT 32 PFC
Bench drill Bernardo DMT 32 PFC
Bench drill Bernardo DMT 32 PFC
Mobile Preview: Bench drill Bernardo DMT 32 PFC
Mobile Preview: Bench drill Bernardo DMT 32 PFC
NEW

Bench drill Bernardo DMT 32 PFC

Product No.:
01-11868
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
304 kg per piece
2.735,90 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Scope of delivery Bench drill Bernardo DMT 32 PFC

  • Gear rim drill chuck 5 - 20 mm / B 22
  • Drill chuck arbour MK 3 / B 22
  • Automatic sleeve feed
  • Reducing sleeve MK 3 / MK 2
  • Coolant device
  • Tapping device
  • LED machine light
  • Height-adjustable protective cover


Technical details Bench drill Bernardo DMT 32 PFC

Drilling capacity max. 32 mm
Thread cutting max. M 24
Morse taper MK 3
Spindle speed (5) 320 - 1820 rpm
Projection 265 mm
Distance spindle / table max. 375 mm
Spindle / base plate distance 735 mm
Quill stroke 150 mm
Quill feed 0 - 100 mm/min
Column diameter 100 mm
Table size / T-slot size 332 x 332 mm / 14 mm
Worktop base plate 385 x 315 mm
Motor output power S1 100% 1,5 kW / 400 V
Motor power consumption S6 40% 2,2 kW / 400 V
Machine dimensions (W x D x H) 560 x 920 x 1420 mm
Weight approx. 304 kg
