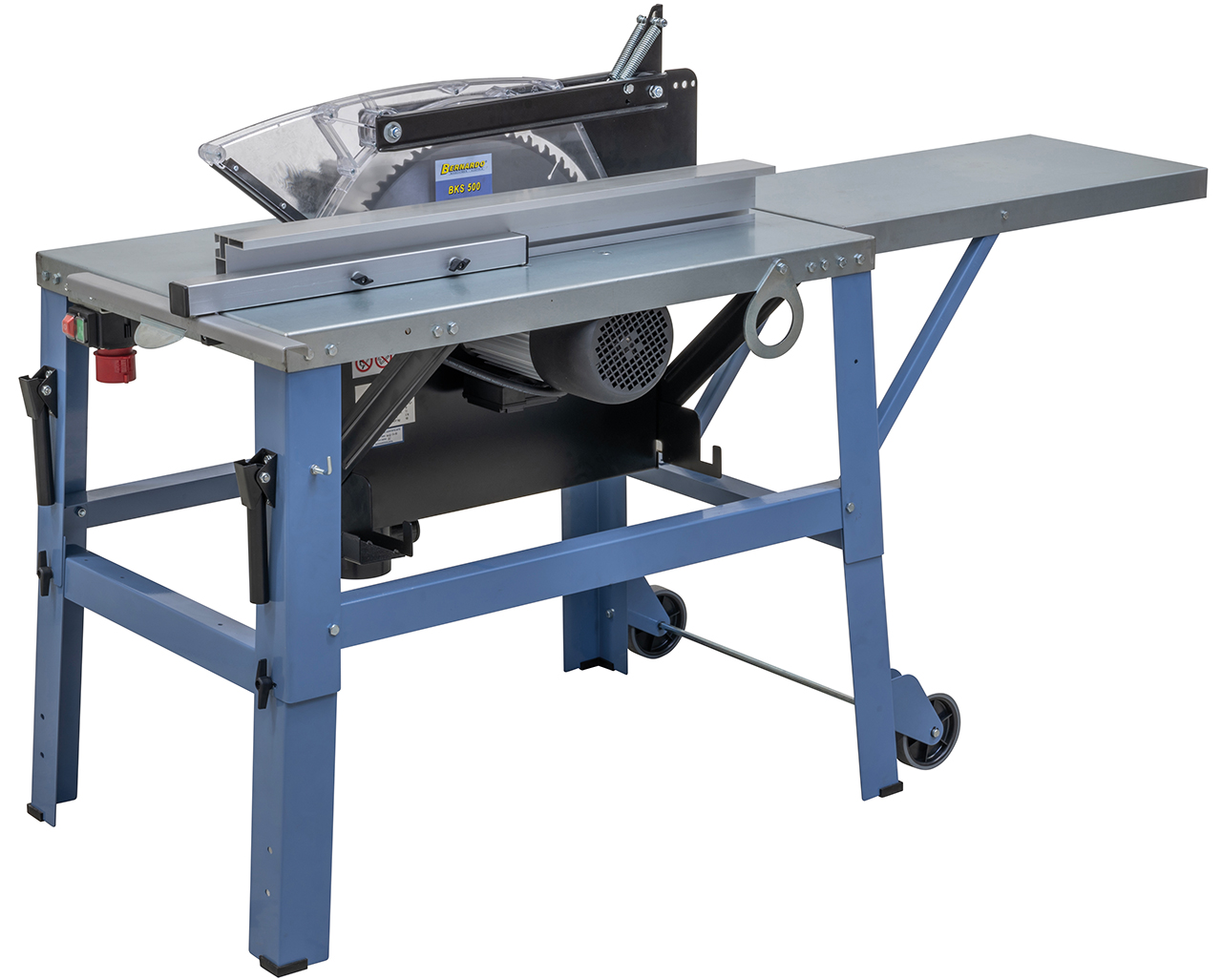

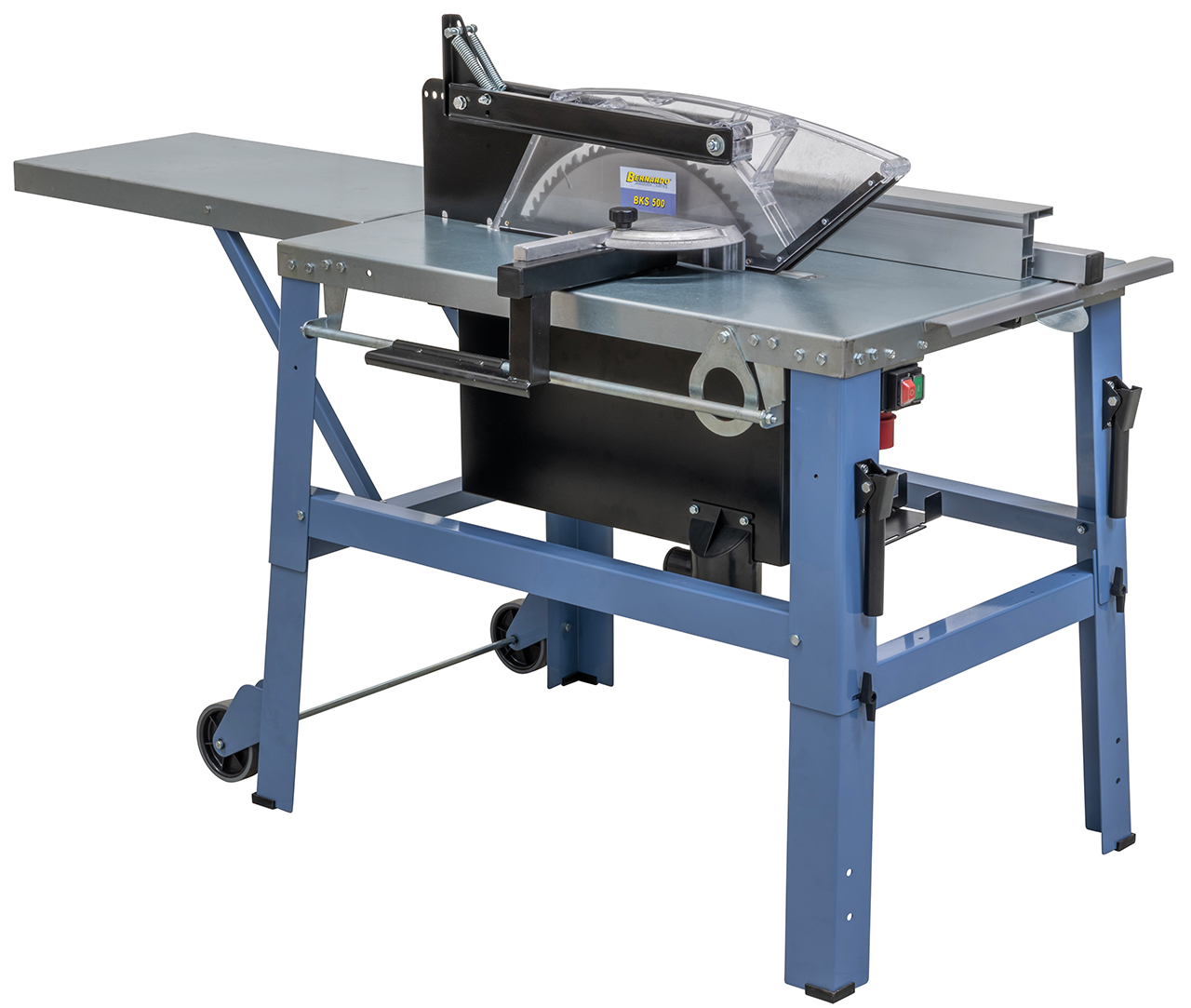

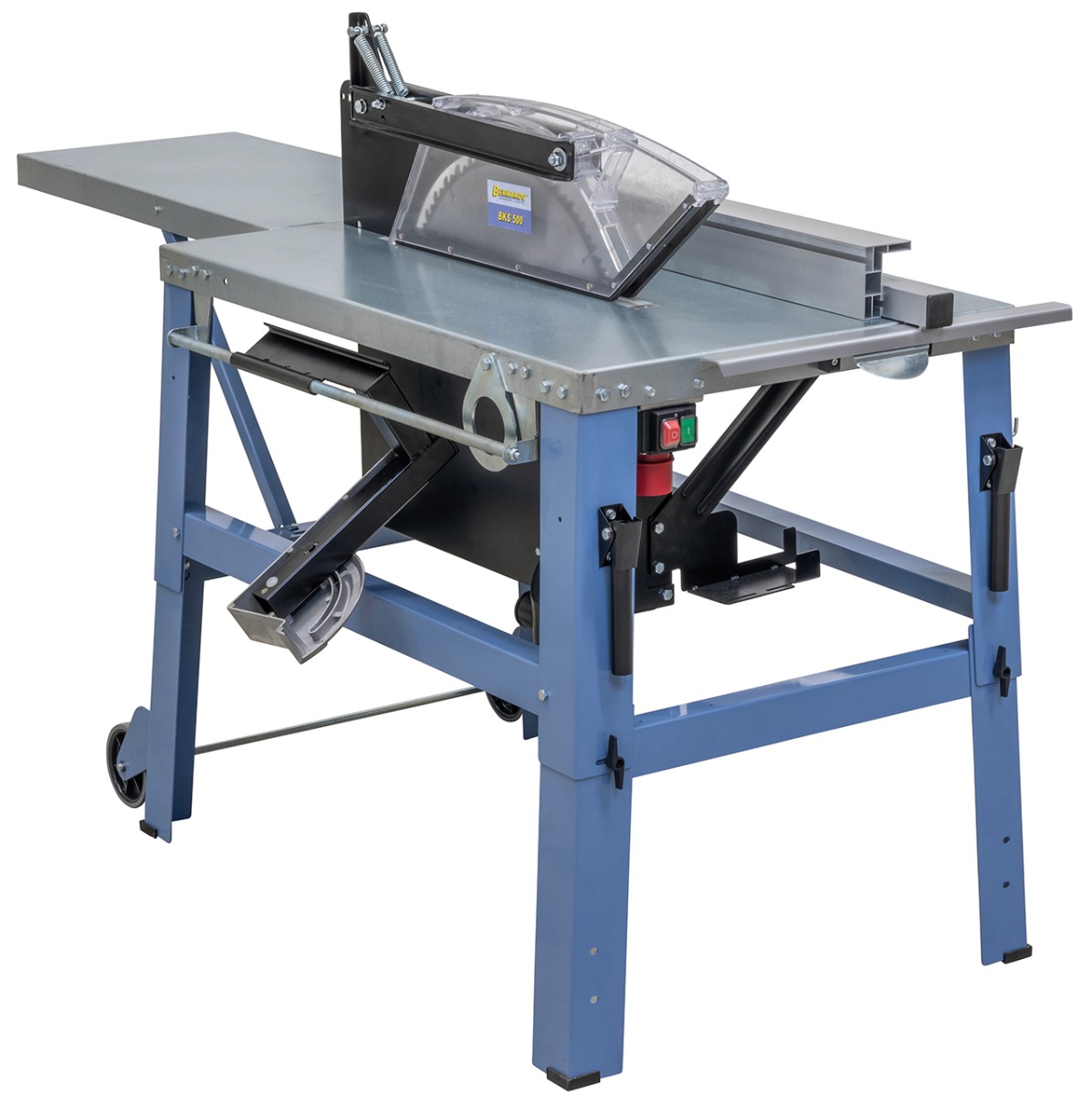

Construction site circular saw Bernardo BKS 500
NEW
The heavy-duty BKS 500 construction site circular saw is designed for daily use and can withstand the toughest conditions on construction sites. The extensive range of standard accessories and in particular the pendulum guard, which offers the user maximum safety, make this machine a reliable and professional tool.
Scope of delivery Bernardo BKS 500 construction site circular saw
-
Carbide saw blade 500 x 4.0 x 30 mm / Z44
-

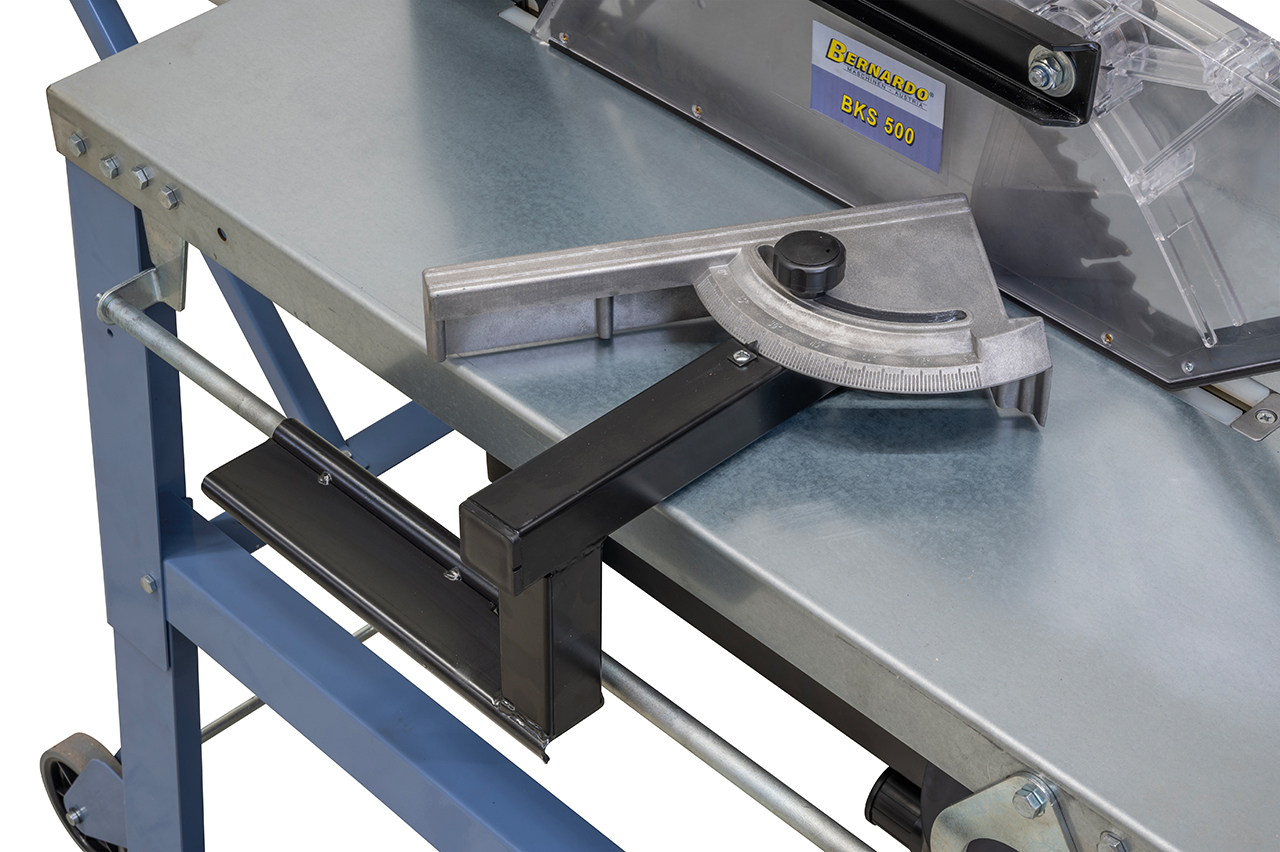

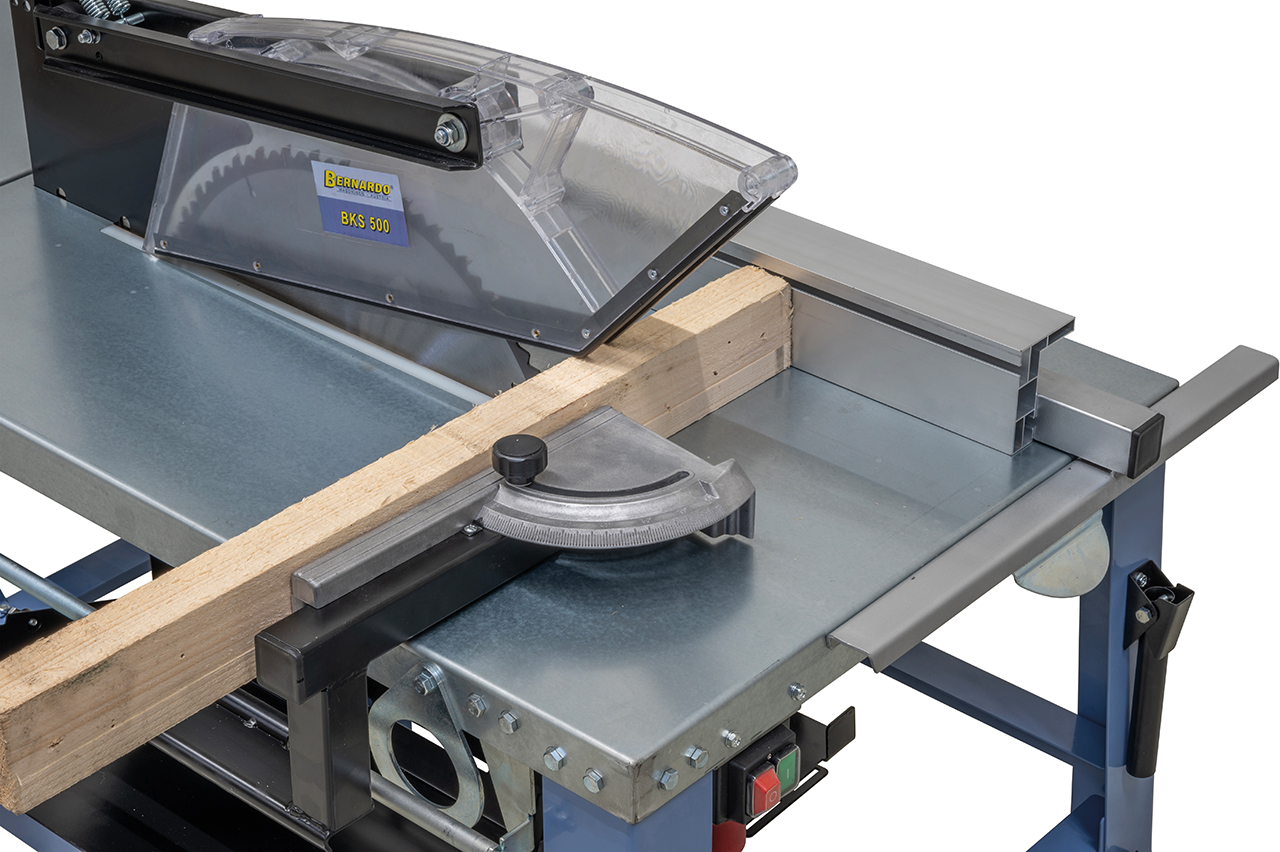

Folding mitre fence with integrated wedge cutting gauge
-
Folding table extension
-

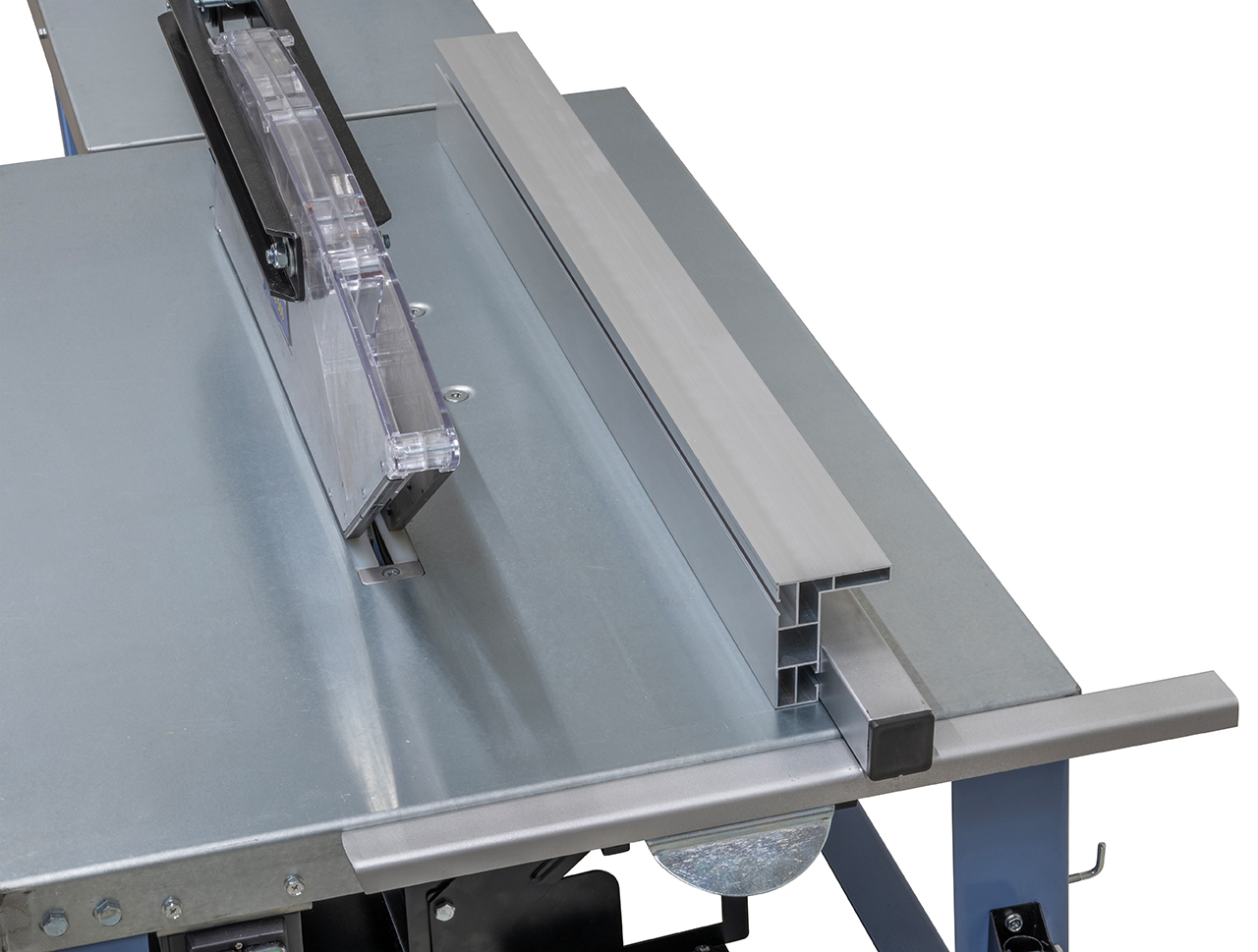

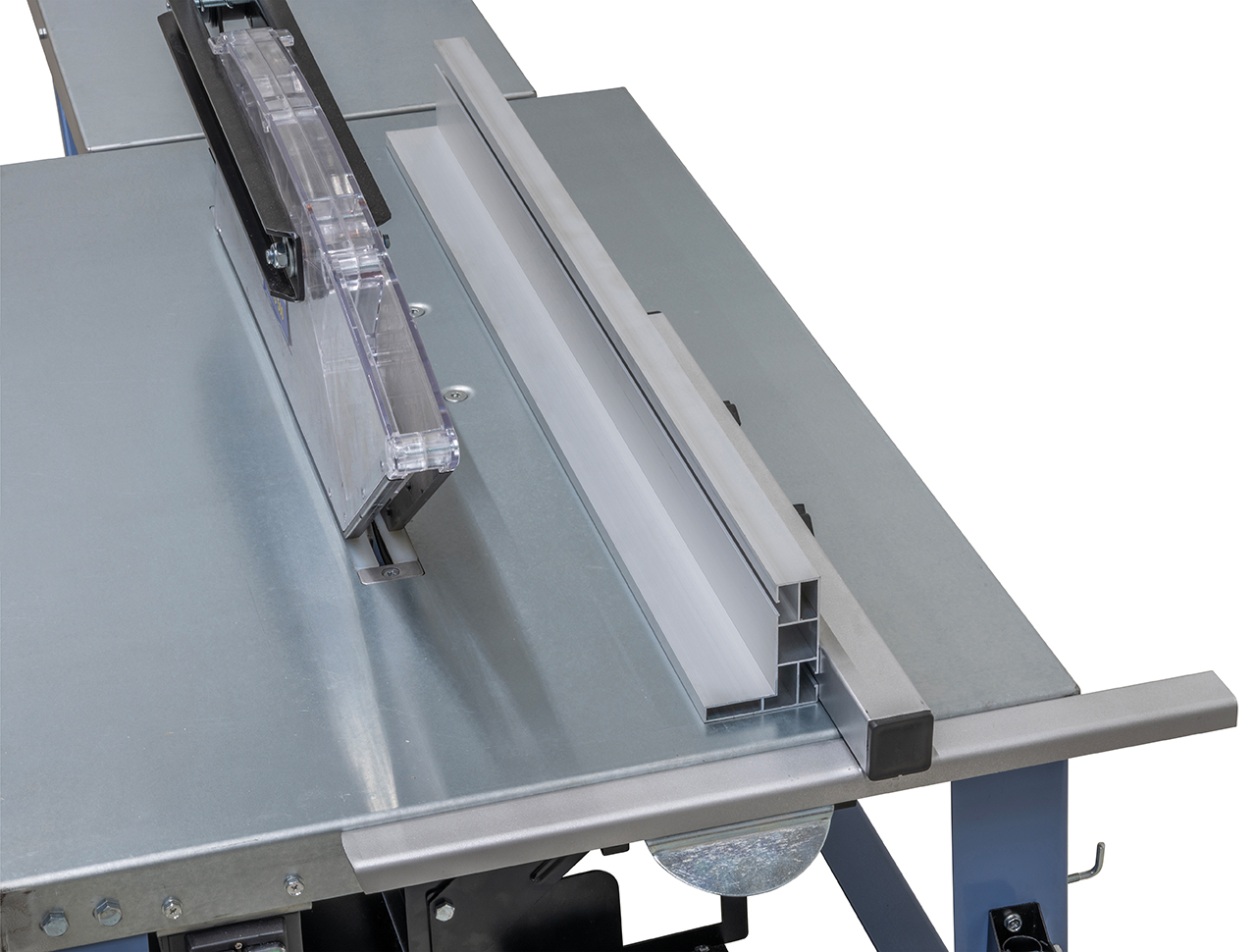

Rip fence
-
Saw blade protection cover
-
Switch-plug combination with integrated phase inverter
-
Push stick
-
Travelling gear
-
Push handle
Special features of the Bernardo BKS 500 circular saw
-

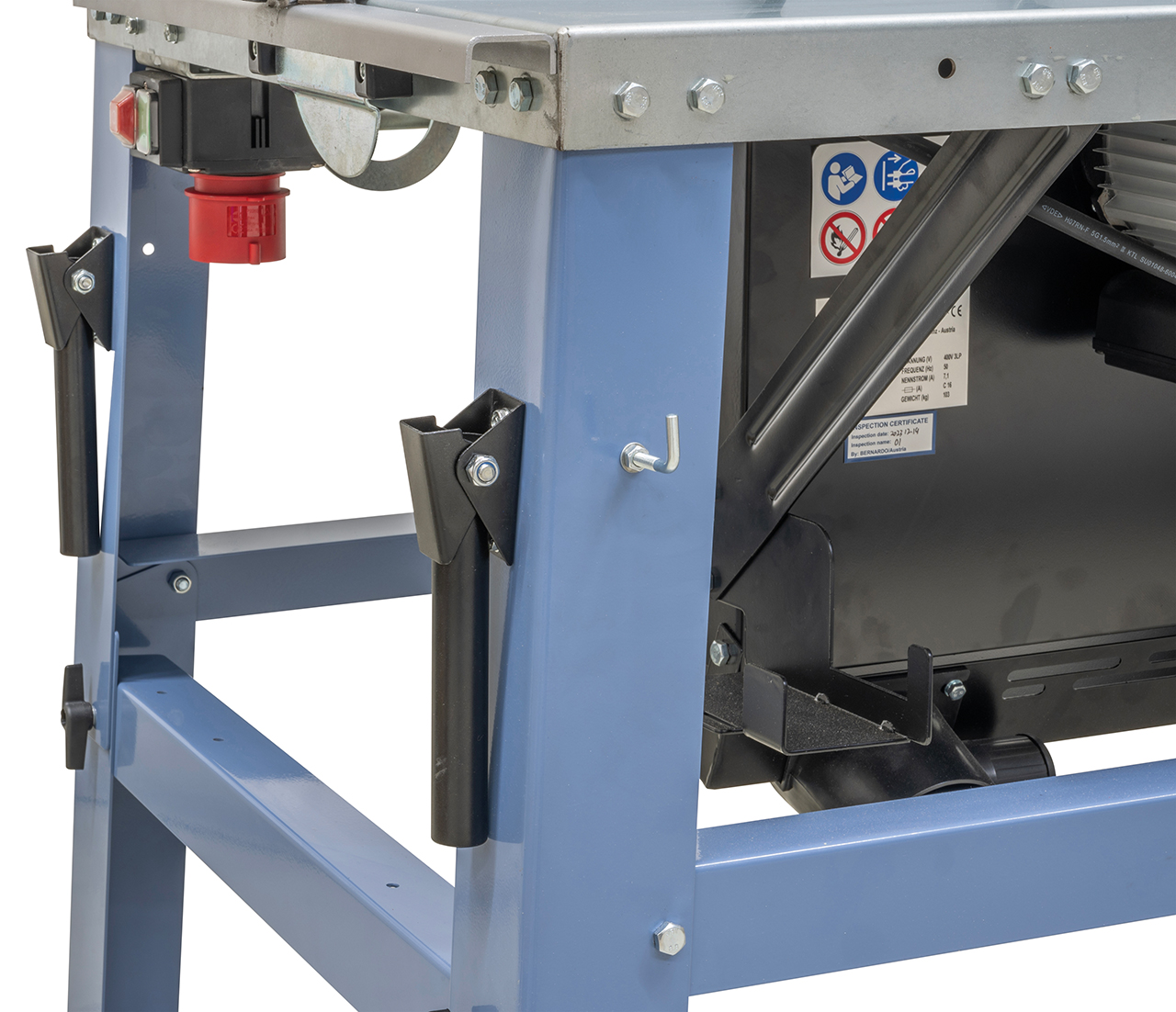

ON-OFF switch according to IP 54 with undervoltage release - switches the machine off in case of power failure and prevents the machine from starting automatically when power is restored
-
CE-compliant braking device stops the saw blade within 10 seconds
-

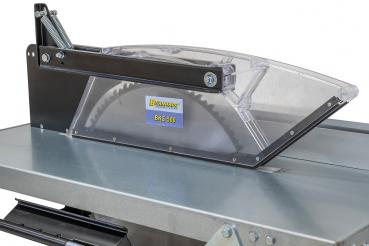

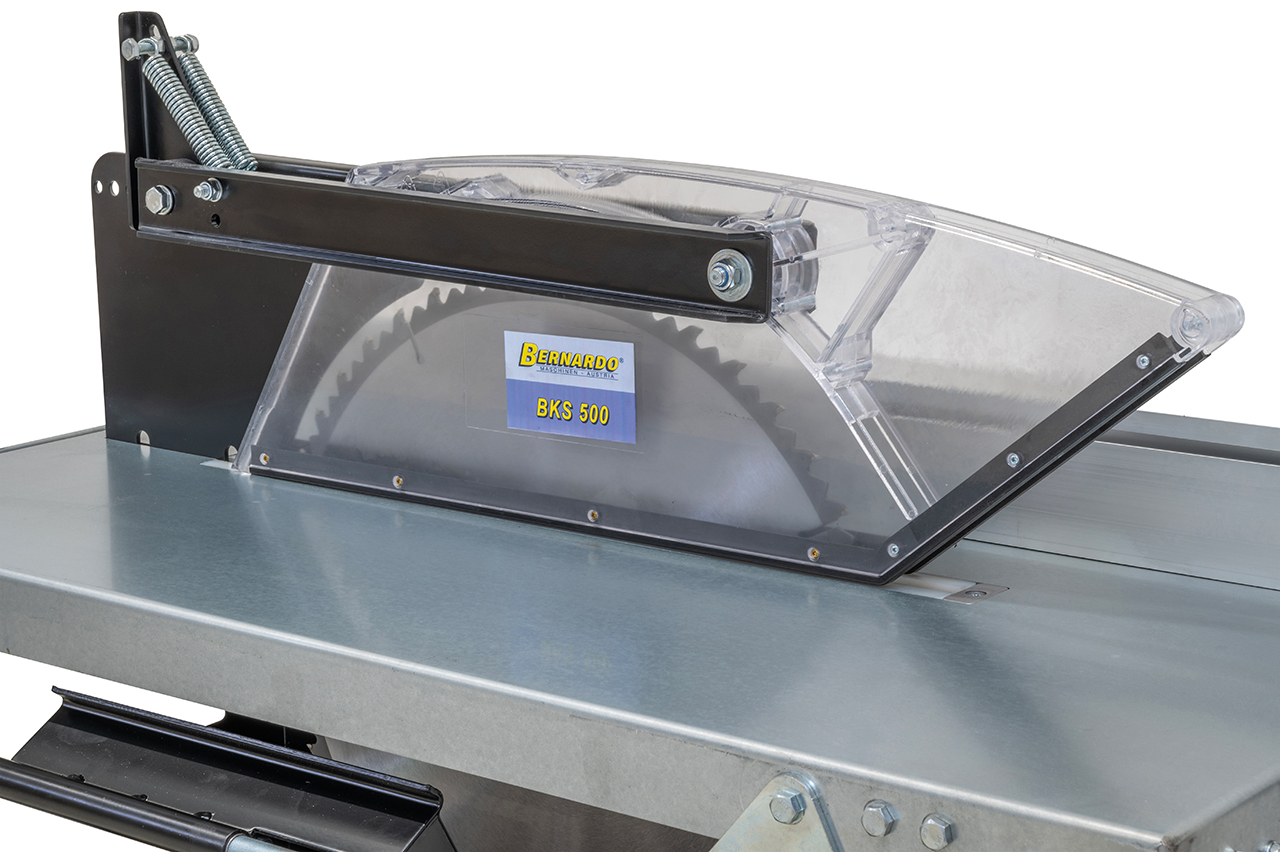

The self-opening and closing function of the safety guard significantly reduces the risk of accidents
-

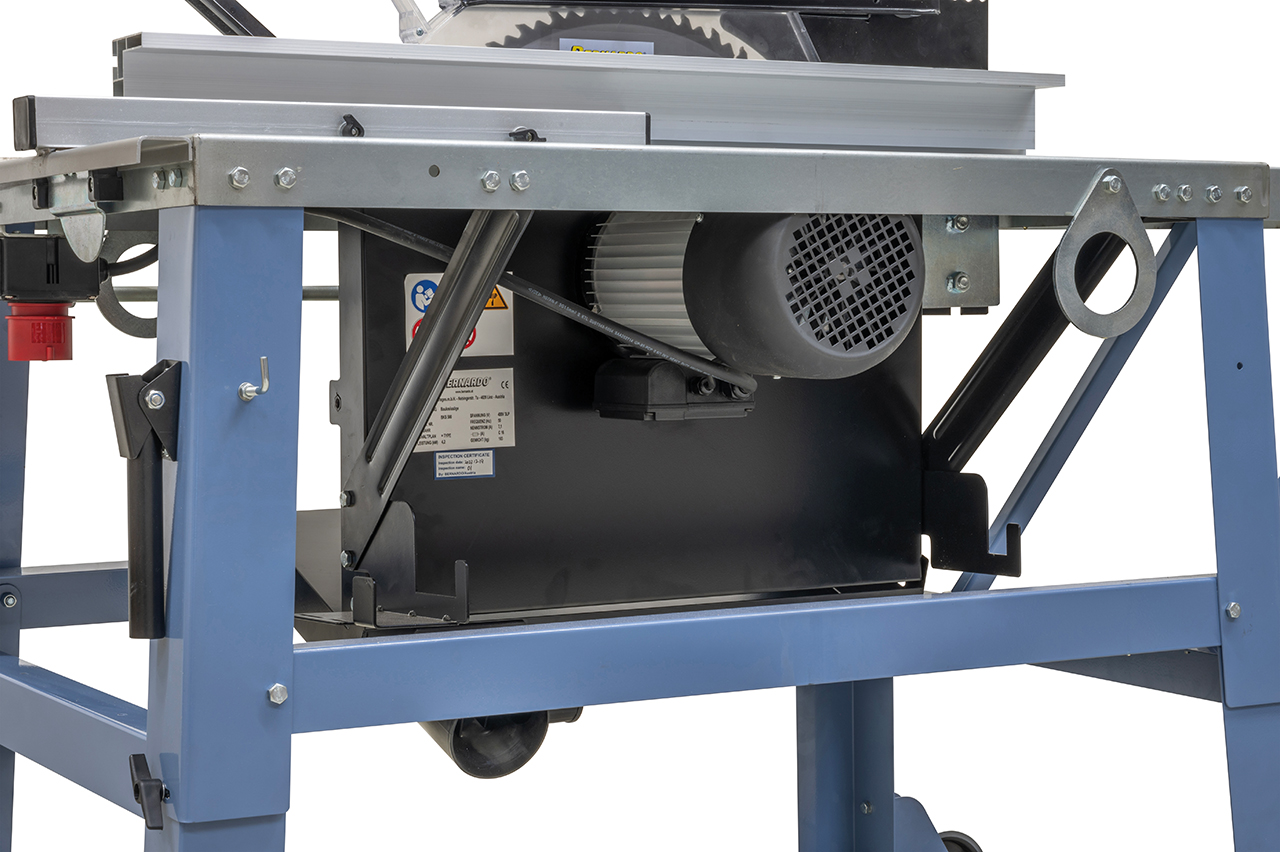

High-torque drive motor for precise cutting results even during prolonged operation
-
Galvanised work surface for a long service life
-
With table extension as standard for laying large panels
Technical details circular saw Bernardo BKS 500
Feature | Value |
---|---|
Table dimensions | 1000 x 600 mm |
Max. saw blade diameter | 500 x 30 mm |
Max. cutting height at 90° | 155 mm |
Cutting width with parallel fence | 300 mm |
Cutting depth with miter gauge | 270 mm |
Working height | 860 mm |
Table extension | 800 x 400 mm |
Blade speed | 2800 RPM |
Dust extraction port diameter | 95 mm |
Motor output power S1 100% | 4.2 kW (5.7 HP) |
Motor input power S6 40% | 5.8 kW (7.8 HP) |
Voltage | 400 V |
Machine dimensions (W x D x H) | 940 x 1900 x 1160 mm |
Weight approx. | 99 kg |
