Main page » Metal » Bernardo jaw chuck » Bernardo 4-jaw chuck made of steel » 4-jaw chuck made of steel Bernardo Precision 4-jaw chuck PO4-250

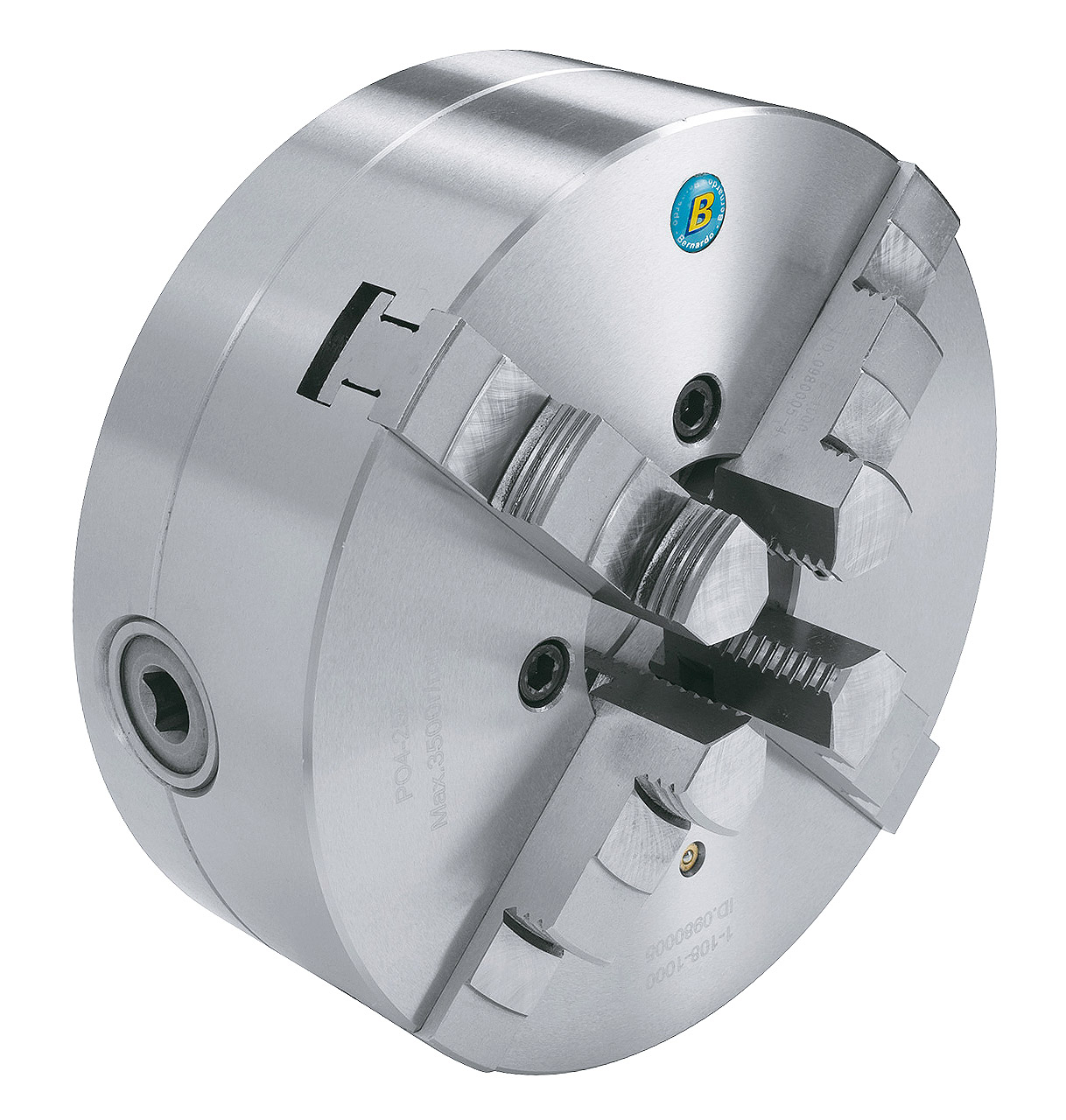

4-jaw chuck made of steel Bernardo Precision 4-jaw chuck PO4-250
Features 4-jaw chuck made of steel Bernardo Precision 4-jaw chuck PO4-250
Execution:
- Precision 4-jaw chuck
- With centre mount according to DIN 6350
- Steel design for higher speed and longer life span
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for turning lathe and grinding machines
- For using on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS
- 1 set hard outside solid jaws OJ-PS

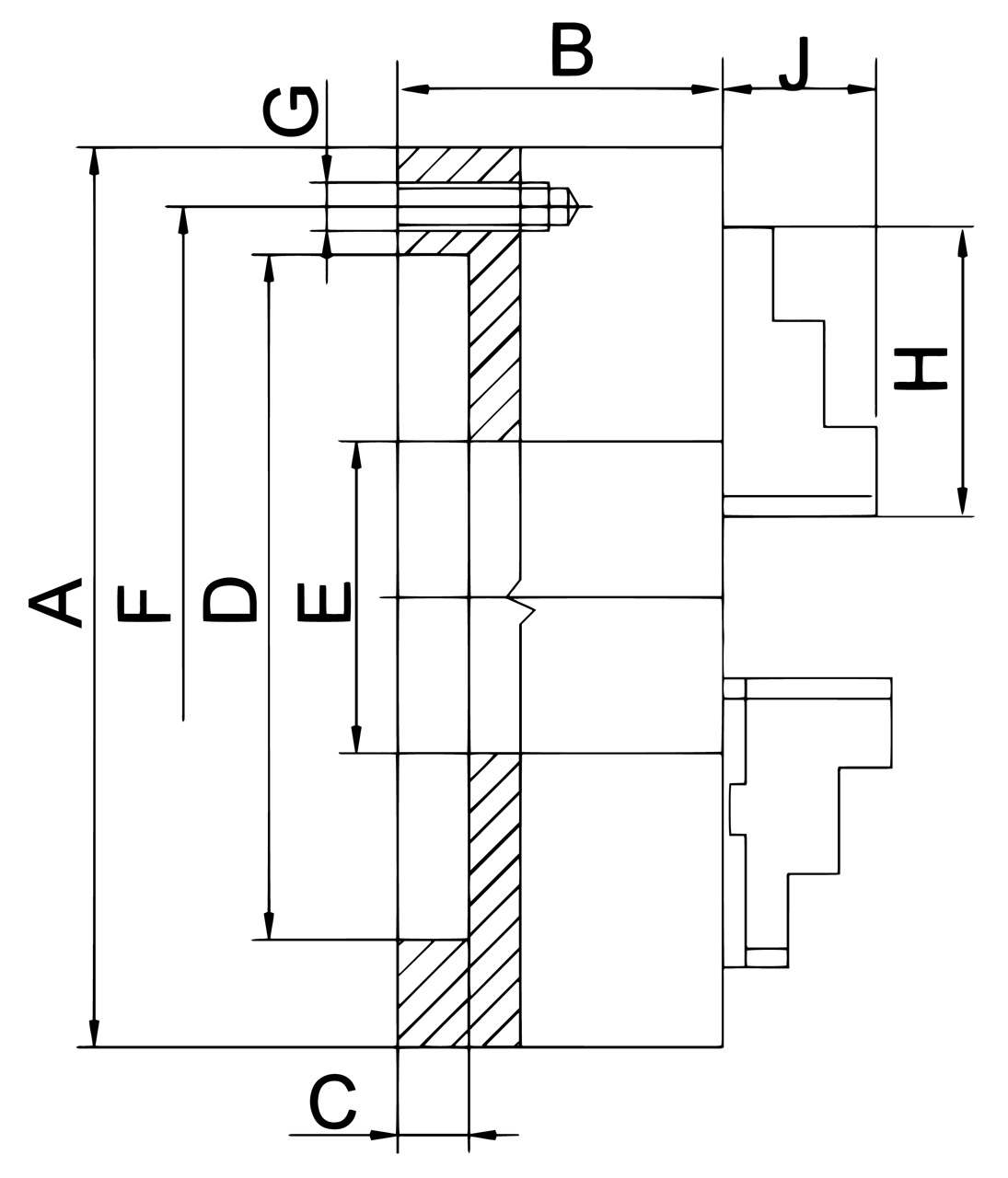

Technical details 4-jaw chuck made of steel Bernardo Precision 4-jaw chuck PO4-250
| A – chuck size | 250 |
| B | 89 mm |
| C | 5 mm |
| D | 200 mm |
| E | 76 mm |
| F | 224 mm |
| G | M12 |
| H | 105 mm |
| J | 34 mm |
| Max. speed | 3500 rpm |
| Weight approx. | 29 kg |
