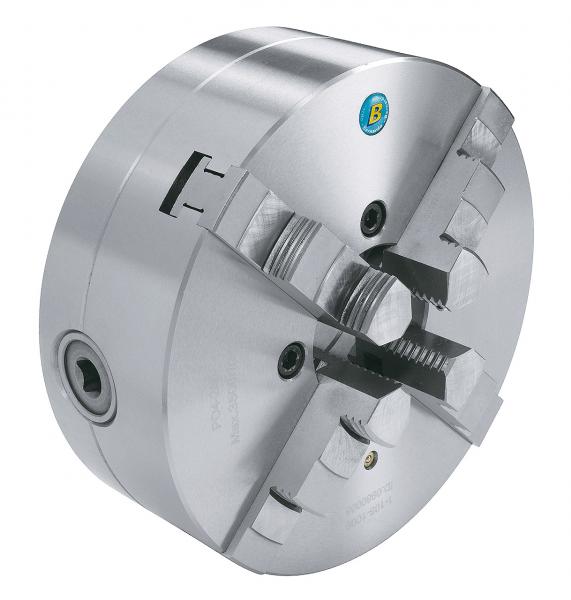

4-jaw chuck made of steel Bernardo Precision 4-jaw chuck PO4-160
Features 4-jaw chuck made of steel Bernardo Precision 4-jaw chuck PO4-160
Execution:
- Precision 4-jaw chuck
- With centre mount according to DIN 6350
- Steel design for higher speed and longer life span
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for turning lathe and grinding machines
- For using on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS
- 1 set hard outside solid jaws OJ-PS

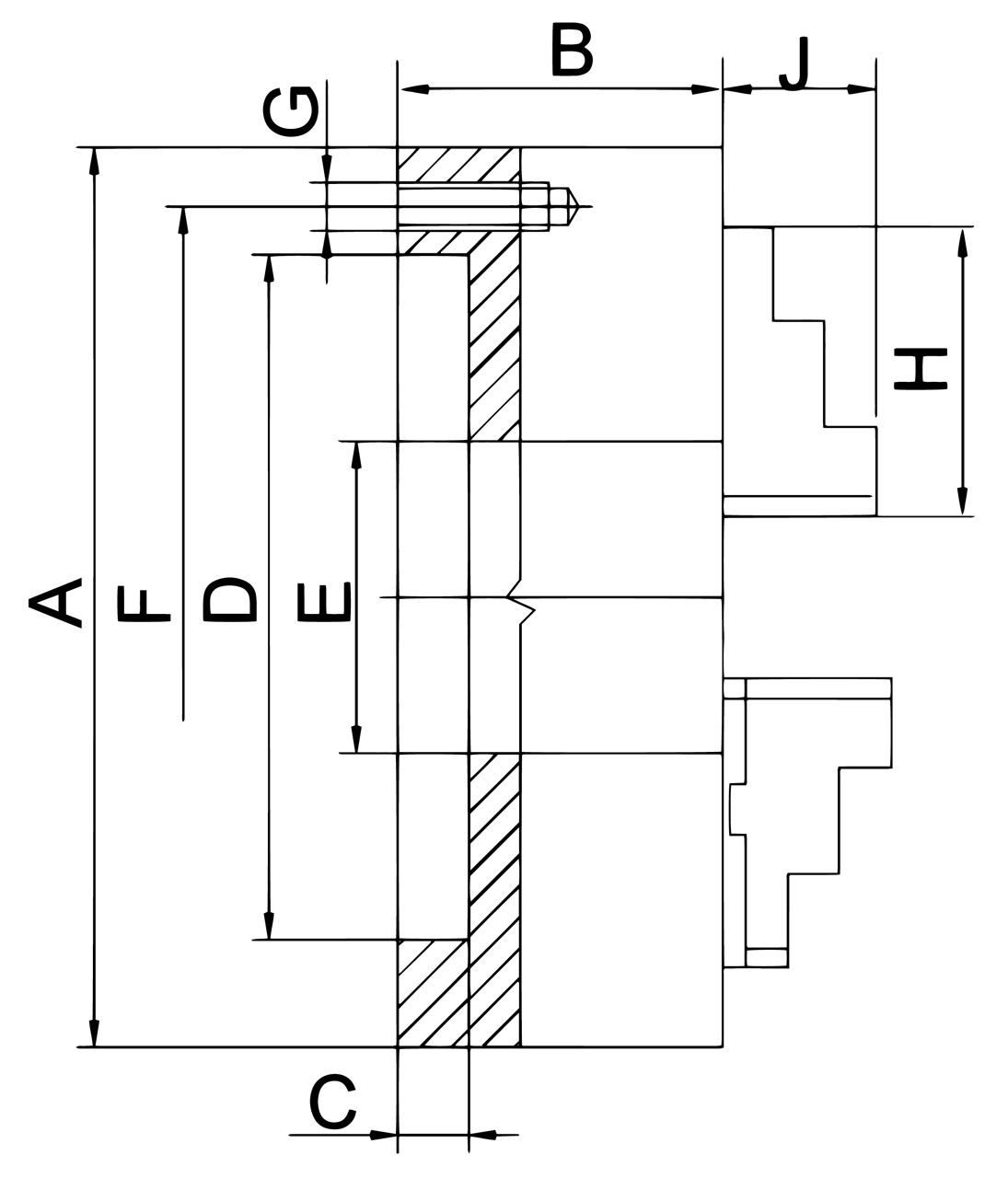

Technical details 4-jaw chuck made of steel Bernardo Precision 4-jaw chuck PO4-160
| A – chuck size | 160 |
| B | 68 mm |
| C | 4 mm |
| D | 125 mm |
| E | 42 mm |
| F | 140 mm |
| G | M10 |
| H | 70 mm |
| J | 32 mm |
| Max. speed | 4500 rpm |
| Weight approx. | 10 kg |
