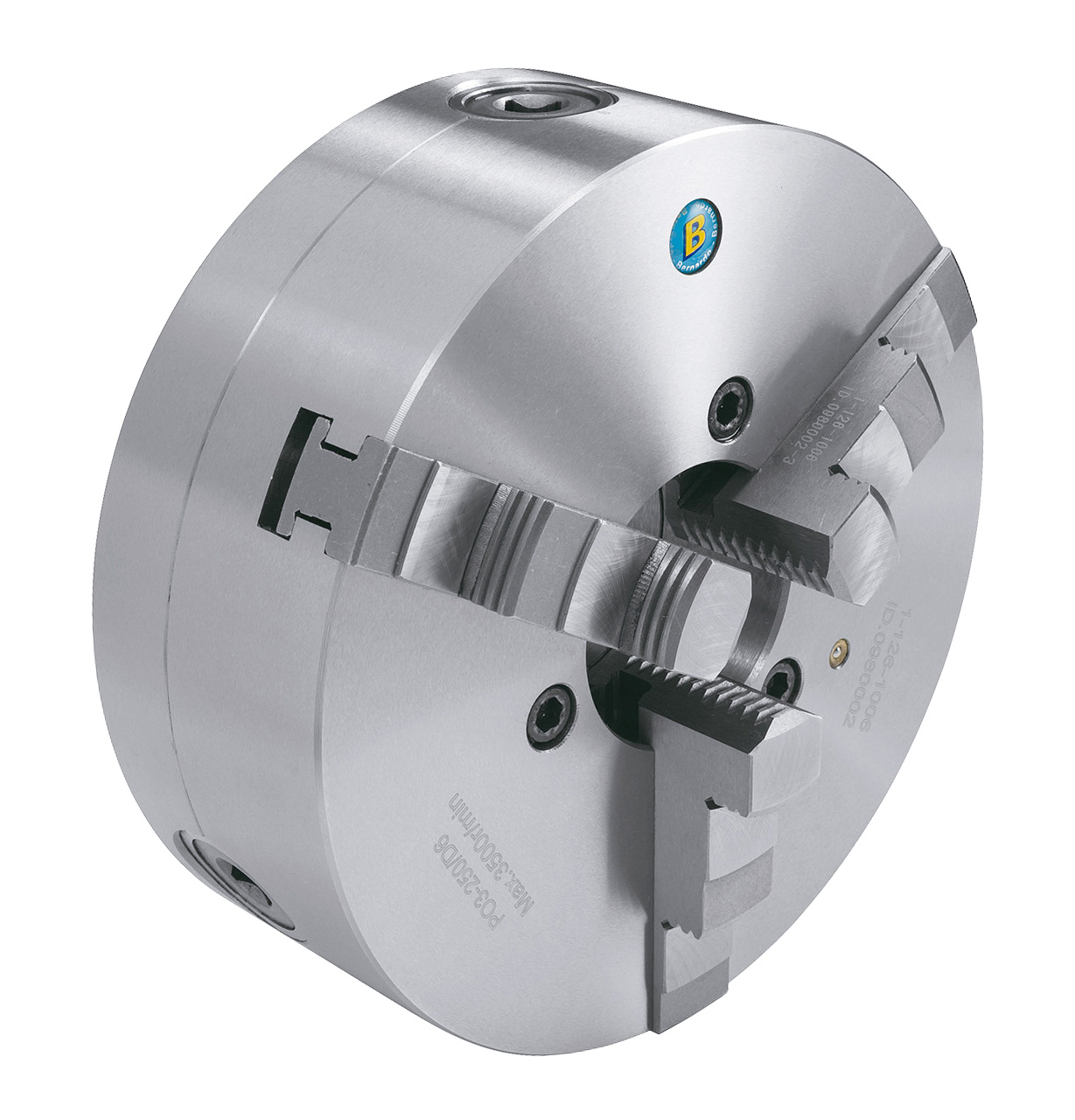

3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-500/D8
Features 3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-500/D8
Execution:
- Precision 3-jaw chuck
- With Camlock direct mount according to DIN 55029
- Steel-design for higher speeds and longer life span
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

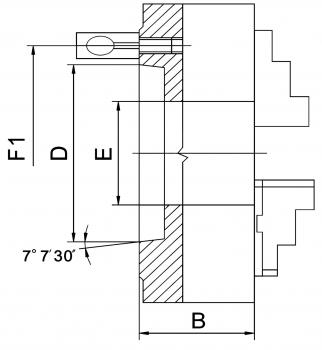

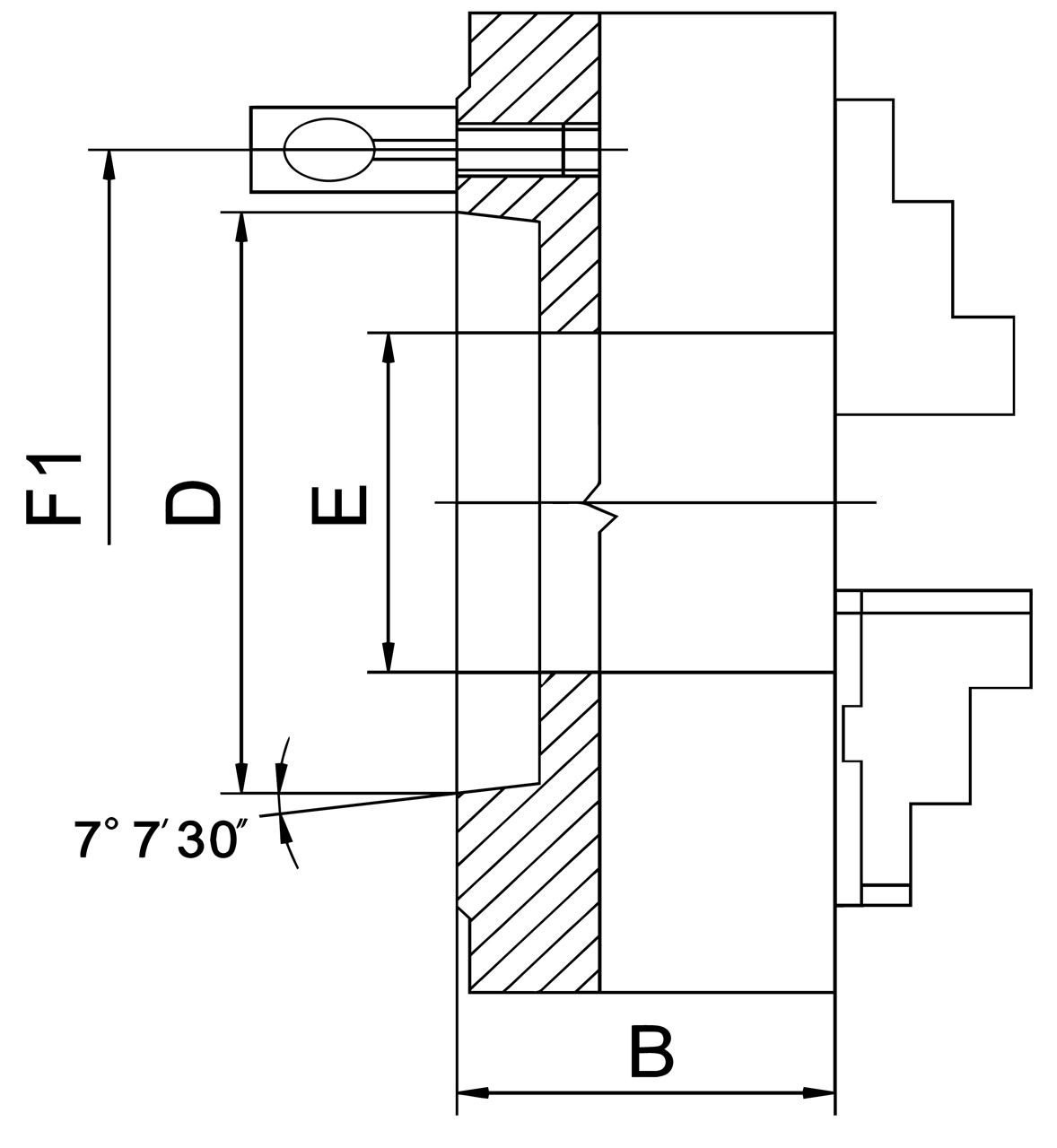

Technical details 3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-500/D8
| Chuck size | 500/D8 |
| Diameter | 500 mm |
| Taper | 8 |
| B | 119 mm |
| D | 139,734 mm |
| E | 136 mm |
| F1 | 171,4 mm |
| Camlock stud | 6 |
| Max. speed | 1200 rpm |
| Weight approx. | 150 kg |
