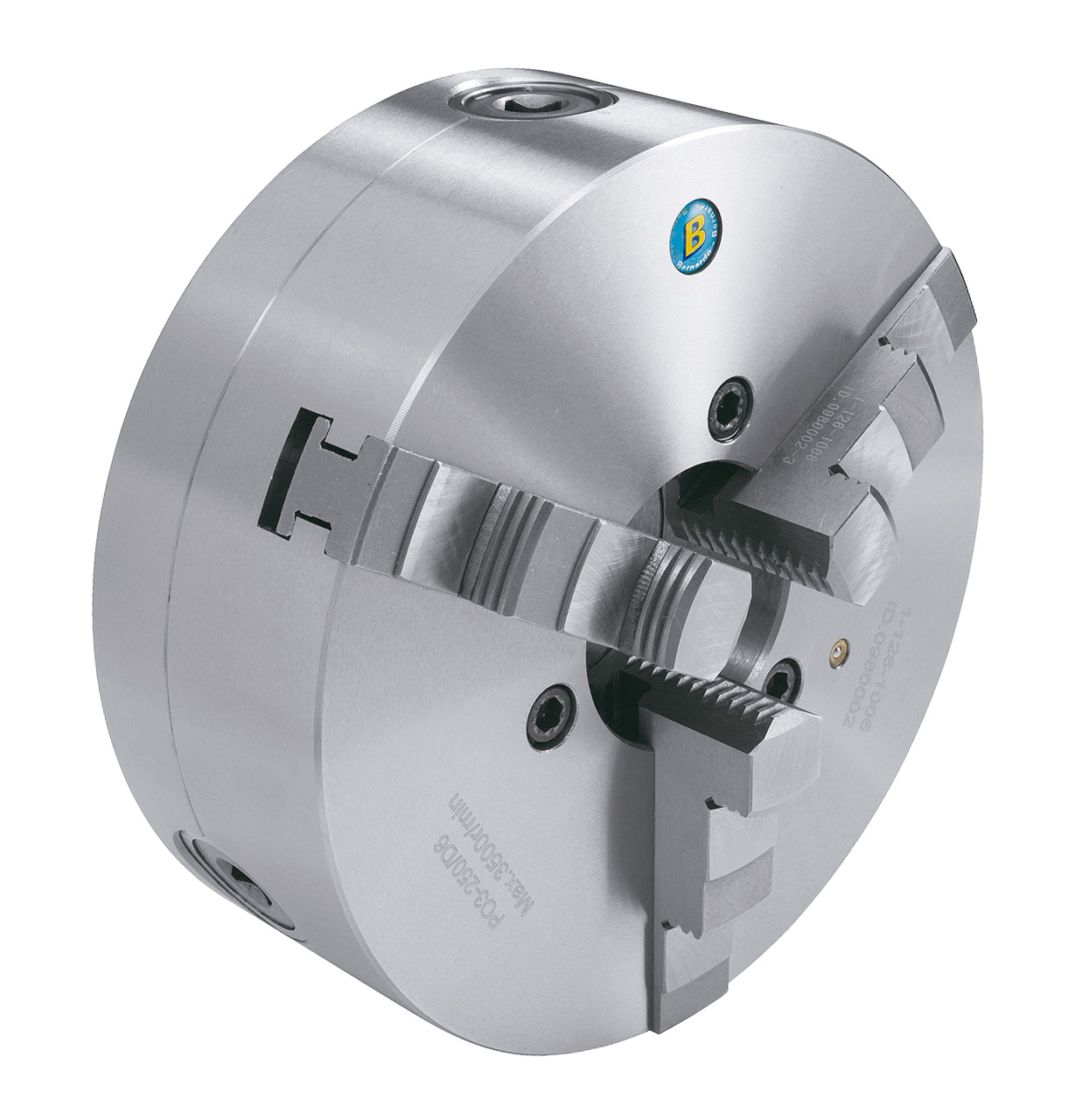

3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-160/D5
Features 3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-160/D5
Execution:
- Precision 3-jaw chuck
- With Camlock direct mount according to DIN 55029
- Steel-design for higher speeds and longer life span
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

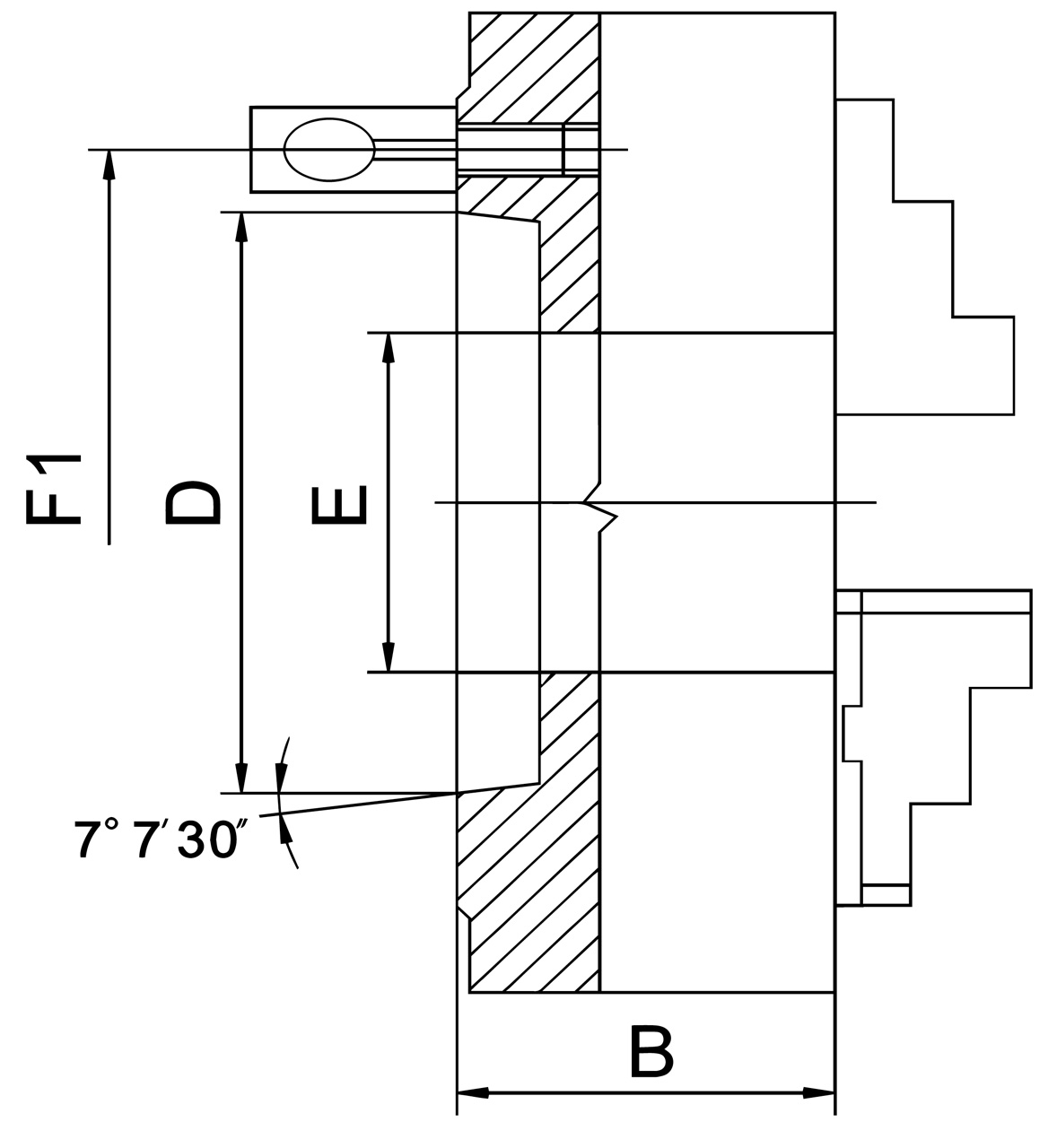

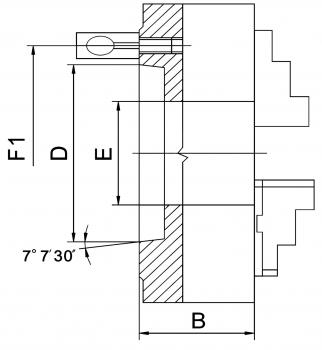

Technical details 3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-160/D5
| Chuck size | 160/D5 |
| Diameter | 160 mm |
| Taper | 5 |
| B | 68 mm |
| D (max.) | 82,578 mm |
| E | 42 mm |
| F1 | 104,8 mm |
| Camlock stud | 6 |
| Max. speed | 4500 rpm |
| Weight approx. | 9 kg |
