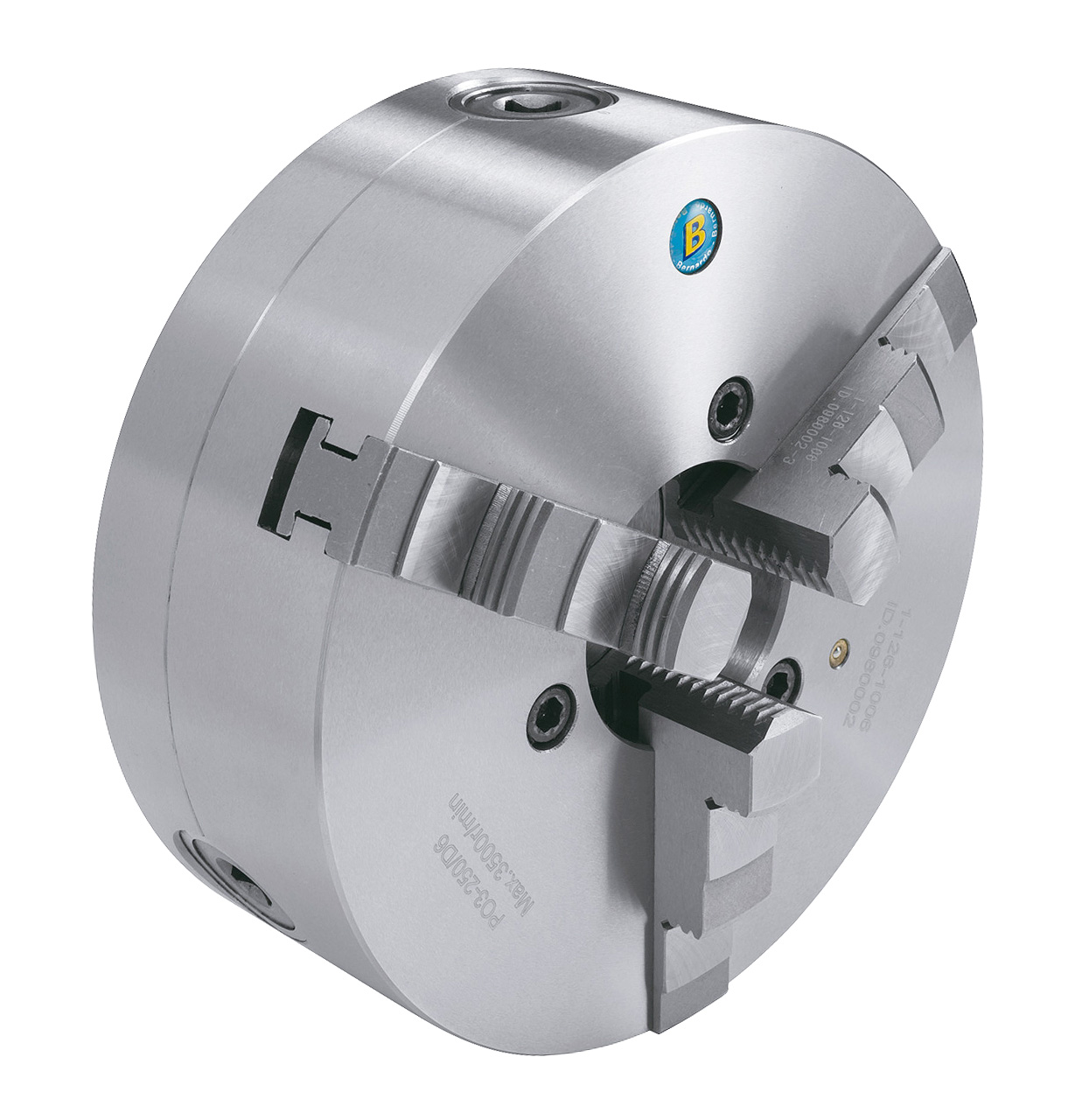

3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-125/D3
Features 3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-125/D3
Execution:
- Precision 3-jaw chuck
- With Camlock direct mount according to DIN 55029
- Steel-design for higher speeds and longer life span
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

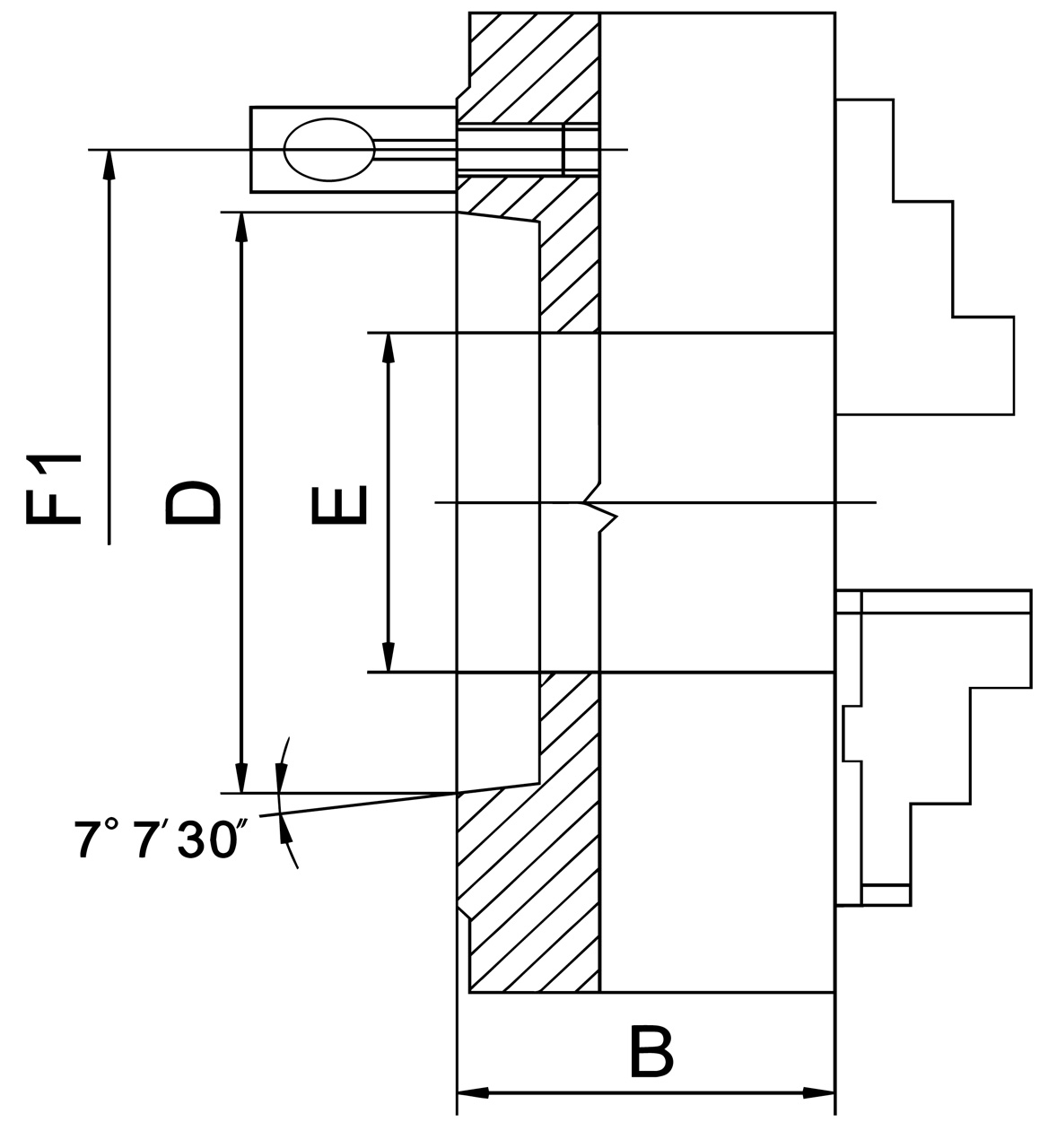

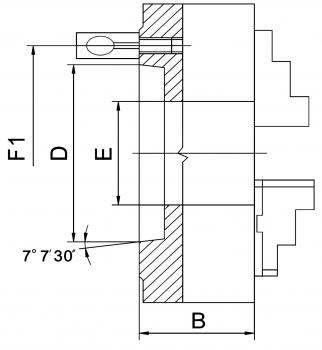

Technical details 3-jaw chuck made of steel Bernardo Precision 3-jaw chuck PO3-125/D3
| Chuck size | 125/D3 |
| Diameter | 125 mm |
| Taper | 3 |
| B | 59,5 mm |
| D (max.) | 53,988 mm |
| E | 32 mm |
| F1 | 70,6 mm |
| Camlock stud | 3 |
| Max. speed | 4800 rpm |
| Weight approx. | 5 kg |
