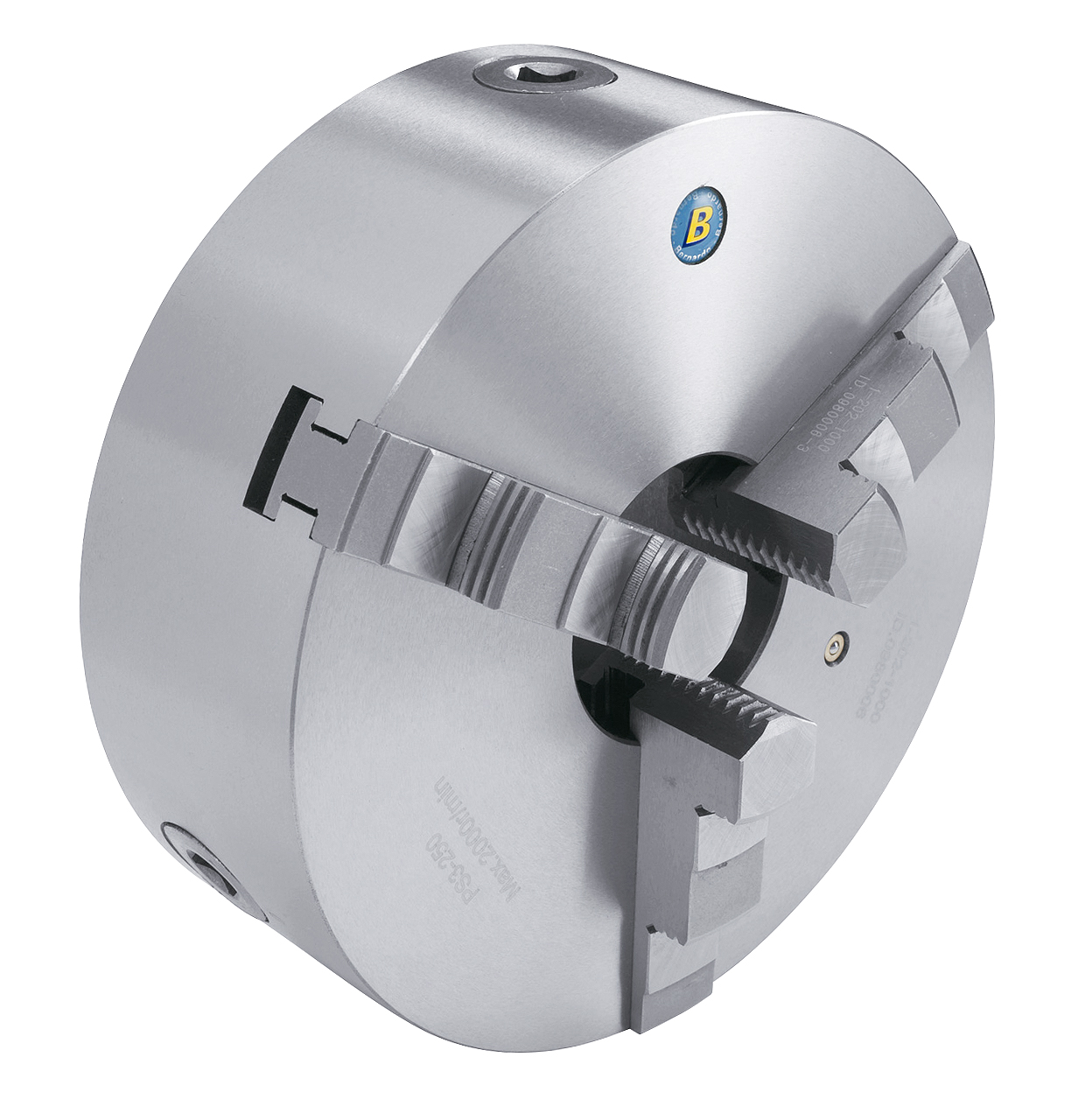

3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-315
Features 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-315
Execution:
- Standard-3-jaw chuck with high-quality cast iron body
- With centre mount according to DIN 6350
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for turning lathe and grinding machines
- For use on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

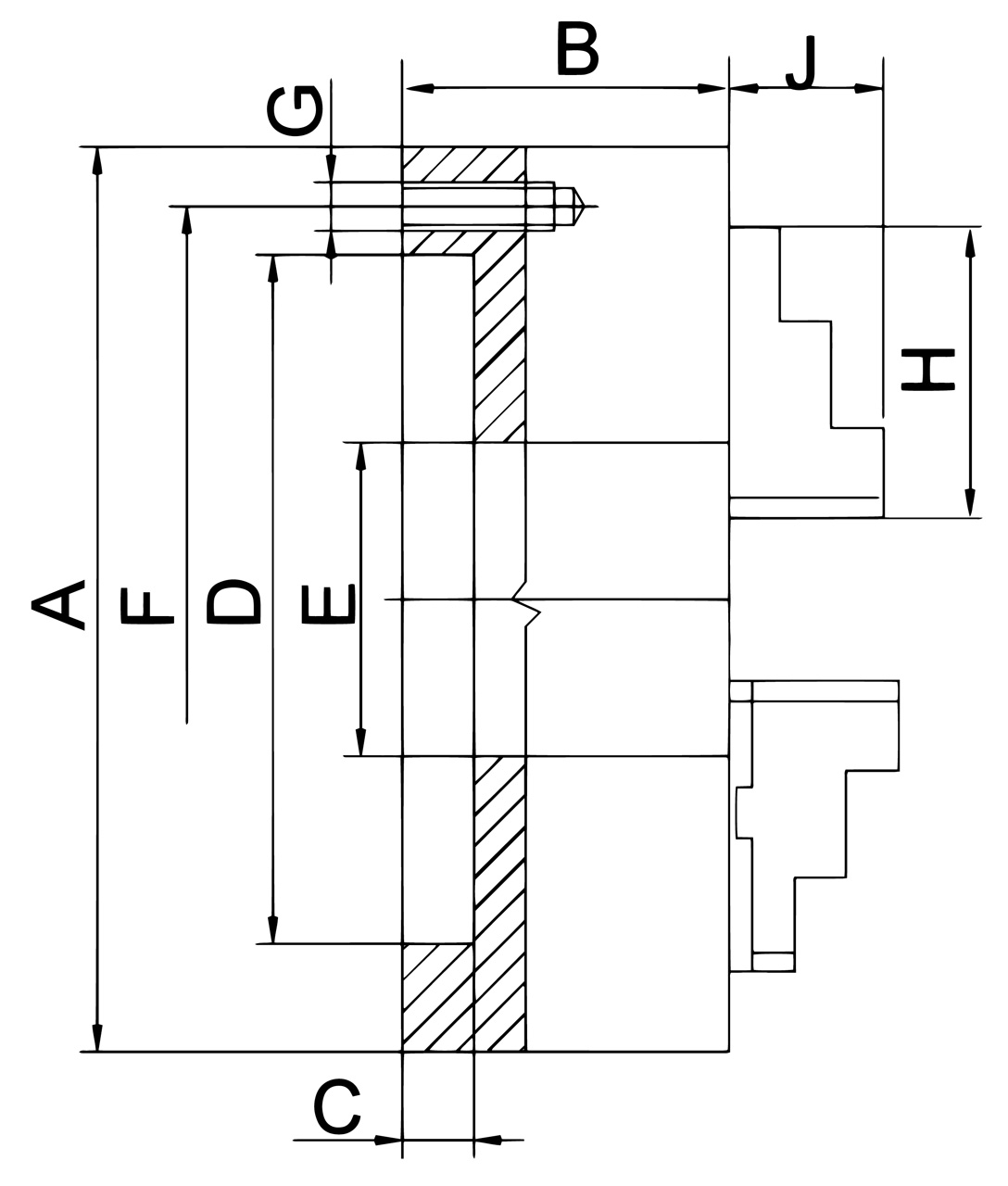

Technical details 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-315
| A- chuck size | 315 |
| B | 94 mm |
| C | 5 mm |
| D | 260 mm |
| E | 103 mm |
| F | 286 mm |
| G | M16 |
| H | 125 mm |
| J | 43 mm |
| Max. speed | 1500 rpm |
| Weight approx. | 50 kg |
