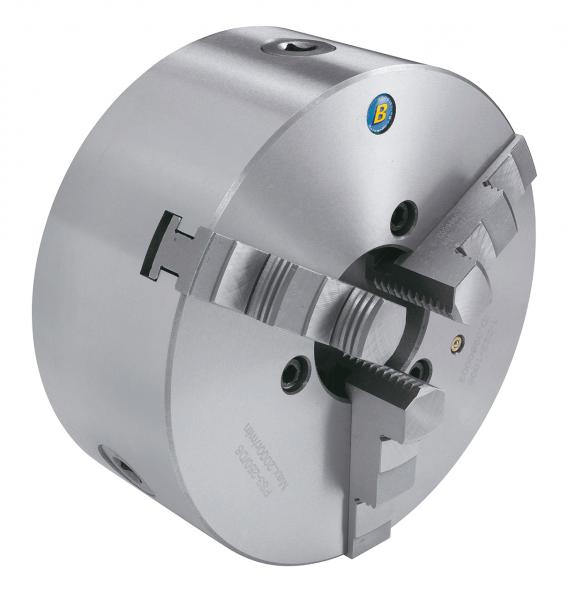

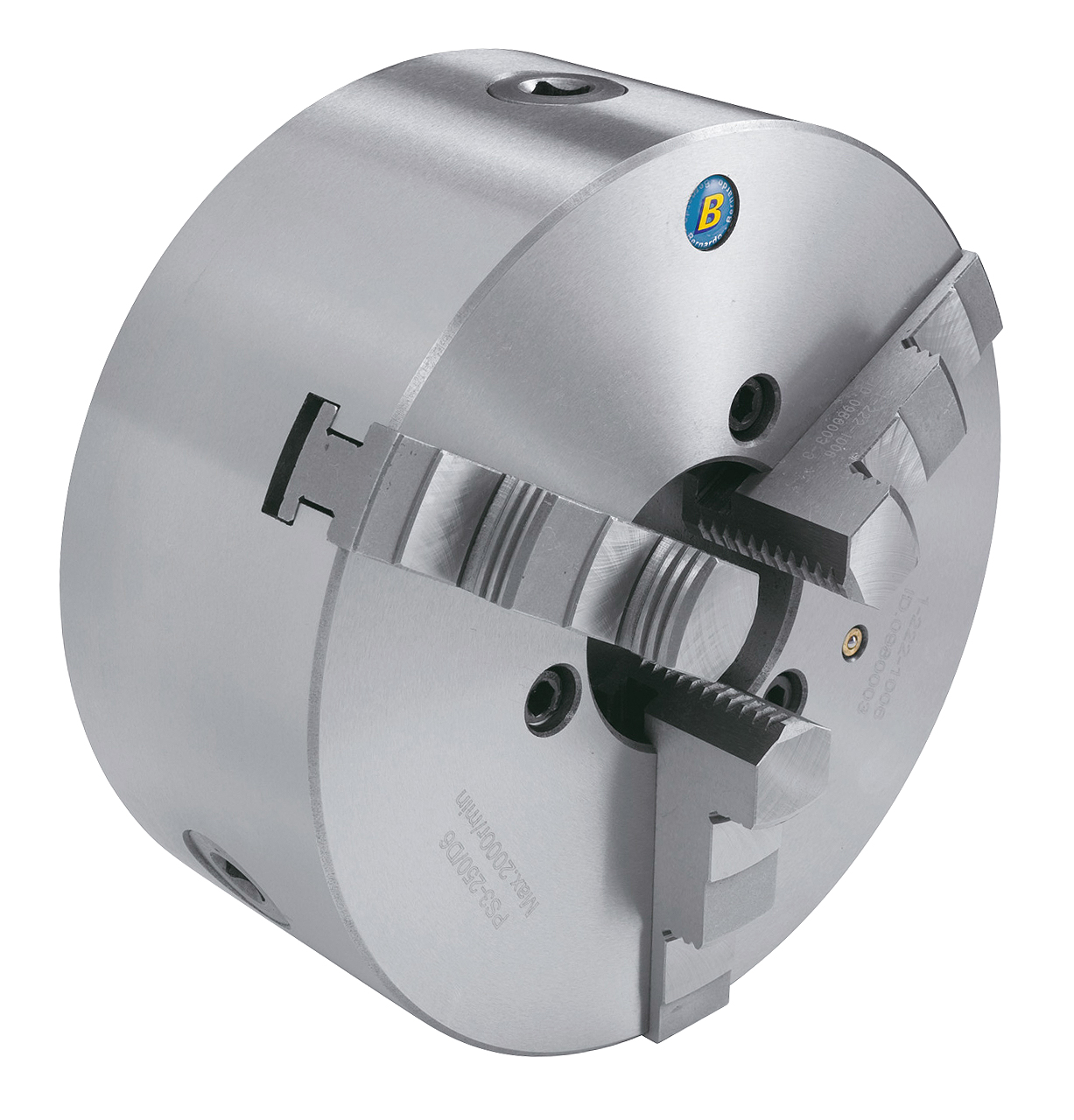

3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-250/D6
Features 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-250/D6
Execution:
- Standard-3-jaw chuck with high-quality cast iron body
- With Camlock direct mounting according to DIN 55029
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

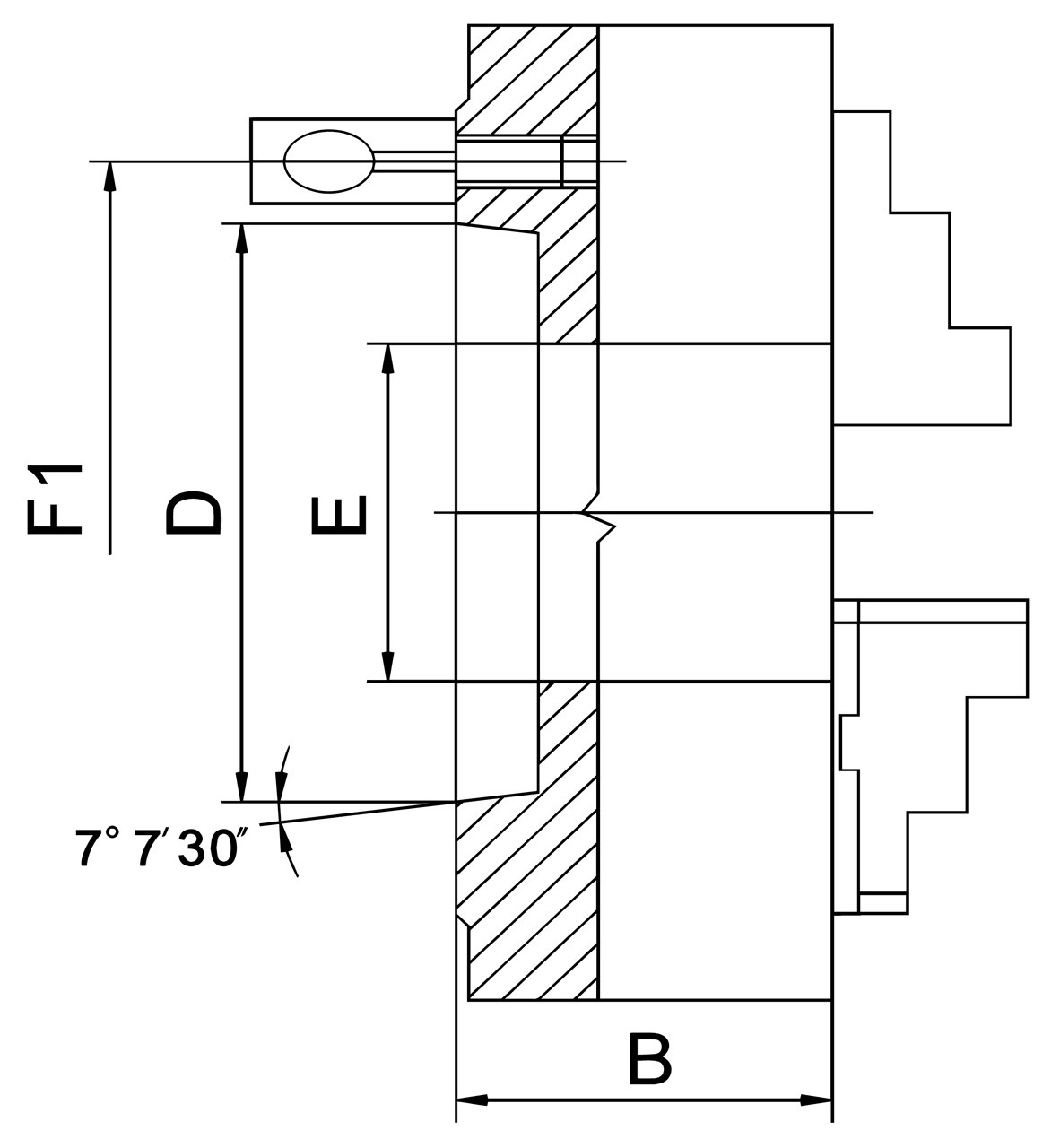

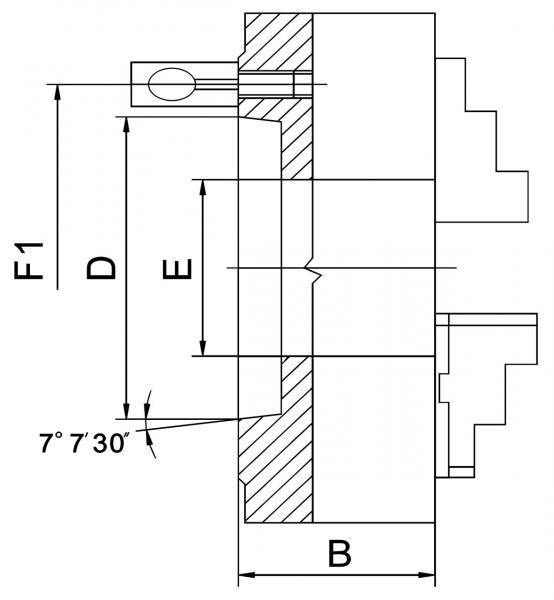

Technical details 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-250/D6
| Chuck size | 250/D6 |
| Diameter | 250 mm |
| Taper | 6 |
| B | 103,5 mm |
| D (max.) | 106,390 mm |
| E | 76 mm |
| F1 | 133,4 mm |
| Camlock stud | 6 |
| Max. speed | 2000 rpm |
| Weight approx. | 32 kg |
