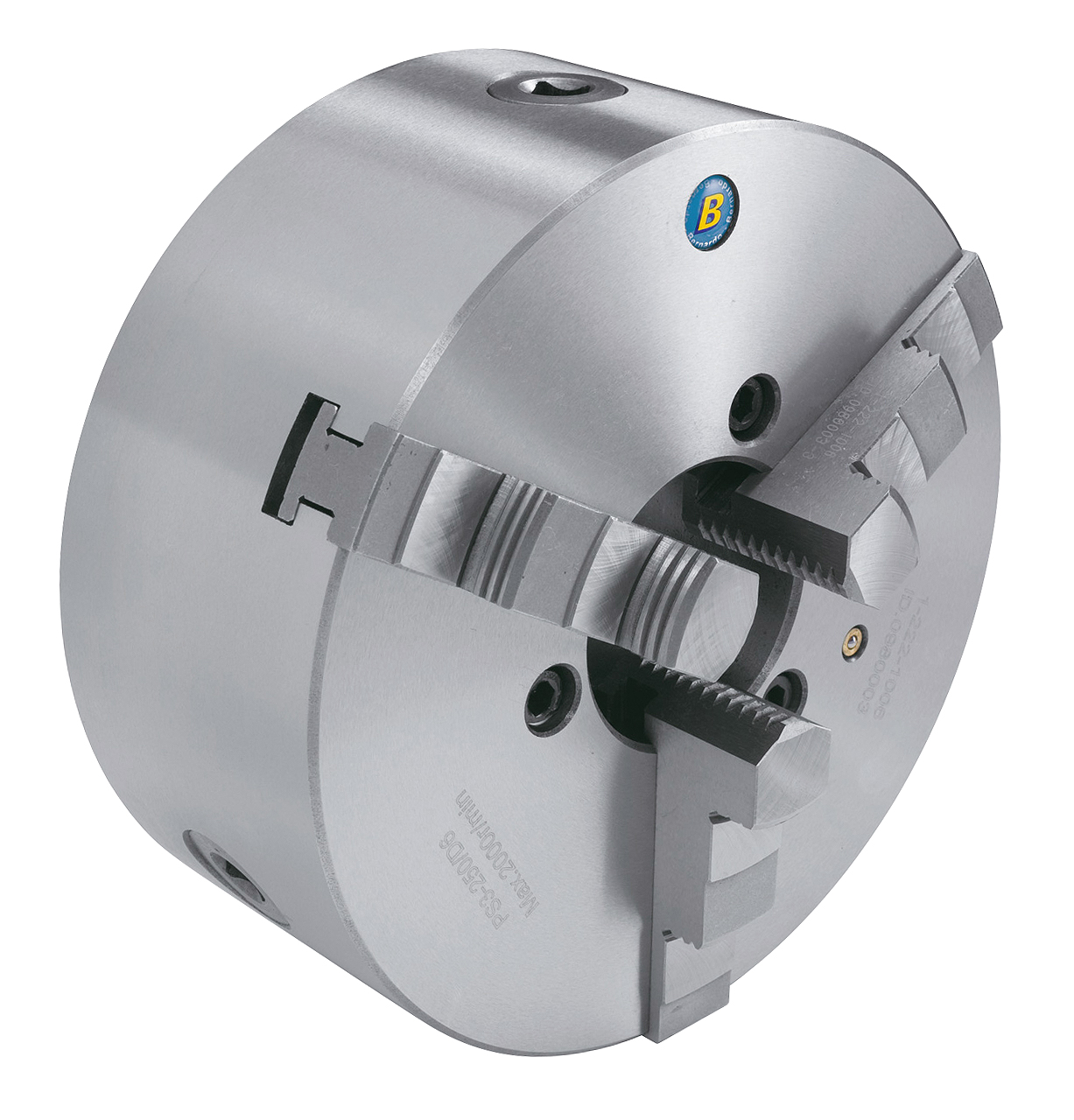

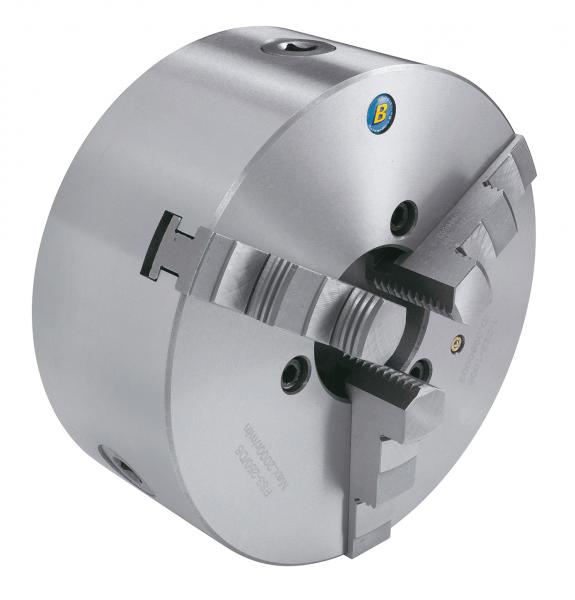

3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-160/D5
Features 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-160/D5
Execution:
- Standard-3-jaw chuck with high-quality cast iron body
- With Camlock direct mounting according to DIN 55029
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

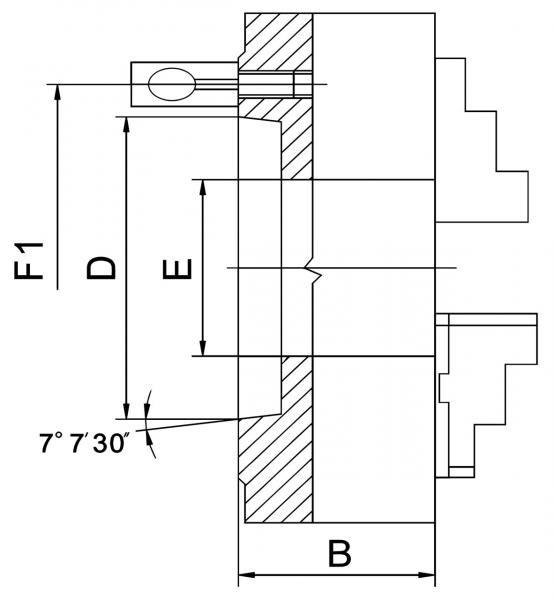

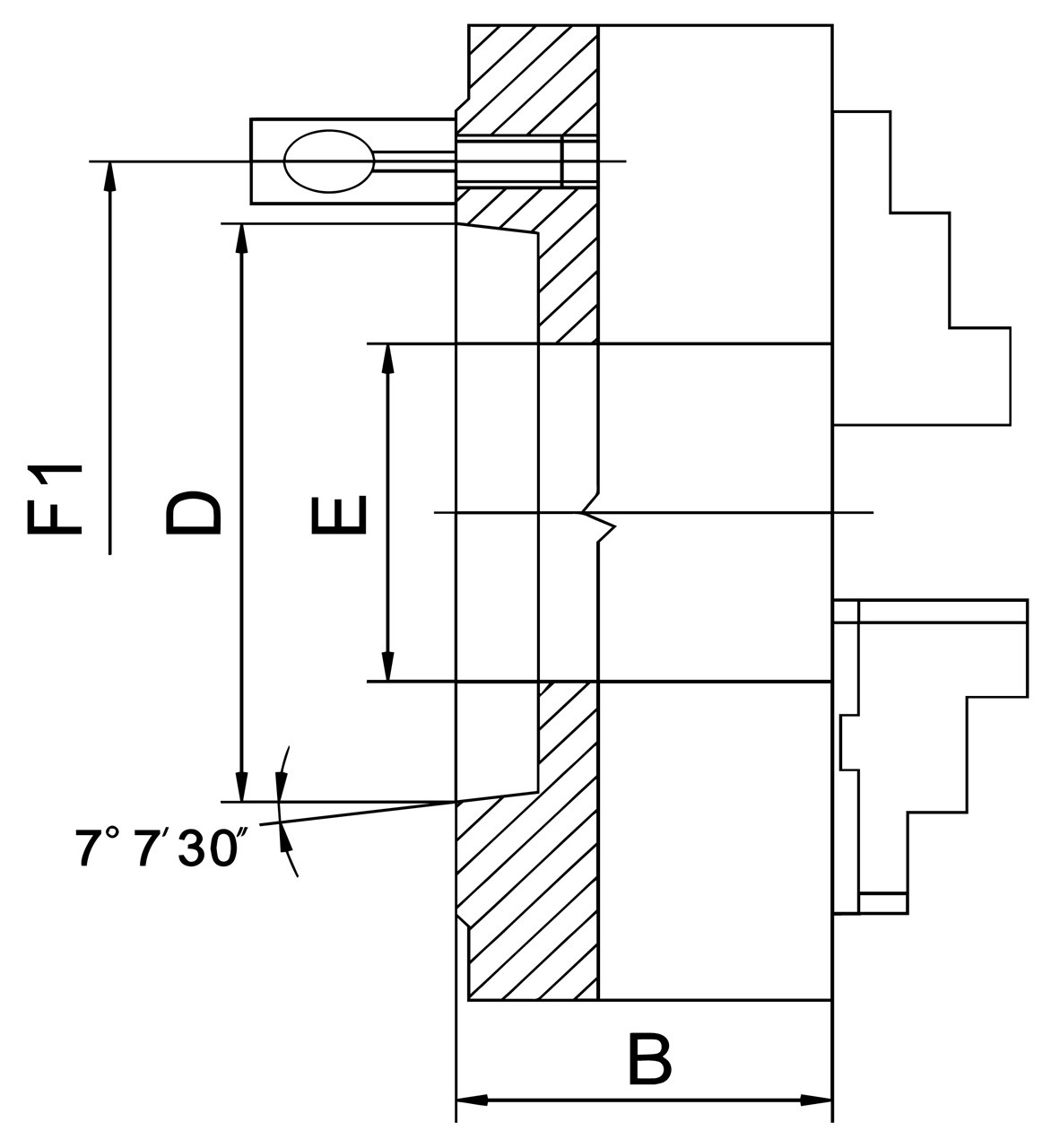

Technical details 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-160/D5
| Chuck size | 160/D5 |
| Diameter | 160 mm |
| Taper | 5 |
| B | 81,5 mm |
| D (max.) | 82,578 mm |
| E | 42 mm |
| F1 | 104,8 mm |
| Camlock stud | 6 |
| Max. speed | 3000 rpm |
| Weight approx. | 9 kg |
