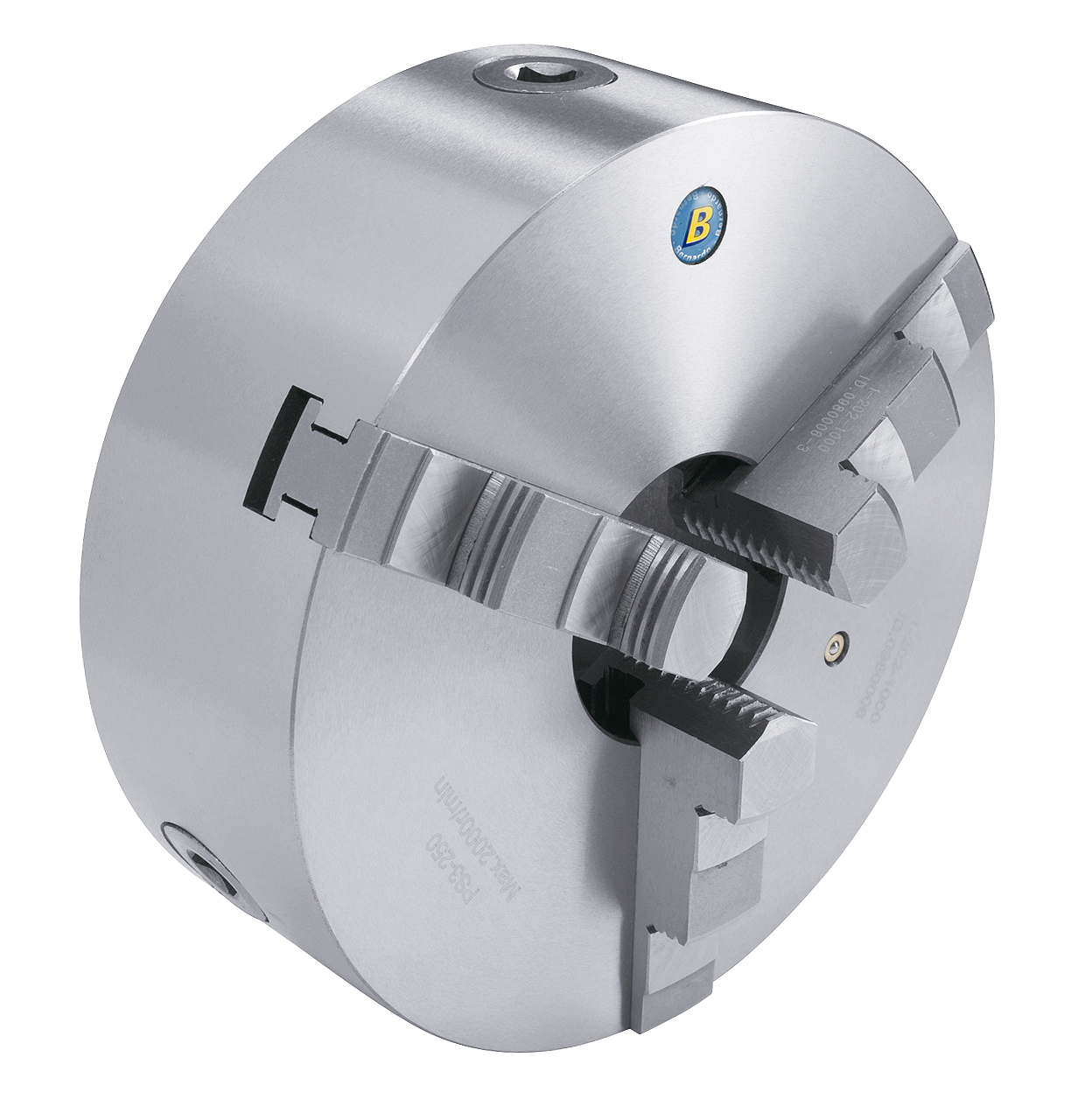

3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-125
Features 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-125
Execution:
- Standard-3-jaw chuck with high-quality cast iron body
- With centre mount according to DIN 6350
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for turning lathe and grinding machines
- For use on machines with increased concentricity
Standard accessories:
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

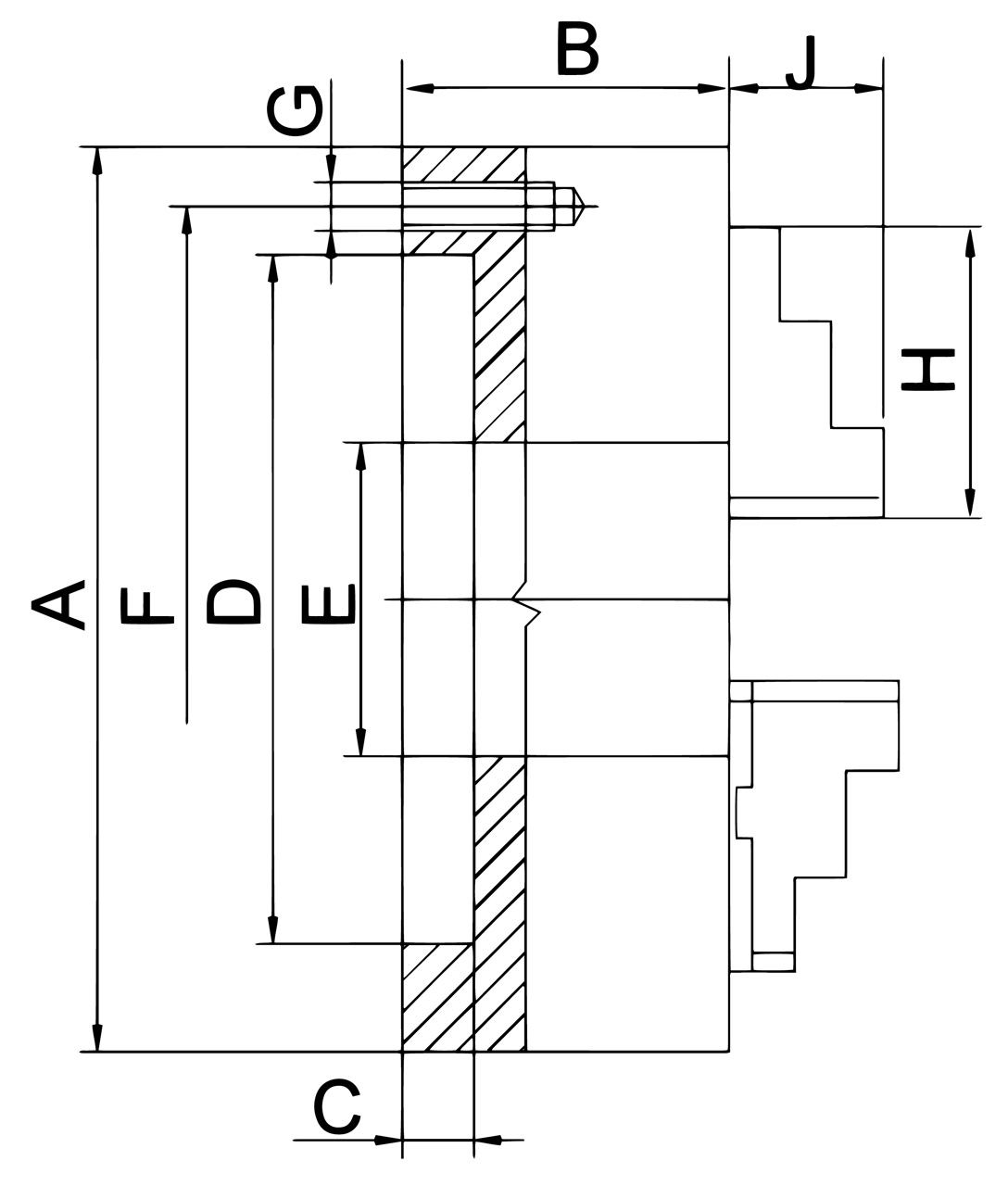

Technical details 3-jaw chuck made of cast iron Bernardo Standard 3-jaw chuck PS3-125
| A – chuck size | 125 |
| B | 56 mm |
| C | 4 mm |
| D | 95 mm |
| E | 32 mm |
| F | 108 mm |
| G | M8 |
| H | 51 mm |
| J | 20 mm |
| Max. speed | 3200 rpm |
| Weight approx. | 5 kg |
