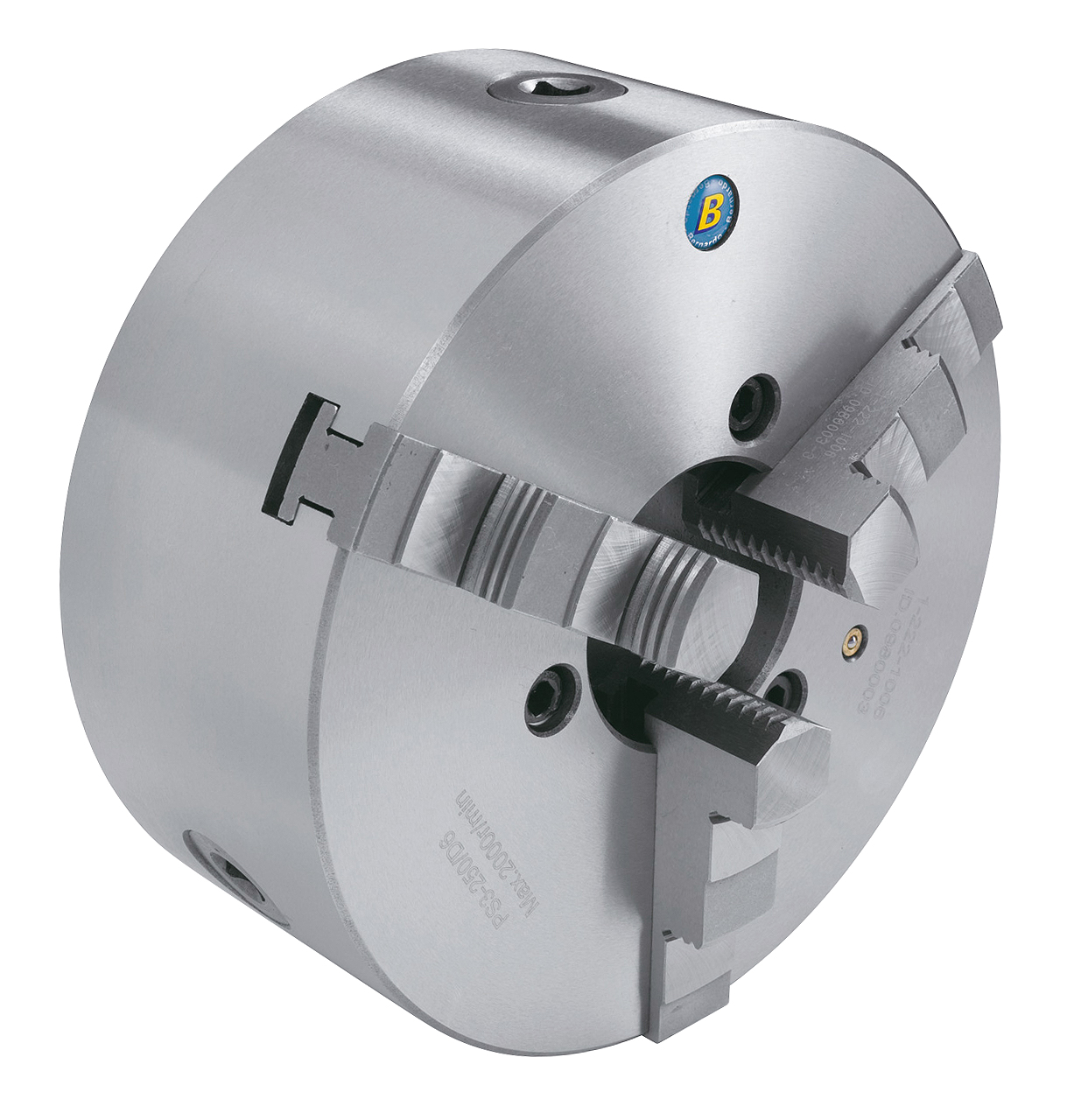

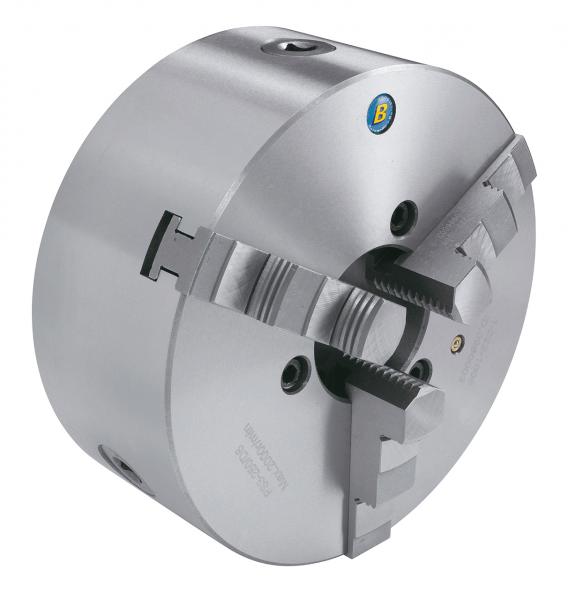

3-jaw chuck made of cast iron Bernardo Precision 3-jaw chuck PS3-125/D4
Features 3-jaw chuck made of cast iron Bernardo Precision 3-jaw chuck PS3-125/D4
Execution:
- Standard-3-jaw chuck with high-quality cast iron body
- With Camlock direct mounting according to DIN 55029
- Inclusive each 1 set hard inside and hard outside solid jaws
Application:
- Suitable for conventional turning lathes
- For use on machines with increased concentricity
Standard accessories
- 1 set hard inside solid jaws IJ-PS3
- 1 set hard outside solid jaws OJ-PS3

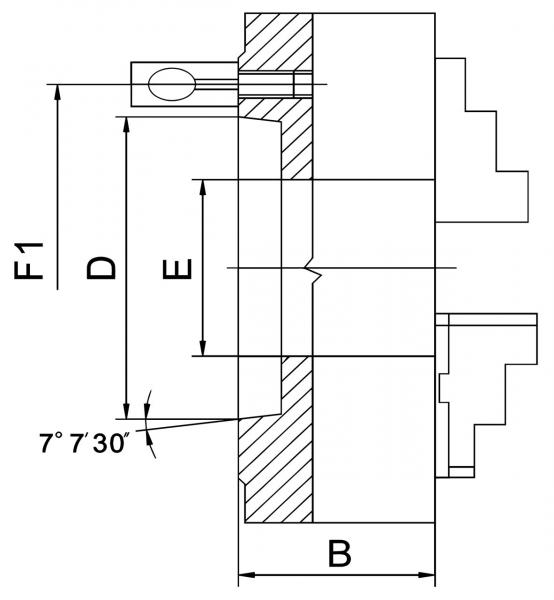

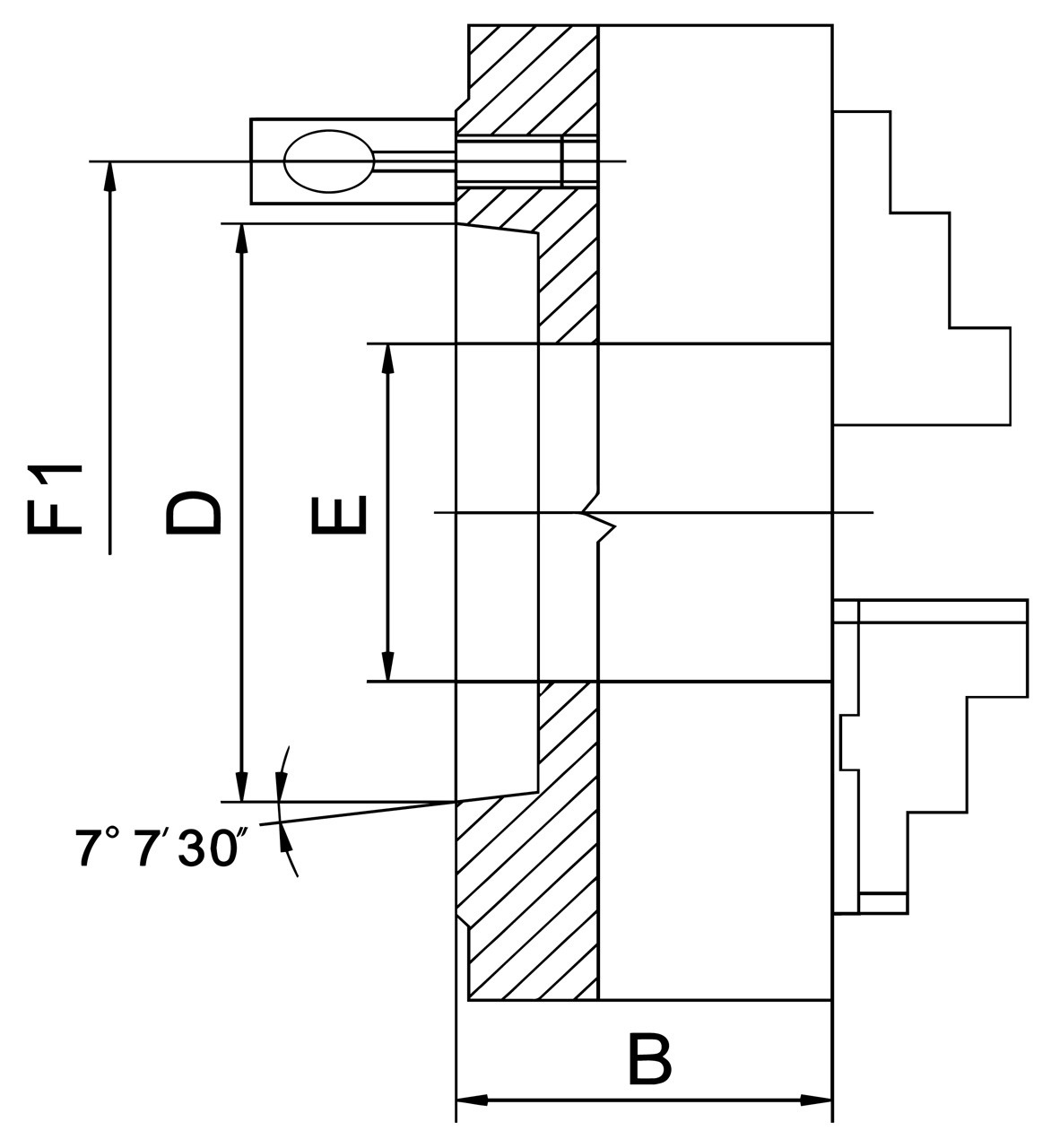

Technical details 3-jaw chuck made of cast iron Bernardo Precision 3-jaw chuck PS3-125/D4
Chuck size | 125/D4 |
Diameter | 125 mm |
Taper | 4 |
B | 70 mm |
D (max.) | 63,526 mm |
E | 32 mm |
F1 | 82,6 mm |
Camlock stud | 3 |
Max. speed | 3200 rpm |
Weight approx. | 5 kg |
